4.75 Tonne Tilting Forklift Jib – Long

4.75 Tonne Tilting Forklift Jib - Long

Code: 3001213

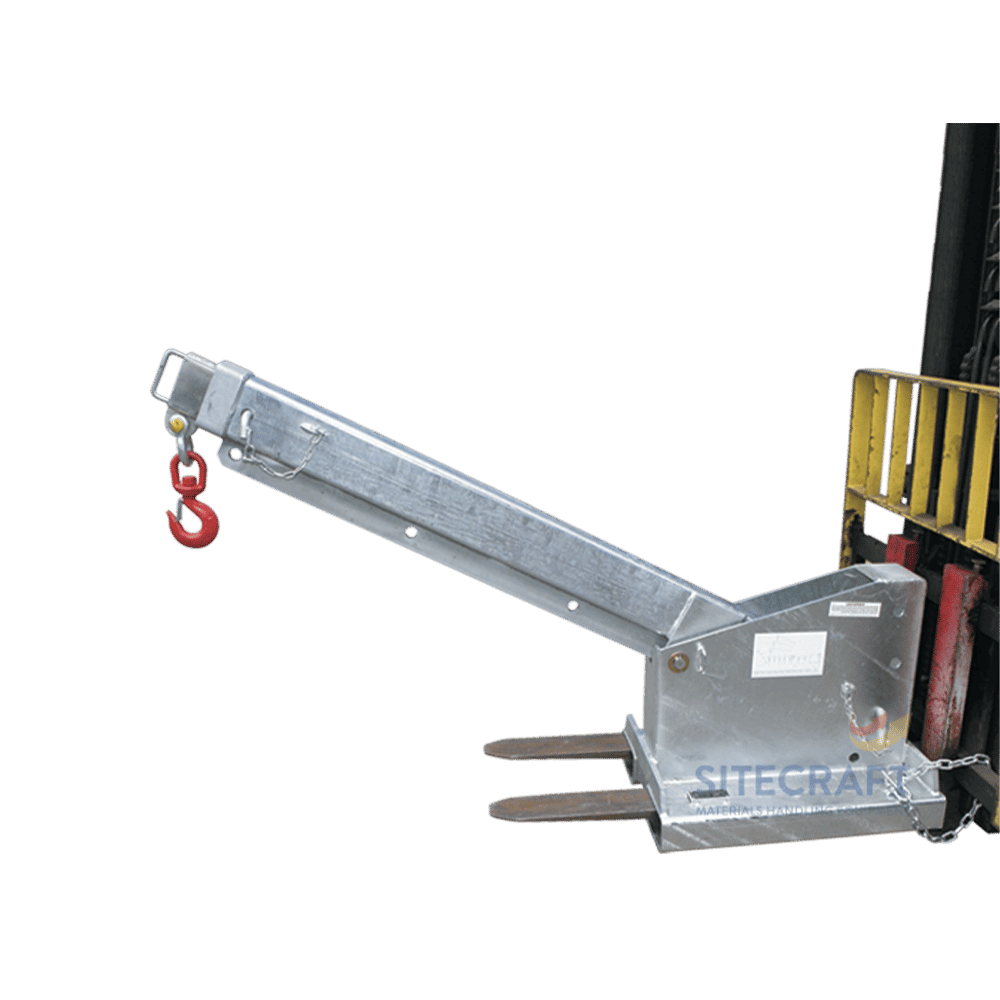

The 4.75 Tonne Tilt Jib (Long) is the most versatile Forklift Jib attachment in our range, allowing an extra height of 2.4 metres, with a 3.59 metre reach when fully extended. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.16 metres. The standard finish is Zinc.

Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities. In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Safe Working Load: (SWL) 4750kg Max
Unit Weight: 240kg
Load Centre: 1000mm
Pocket Size: 185mm x 75mm
Pocket Centres: 370 mm
Horizontal Centre of Gravity: 985mm
Vertical Centre of Gravity: 275mm

Specifications

Product Code 3001213
Product Name Long Tilting jibs
Safe Working Load (Kg) 4750

Specifications

Product Code 3001213
Product Name Long Tilting jibs
Safe Working Load (Kg) 4750
