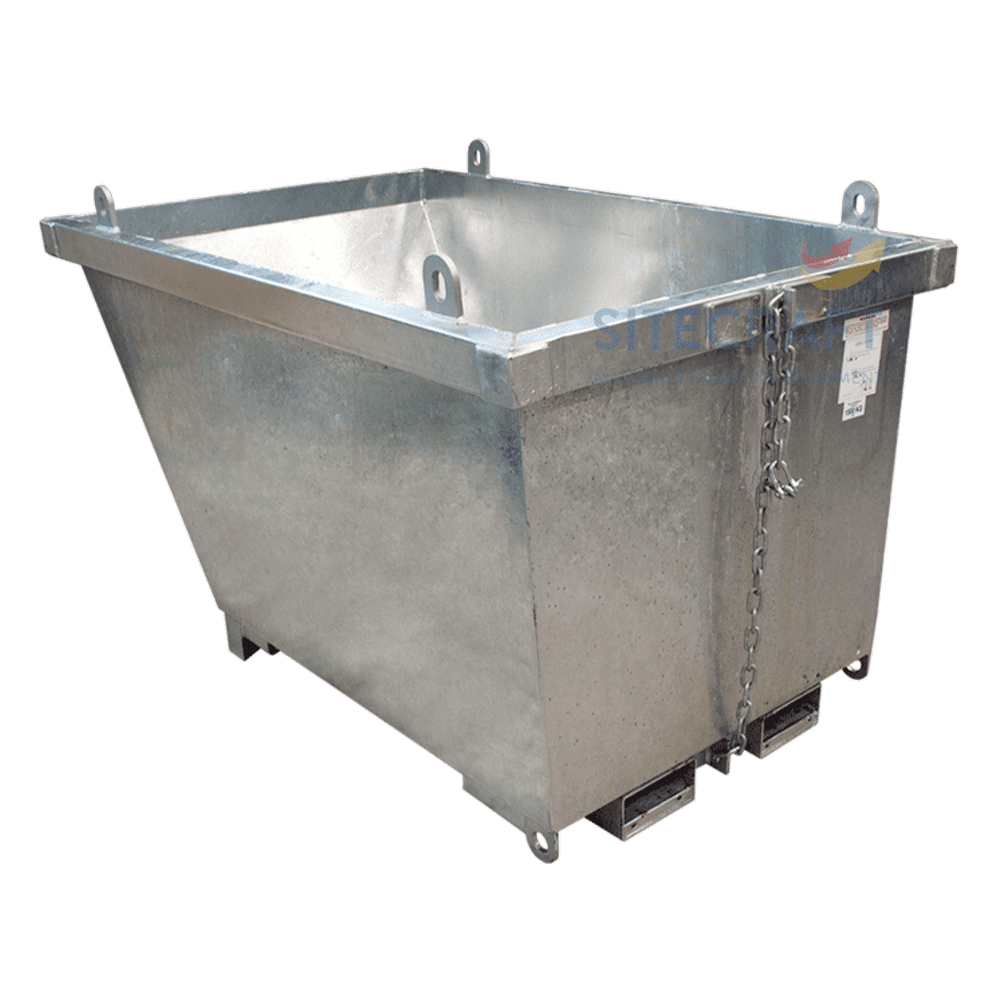

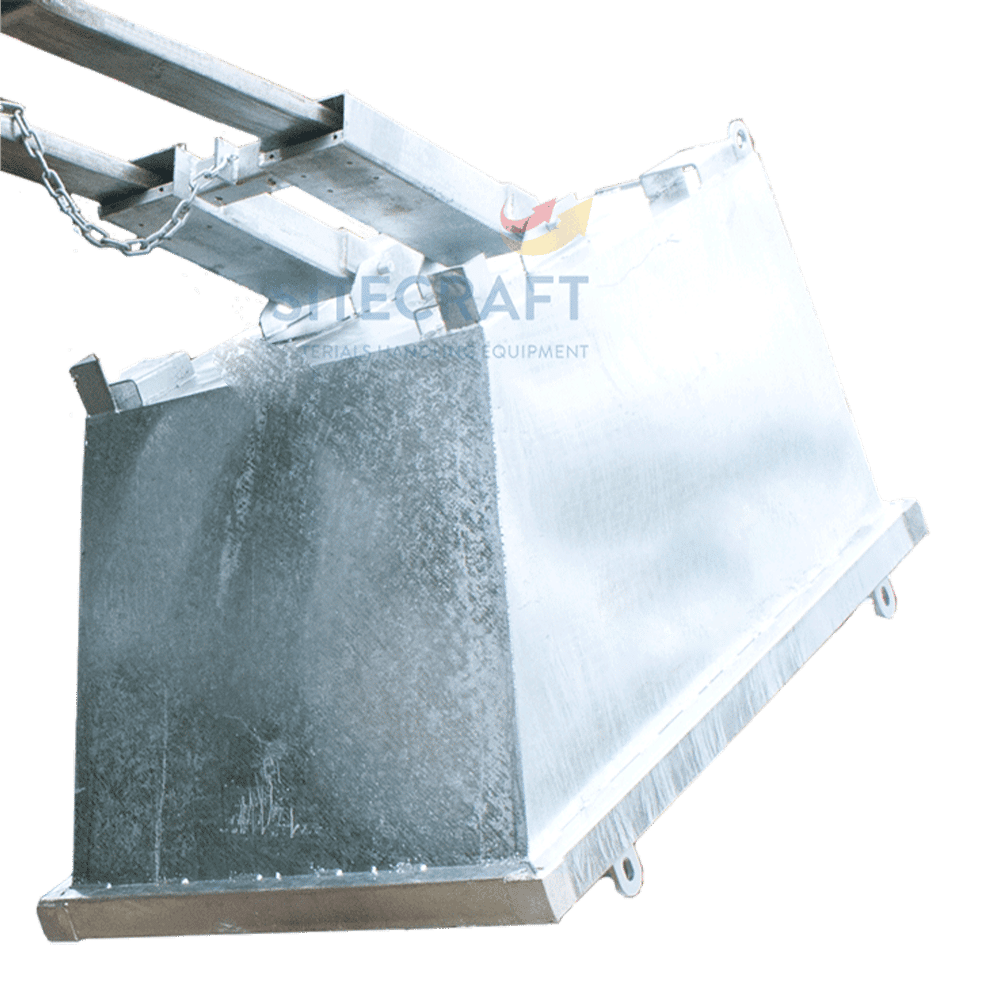

The WFH self dumping bins has been designed to provide an economical solution to collecting and disposing of industrial waste and other uses. The WFH tipping bins can self dump in the following manner. When transporting the bin to the discharge point the forklift tines are positioned fully under the bin. To empty the bin the operator catches the bin on the edge of the receiving bulk container and reverses the forklift. When the tines clear the pivot point of the bin raising the forks will permit the bin to tip giving complete discharge of the contents. Manufactured from 3mm plate and features reinforced edging, crane lifting and upending lugs, a removable drain plug and a galvanised finish. An optional wheel kit is available.
Product Code | Product Name | External Dimensions (mm) | Fork Pocket Centre (mm) | Net Weight (kg) | Price |
---|---|---|---|---|---|
3001462 | WFH Forklift Tipping Bin 0.35cu/m | 1510L x 740W x 630H  | 310  | 130  | |
3001466 | WFH Forklift Tipping Bin 0.59cu/m | 1510L x 1150W x 630H  | 695  | 155  | |
3001477 | WFH Forklift Tipping Bin 0.68cu/m | 1715L x 740W x 980H  | 310  | 165  | |
3001478 | WFH Forklift Tipping Bin 1.1cu/m | 1715L x 1150W x 980H  | 695  | 200  | |
3001479 | WFH Forklift Tipping Bin 2.1cu/m | 1715L x 1986W x 980H  | 695  | 260  |
Product Code | 3001462 |
Product Name | WFH Forklift Tipping Bin 0.35cu/m |
External Dimensions (mm) | 1510L x 740W x 630H  |
Fork Pocket Centre (mm) | 310  |
Net Weight (kg) | 130  |
Break | |
Product Code | 3001466 |
Product Name | WFH Forklift Tipping Bin 0.59cu/m |
External Dimensions (mm) | 1510L x 1150W x 630H  |
Fork Pocket Centre (mm) | 695  |
Net Weight (kg) | 155  |
Break | |
Product Code | 3001477 |
Product Name | WFH Forklift Tipping Bin 0.68cu/m |
External Dimensions (mm) | 1715L x 740W x 980H  |
Fork Pocket Centre (mm) | 310  |
Net Weight (kg) | 165  |
Break | |
Product Code | 3001478 |
Product Name | WFH Forklift Tipping Bin 1.1cu/m |
External Dimensions (mm) | 1715L x 1150W x 980H  |
Fork Pocket Centre (mm) | 695  |
Net Weight (kg) | 200  |
Break | |
Product Code | 3001479 |
Product Name | WFH Forklift Tipping Bin 2.1cu/m |
External Dimensions (mm) | 1715L x 1986W x 980H  |
Fork Pocket Centre (mm) | 695  |
Net Weight (kg) | 260  |
Break |
Product Code | 3001462 | 3001466 | 3001477 | 3001478 | 3001479 |
Product Name | WFH Forklift Tipping Bin 0.35cu/m | WFH Forklift Tipping Bin 0.59cu/m | WFH Forklift Tipping Bin 0.68cu/m | WFH Forklift Tipping Bin 1.1cu/m | WFH Forklift Tipping Bin 2.1cu/m |
External Dimensions (mm) | 1510L x 740W x 630H | 1510L x 1150W x 630H | 1715L x 740W x 980H | 1715L x 1150W x 980H | 1715L x 1986W x 980H |
Fork Pocket Centre (mm) | 310 | 695 | 310 | 695 | 695 |
Net Weight (kg) | 130 | 155 | 165 | 200 | 260 |
