36V
|
|---|---|
|
PASSENGERS
|
1
|
|
LOAD CAPACITY
|
230 Kg.
|
|
TOWING CAPACITY
|
2,720 Kg.
|
|
SPEED
|
10 Kmh
|
|
TURNING RADIUS
|
1,372 mm
|
Nimble. Narrow.
Now with 2,720Kgs
towing power.

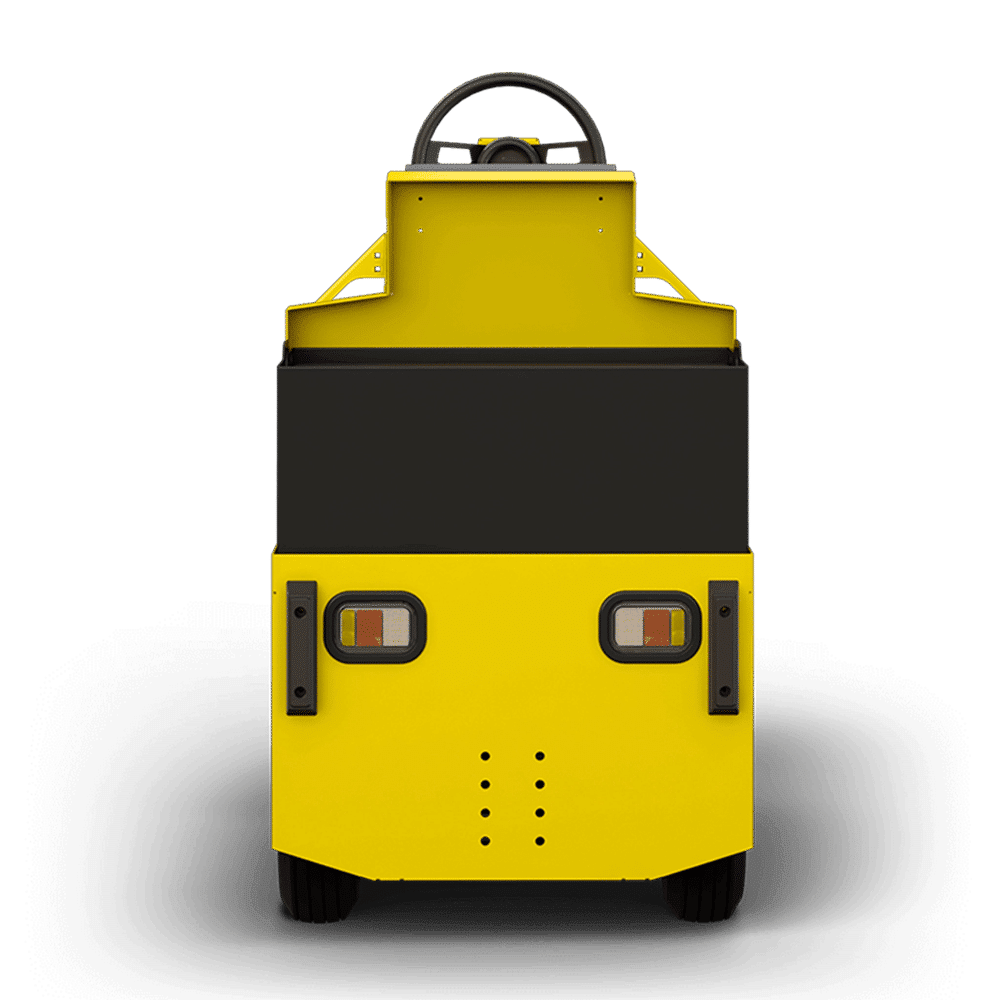

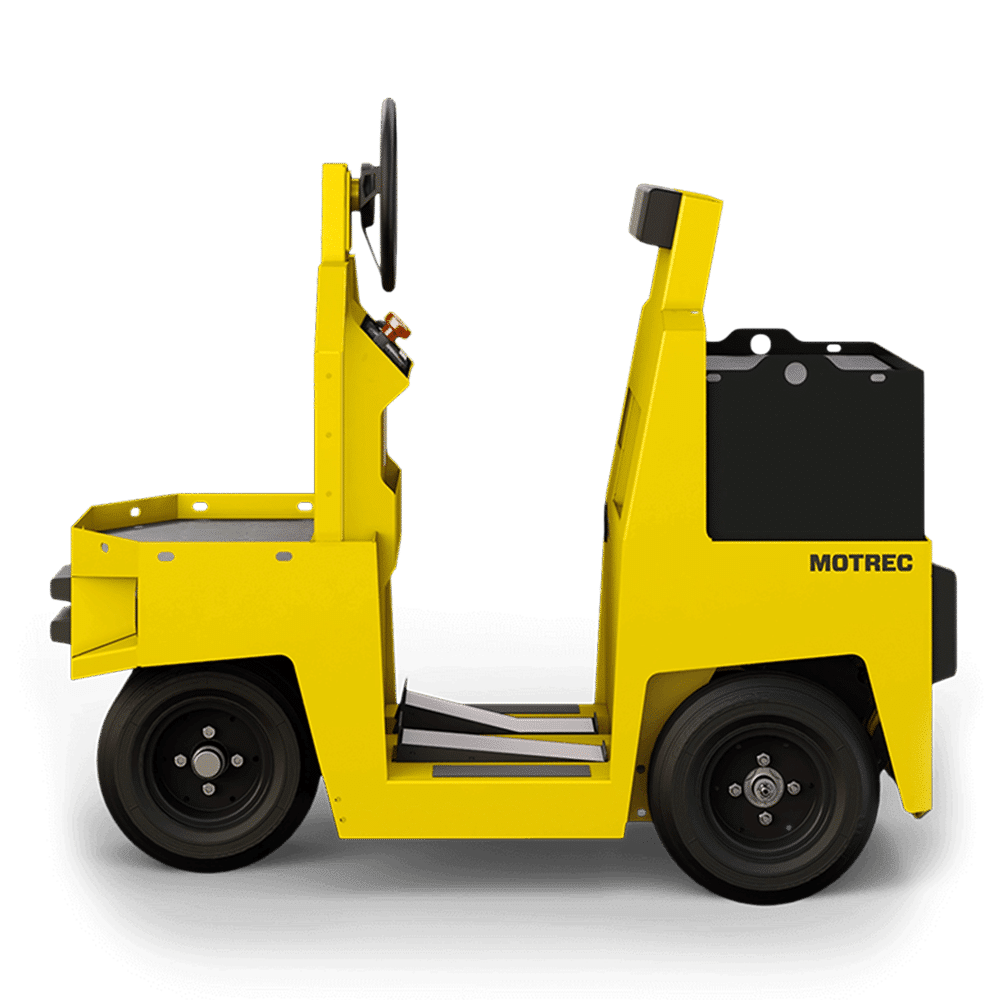

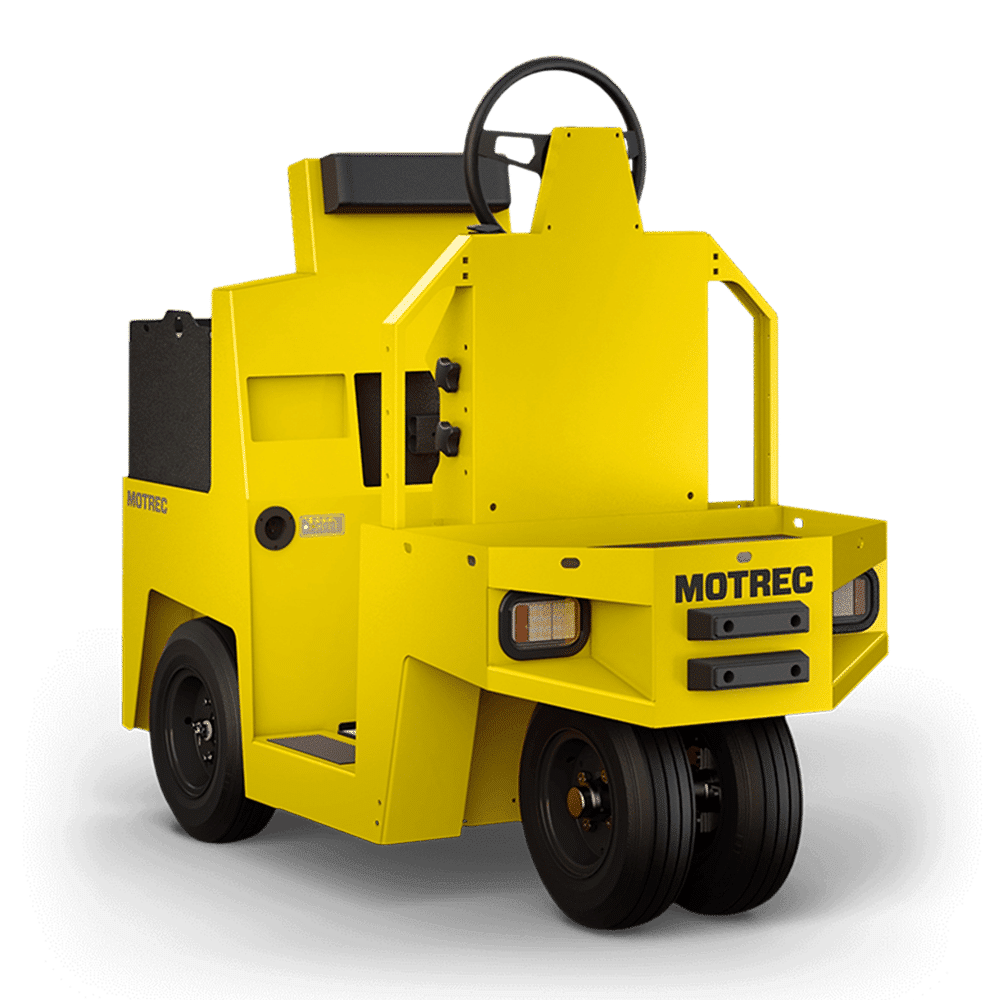

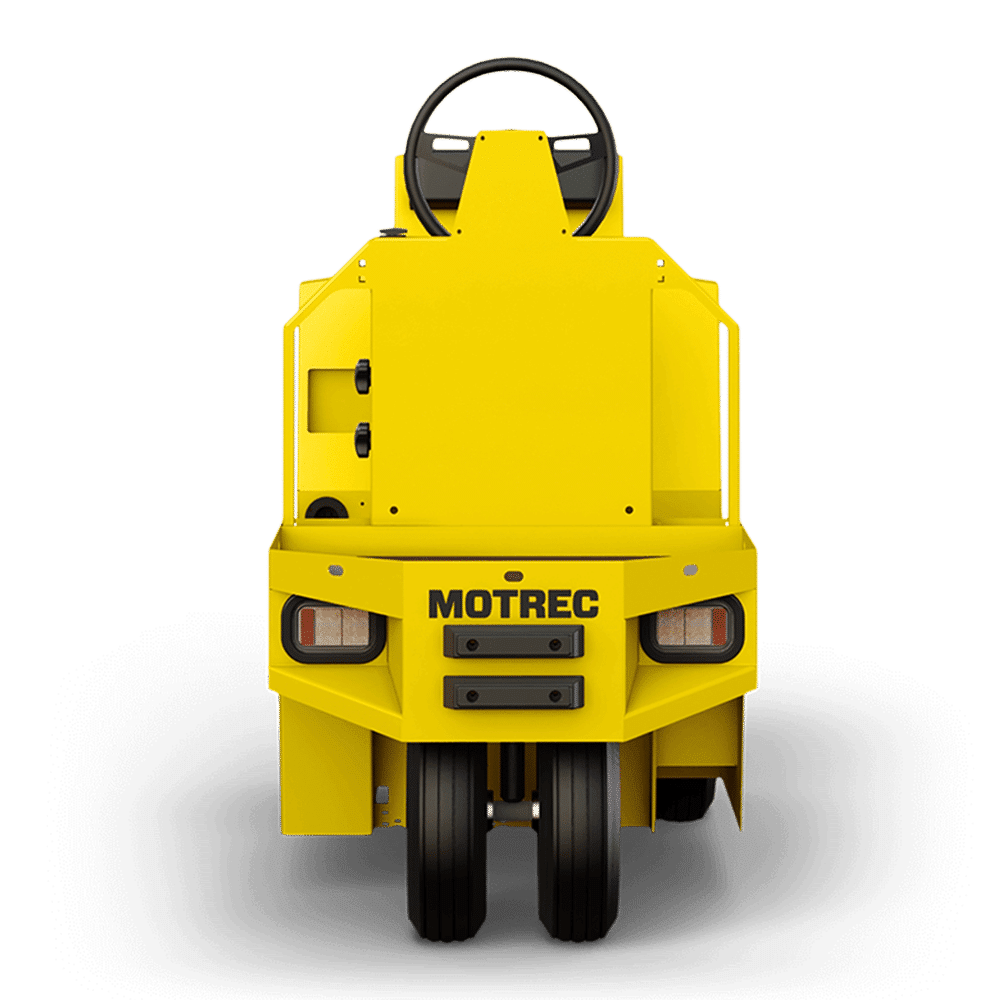

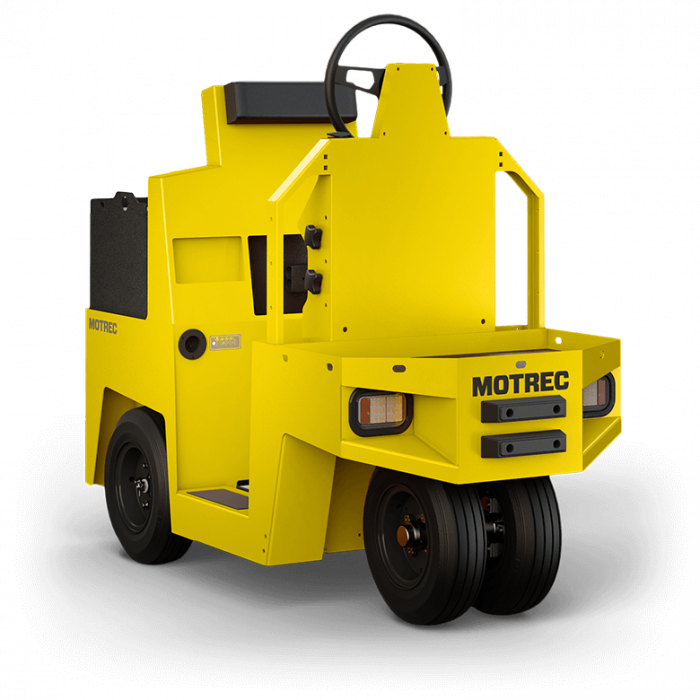

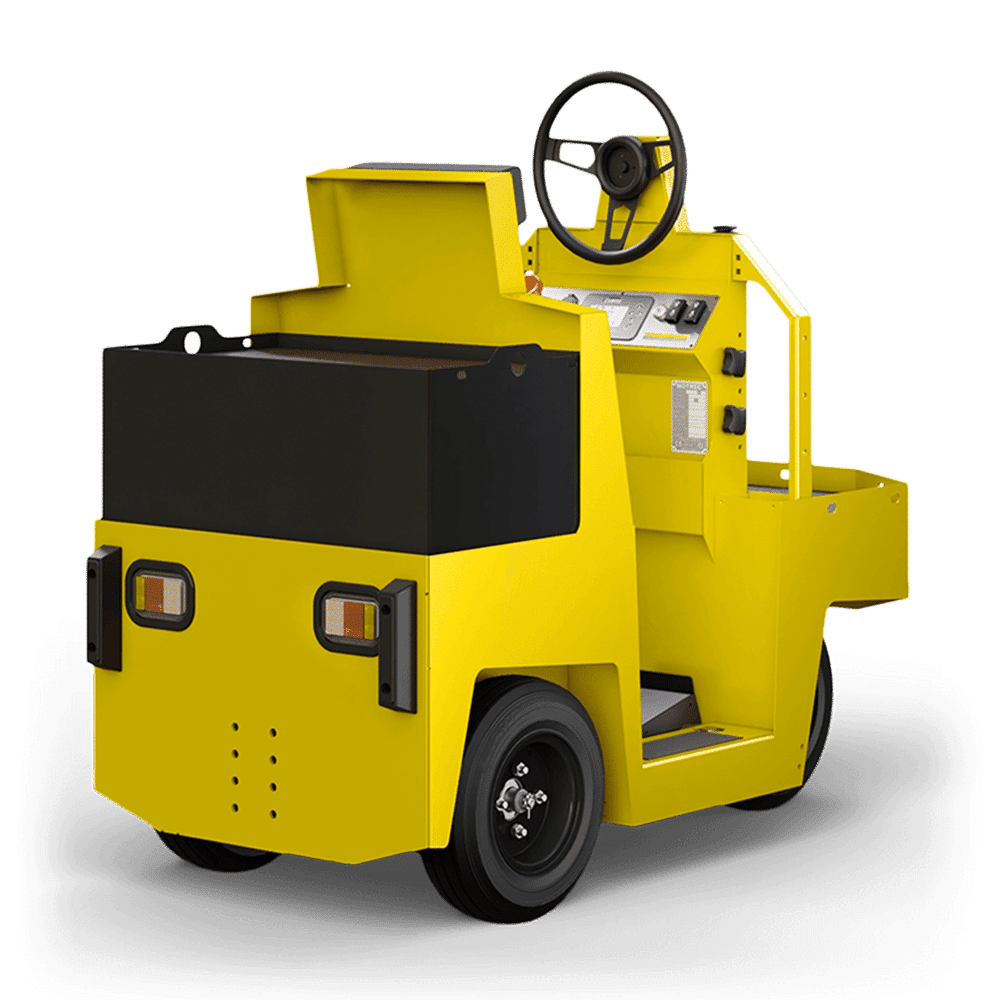

This agile 376cm wide stand-up tow tractor will safely take you and your heavy loads just about anywhere – even through narrow doorways and corridors. It’s ideal for industrial, commercial or institutional applications requiring maneuverability and up to 2,720Kg of stable towing power. It can even double as a stock chaser. Its maintenance-free AC motor will boost productivity with 50% longer runtime. Its automatic parking brake, upgraded suspension, 360° visibility, low step height and anti-fatigue mats will boost comfort and safety. All come standard.
|
MT 160 MODELS
|
Heading
|
PASSENGER
|
LOAD CAPACITY
|
TOWING CAPACITY
|
SPEED
|
TURNING RADIUS
|
|---|---|---|---|---|---|---|
|
36V
|
|
1
|
230 Kg.
|
2,720 kg.
|
10 Kmh
|
1,372 mm
|
|
48V
|
|
1
|
230 Kg.
|
2,720 kg.
|
10 Kmh
|
1,372 mm
|
|
|
48V
|
|---|---|
|
PASSENGERS
|
1
|
|
LOAD CAPACITY
|
230 Kg.
|
|
TOWING CAPACITY
|
2,720 Kg.
|
|
SPEED
|
10 Kmh
|
|
TURNING RADIUS
|
1,372 mm
|
Previous
Next
|
SPECIFICATIONS
|
36V
|
48V
|
|---|---|---|
|
|
|
|
|
POWERTRAIN
|
||
|
Mortor
|
10 HP brushless AC motor
|
15 HP brushless AC motor
|
|
Drive Axle
|
Helical gear differential
|
Helical gear differential
|
|
Transmission
|
Direct drive
|
Direct drive
|
|
Controller
|
Electronic AC speed controller
|
Electronic AC speed controller
|
|
ENERGY
|
||
|
Voltage
|
36V
|
48V
|
|
Battery
|
Six 6V-225AH batteries
|
48V TPPL battery pack, 157AH
|
|
Charger
|
High-frequency
(85-265VAC / 45-65Hz, 1kw),
built-in and automatic
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
|
|
CHASSIS
|
||
|
Body
|
All-steel unibody construction
|
All-steel unibody construction
|
|
Suspension
|

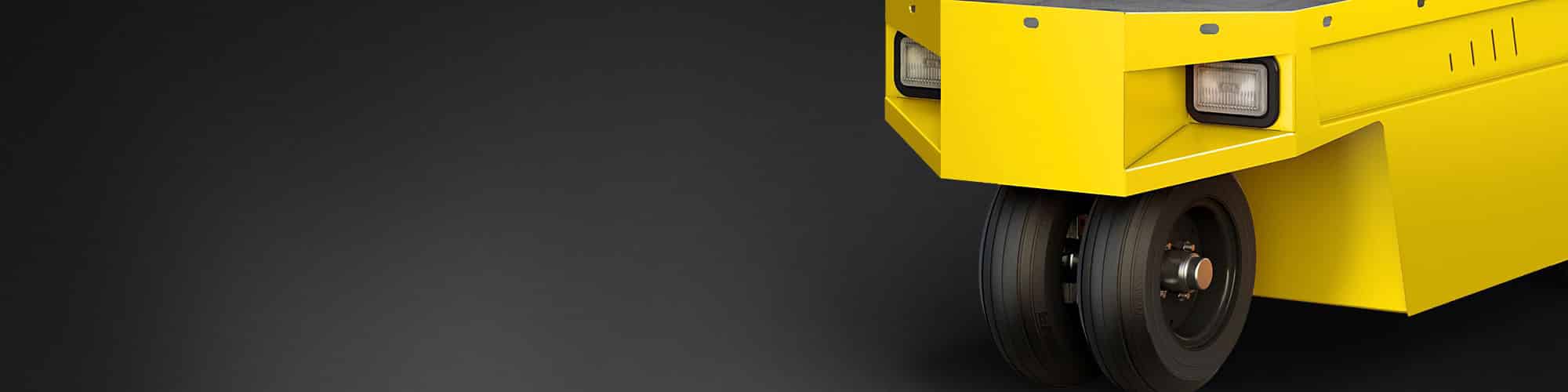

Leaf springs rear suspension system, dual front wheels to ensure the stability
|
Leaf springs rear suspension system, dual front wheels to ensure the stability
|
|
Brakes
|
Self-adjusting H.D. drum brake, Regenerative braking, electromagnetic parking brake
|
Self-adjusting H.D. drum brake, Regenerative braking, electromagnetic parking brake
|
|
Wheels
|
4.8x8 LRC pneumatic tyres
|
4.8x8 LRC pneumatic tyres
|
|
Steering
|
Automotive steering wheel
|
Automotive steering wheel
|
|
Seats
|
Padded backrest
|
Padded backrest
|
|
EQUIPMENT
|
||
|
Lights
|
Dual LED headlights & tail/brake lights
|
Dual LED headlights & tail/brake lights
|
|
Indicators
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
|
Accessories
|
36V accessories
|
48V accessories
|
|
Safety
|
Reverse Alarm, Deadman Foot Switch, Emergency Stop Button, Horn, jam-free pedal, anti-fatigue mat, anti-slip griptape, charging interlock switch
|
Reverse Alarm, Deadman Foot Switch, Emergency Stop Button, Horn, jam-free pedal, anti-fatigue mat, anti-slip griptape, charging interlock switch
|
|
DIMENSIONS
|
||
|
VEHICLE
|
||
|
Weight
|
|
|
|
Height
|
1,390 mm
|
1,390 mm
|
|
Length
|
1,570 mm
|
1,570 mm
|
|
Width
|
760 mm
|
760 mm
|
|
Wheel Base
|
970 mm
|
970 mm
|
|
DECK
|
||
|
Deck Height
|
640 mm
|
640 mm
|
|
Deck Length
|
460 mm
|
460 mm
|
|
Deck Width
|
760 mm
|
760 mm
|
|
BATTERY
|
||
|
Battery Weight
|
|
|
|
Battery Height
|
380 mm
|
380 mm
|
|
Battery Length
|
750 mm
|
750 mm
|
|
Battery Width
|
450 mm
|
450 mm
|
|
|
|
|---|---|
|
|
|
|
POWERTRAIN
|
|
|
Motor
|
|
|
36V
|
10 HP brushless AC motor
|
|
48V
|
15 HP brushless AC motor
|
|
Drive Axle
|
|
|
36V
|
Helical gear differential
|
|
48V
|
Helical gear differential
|
|
Transmission
|
|
|
36V
|
Direct drive
|
|
48V
|
Direct drive
|
|
Controller
|
|
|
36V
|
Electronic AC speed controller
|
|
48V
|
Electronic AC speed controller
|
|
ENERGY
|
|
|
Voltage
|
|
|
36V
|
36V
|
|
48V
|
48V
|
|
Battery
|
|
|
36V
|
Six 6V-225AH batteries
|
|
48V
|
48V TPPL battery pack, 157AH
|
|
Charger
|
|
|
36V
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
|
|
48V
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
|
|
CHASSIS
|
|
|
Body
|
|
|
36V
|
All-steel unibody construction
|
|
48V
|
All-steel unibody construction
|
|
Suspension
|
|
|
36V
|
Leaf springs rear suspension system, dual front wheels to ensure the stability
|
|
48V
|
Leaf springs rear suspension system, dual front wheels to ensure the stability
|
|
Brakes
|
|
|
36V
|
Self-adjusting H.D. drum brake, Regenerative braking, electromagnetic parking brake
|
|
48V
|
Self-adjusting H.D. drum brake, Regenerative braking, electromagnetic parking brake
|
|
Wheels
|
|
|
36V
|
4.8x8 LRC pneumatic tyres
|
|
48V
|
4.8x8 LRC pneumatic tyres
|
|
Steering
|
|
|
36V
|
Automotive steering wheel
|
|
48V
|
Automotive steering wheel
|
|
Seats
|
|
|
36V
|
Padded backrest
|
|
48V
|
Padded backrest
|
|
EQUIPMENT
|
|
|
Lights
|
|
|
36V
|
Dual LED headlights & tail/brake lights
|
|
48V
|
Dual LED headlights & tail/brake lights
|
|
Indicators
|
|
|
36V
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
|
48V
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
|
Accessories
|
|
|
36V
|
36V accessories
|
|
48V
|
48V accessories
|
|
Safety
|
|
|
36V
|
Reverse Alarm, Deadman Foot Switch, Emergency Stop Button, Horn, jam-free pedal, anti-fatigue mat, anti-slip griptape, charging interlock switch
|
|
48V
|
Reverse Alarm, Deadman Foot Switch, Emergency Stop Button, Horn, jam-free pedal, anti-fatigue mat, anti-slip griptape, charging interlock switch
|
|
|
|
|---|---|
|
|
|
|
VEHICLE
|
|
|
Weight
|
|
|
36V
|
|
|
48V
|
|
|
Height
|
|
|
36V
|
1,390 mm
|
|
48V
|
1,390 mm
|
|
Length
|
|
|
36V
|
1,570 mm
|
|
48V
|
1,570 mm
|
|
Width
|
|
|
36V
|
760 mm
|
|
48V
|
760 mm
|
|
Wheel Base
|
|
|
36V
|
970 mm
|
|
48V
|
970 mm
|
|
DECK
|
|
|
Deck Height
|
|
|
36V
|
640 mm
|
|
48V
|
640 mm
|
|
Deck Length
|
|
|
36V
|
460 mm
|
|
48V
|
460 mm
|
|
Deck Width
|
|
|
36V
|
760 mm
|
|
48V
|
760 mm
|
|
BATTERY
|
|
|
Battery Weight
|
|
|
36V
|
|
|
48V
|
|
|
Battery Height
|
|
|
36V
|
380 mm
|
|
48V
|
380 mm
|
|
Battery Length
|
|
|
36V
|
750 mm
|
|
48V
|
750 mm
|
|
Battery Width
|
|
|
36V
|
450 mm
|
|
48V
|
450 mm
|
Specifications and standard equipment are subject to change without notice.
