Precise hitching just got easier.

MT-350

VEHICLE TYPE
TOW TRACTOR

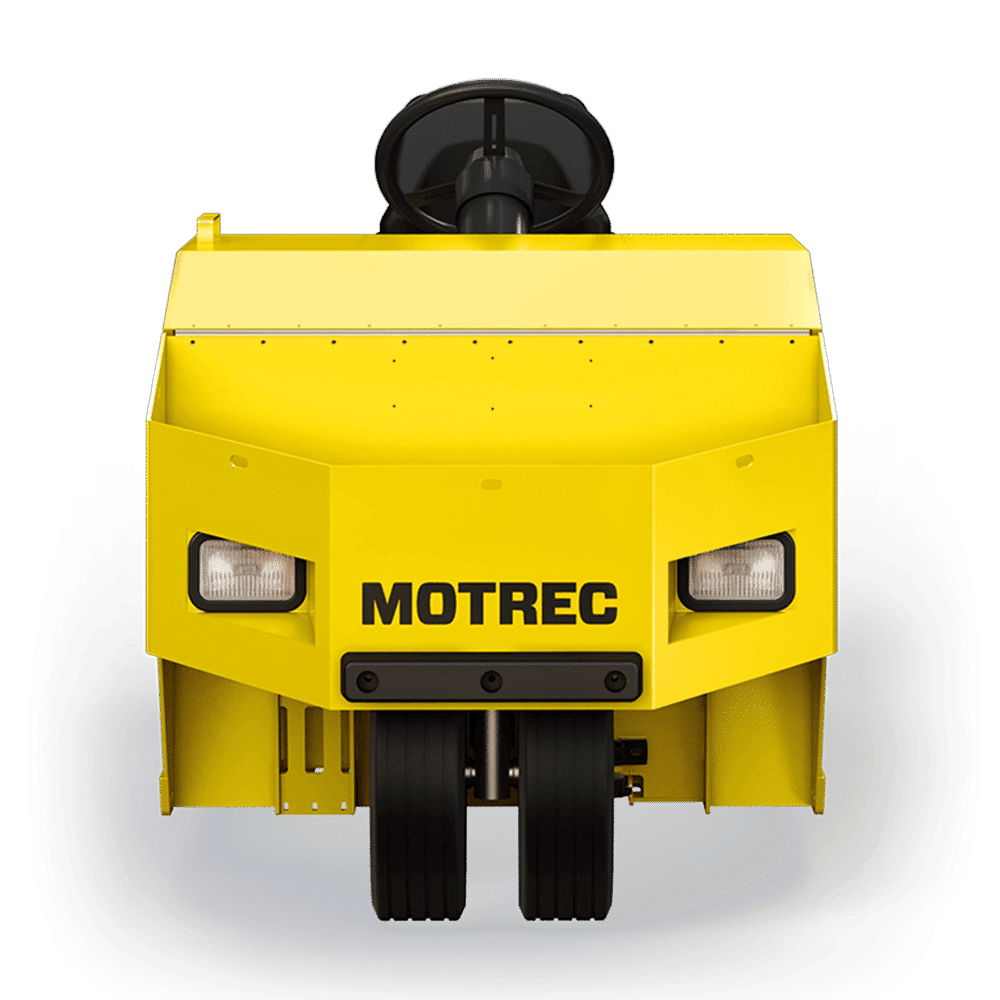

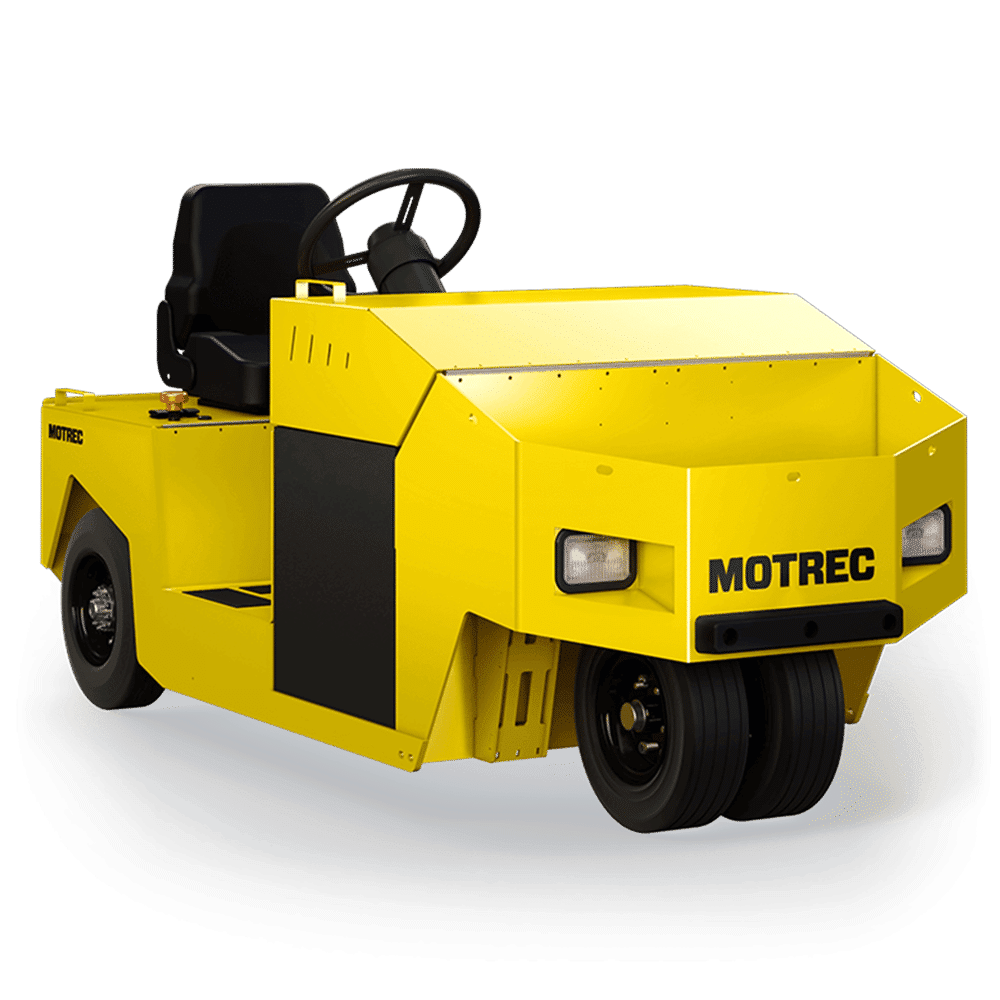

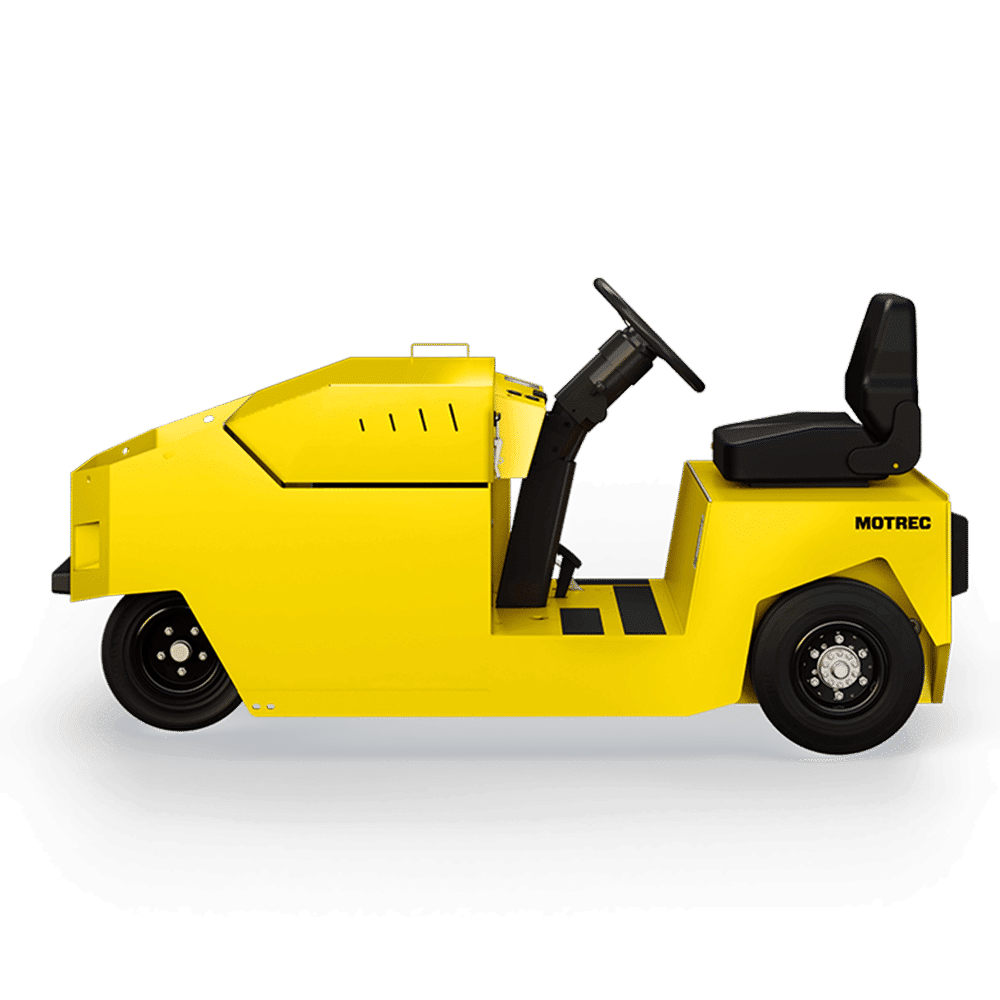

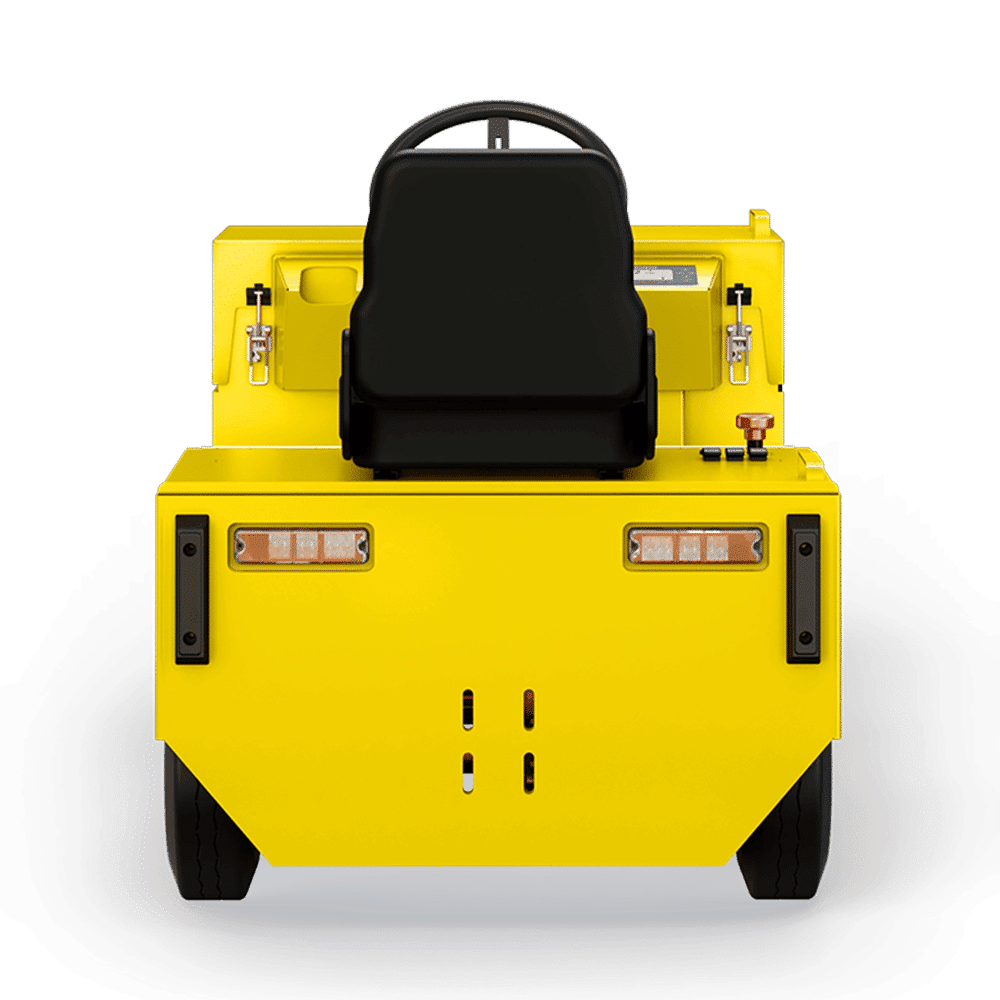

We’ve redesigned our hardworking tow tractor to make precision hitching safer and easier than ever – even when working with multiple trailers. Sure, the MT-350 is still a rugged, low-to-the-ground AC-powered vehicle boasting up to 9,070 Kg. towing capacity and our signature recessed dual headlights. But now it also has a central driving position that puts the rear hitch and all driver controls within easy sight and reach. Other new standard features? Dust- and water-proof electrical components, vastly upgraded differential and steering, leaf springs rear suspension, and more. Popular options include a light bar with LED lights, front/back bright blue vehicle-approaching lights, full wrap-around protection bumper, and an extra-robust unhooking lever. EE rating available.

MT 350 MODELS	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
36V	1	230 Kg.	7,250 kg.	12.8 Kmh	2,060 mm
48V	1	230 Kg.	7,250 kg.	12.8 Kmh	2,060 mm
48V HD	1	230 Kg.	9,070 kg.	12.8 Kmh	2,060 mm

MT 350 MODELS	36V
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	7,250 kg.
SPEED	12.8 Kmh
TURNING RADIUS	2.06 m

MT 350 MODELS	48V
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	7,250 kg.
SPEED	12.8 Kmh
TURNING RADIUS	2.06 m

MT 350 MODELS	48V HD
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	9,070 kg.
SPEED	12.8 Kmh
TURNING RADIUS	2.06 m

AC POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.

Image are for illustrative purposes only

CONTROLLER

AC controller with sealed connectors paired with multifunction display Allows
for precise speed control for greater safety and vehicle performance. Includes
indicators for speed, battery state of charge, hour meter, odometer and fault
warnings. Password-protected parameters and monitoring capability.

Image are for illustrative purposes only

BATTERY

Robust long-life industrial batteries No more mid-shift recharging! These powerful
batteries can last a full shift, even with long distances. Supports Opportunity Rapid
charging. Encased for easy replacing. Various options and models available.

Image are for illustrative purposes only

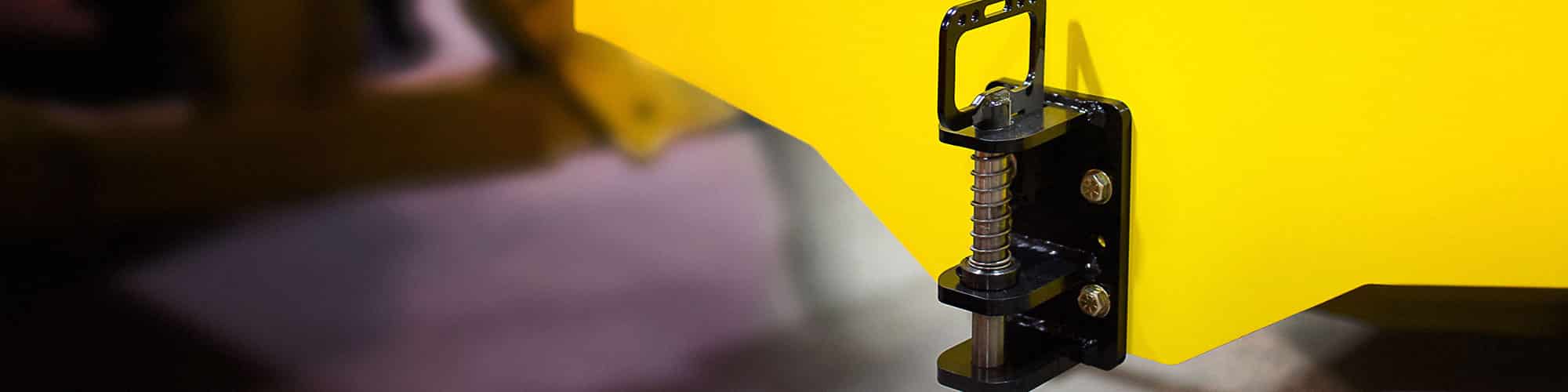

HITCH

Versatile, heavy-duty hitches Ensures quick and safe hitching, even with heavy
loads. Most of our vehicles work with multiple hitch configurations and a wide
range of attachments. Some models, like our Clevis hitch with safety spring,
work with a simple hand release system or remotely from the driver’s seat.
Tailored solutions also available.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	36V	48V	48V HD

POWERTRAIN
Motor	10 HP brushless AC motor	15 HP brushless AC motor	15 HP brushless AC motor
Drive Axle	Helical gear differential	Helical gear differential	Helical gear differential
Transmission	Direct drive	Direct drive	Direct drive
Controller	Electronic AC speed controller	Electronic AC speed controller	Electronic AC speed controller
ENERGY
Voltage	36V	48V	48V
Battery	Battery to be specified	Battery to be specified	Battery to be specified
Charger	Charger to be specified	Charger to be specified	Charger to be specified
CHASSIS
Body	All-steel unibody construction, powder coated	All-steel unibody construction, powder coated	All-steel unibody construction, powder coated, 50mm rear-end plate
Suspension	Leaf springs rear suspension system	Leaf springs rear suspension system	Leaf springs rear suspension system
Brakes	Rear wheel hydraulic drum brakes, regenerative braking	Rear wheel hydraulic drum brakes, regenerative braking	Rear wheel hydraulic drum brakes, regenerative braking
Wheels	Solid Tyres	Solid Tyres	Solid Tyres
Steering	Automotive steering wheel	Automotive steering wheel	Automotive steering wheel
Seats	Semi-suspension seat on slide adjusters	Semi-suspension seat on slide adjusters	Semi-suspension seat on slide adjusters
EQUIPMENT
Lights	LED dual headlights & tail/brake lights	LED dual headlights & tail/brake lights	LED dual headlights & tail/brake lights
Indicators	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories	36V/12V converter for 12-volt accessories, backlit and sealed buttons	48V/12V converter for 12-volt accessories, backlit and sealed buttons	48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
DIMENSIONS
VEHICLE
Weight
Height	1,070 mm	1,070 mm	1,070 mm
Length	2,130 mm	2,130 mm	2,160 mm
Width	970 mm	970 mm	970 mm
Wheel Base	1,600 mm	1,600 mm	1,600 mm
DECK
Deck Height
Deck Length
Deck Width
BATTERY
Battery Weight		590 Kg	590 Kg
Battery Height	600 mm	600 mm	600 mm
Battery Length	900 mm	900 mm	900 mm
Battery Width	430 mm	430 mm	490 mm

SPECIFICATIONS

POWERTRAIN
Motor
36V	10 HP brushless AC motor
48V	15 HP brushless AC motor
48V HD	15 HP brushless AC motor
Drive Axle
36V	Helical gear differential
48V	Helical gear differential
48V HD	Helical gear differential
Transmission
36V	Direct drive
48V	Direct drive
48V HD	Direct drive
Controller
36V	Electronic AC speed controller
48V	Electronic AC speed controller
48V HD	Electronic AC speed controller
ENERGY
Voltage
36V	36V
48V	48V
48V HD	48V
Battery
36V	Battery to be specified
48V	Battery to be specified
48V HD	Battery to be specified
Charger
36V	Charger to be specified
48V	Charger to be specified
48V HD	Charger to be specified
CHASSIS
Body
36V	All-steel unibody construction, powder coated
48V	All-steel unibody construction, powder coated
48V HD	All-steel unibody construction, powder coated, 50mm rear-end plate
Suspension
36V	Leaf springs rear suspension system
48V	Leaf springs rear suspension system
48V HD	Leaf springs rear suspension system
Brakes
36V	Rear wheel hydraulic drum brakes, regenerative braking
48V	Rear wheel hydraulic drum brakes, regenerative braking
48V HD	Rear wheel hydraulic drum brakes, regenerative braking
Wheels
36V	Solid Tyres
48V	Solid Tyres
48V HD	Solid Tyres
Steering
36V	Automotive steering wheel
48V	Automotive steering wheel
48V HD	Automotive steering wheel
Seats
36V	Semi-suspension seat on slide adjusters
48V	Semi-suspension seat on slide adjusters
48V HD	Semi-suspension seat on slide adjusters
EQUIPMENT
Lights
36V	LED dual headlights & tail/brake lights
48V	LED dual headlights & tail/brake lights
48V HD	LED dual headlights & tail/brake lights
Indicators
36V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V HD	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V	36V/12V converter for 12-volt accessories, backlit and sealed buttons
48V	48V/12V converter for 12-volt accessories, backlit and sealed buttons
48V HD	48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
36V	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
48V	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
48V HD	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape

DIMENSIONS

VEHICLE
Weight
36V
48V
48V HD
Height
36V	1,070 mm
48V	1,070 mm
48V HD	1,070 mm
Length
36V	2,130 mm
48V	2,130 mm
48V HD	2,160 mm
Width
36V	970 mm
48V	970 mm
48V HD	970 mm
Wheel Base
36V	1,600 mm
48V	1,600 mm
48V HD	1,600 mm
DECK
Deck Height
36V
48V
48V HD
Deck Length
36V
48V
48V HD
Deck Width
36V
48V
48V HD
BATTERY
Battery Weight
36V
48V	590 Kg
48V HD	590 Kg
Battery Height
36V	600 mm
48V	600 mm
48V HD	600 mm
Battery Length
36V	900 mm
48V	900 mm
48V HD	900 mm
Battery Width
36V	430 mm
48V	430 mm
48V HD	430 mm
