MX 480 MODELS
|
Heading
|
PASSENGER
|
LOAD CAPACITY
|
TOWING CAPACITY
|
SPEED
|
TURNING RADIUS
|
---|---|---|---|---|---|---|
Ambulance
|
|
1
|
907 Kg.
|
2721 kg.
|
16 Kmh
|
3.5 m
|

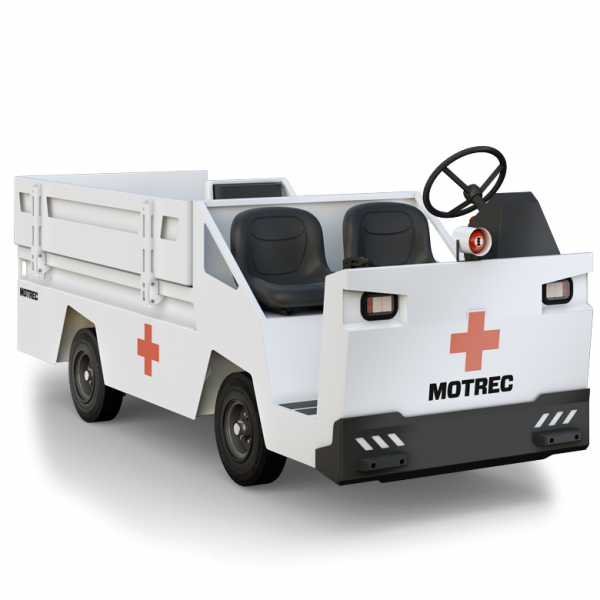

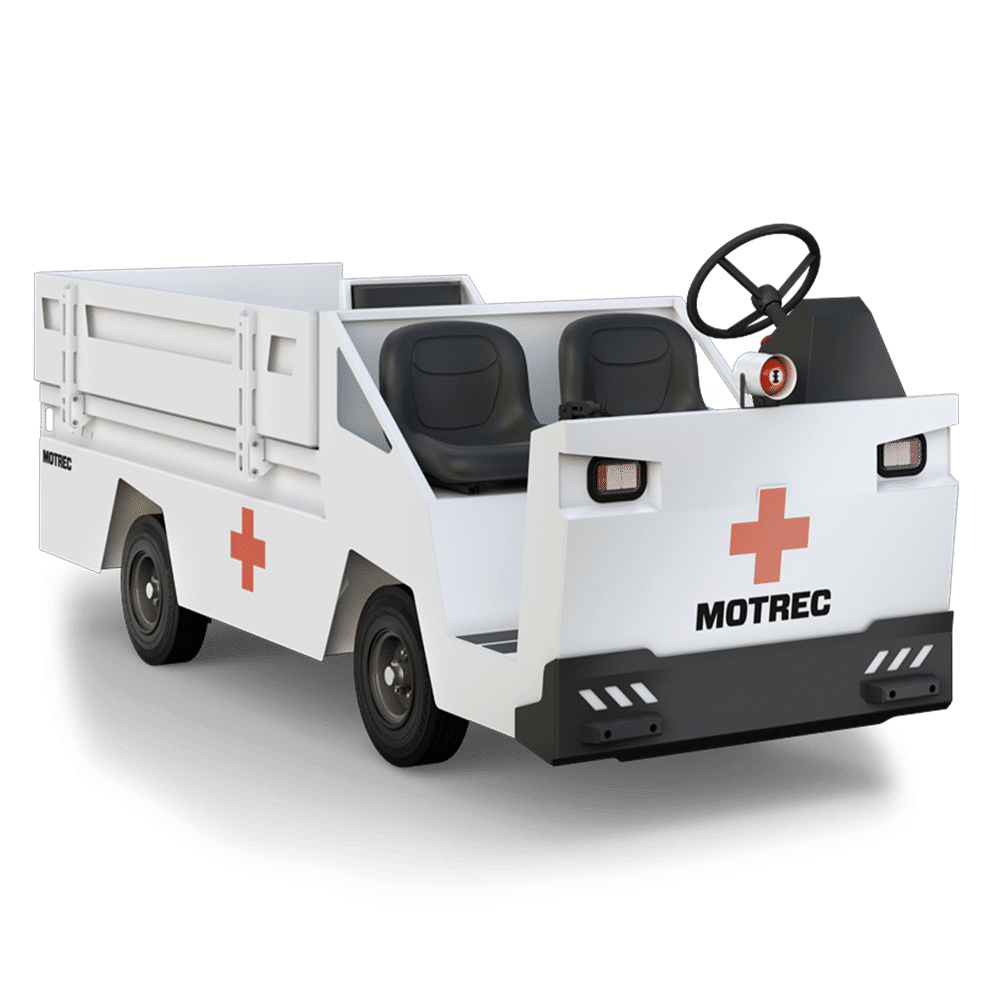

Motrec MX-480 Ambulance
Nimble.
Narrow.
Now with 6,000 lbs
towing power.
VEHICLE TYPE
PERSONNEL CARRIES
This agile 30″ stand-up tow tractor will safely take you and your heavy loads just about anywhere – even through narrow doorways and corridors. It’s ideal for industrial, commercial or institutional applications requiring maneuverability and up to 6,000 lbs of stable towing power. It can even double as a stock chaser. Its maintenance-free AC motor will boost productivity with 50% longer runtime. Its automatic parking brake, upgraded suspension, 360° visibility, low step height and anti-fatigue mats will boost comfort and safety. All come standard.



|
Ambulance
|
---|---|
PASSENGERS
|
1
|
LOAD CAPACITY
|
907 Kg.
|
TOWING CAPACITY
|
2721 Kg.
|
SPEED
|
16 Kmh
|
TURNING RADIUS
|
3.5 m
|
CONSOLE
Console on steering column
Complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain..
Image are for illustrative purposes only and may differ from the actual product.
Complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain..
Image are for illustrative purposes only and may differ from the actual product.
AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor
Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
Image are for illustrative purposes only and may differ from the actual product.
Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
Image are for illustrative purposes only and may differ from the actual product.
CONTROLLER
AC controller with sealed connectors paired with multifunction display
Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Image are for illustrative purposes only and may differ from the actual product.
Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Image are for illustrative purposes only and may differ from the actual product.
Previous slide
Next slide
SPECIFICATIONS
|
|
Ambulance
|
---|---|---|
|
|
|
POWERTRAIN
|
||
Motor
|
|
Brushless AC motor, 15 HP Max (9 HP Continuous)
|
Drive Axle
|
|
Helical gear differential
|
Transmission
|
|
Direct Drive
|
Controller
|
|
AC Electronic speed controller
|
ENERGY
|
||
Voltage
|
|
48V
|
Battery
|
|
Eight 6V-225AH batteries
|
Charger
|
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
|
CHASSIS
|
||
Body
|
|
All-steel unibody construction. Powder Coating.
|
Suspension
|
|
Dual leaf springs on front and rear
|
Brakes
|
|
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
|
Wheels
|
|
5.7x8 LRD pneumatic tires
|
Steering
|
|
Automotive steering wheel, tilted steering column
|
Seats
|
|
Two bucket seats on slide adjusters
|
EQUIPMENT
|
||
Lights
|
|
LED dual headlights & tail/brake lights, dual back-up lights
|
Indicators
|
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
Accessories
|
|
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
|
Safety
|
|
Deadman seat switch, reverse alarm, horn, automatic parking brake
|
DIMENSIONS (mm)
|
||
VEHICLE
|
||
Weight
|
|
|
Height
|
|
1384
|
Length
|
|
3302
|
Width
|
|
1130
|
Wheel Base
|
|
1663
|
DECK
|
||
Deck Height
|
|
|
Deck Length
|
|
2082
|
Deck Width
|
|
1130
|
BATTERY
|
||
Battery Weight
|
|
|
Battery Height
|
|
|
Battery Length
|
|
|
Battery Width
|
|
|
|
|
|
|
|
---|---|
|
|
POWERTRAIN
|
|
Motor
|
|
Ambulance
|
Brushless AC motor, 15 HP Max (9 HP Continuous)
|
Drive Axle
|
|
Ambulance
|
Helical gear differential
|
Transmission
|
|
Ambulance
|
Direct Drive
|
Controller
|
|
Ambulance
|
AC Electronic speed controller
|
ENERGY
|
|
Voltage
|
|
Ambulance
|
48V
|
Battery
|
|
Ambulance
|
Eight 6V-225AH batteries
|
Charger
|
|
Ambulance
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
|
CHASSIS
|
|
Body
|
|
Ambulance
|
All-steel unibody construction. Powder Coating.
|
Suspension
|
|
Ambulance
|
Dual leaf springs on front and rear
|
Brakes
|
|
Ambulance
|
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
|
Wheels
|
|
Ambulance
|
5.7x8 LRD pneumatic tires
|
Steering
|
|
Ambulance
|
Automotive steering wheel, tilted steering column
|
Seats
|
|
Ambulance
|
Two bucket seats on slide adjusters
|
EQUIPMENT
|
|
Lights
|
|
Ambulance
|
LED dual headlights & tail/brake lights, dual back-up lights
|
Indicators
|
|
Ambulance
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
Accessories
|
|
Ambulance
|
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
|
Safety
|
|
Ambulance
|
Deadman seat switch, reverse alarm, horn, automatic parking brake
|
|
|
---|---|
|
|
VEHICLE
|
|
Weight
|
|
Ambulance
|
|
Height
|
|
Ambulance
|
1384
|
Length
|
|
Ambulance
|
3302
|
Width
|
|
Ambulance
|
1130
|
Wheel Base
|
|
Ambulance
|
1663
|
DECK
|
|
Deck Height
|
|
Ambulance
|
|
Deck Length
|
|
Ambulance
|
2082
|
Deck Width
|
|
Ambulance
|
1130
|
BATTERY
|
|
Battery Weight
|
|
Ambulance
|
|
Battery Height
|
|
Ambulance
|
|
Battery Length
|
|
Ambulance
|
|
Battery Width
|
|
Ambulance
|
|
Specifications and standard equipment are subject to change without notice.
