The
go‑anywhere
vehicle.

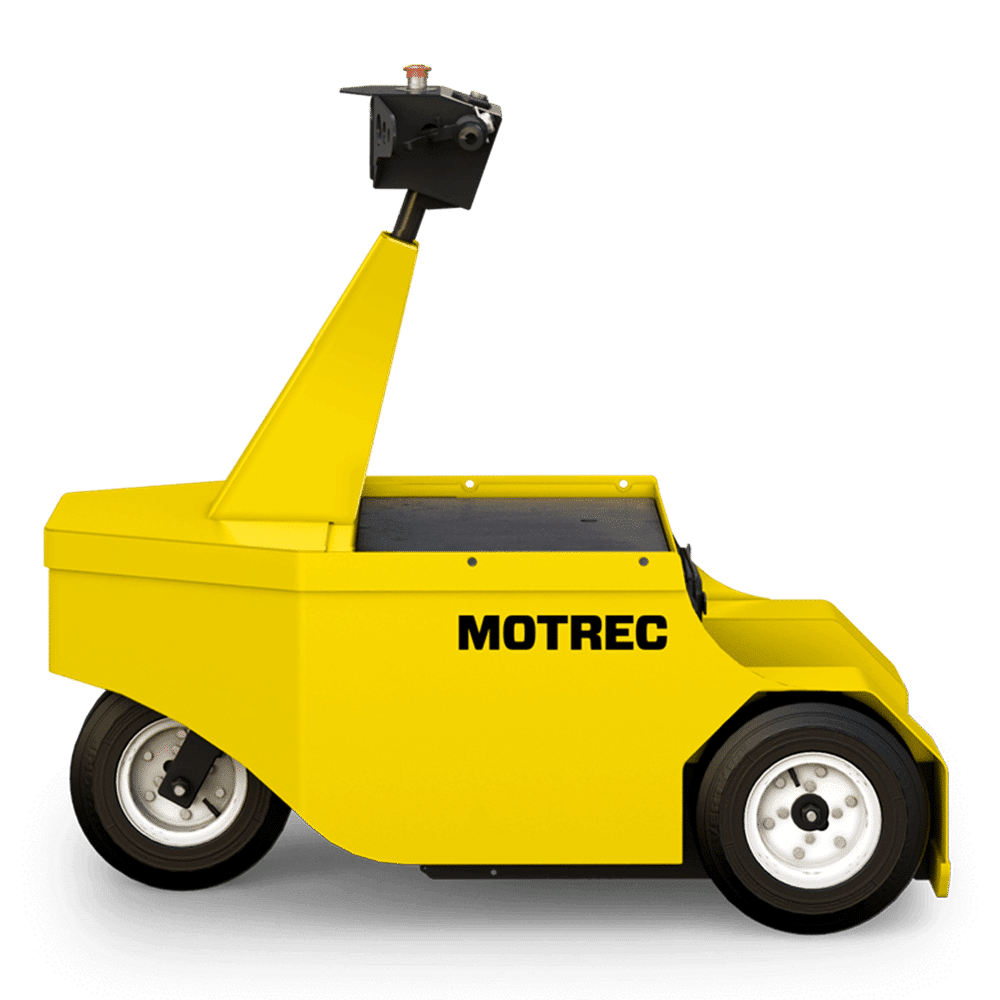

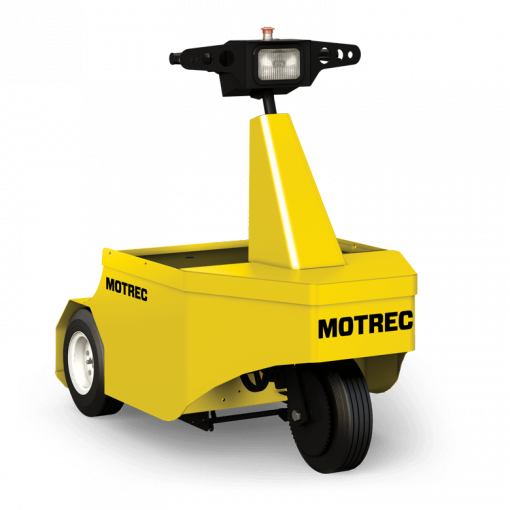

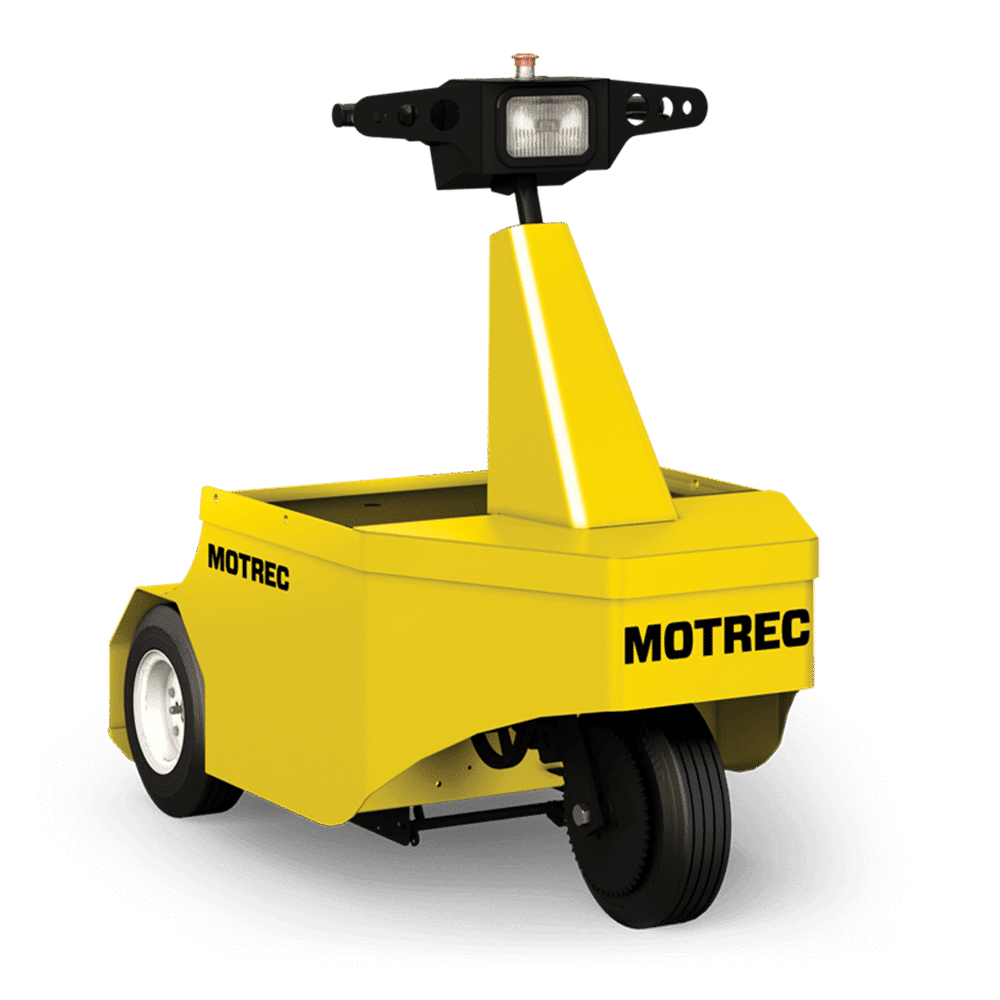

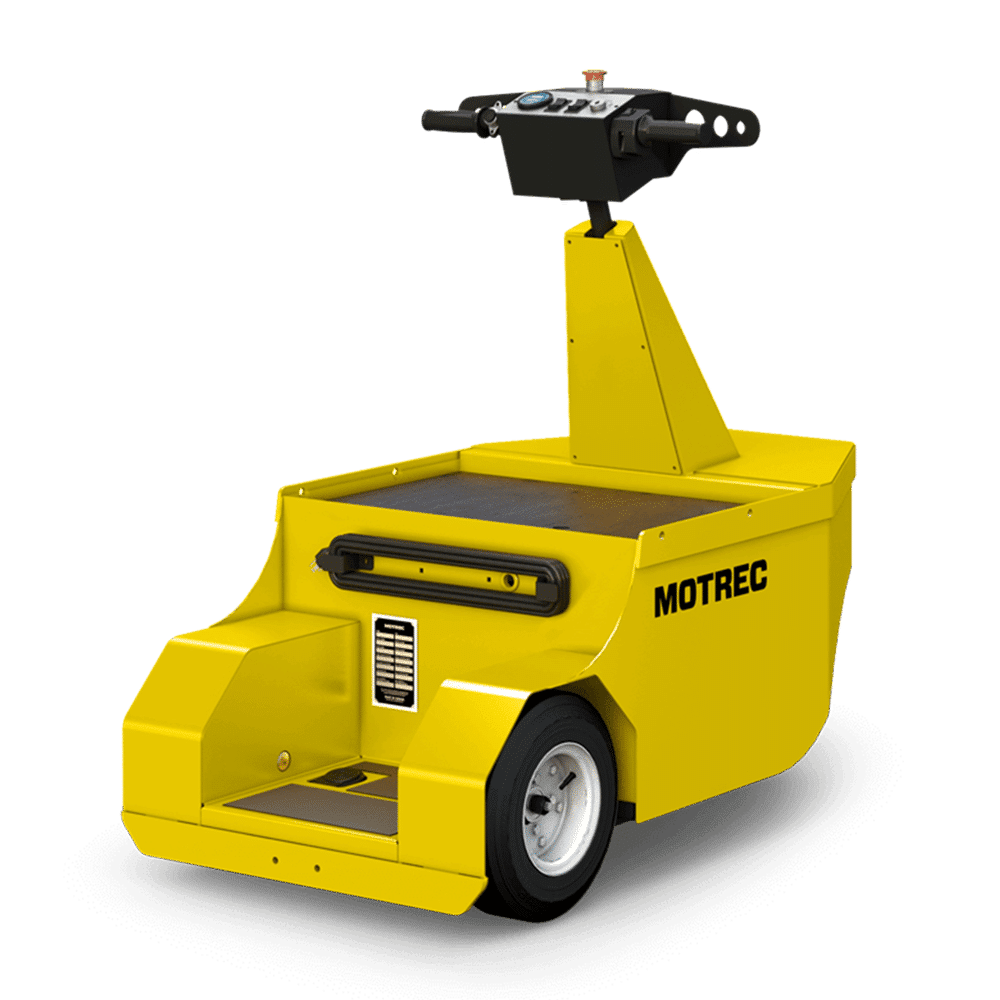

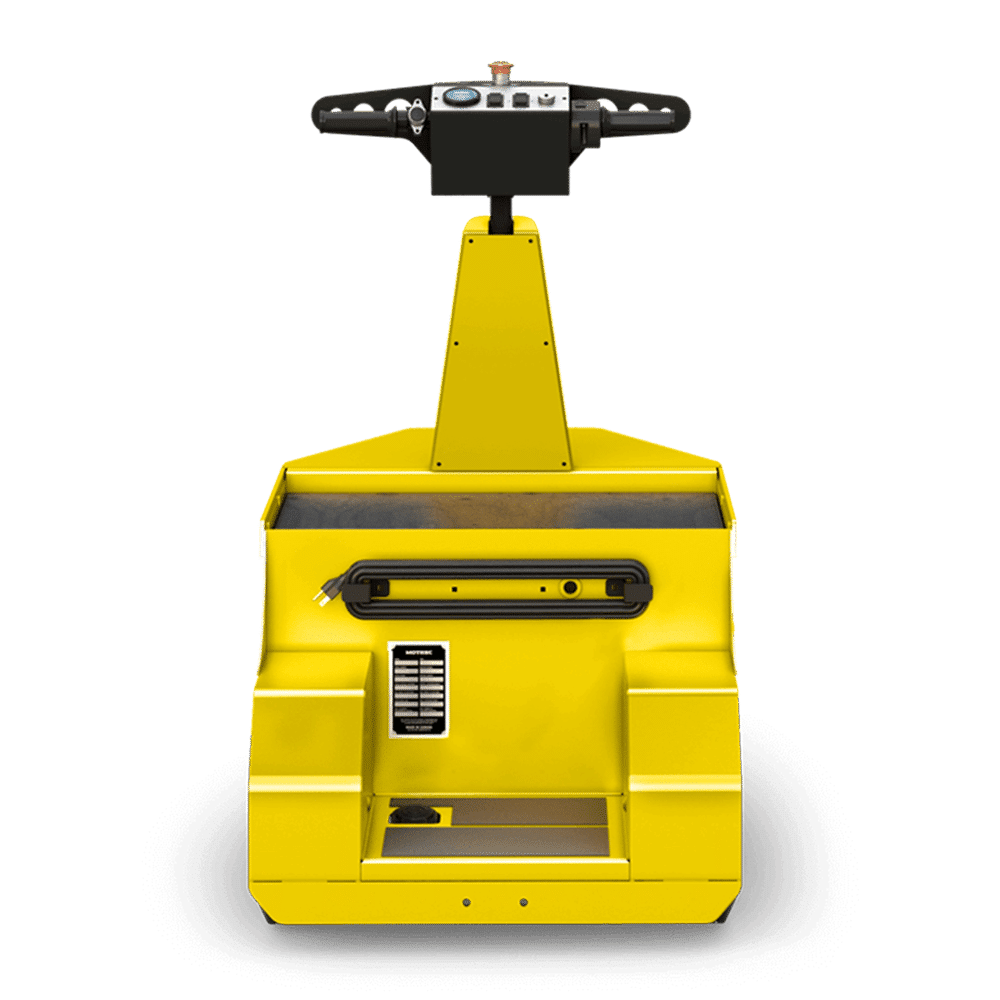

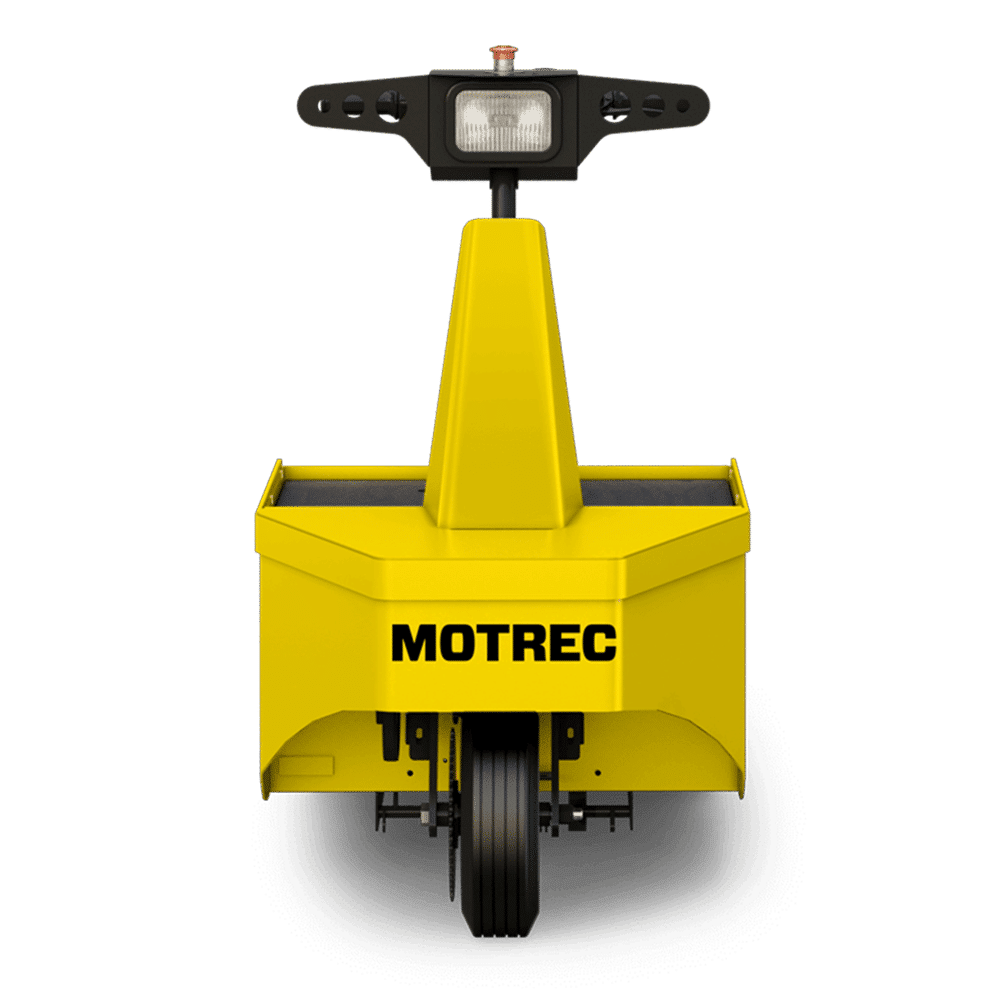

MP-120

VEHICLE TYPE
PERSONNEL CARRIES

Narrow, quick and highly maneuverable, the stand-up MP-120 is a cost-efficient way to transport you and your stock just about anywhere—through door openings, around tight corners and down narrow aisles. Its 10 Kmh traveling speed allows you to get around two times faster than on foot. Its compact design boasts a durable steel construction and 360º visibility for greater safety. Ideal for tasks like maintenance, order picking, plant security, first aid and more.

MP 120 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
24V		1	136 Kg.	453 kg.	10 Kmh	1,000 mm

MP 120 MODELS	24V
PASSENGERS	1
LOAD CAPACITY	136 Kg.
TOWING CAPACITY	453 kg.
SPEED	10 Kmh
TURNING RADIUS	1,000 mm

ALL-STEEL BODY

Built-to-last all-steel unibody construction Offers greater strength, balance
and stability for improved performance and safety under any conditions.
Exceptionally solid and rigid construction boasting an automotive-
inspired heavy-duty chassis. Reinforced at all high-stress areas.
Easily accommodates add-on components.

Image are for illustrative purposes only

REGENERATIVE

Energy-saving regenerative braking Lengthens running time by using energy
more efficiently. Braking is automatically applied whenever the accelerator is
released, feeding energy back into the battery. Operator also uses the brake
less often, reducing wear and tear.

Image are for illustrative purposes only

CHARGER

Inboard / portable high frequency PFC battery charger Provides reliable, quality charging.
High frequency power factor-corrected charger improves battery performance and
prevents power surges. High efficiency and global AC input. Available in inboard or
portable models with several voltage options.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS		24V

POWERTRAIN
Motor		1 hp
Drive Axle		Front-wheel drive
Transmission		V-Belt drive, chain reduction
Controller		Electronic speed controller, twist grip throttle handle
ENERGY
Voltage		24V
Battery		Two 12V-105AH batteries
Charger		Portable High-Frequency Charger, improves battery performance, prevents current surge,50/60HZ, 110/220VAC
CHASSIS
Body
Suspension		Rigid axles on front and rear
Brakes		Dual drum brakes on rear, brake pedal, regenerative braking
Wheels		4.1x6 LRB pneumatic tires
Steering		Handlebar
Seats
EQUIPMENT
Lights		LED headlight
Indicators		Battery status indicator
Accessories
Safety		Reverse alarm, deadman foot switch, Horn
DIMENSIONS
VEHICLE
Weight		145 kg.
Height		1,140 mm
Length		1,210 mm
Width		680 mm
Wheel Base		860 mm
DECK
Deck Height		500 mm
Deck Length		430 mm
Deck Width		680 mm

SPECIFICATIONS

POWERTRAIN
Motor
24V	1 hp
Drive Axle
24V	Front-wheel drive
Transmission
24V	V-Belt drive, chain reduction
Controller
24V	Electronic speed controller, twist grip throttle handle
ENERGY
Voltage
24V	24V
Battery
24V	Two 12V-105AH batteries
Charger
24V	Portable High-Frequency Charger, improves battery performance, prevents current surge,50/60HZ, 110/220VAC
CHASSIS
Body
24V
Suspension
24V	Rigid axles on front and rear
Brakes
24V	Dual drum brakes on rear, brake pedal, regenerative braking
Wheels
24V	4.1x6 LRB pneumatic tires
Steering
24V	Handlebar
Seats
24V
EQUIPMENT
Lights
24V	LED headlight
Indicators
24V	Battery status indicator
Accessories
24V
Safety
24V	Reverse alarm, deadman foot switch, Horn

DIMENSIONS

VEHICLE
Weight
24V	145 kg.
Height
24V	1,140 mm
Length
24V	1,210 mm
Width
24V	680 mm
Wheel Base
24V	860 mm
DECK
Deck Height
24V	500 mm
Deck Length
24V	430 mnm
Deck Width
24V	680 mm
BATTERY
Battery Weight
24V
Battery Height
24V
Battery Length
24V
Battery Width
24V
