Often imitated but never equaled.

MP-240

VEHICLE TYPE
PERSONNEL CARRIES

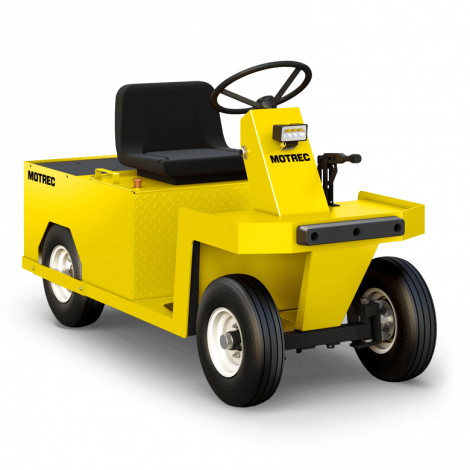

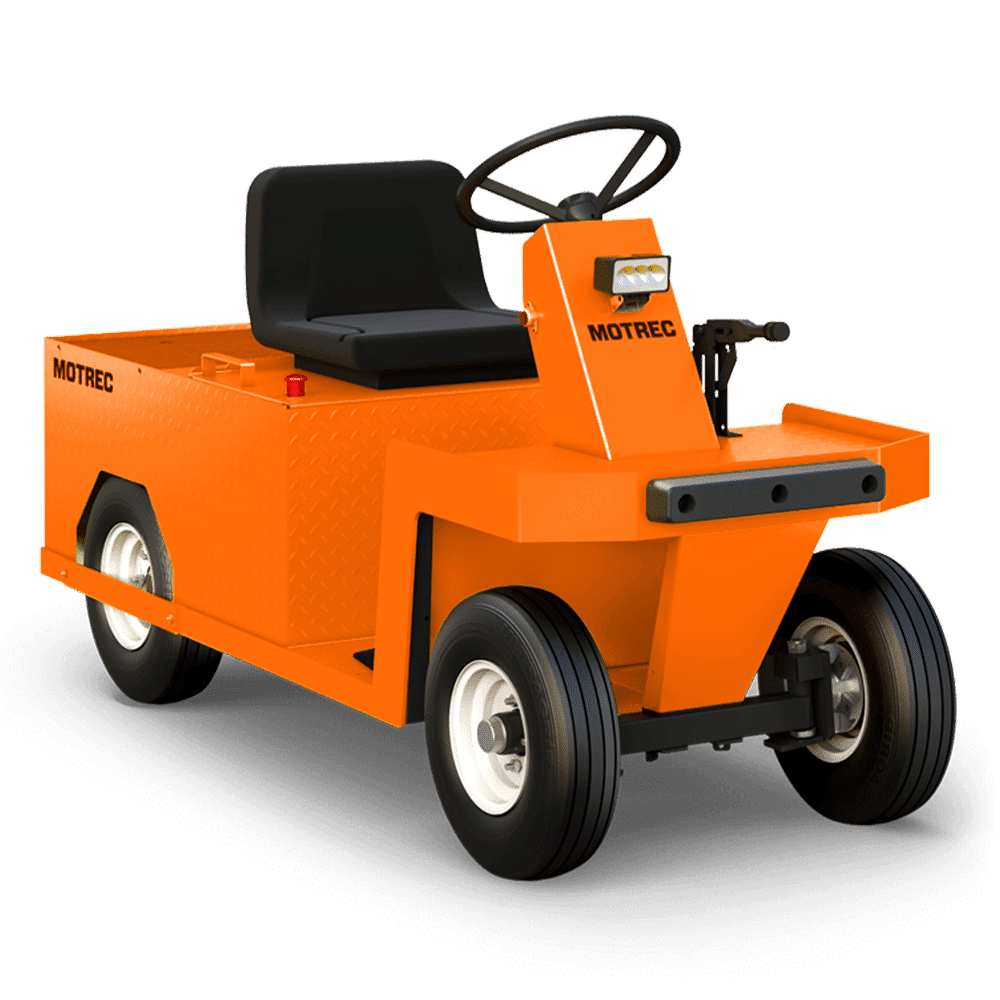

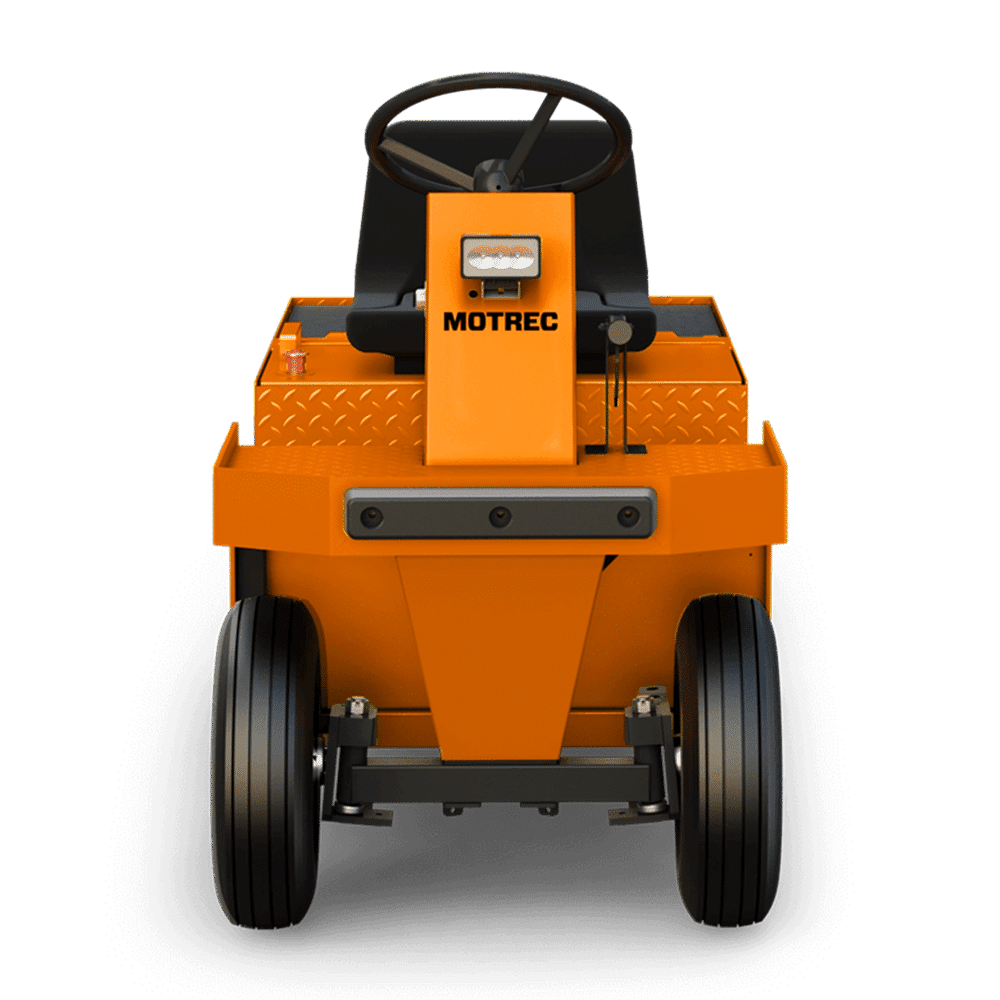

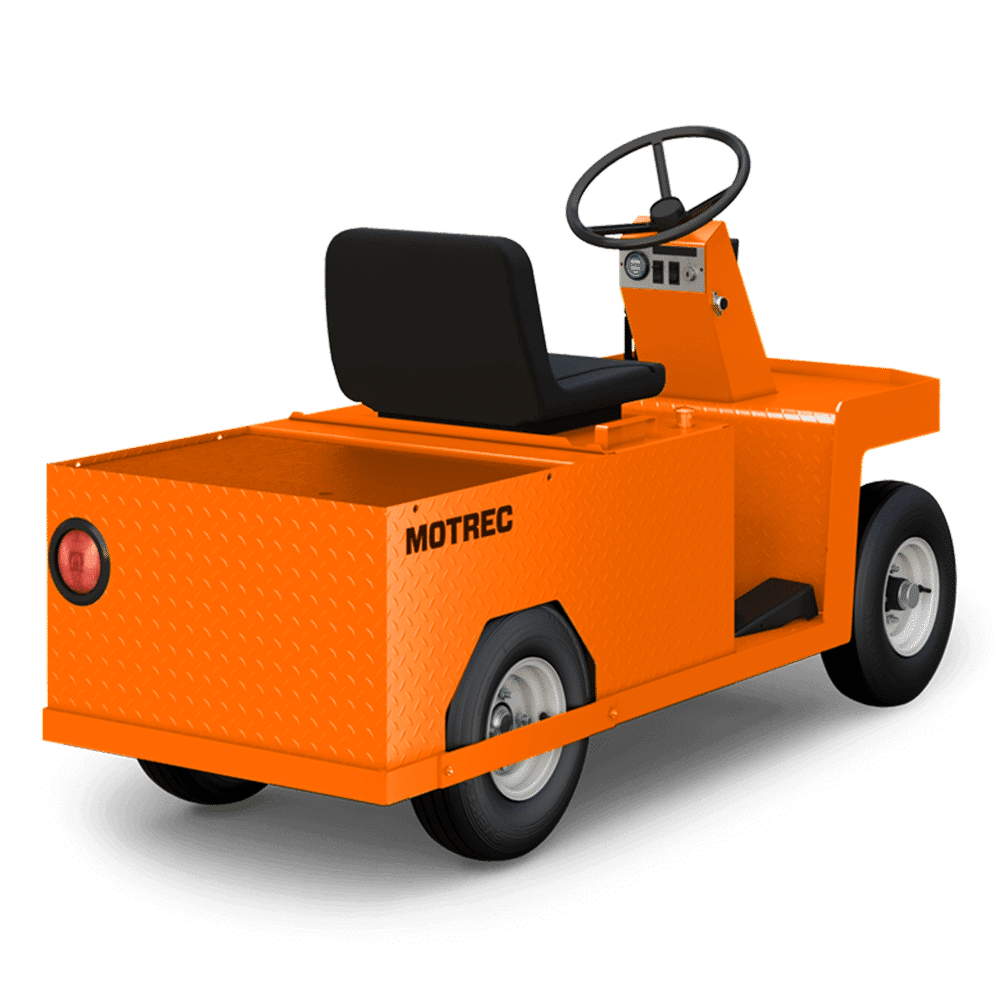

It’s no surprise the competition envies our original design. This agile and versatile personnel carrier has it all: A narrow deck, four wheels for greater stability on rough terrain, powerful motor, rugged automotive differential, and larger self-adjusting drum brakes, all-steel unibody construction, bolt-on front bumper and sidebar protection, easy-to-access under-seat battery compartment… The list keeps going. It can also pull up to 2,700 Kg.*, making it a great tow tractor.

MP 250 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
24V		1	230 Kg	900 kg	11 Kmh	1,900 mm
36V		1	230 Kg	2,700 kg	13 Kmh	1,900 mm

MP 250 MODELS	24V
PASSENGERS	1
LOAD CAPACITY	230 Kg
TOWING CAPACITY	900 kg
SPEED	11 Kmh
TURNING RADIUS	1,900 mm

MP 250 MODELS	36V
PASSENGERS	1
LOAD CAPACITY	230 Kg
TOWING CAPACITY	2,700 kg
SPEED	11 Kmh
TURNING RADIUS	1,900 mm

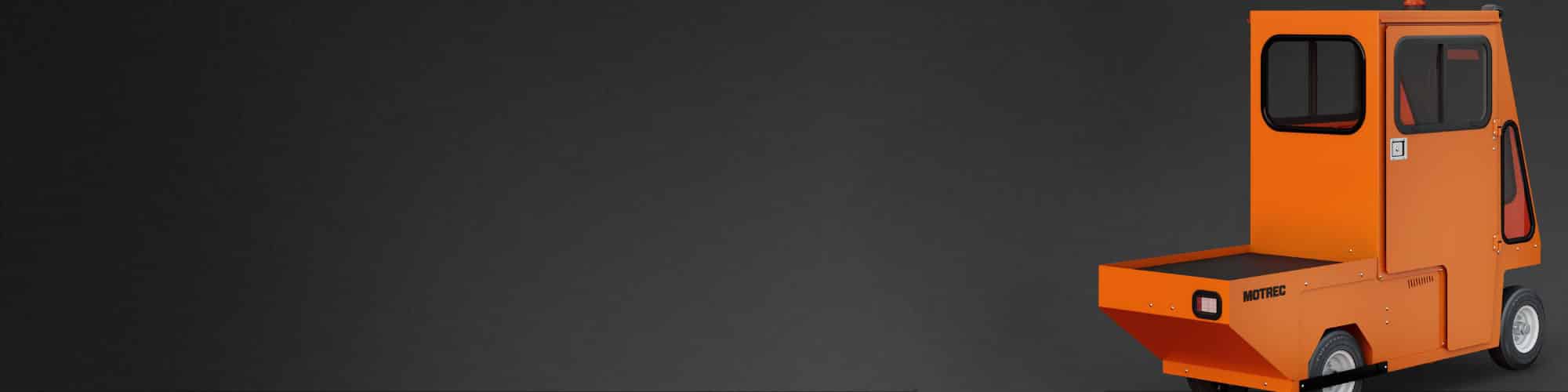

CAB

Safe and comfortable all-steel cabs Protects operators and everyone around them.
Our customizable cabs come with a long list of standard and optional features: lockable
/Mika/removable doors, canopy top, ladder/pipe rack, wipers, rear-view mirror,
sliding windows with safety glass, heater, air conditioning, cab-mounted strobe light,
cab sound proofing, rust proofing… the list goes on and on.

Image are for illustrative purposes only

BRAKES

Heavy-duty braking power Provides faster braking and shorter stopping distances, even
when towing heavy loads. Stronger, more durable and more efficient design ensures
superior braking performance with less maintenance vs. competing brakes. Brake
safely and confidently every time.

Image are for illustrative purposes only

LIFT-OUT

Time-saving lift-out battery compartment Makes changing batteries quick and easy.
Because the batteries are not attached to the vehicle, maintenance is easier, too.
Simply lift out the compartment and replace batteries with fresh ones.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	24V	36V

POWERTRAIN
Motor	6 HP brushless AC motor	10 HP brushless AC motor
Drive Axle	Helical gear differential	Helical gear differential
Transmission	Direct drive	Direct drive
Controller	SEPEX Electronic speed controller	SEPEX Electronic speed controller
ENERGY
Voltage	24V	36V
Battery	Four 6V-225AH batteries	Six 6V-225AH batteries
Charger	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body	14-G diamond-plate steel body, tubular frame	14-G diamond-plate steel body, tubular frame
Suspension	Dual coil springs and shock absorber on rear	Dual coil springs and shock absorber on rear
Brakes	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
Wheels	4.8x8 LRC pneumatic tires	4.8x8 LRC pneumatic tires
Steering	Automotive steering wheel	Automotive steering wheel
Seats	Bucket seat on slide adjusters	Bucket seat on slide adjusters
EQUIPMENT
Lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights
Indicators	Battery status indicator	Battery status indicator
Accessories	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
Safety	Reverse alarm, deadman seat switch, horn	Reverse alarm, deadman seat switch, horn
DIMENSIONS
VEHICLE
Weight	345 Kg	453 Kg
Height	1,140 mm	1,140 mm
Length	1,930 mm	1,930 mm
Width	760 mm	760 mm
Wheel Base	1,320 mm	1,320 mm
DECK
Deck Height	630 mm	630 mm
Deck Length	500 mm	500 mm
Deck Width	760 mnm	760 mm

SPECIFICATIONS

POWERTRAIN
Motor
24V	6 HP brushless AC motor
36V	10 HP brushless AC motor
Drive Axle
24V	Helical gear differential
36V	Helical gear differential
Transmission
24V	Direct drive
36V	Direct drive
Controller
24V	SEPEX Electronic speed controller
36V	SEPEX Electronic speed controller
ENERGY
Voltage
24V	24V
36V	36V
Battery
24V	Four 6V-225AH batteries
36V	Six 6V-225AH batteries
Charger
24V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
36V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body
24V	14-G diamond-plate steel body, tubular frame
36V	14-G diamond-plate steel body, tubular frame
Suspension
24V	Dual coil springs and shock absorber on rear
36V	Dual coil springs and shock absorber on rear
Brakes
24V	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
36V	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
Wheels
24V	4.8x8 LRC pneumatic tires
36V	4.8x8 LRC pneumatic tires
Steering
24V	Automotive steering wheel
36V	Automotive steering wheel
Seats
24V	Bucket seat on slide adjusters
36V	Bucket seat on slide adjusters
EQUIPMENT
Lights
24V	Dual LED headlights & tail/brake lights
36V	Dual LED headlights & tail/brake lights
Indicators
24V	Battery status indicator
36V	Battery status indicator
Accessories
24V	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
36V	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
Safety
24V	Reverse alarm, Deadman foot switch, Horn
36V	Reverse alarm, Deadman foot switch, Horn

DIMENSIONS

VEHICLE
Weight
24V	345 Kg
36V	453 Kg
Height
24V	1,140 mm
36V	1,140 mm
Length
24V	1,930 mm
36V	1,930 mm
Width
24V	760 mm
36V	760 mm
Wheel Base
24V	1,320 mm
36V	1,320 mm
DECK
Deck Height
24V	630 mm
36V	630 mm
Deck Length
24V	500 mm
36V	500 mm
Deck Width
24V	760 mm
36V	760 mm
BATTERY
Battery Weight
24V
36V
Battery Height
24V
36V
Battery Length
24V
36V
Battery Width
24V
36V
