Move people in total comfort.

This quiet, zero-emission vehicle is designed for transporting up to four passengers quickly and safely. It features two comfortable benches with padded backrests, a dual-sided entry with optional wheelchair-accessible fold-down ramps, and a rear platform large enough for several items of luggage. Stand-up operators enjoy good visibility and face passengers, making interacting easier, safer and much more enjoyable. The light-touch accelerator pedal further reduces operator fatigue. ADA compliant.

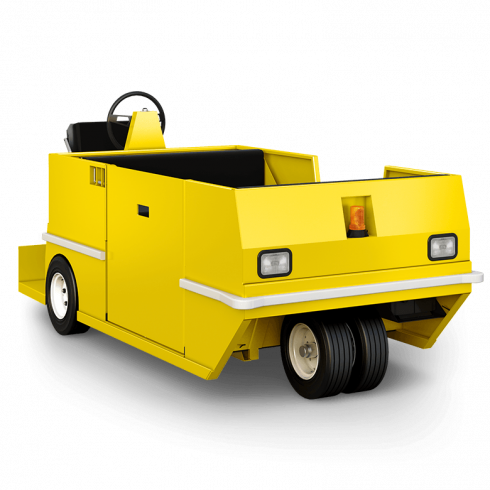

motrec-mp420-front-l
ul-logo@2x-40h
ansi-logo@2x-40h

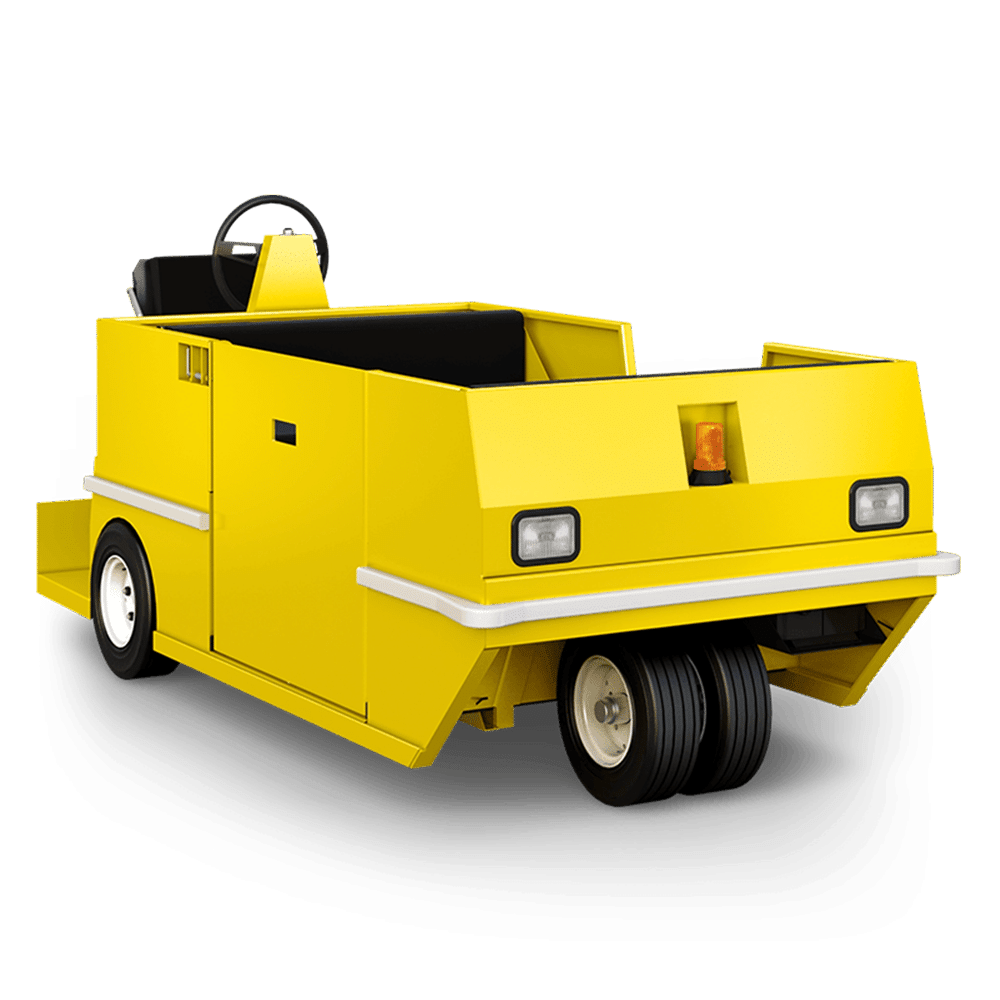

MP 420 MODELS
Heading
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED
TURNING RADIUS
36V
5
770 Kg
1,800 kg
13 Kmh
2,300 mm
MP 420 MODELS
36V
PASSENGERS
5
LOAD CAPACITY
770 Kg
TOWING CAPACITY
1,800 kg
SPEED
13 Kmh
TURNING RADIUS
2,300 mm

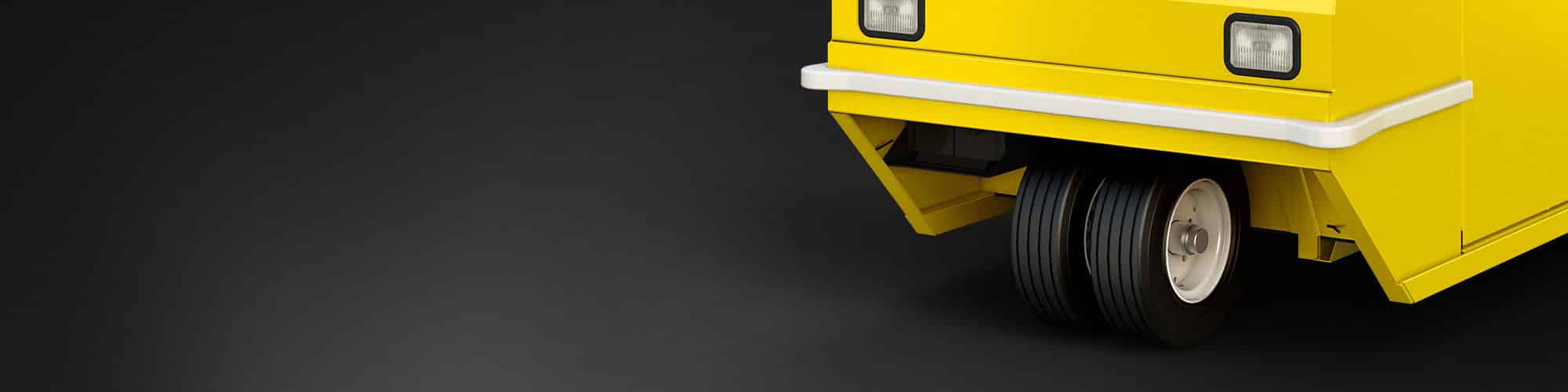

DUAL FRONT WHEELS
Stability-boosting dual front wheels Improves vehicle stability and maneuverability.
Robust dual design is twice as strong as a single wheel. Increases wheel lifespan
and reduces maintenance as wheels suffer less wear and tear.
Image are for illustrative purposes only
BRAKES
Heavy-duty braking power Provides faster braking and shorter stopping distances,
even when towing heavy loads. Stronger, more durable and more efficient design
ensures superior braking performance with less maintenance vs. competing
brakes. Brake safely and confidently every time.
Image are for illustrative purposes only
REGENERATIVE
Energy-saving regenerative braking Lengthens running time by using energy
more efficiently. Braking is automatically applied whenever the accelerator is
released, feeding energy back into the battery. Operator also uses the brake
less often, reducing wear and tear.
Image are for illustrative purposes only
Previous
Next
SPECIFICATIONS
36V
POWERTRAIN
Motor
10 hp
Drive Axle
Differential with automotive ring gear
Transmission
Dual V-belt drive
Controller
Electronic speed controller
ENERGY
Voltage
36V
Battery
Six 6V-225AH batteries
Charger
25 Amp, built-in automatic
CHASSIS
Body
Suspension
Rigid axles on front and rear
Brakes
Dual self-adjusting mechanical drum brakes on rear, deadman brake on control treadle, regenerative braking
Wheels
4.80 x 8 LRC pneumatic tires
Steering
Automotive steering wheel
Seats
Padded backrest for operator, bench seating for four passengers
EQUIPMENT
Lights
Dual LED headlights
Indicators
Battery status indicator
Accessories
Horn, 36V/12V converter to equalize cells and extend battery life
Safety
Reverse alarm, strobelight
DIMENSIONS
VEHICLE
Weight
590 Kg
Height
1,250 mm
Length
2,600 mm
Width
1,200 mm
Wheel Base
1,700 mm
DECK
Deck Height
500 mm
Deck Length
430 mm
Deck Width
680 mm
SPECIFICATIONS
POWERTRAIN
Motor
36V
10 hp
Drive Axle
36V
Differential with automotive ring gear
Transmission
36V
Dual V-belt drive
Controller
36V
Electronic speed controller
ENERGY
Voltage
36V
36V
Battery
36V
Six 6V-225AH batteries
Charger
36V
25 Amp, built-in automatic
CHASSIS
Body
36V
Suspension
36V
Rigid axles on front and rear
Brakes
36V
Dual self-adjusting mechanical drum brakes on rear, deadman brake on control treadle, regenerative braking
Wheels
36V
4.80 x 8 LRC pneumatic tires
Steering
36V
Automotive steering wheel
Seats
36V
Padded backrest for operator, bench seating for four passengers
EQUIPMENT
Lights
36V
Dual LED headlights
Indicators
36V
Battery status indicator
Accessories
36V
Horn, 36V/12V converter to equalize cells and extend battery life
Safety
36V
Reverse alarm, strobelight
DIMENSIONS
VEHICLE
Weight
36V
590 kg
Height
36V
1,250 mm
Length
36V
2,600 mm
Width
36V
1,200 mm
Wheel Base
36V
1,700 mm
DECK
Deck Height
36V
500 mm
Deck Length
36V
430 mm
Deck Width
36V
680 mm
BATTERY
Battery Weight
36V
Battery Height
36V
Battery Length
36V
Battery Width
36V

Specifications and standard equipment are subject to change without notice.
