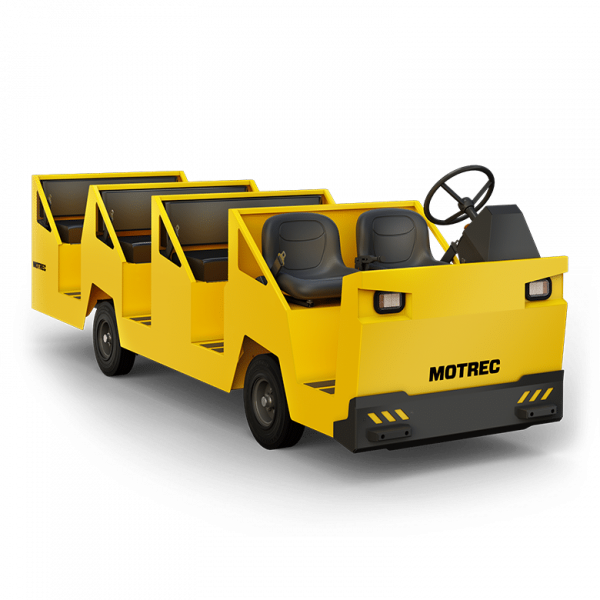

The best way to move up to 11 passengers.

MP-500

VEHICLE TYPE
PERSONNEL CARRIES

This fully customizable vehicle is designed for moving large groups quickly, safely, and comfortably. It can efficiently pull two-passenger cart trailers in all sorts of conditions and climb hills with ease. Its well-balanced design and short turning radius ensure superior maneuverability with responsive steering and braking. Its light-touch accelerator means a smoother ride, while it industrial batteries and cell equalization converter mean more trips per charge. Available in unlimited configurations, including forward-facing or back-to-back seating. Optional wheelchair ramp.

MP 500 MODELS	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
6 Passengers	6	1,360 Kg	2,700 Kg	16 Kmh	3,150 mm
8 Passengers	8	1,360 Kg	2,700 Kg	16 Kmh	3,700 mm
10 Passengers	10	1,360 Kg	2,700 Kg	16 Kmh	3,700 mm
11 Passengers	11	1,360 Kg	2,700 Kg	16 Kmh	3,700 mm
Wheelchair	6	1,360 Kg	2,700 Kg	13 Kmh	3,700 mm

MP 500 MODELS	6 Passengers
PASSENGERS	6
LOAD CAPACITY	1,360 Kg
TOWING CAPACITY	2,700 Kg
SPEED	16 Kmh
TURNING RADIUS	3,150 mm

MP 500 MODELS	8 Passengers
PASSENGERS	8
LOAD CAPACITY	1,360 Kg
TOWING CAPACITY	2,700 Kg
SPEED	16 Kmh
TURNING RADIUS	3,700 mm

MP 500 MODELS	10 Passengers
PASSENGERS	10
LOAD CAPACITY	1,360 Kg
TOWING CAPACITY	2,700 Kg
SPEED	16 Kmh
TURNING RADIUS	3,700 mm

MP 500 MODELS	11 Passengers
PASSENGERS	11
LOAD CAPACITY	1,360 Kg
TOWING CAPACITY	2,700 Kg
SPEED	16 Kmh
TURNING RADIUS	3,700 mm

MP 500 MODELS	Wheelchair
PASSENGERS	6
LOAD CAPACITY	1,360 Kg
TOWING CAPACITY	2,700 Kg
SPEED	16 Kmh
TURNING RADIUS	3,700 mm

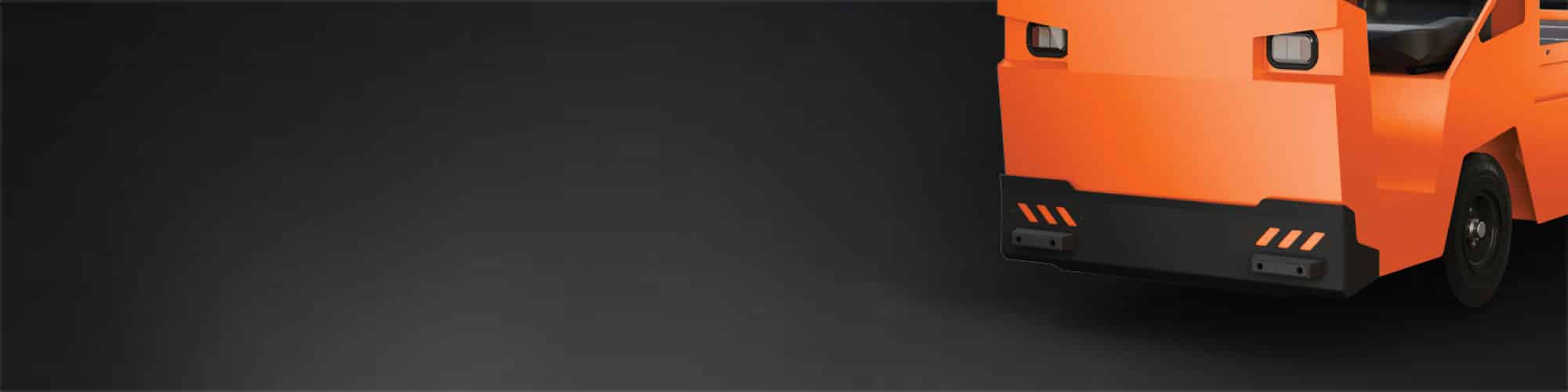

BUMPERS

Reinforced bolt-on front and rear bumpers Protects vehicle components from damage
and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers
are easy to replace when needed. An easy, low-cost way to protect your investment.

Image are for illustrative purposes only

BRAKES

Heavy-duty braking power Provides faster braking and shorter stopping distances,
even when towing heavy loads. Stronger, more durable and more efficient design
ensures superior braking performance with less maintenance vs. competing
brakes. Brake safely and confidently every time.

Image are for illustrative purposes only

SUSPENSION

Fatigue- and accident-saving ergonomic suspension Increases stability for a smoother,
safer ride even on challenging terrain. Ergonomic design lessens impacts, resulting in
greater operator comfort and less risk of injury. Travel of 1.5 inches.
Various configurations available.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	6 pass.	8 pass.	10 pass.	11 pass.	Wheelchair

POWERTRAIN
Motor	15 hp shunt motor	15 hp shunt motor	15 HP brushless AC motor	15 HP brushless AC motor	15 HP brushless AC motor
Drive Axle	Differential with automotive ring gear	Differential with automotive ring gear	Differential with automotive ring gear	Differential with automotive ring gear	Differential with automotive ring gear
Transmission	Goodyear Eagle Synchronous drive	Goodyear Eagle Synchronous drive	Goodyear Eagle Synchronous drive	Goodyear Eagle Synchronous drive	Goodyear Eagle Synchronous drive
Controller	Electronic speed controller	Electronic speed controller	Electronic speed controller	Electronic speed controller	Electronic speed controller
ENERGY
Voltage	48V	48V	48V	48V	48V
Battery	Eight 6V-220AH batteries	Eight 6V-220AH batteries	Eight 6V-220AH batteries	Eight 6V-220AH batteries	Eight 6V-220AH batteries
Charger	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
CHASSIS
Body	14-G diamond-plate steel body, tubular frame	14-G diamond-plate steel body, tubular frame	14-G diamond-plate steel body, tubular frame	14-G diamond-plate steel body, tubular frame	14-G diamond-plate steel body, tubular frame
Suspension	Dual leaf springs on front and rear	Dual leaf springs on front and rear	Dual leaf springs on front and rear	Dual leaf springs on front and rear	Dual leaf springs on front and rear
Brakes	Rear hydraulic brakes, 11", regenerative braking	Rear hydraulic brakes, 11", regenerative braking	Rear hydraulic brakes, 11", regenerative braking	Rear hydraulic brakes, 11", regenerative braking	Rear hydraulic brakes, 11", regenerative braking
Wheels	5.7x8 LRC pneumatic tires	5.7x8 LRC pneumatic tires	5.7x8 LRC pneumatic tires	5.7x8 LRC pneumatic tires	5.7x8 LRC pneumatic tires
Steering	Automotive steering wheel	Automotive steering wheel	Automotive steering wheel	Automotive steering wheel	Automotive steering wheel
Seats	Two bucket seats on slide adjusters	Two bucket seats on slide adjusters	Two bucket seats on slide adjusters	Two bucket seats on slide adjusters	Two bucket seats on slide adjusters
EQUIPMENT
Lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights
Indicators	Battery status indicator	Battery status indicator	Battery status indicator	Battery status indicator	Battery status indicator
Accessories	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells
Safety	Deadman seat switch, reverse alarm, seat belts	Deadman seat switch, reverse alarm, seat belts	Deadman seat switch, reverse alarm, seat belts	Deadman seat switch, reverse alarm, seat belts	Deadman seat switch, reverse alarm, seat belts

SPECIFICATIONS

POWERTRAIN
Motor
6 Passengers	15 hp shunt motor
8 Passengers	15 hp shunt motor
10 Passengers	15 HP brushless AC motor
11 Passengers	15 HP brushless AC motor
Wheelchair	15 HP brushless AC motor
Drive Axle
6 Passengers	Differential with automotive ring gear
8 Passengers	Differential with automotive ring gear
10 Passengers	Differential with automotive ring gear
11 Passengers	Differential with automotive ring gear
Wheelchair	Differential with automotive ring gear
Transmission
6 Passengers	Goodyear Eagle Synchronous drive
8 Passengers	Goodyear Eagle Synchronous drive
10 Passengers	Goodyear Eagle Synchronous drive
11 Passengers	Goodyear Eagle Synchronous drive
Wheelchair	Goodyear Eagle Synchronous drive
Controller
6 Passengers	Electronic speed controller
8 Passengers	Electronic speed controller
10 Passengers	Electronic speed controller
11 Passengers	Electronic speed controller
Wheelchair	Electronic speed controller
ENERGY
Voltage
6 Passengers	48V
8 Passengers	48V
10 Passengers	48V
11 Passengers	48V
Wheelchair	48V
Battery
6 Passengers	Eight 6V-220AH batteries
8 Passengers	Eight 6V-220AH batteries
10 Passengers	Eight 6V-220AH batteries
11 Passengers	Eight 6V-220AH batteries
Wheelchair	Eight 6V-220AH batteries
Charger
6 Passengers	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
8 Passengers	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
10 Passengers	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
11 Passengers	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
Wheelchair	High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
CHASSIS
Body
6 Passengers	14-G diamond-plate steel body, tubular frame
8 Passengers	14-G diamond-plate steel body, tubular frame
10 Passengers	14-G diamond-plate steel body, tubular frame
11 Passengers	14-G diamond-plate steel body, tubular frame
Wheelchair	14-G diamond-plate steel body, tubular frame
Suspension
6 Passengers	Dual leaf springs on front and rear
8 Passengers	Dual leaf springs on front and rear
10 Passengers	Dual leaf springs on front and rear
11 Passengers	Dual leaf springs on front and rear
Wheelchair	Dual leaf springs on front and rear
Brakes
6 Passengers	Rear hydraulic brakes, 11", regenerative braking
8 Passengers	Rear hydraulic brakes, 11", regenerative braking
10 Passengers	Rear hydraulic brakes, 11", regenerative braking
11 Passengers	Rear hydraulic brakes, 11", regenerative braking
Wheelchair	Rear hydraulic brakes, 11", regenerative braking
Wheels
6 Passengers	5.7x8 LRC pneumatic tires
8 Passengers	5.7x8 LRC pneumatic tires
10 Passengers	5.7x8 LRC pneumatic tires
11 Passengers	5.7x8 LRC pneumatic tires
Wheelchair	5.7x8 LRC pneumatic tires
Steering
6 Passengers	Automotive steering wheel
8 Passengers	Automotive steering wheel
10 Passengers	Automotive steering wheel
11 Passengers	Automotive steering wheel
Wheelchair	Automotive steering wheel
Seats
6 Passengers	Two bucket seats on slide adjusters
8 Passengers	Two bucket seats on slide adjusters
10 Passengers	Two premium seats on slide adjusters
11 Passengers	Two premium seats on slide adjusters
Wheelchair	Two premium seats on slide adjusters
EQUIPMENT
Lights
6 Passengers	Dual LED headlights & tail/brake lights
8 Passengers	Helical gear differential
10 Passengers	Dual LED headlights & tail/brake lights
11 Passengers	Dual LED headlights & tail/brake lights
Wheelchair	Dual LED headlights & tail/brake lights
Indicators
6 Passengers	Battery status indicator
8 Passengers	Battery status indicator
10 Passengers	Battery status indicator
11 Passengers	Battery status indicator
Wheelchair	Battery status indicator
Accessories
6 Passengers	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells
8 Passengers	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells
10 Passengers	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells
11 Passengers	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells
Wheelchair	Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells
Safety
6 Passengers	Deadman seat switch, reverse alarm, seat belts
8 Passengers	Deadman seat switch, reverse alarm, seat belts
10 Passengers	Deadman seat switch, reverse alarm, seat belts
11 Passengers	Deadman seat switch, reverse alarm, seat belts
Wheelchair	Deadman seat switch, reverse alarm, seat belts
