A great alternative to conventional sit- down tow tractors

MT-210

VEHICLE TYPE
TOW TRACTORS

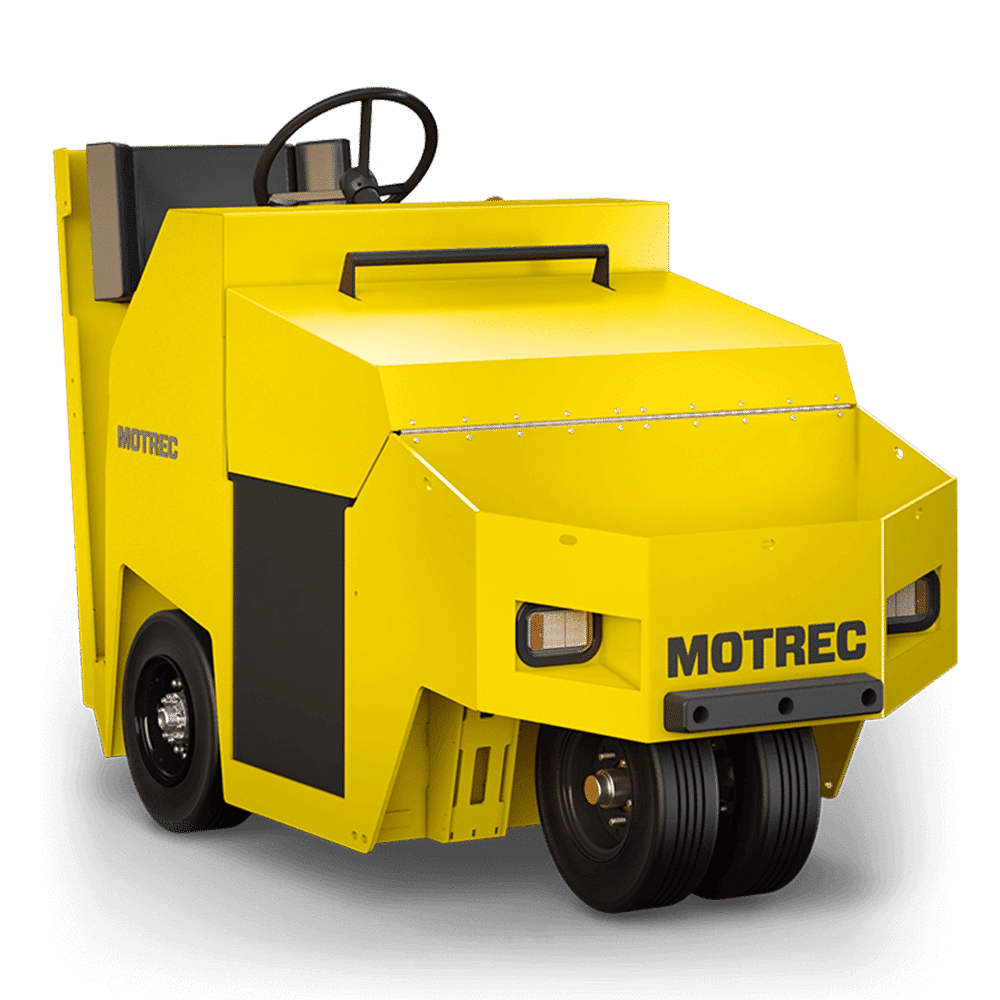

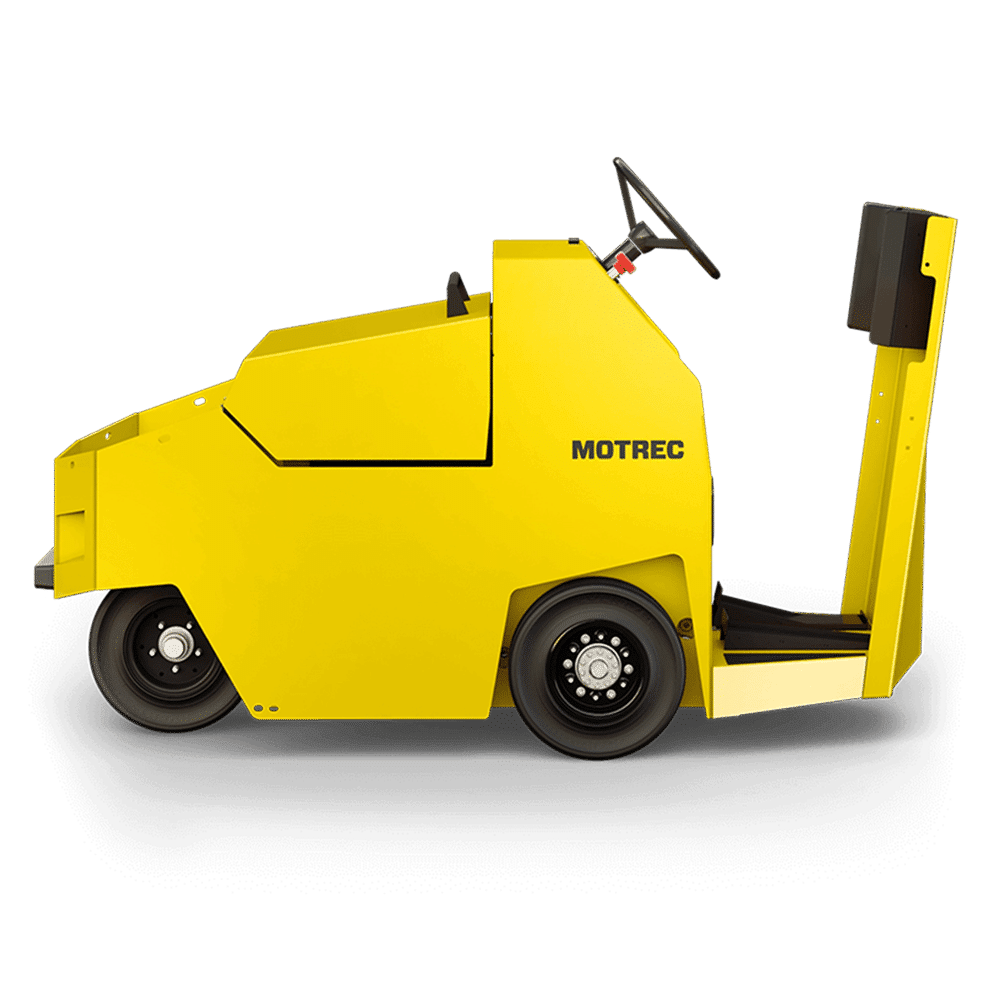

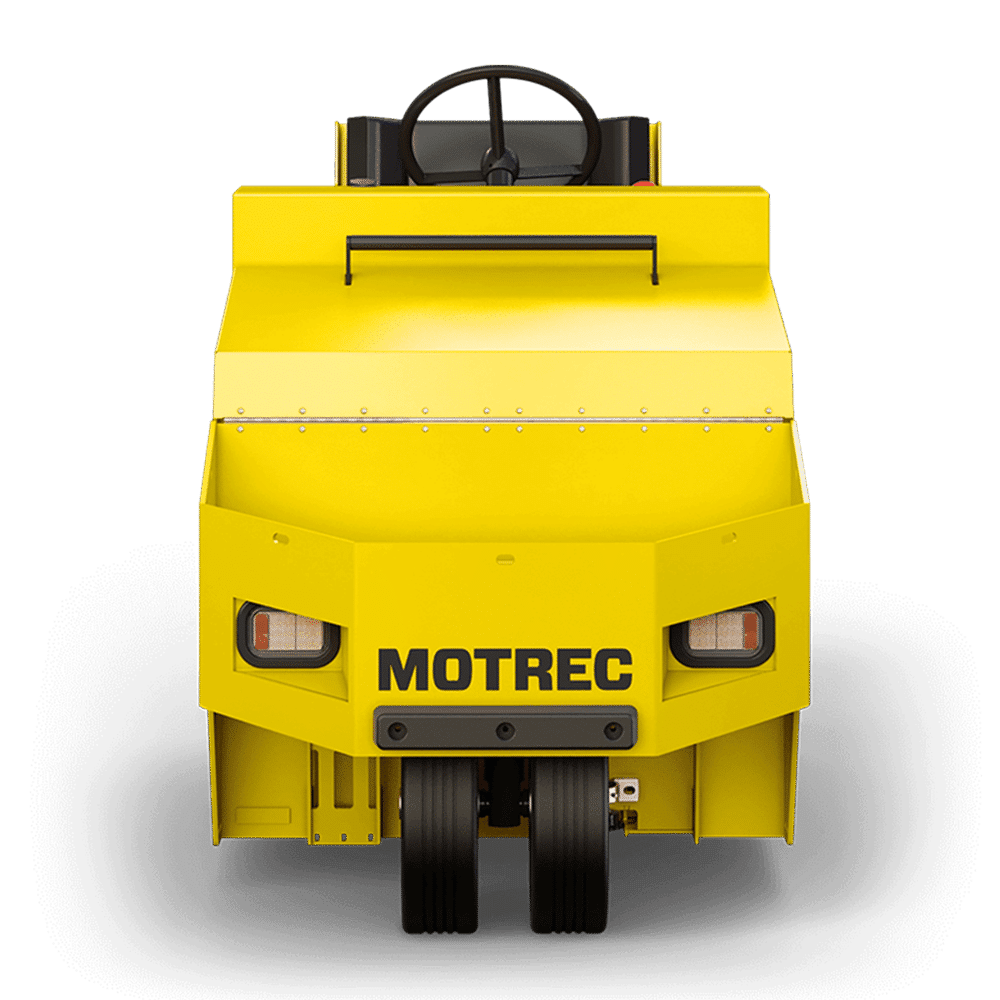

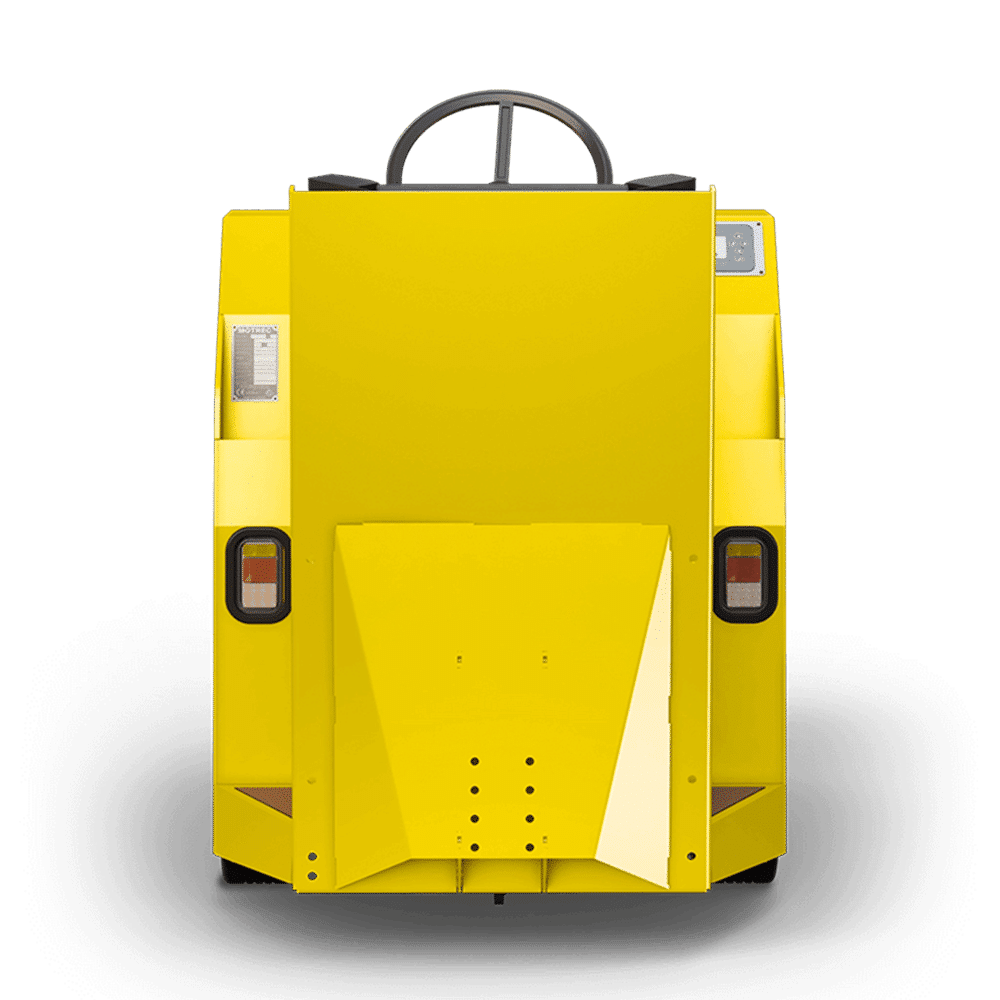

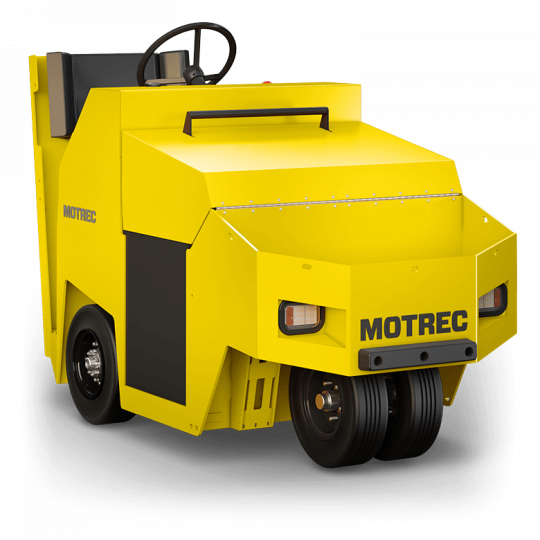

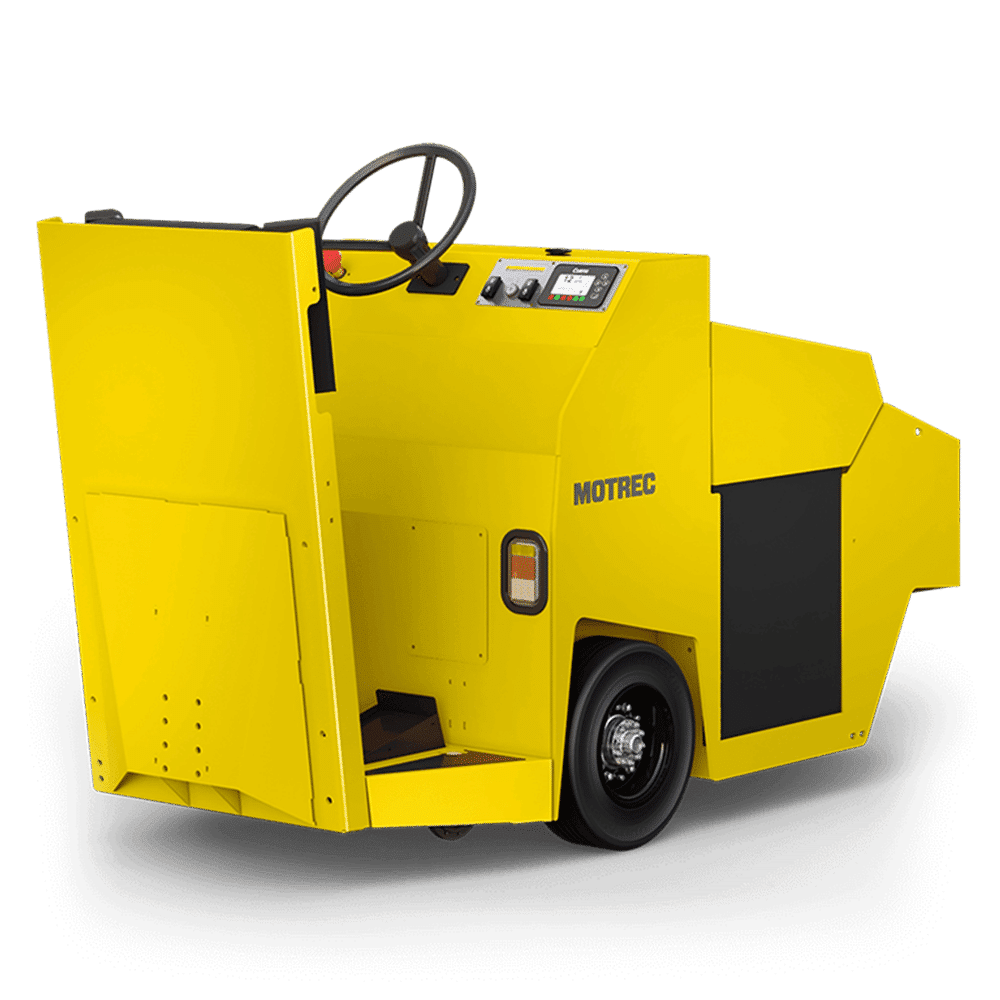

The multi-trailer hauling MT-210 is a highly maneuverable and operator-friendly stand-up tow tractor that’s ideal for frequent step-in-and-out applications – thanks to a rear central driving position with easy step-on/step-off from both sides. It’s also powerful, reliable and comfortable: standard features include leaf springs rear suspension system, AC powertrain and an impressive 7,250 Kg towing capacity. The 1,420 mm turning radius is the tightest in its category. The new generation MT-210 now also boasts Motrec’s signature look. EE rating available.

MT 210 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
36V		1	136 Kg.	7,250 kg.	10 Kmh	1,420 mm
48V		1	136 Kg.	7,250 kg.	10 Kmh	1,420 mm

MT 210 MODELS	36V
PASSENGERS	1
LOAD CAPACITY	136 Kg.
TOWING CAPACITY	7,250 kg.
SPEED	10 Kmh
TURNING RADIUS	1,420 mm

MT 210 MODELS	48V
PASSENGERS	1
LOAD CAPACITY	136 Kg.
TOWING CAPACITY	7,250 kg.
SPEED	10 Kmh
TURNING RADIUS	1,420 mm

BATTERY

Robust long-life industrial batteries No more mid-shift recharging!
These powerful batteries can last a full shift, even with long distances.
Supports Opportunity Rapid charging. Encased for easy replacing.
Various options and models available.

Image are for illustrative purposes only

BRAKES

Heavy-duty braking power Provides faster braking and shorter stopping distances,
even when towing heavy loads. Stronger, more durable and more efficient design
ensures superior braking performance with less maintenance vs.
competing brakes. Brake safely and confidently every time.

Image are for illustrative purposes only

CONVERTER

Battery-saving efficient DC/DC converter Equalizes battery cells by converting
36V or 48V to 12V for accessories. Batteries are therefore discharged more evenly,
resulting in better output and a longer battery life.

Image are for illustrative purposes only

HITCH

Versatile, heavy-duty hitches Ensures quick and safe hitching, even with heavy loads.
Most of our vehicles work with multiple hitch configurations and a wide range of
attachments. Some models, like our Clevis hitch with safety spring, work with a simple
hand release system or remotely from the driver’s seat. Tailored solutions also available.

Image are for illustrative purposes only

REGENERATIVE

Energy-saving regenerative braking Lengthens running time by using energy
more efficiently. Braking is automatically applied whenever the accelerator is
released, feeding energy back into the battery. Operator also uses the brake
less often, reducing wear and tear.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	36V	48V

POWERTRAIN
Motor	10 HP brushless AC motor	15 HP brushless AC motor
Drive Axle	Helical gear differential	Helical gear differential
Transmission	Direct drive	Direct drive
Controller	Electronic AC speed controller	Electronic AC speed controller
ENERGY
Voltage	36V	48V
Battery	To be specified	To be specified
Charger	To be specified	To be specified
CHASSIS
Body	All-steel unibody construction	All-steel unibody construction
Suspension	Leaf springs rear suspension system	Leaf springs rear suspension system
Brakes	Rear hydraulic drum brakes, regenerative braking	Rear hydraulic drum brakes, regenerative braking
Wheels	Solid tyres	Solid tyres
Steering	Automotive steering wheel	Automotive steering wheel
Seats	Winged back pad	Winged back pad
EQUIPMENT
Lights	LED dual headlights & tail/brake lights, dual back-up lights	LED dual headlights & tail/brake lights, dual back-up lights
Indicators	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories	36V/12V converter for 12-volt accessories, backlit and sealed buttons	48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
DIMENSIONS
VEHICLE
Weight
Height	1,370 mm	1,370 mm
Length	2,050 mm	2,050 mm
Width	970 mm	970 mm
Wheel Base	1,000 mm	1,000 mm
DECK
Deck Height
Deck Length
Deck Width
BATTERY
Battery Weight
Battery Height	710 mm	710 mm
Battery Length	910 mm	910 mm
Battery Width	430 mm	430 mm

SPECIFICATIONS

POWERTRAIN
Motor
36V	10 HP brushless AC motor
48V	15 HP brushless AC motor
Drive Axle
36V	Helical gear differential
48V	Helical gear differential
Transmission
36V	Direct drive
48V	Direct drive
Controller
36V	Electronic AC speed controller
48V	Electronic AC speed controller
ENERGY
Voltage
36V	36V
48V	36V
Battery
36V	To be specified
48V	To be specified
Charger
36V	To be specified
48V	To be specified
CHASSIS
Body
36V	All-steel unibody construction
48V	All-steel unibody construction
Suspension
36V	Leaf springs rear suspension system
48V	Leaf springs rear suspension system
Brakes
36V	Rear hydraulic drum brakes, regenerative braking
48V	Rear hydraulic drum brakes, regenerative braking
Wheels
36V	Solid tyres
48V	Solid tyres
Steering
36V	Automotive steering wheel
48V	Automotive steering wheel
Seats
36V	Winged back pad
48V	Winged back pad
EQUIPMENT
Lights
36V	LED dual headlights & tail/brake lights, dual back-up lights
48V	LED dual headlights & tail/brake lights, dual back-up lights
Indicators
36V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V	36V/12V converter for 12-volt accessories, backlit and sealed buttons
48V	48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
36V	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
48V	Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape

DIMENSIONS

VEHICLE
Weight
36V
48V
Height
36V	1,370 mm
48V	1,370 mm
Length
36V	2,050 mm
48V	2,050 mm
Width
36V	970 mm
48V	970 mm
Wheel Base
36V	1,000 mm
48V	1,000 mm
DECK
Deck Height
36V
48V
Deck Length
36V
48V
Deck Width
36V
48V
BATTERY
Battery Weight
36V
48V
Battery Height
36V	710 mm
48V	710 mm
Battery Length
36V	910 mm
48V	910 mm
Battery Width
36V	430 mm
48V	430 mm

Specifications and standard equipment are subject to change without notice.

Our most popular options. Packaged for your convenience.

Customers often order the same group of options. So we created a number of packages to make building your perfect vehicle easier than ever.

The road to the perfect vehicle is paved with options.

If one of our option packages isn’t quite what you need, our long list of options will fit the bill. Here are just some of our more popular options. Contact us for the complete list.

A little or a lot, customization goes a long way.

Starting with greater productivity and safety. Less maintenance and lower TCO, too. Whatever the degree of customization needed, our engineering team will get your vehicle to you quickly and for less than you might think. Our handy ordering and quote request tools also make the process extremely easy.
