The #1 workhorse of automakers

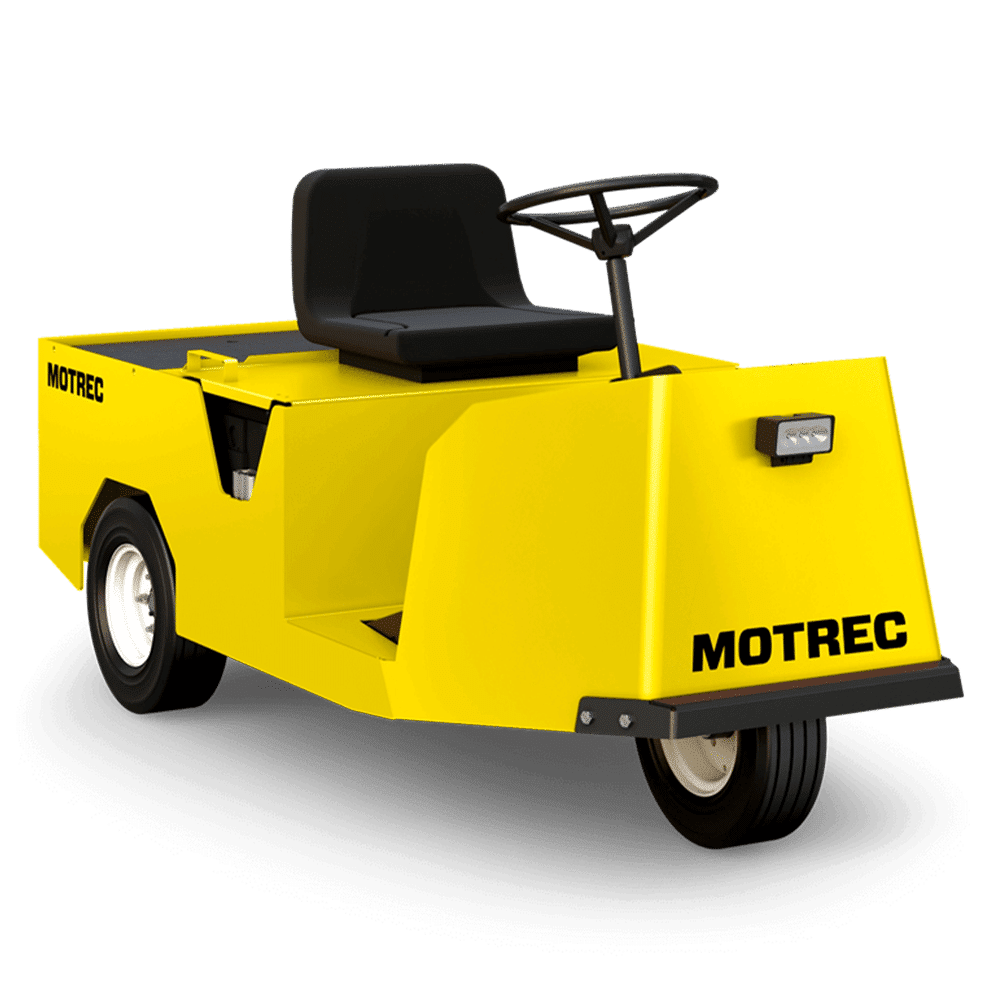

Motrec-MT-280-1

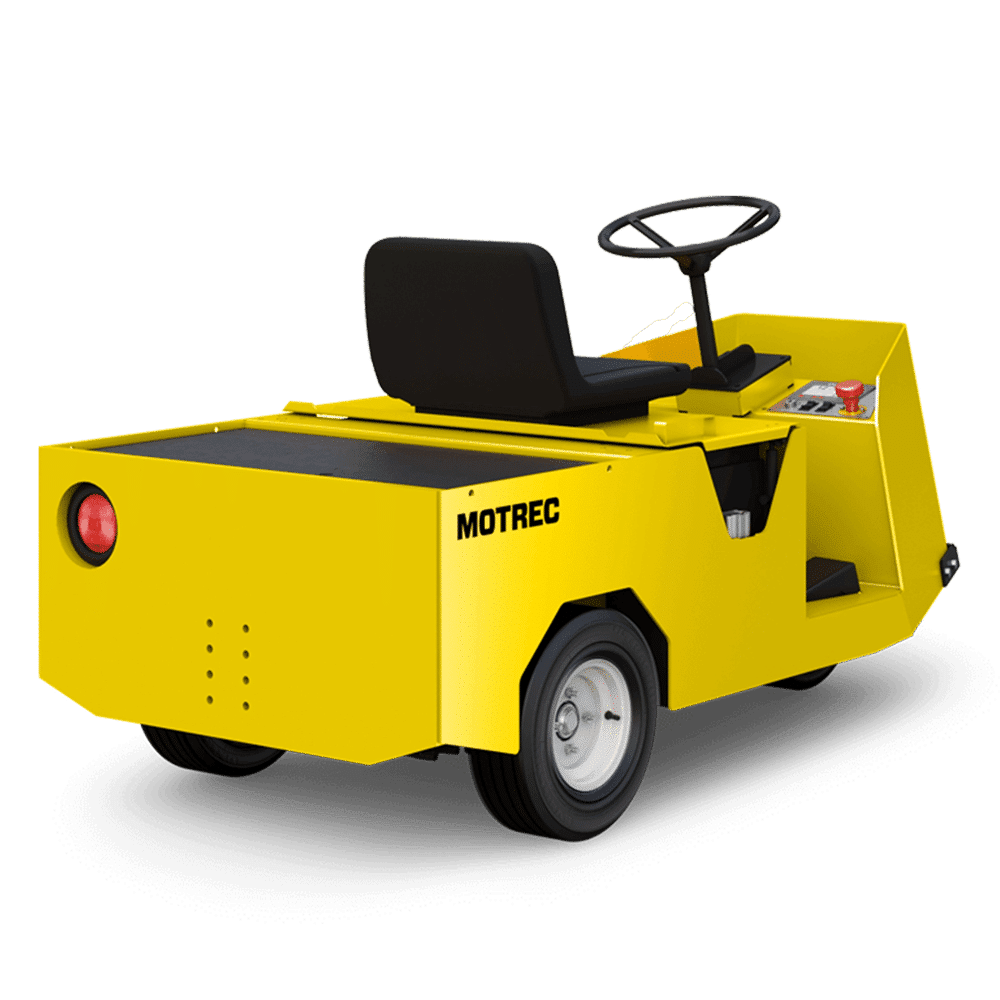

Motrec-MT-280-4

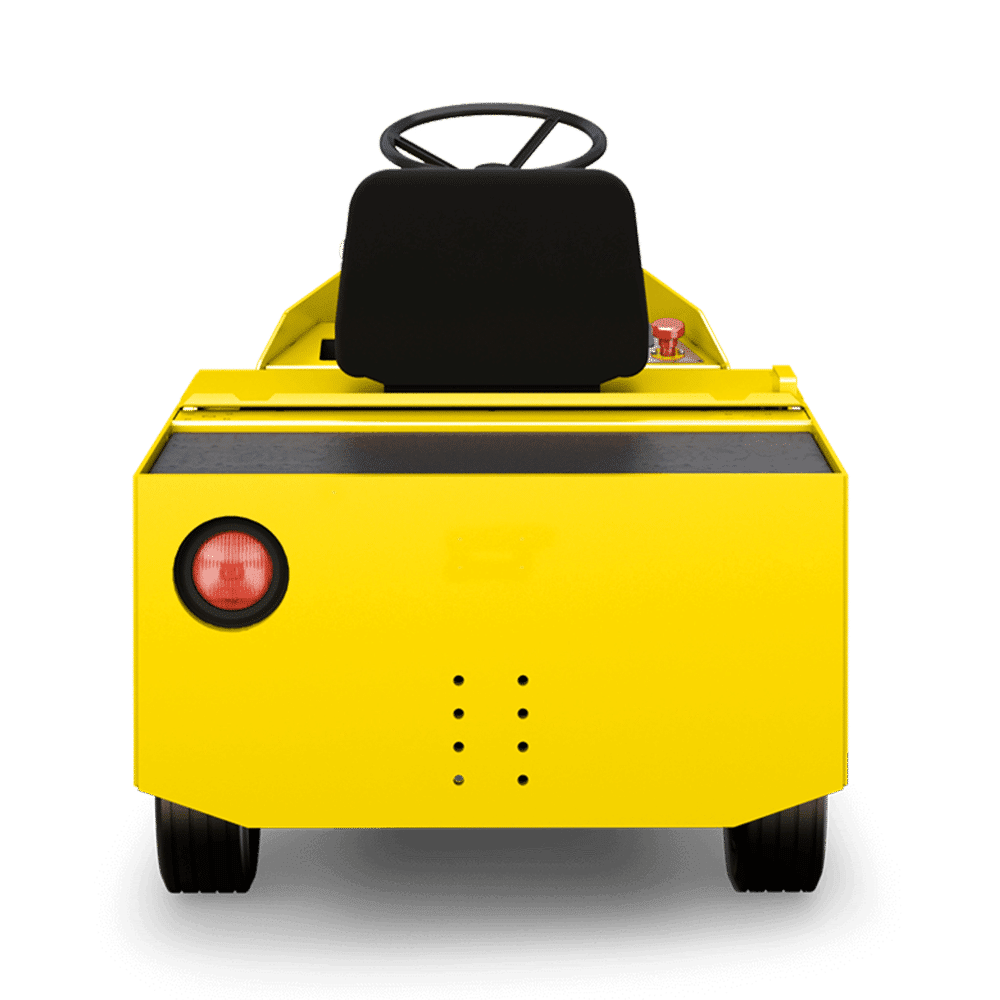

Motrec-MT-280-3

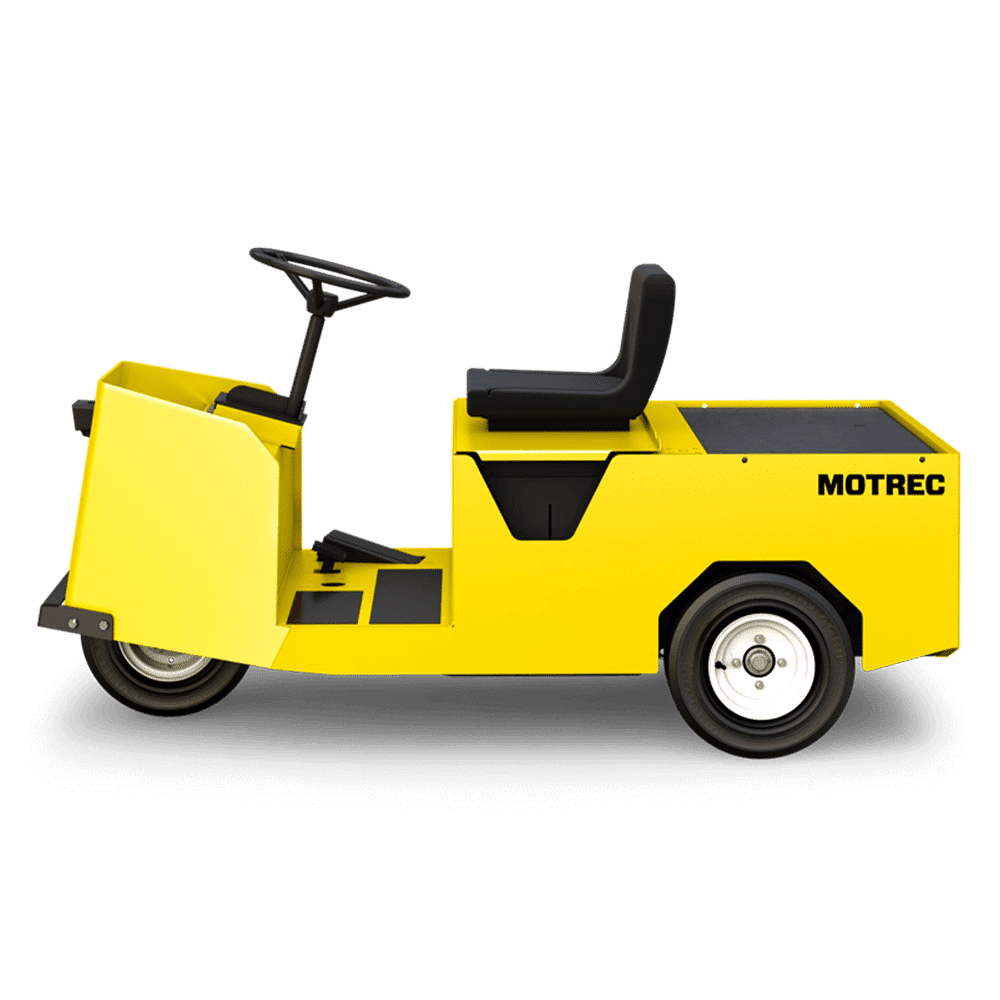

Motrec-MT-280-2

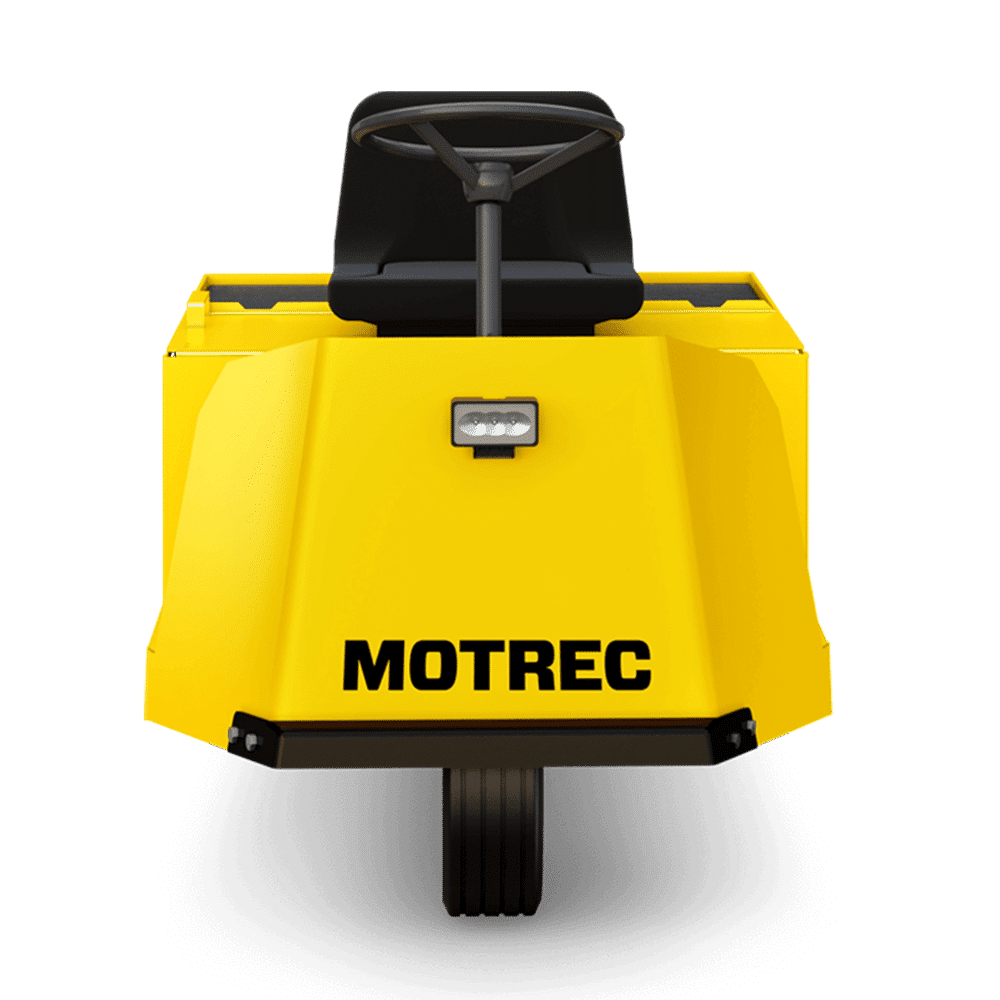

Motrec-MT-280-5

VEHICLE TYPE | Tow Tugs

MT-280

This hardworking tow tractor delivers outstanding performance. With its efficient AC direct-drive motor and 7,257 kg.* towing capacity, the MT-280 is ideal for moving trailers over long distances. It’s also narrow enough to fit through most door openings. From its all-steel construction and demountable bumpers to its high torque drum brakes, this tugger is built for years of heavy use in total comfort and safety. The easy-to-access under seat industrial battery prevents mid-shift interruptions. EE rating available.

REQUEST A QUOTE

REQUEST A QUOTE

Motrec-MT-280-1

Motrec-MT-280-4

Motrec-MT-280-3

Motrec-MT-280-2

Motrec-MT-280-5

MT-280	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS


Specifications and standard equipment are subject to change without notice.
36V	1	320 kg	2720 kg	13 kmh	1850 mm
36V HD	1	365 kg	2720 kg	13 kmh	1850 mm
36V SD	1	365 kg	7260 kg	10 kmh	1820 mm
48V Lithium	1	320 kg	2720 kg	13 kmh	1850 mm

36V
Passengers	1
Load Capacity	320 kg
Towing Capacity	2720 kg
Speed	13 kmh
Turning Radius	1850 mm

36V HD
Passengers	1
Load Capacity	365 kg
Towing Capacity	4535 kg
Speed	13 kmh
Turning Radius	1820 mm

36V SD
Passengers	1
Load Capacity	365 kg
Towing Capacity	7260 kg
Speed	10 kmh
Turning Radius	1820 mm

48V Lithium
Passengers	1
Load Capacity	320 kg
Towing Capacity	2720 kg
Speed	13 kmh
Turning Radius	1850 mm

Motrec-AC-Powertrain-Op-V1

AC POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor

Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-Battery-Op-V1

BATTERY

Robust long-life industrial batteries

No more mid-shift recharging! These powerful batteries can last a full shift, even with long distances. Supports Opportunity Rapid charging. Encased for easy replacing. Various options and models available.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-Controller-Op-V1

CONTROLLER LED CHARGER

AC controller with sealed connectors paired with multifunction display

Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-LED-Op-V1

LED

Long-lasting, battery-saving LED lights

Provides stronger, longer-lasting lighting for greater safety. Efficient design is easy on the battery current and requires minimal maintenance. LED lights that are both esthetic and built to last under all conditions.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-Charger-Op-V1.

CHARGER

Inboard / portable high frequency PFC battery charger

Provides reliable, quality charging. High frequency power factor-corrected charger improves battery performance and prevents power surges. High efficiency and global AC input. Available in inboard or portable models with several voltage options.

Image are for illustrative purposes only and may differ from the actual product.

36V	36V HD	36V SD	48V Lithium

POWER TRAIN
Motor
10 HP shunt motor	Brushless AC motor, 7.5 HP Intermittent, 10 HP Max	Brushless AC motor, 7.5 HP Intermittent, 10 HP Max	10 HP Shunt motor
Drive Axel
Helical gear differential	Helical gear differential	Helical gear differential	Helical gear differential
Transmission
Direct drive	Direct drive	Direct drive	Direct drive
Controller
SEPEX Electronic speed controller	Electronic AC speed controller	Electronic AC speed controller

ENERGY
Voltage
36V	36V	36V	48V
Battery
No battery included	No battery included	“No battery included	Lithium 48V-180Ah 9.3Kwh, Lithium 48V-240 Ah 12.4Kwh
Charger
No charger included	No charger included	No charger included	48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh

CHASSIS
Body
All-steel unibody construction	All-steel unibody construction, Powder coating	Brushless AC motor, 7.5 HP Intermittent, 10 HP Max	10 HP Shunt motor
Suspension
Front coil spring and shock absorbers, Rear dual coil springs and shock absorber	Dual coil springs & shock absorbers front and Dual leaf springs on rear	Dual coil springs & shock absorbers front and Dual leaf springs on rear	Front coil spring and shock absorbers, Rear dual coil springs and shock absorber
Brakes
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking	Rear hydraulic drum brakes, regenerative braking	Rear hydraulic drum brakes, regenerative braking	Rear wheel hydraulic drum brakes, Hand lever parking brake, Regenerative braking
Wheels
4.8×8 LRC pneumatic tyres	4.8×8 LRC pneumatic tyres	4.8×8 LRC pneumatic tyres	4.8×8 LRC pneumatic tyres
Steering
Automotive steering wheel	Automotive steering wheel	Automotive steering wheel	Automotive steering wheel
Seats
Bucket seat on slide adjusters	Bucket seat on slide adjusters	Bucket seat on slide adjusters	Bucket seat on slide adjusters

EQUIPMENT
Lights
LED headlight & tail/brake light	LED headlight & tail/brake light	LED headlight & tail/brake light	LED headlight & tail/brake light
Indicators
Battery status indicator	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Battery status indicator
Accessories
36V/12V converter for 12-volt accessories, bolt-on bumpers and rear wheel guards	36V/12V converter for 12-volt accessories, bolt-on front bumper	36V/12V converter for 12-volt accessories, bolt-on front bumper	48V/12VDC converter, Converter for 12-volt accessories, Bolt-on bumpers, Rear wheel guards
Safety
Reverse alarm, deadman seat switch, horn	Reverse alarm, deadman seat switch, horn	Reverse alarm, deadman seat switch, horn	Reverse alarm, deadman seat switch, horn

Specifications and standard equipment are subject to change without notice.

MOTOR
36V	10 HP shunt motor
36V HD	Brushless AC motor, 7.5 HP Intermittent, 10 HP Max
36V SD	Brushless AC motor, 7.5 HP Intermittent, 10 HP Max
48V Lithium	10 HP Shunt motor

Drive Axle
36V	Helical gear differential
36V HD	Helical gear differential
36V SD	Helical gear differential
48V Lithium	Helical gear differential

Transmission
36V	Direct drive
36V HD	Direct drive
36V SD	Direct drive
48V Lithium	Direct drive

Controller
36V	SEPEX Electronic speed controller
36V HD	Electronic AC speed controller
36V SD	Electronic AC speed controller
48V Lithium	SEPEX Electronic speed controller

Voltage
36V	36V
36V HD	36V
36V SD	36V
48V Lithium	48V

Battery
36V	No battery included
36V HD	No battery included
36V SD	“No battery included
48V Lithium	Lithium 48V-180Ah 9.3Kwh, Lithium 48V-240 Ah 12.4Kwh

Charger
36V	No charger included
36V HD	No charger included
36V SD	No charger included
48V Lithium	48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh

Body
36V	All-steel unibody construction, Powder coating
36V HD	All-steel unibody construction
36V SD	All-steel unibody construction
48V Lithium	All-steel unibody construction, Powder coating

Suspension
36V	Front coil spring and shock absorbers, Rear dual coil springs and shock absorber
36V HD	Dual coil springs & shock absorbers front and Dual leaf springs on rear
36V SD	Dual coil springs & shock absorbers front and Dual leaf springs on rear
48V Lithium	Front coil spring and shock absorbers, Rear dual coil springs and shock absorber

Brakes
36V	Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
36V HD	Rear hydraulic drum brakes, regenerative braking
36V SD	Rear hydraulic drum brakes, regenerative braking
48V Lithium	Rear wheel hydraulic drum brakes, Hand lever parking brake, Regenerative braking

Wheels
36V	4.8×8 LRC pneumatic tyres
36V HD	4.8×8 LRC pneumatic tyres
36V SD	4.8×8 LRC pneumatic tyres
48V Lithium	4.8×8 LRC pneumatic tyres

Steering
36V	Automotive steering wheel
36V HD	Automotive steering wheel
36V SD	Automotive steering wheel
48V Lithium	Automotive steering wheel

Seats
36V	Bucket seat on slide adjusters
36V HD	Bucket seat on slide adjusters
36V SD	Bucket seat on slide adjusters
48V Lithium	Bucket seat on slide adjusters

Lights
36V	LED headlight & tail/brake light
36V HD	LED headlight & tail/brake light
36V SD	LED headlight & tail/brake light
48V Lithium	LED headlight & tail/brake light

Indicators
36V	Battery status indicator
36V HD	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
36V SD	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V Lithium	Battery status indicator

Accessories
36V	36V/12V converter for 12-volt accessories, bolt-on bumpers and rear wheel guards
36V HD	36V/12V converter for 12-volt accessories, bolt-on front bumper
36V SD	36V/12V converter for 12-volt accessories, bolt-on front bumper
48V Lithium	48V/12VDC converter, Converter for 12-volt accessories, Bolt-on bumpers, Rear wheel guards

Safety
36V	Reverse alarm, deadman seat switch, horn
36V HD	Reverse alarm, deadman seat switch, horn
36V SD	Reverse alarm, deadman seat switch, horn
48V Lithium	Reverse alarm, deadman seat switch, horn

Specifications and standard equipment are subject to change without notice.

36V	36V HD	36V SD	48V Lithium

VEHICLE DIMENSIONS
Height
1040 mm	1040 mm	1040 mm	1040 mm
Length
2000 mm	2000 mm	2000 mm	2000 mm
Width
1000 mm	970 mm	970 mm	1000 mm
Wheel Base
1320 mm	1320 mm	1320 mm	1320 mm

DECK DIMENSIONS
Deck Height
660 mm	640 mm	640 mm	660 mm
Deck Length
530 mm	530 mm	530 mm	530 mm
Deck Width
1000 mm	970 mm	970 mm	1000 mm

BATTERY DIMENSIONS
Battery Weight
–	–	–	–
Battery Height
450 mm	450 mm	450 mm	450 mm
Battery Length
890 mm	890 mm	890 mm	890 mm
Battery Width
410 mm	410 mm	410 mm	410 mm

Specifications and standard equipment are subject to change without notice.

Height
36V	1040 mm
36V HD	1040 mm
36V SD	1040 mm
48V Lithium	1040 mm

Length
36V	2000 mm
36V HD	2000 mm
36V SD	2000 mm
48V Lithium	2000 mm

Width
36V	1000 mm
36V HD	970 mm
36V SD	970 mm
48V Lithium	1000 mm

Wheel Base
36V	1320 mm
36V HD	1320 mm
36V SD	1320 mm
48V Lithium	1320 mm

Deck Height
36V	660 mm
36V HD	640 mm
36V SD	640 mm
48V Lithium	660 mm

Deck Length
36V	530 mm
36V HD	530 mm
36V SD	530 mm
48V Lithium	530 mm

Deck Width
36V	1000 mm
36V HD	970 mm
36V SD	970 mm
48V Lithium	1000 mm

Specifications and standard equipment are subject to change without notice.
