Ultra-versatile
sit-down /
stand-up
crossover tugger

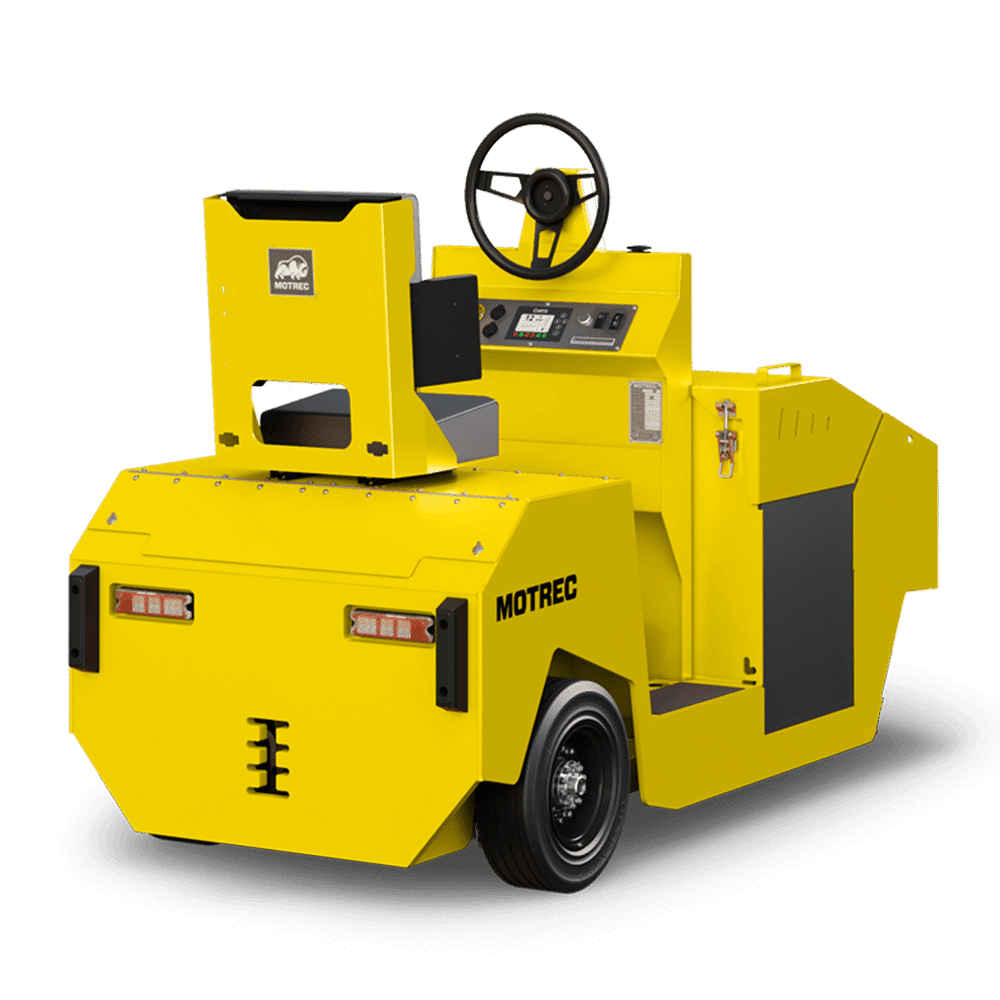

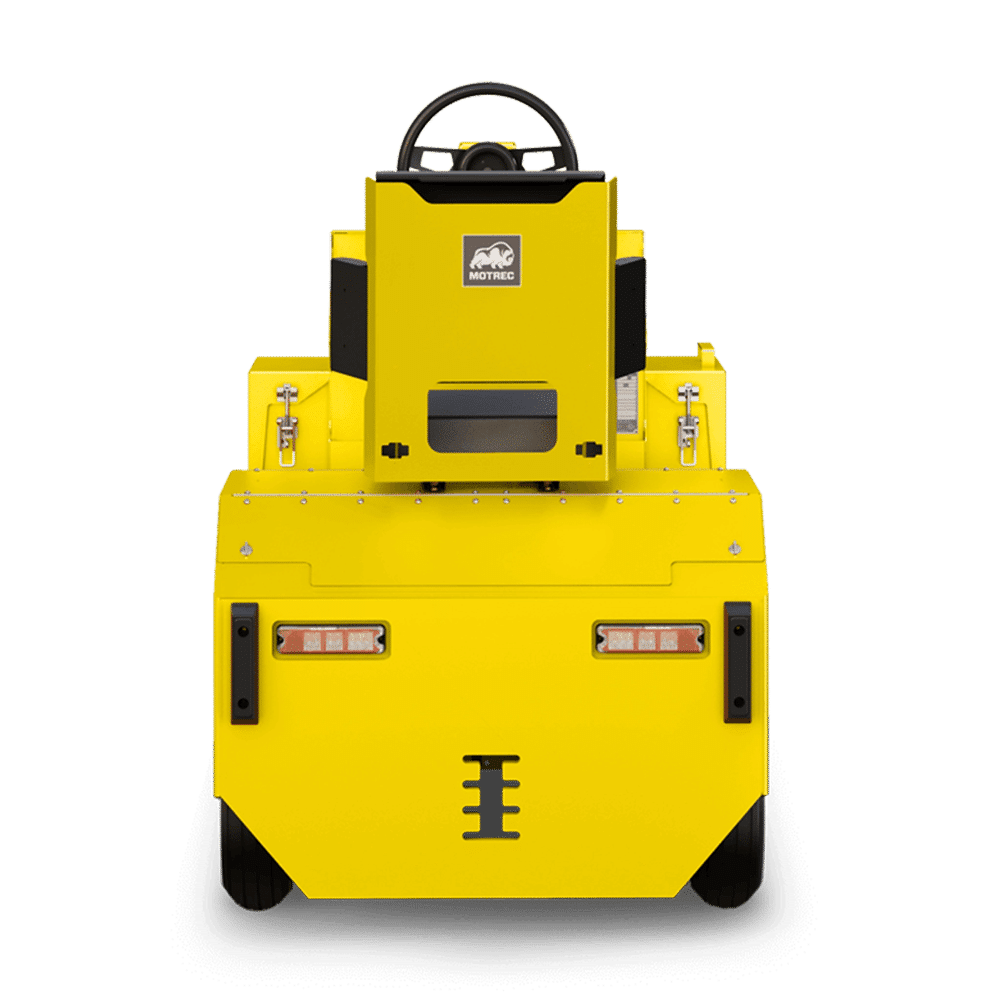

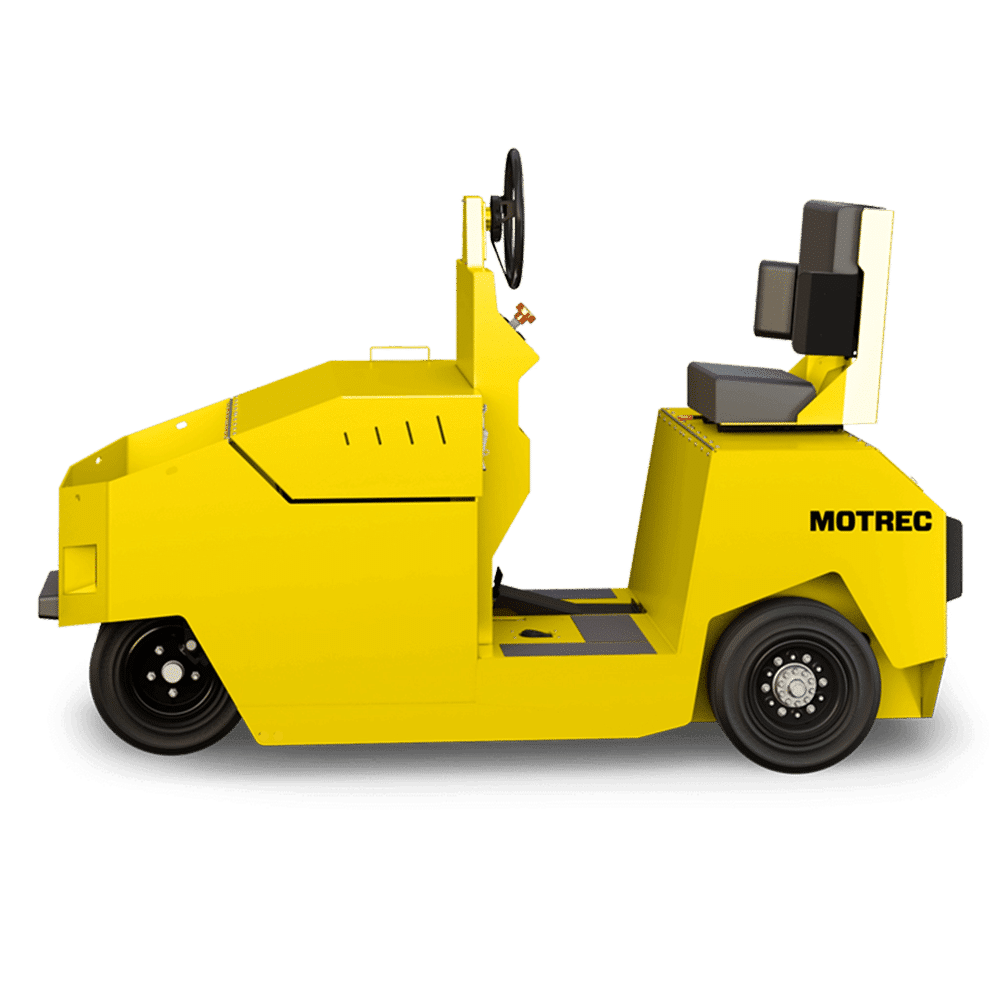

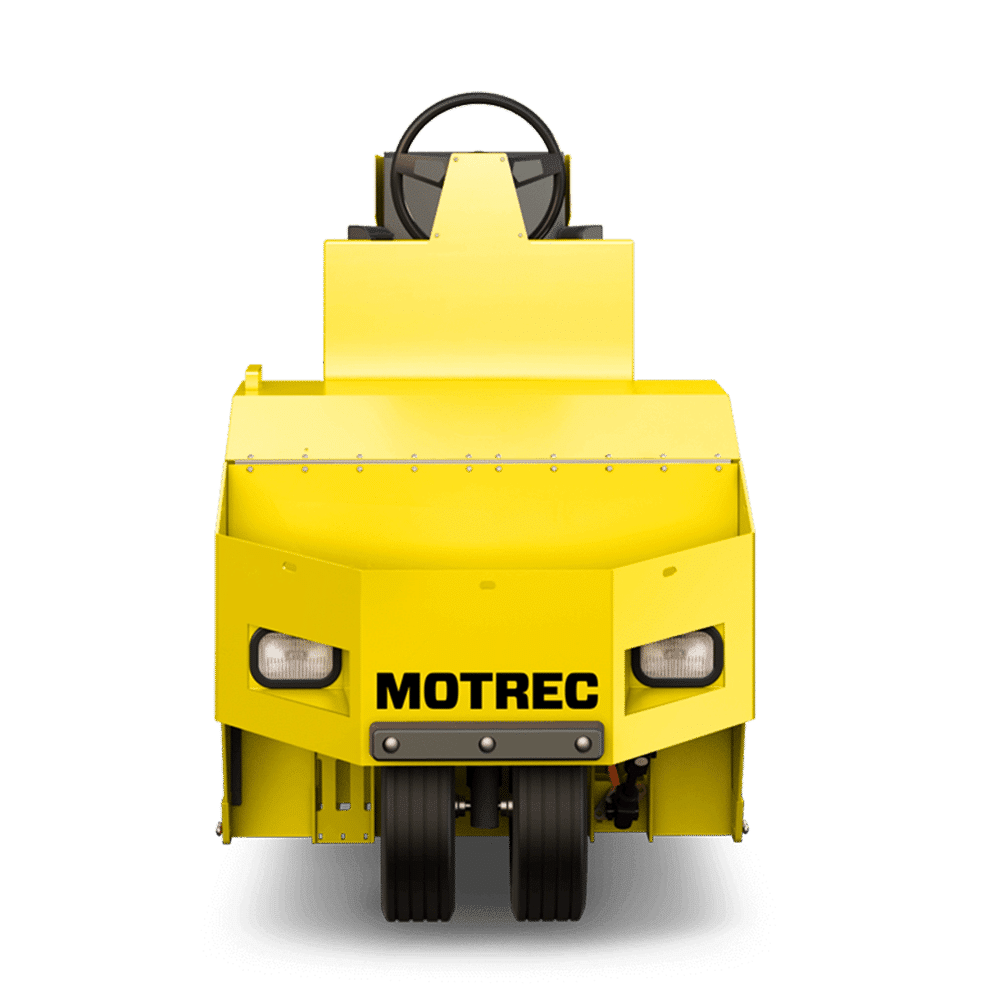

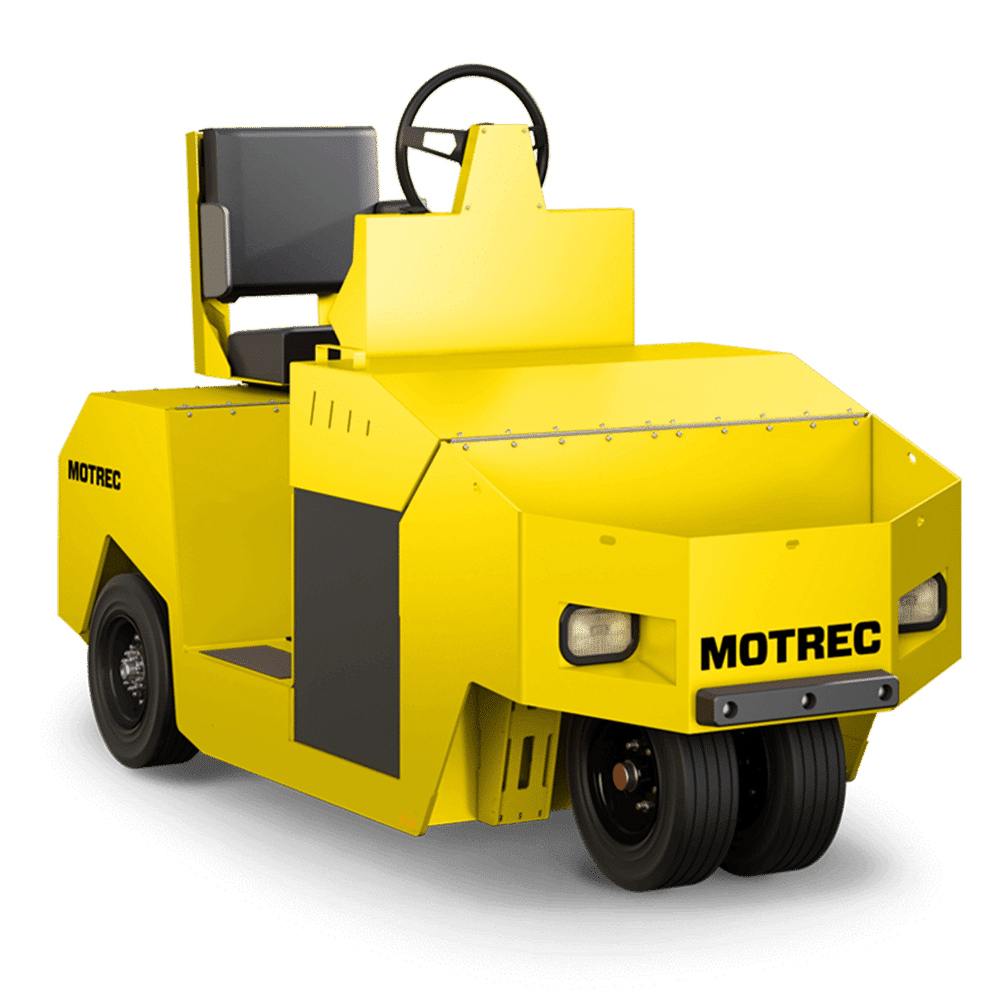

The MT-310 is in a class of its own. Designed from the ground up to offer exceptional versatility, this hard-working tow tractor is jam-packed with features operators will appreciate – starting with its ergonomic one-touch sit-down / stand-up seat that reduces fatigue and strain. The easy-access rear hitch means no more constantly climbing in and out of the vehicle. A low-maintenance, high-efficiency AC vehicle with a confident 7,257 Kg. towing capacity and full customization possibilities.  EE rating available.

MT-310_01-FrontAngle_780x780
ul-logo@2x-40h
ansi-logo@2x-40h
MT 310 MODELS
Heading
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED
TURNING RADIUS
36V
1
230 Kg.
7,257 kg.
10 Kmh
1,980 mm
48V
1
230 Kg.
7,257 kg.
10 Kmh
1,980 mm
MT 310 MODELS
36V
PASSENGERS
1
LOAD CAPACITY
230 Kg.
TOWING CAPACITY
7,257 kg.
SPEED
10 Kmh
TURNING RADIUS
1,980 mm
MT 310 MODELS
48V
PASSENGERS
1
LOAD CAPACITY
230 Kg.
TOWING CAPACITY
7,257 kg.
SPEED
10 Kmh
TURNING RADIUS
1,980 mm
INNOVATION

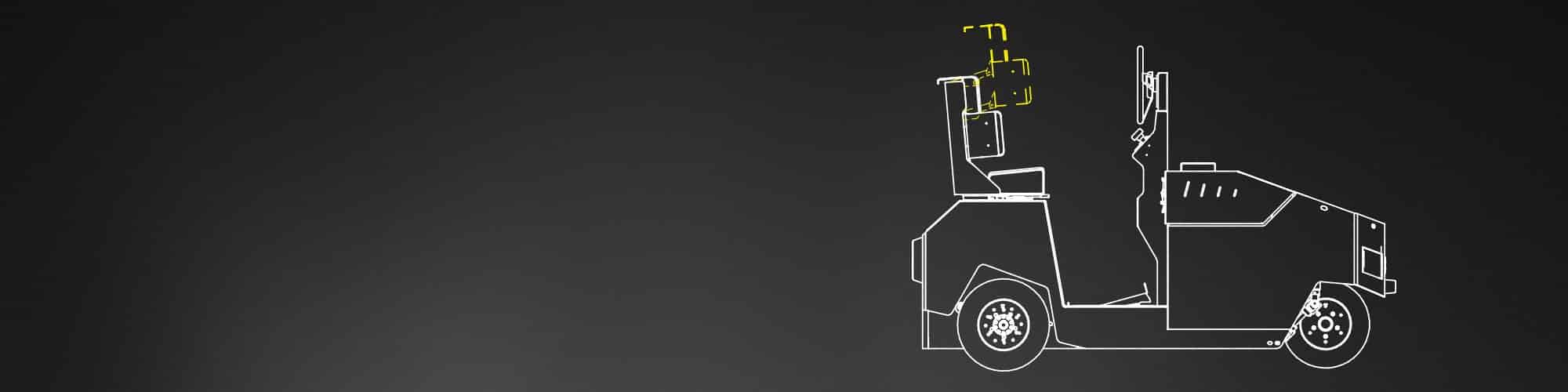

New Sit-Down / Stand-Up seat Motrec’s new sit-down / stand-up seat makes
it easy for operators of virtually all shapes and sizes to work comfortably
from a wide range of driving positions. Operators simply pull up on the
seat to raise it to the standing position; they simply push down to lower
it to the desired sitting position.
Image are for illustrative purposes only
AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.
Image are for illustrative purposes only
CONTROLLER
AC controller with sealed connectors paired with multifunction display
Allows for precise speed control for greater safety and vehicle performance.
Includes indicators for speed, battery state of charge, hour meter,
odometer and fault warnings. Password-protected parameters
and monitoring capability.
Image are for illustrative purposes only
BATTERY
Robust long-life industrial batteries No more mid-shift recharging!
These powerful batteries can last a full shift, even with long distances.
Supports Opportunity Rapid charging. Encased for easy replacing.
Various options and models available.
Image are for illustrative purposes only
Previous
Next
SPECIFICATIONS
36V
48V
POWERTRAIN
Motor
10 HP brushless AC motor
15 HP brushless AC motor
Drive Axle
Helical gear differential
Helical gear differential
Transmission
Direct drive
Direct drive
Controller
Electronic AC speed controller
Electronic AC speed controller
ENERGY
Voltage
36V
48V
Battery
Battery to be specified
Battery to be specified
Charger
Charger to be specified
Charger to be specified
CHASSIS
Body
All-steel unibody construction, powder coated
All-steel unibody construction, powder coated
Suspension
Leaf springs rear suspension system
Leaf springs rear suspension system
Brakes
Rear wheel hydraulic drum brakes, regenerative braking
Rear wheel hydraulic drum brakes, regenerative braking
Wheels
Solid Tyres
Solid Tyres
Steering
Automotive steering wheel
Automotive steering wheel
Seats
Sit-down / Stand-up seat
Sit-down / Stand-up seat
EQUIPMENT
Lights
Dual LED headlights & tail/brake lights
Dual LED headlights & tail/brake lights
Indicators
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V/12V converter for 12-volt accessories, backlit and sealed buttons
48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
DIMENSIONS
VEHICLE
Weight
Height
1,600 mm
1,600 mm
Length
2,240 mm
2,240 mm
Width
970 mm
970 mm
Wheel Base
1,490 mm
1,490 mm
DECK
Deck Height
Deck Length
Deck Width
BATTERY
Battery Weight
Battery Height
600 mm
600 mm
Battery Length
910 mm
910 mm
Battery Width
430 mm
430 mm
SPECIFICATIONS
POWERTRAIN
Motor
36V
10 HP brushless AC motor
48V
15 HP brushless AC motor
Drive Axle
36V
Helical gear differential
48V
Helical gear differential
Transmission
36V
Direct drive
48V
Direct drive
Controller
36V
Electronic AC speed controller
48V
Electronic AC speed controller
ENERGY
Voltage
36V
36V
48V
48V
Battery
36V
Battery to be specified
48V
Battery to be specified
Charger
36V
Charger to be specified
48V
Charger to be specified
CHASSIS
Body
36V
All-steel unibody construction, powder coated
48V
All-steel unibody construction, powder coated
Suspension
36V
Leaf springs rear suspension system
48V
Leaf springs rear suspension system
Brakes
36V
Rear wheel hydraulic drum brakes, regenerative braking
48V
Rear wheel hydraulic drum brakes, regenerative braking
Wheels
36V
Solid Tyres
48V
Solid Tyres
Steering
36V
Automotive steering wheel
48V
Automotive steering wheel
Seats
36V
Sit-down / Stand-up seat
48V
Sit-down / Stand-up seat
EQUIPMENT
Lights
36V
Dual LED headlights & tail/brake lights
48V
Dual LED headlights & tail/brake lights
Indicators
36V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V
36V/12V converter for 12-volt accessories, backlit and sealed buttons
48V
48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
36V
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
48V
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
DIMENSIONS
VEHICLE
Weight
36V
48V
Height
36V
1,600 mm
48V
1,600 mm
Length
36V
2,240 mm
48V
2,240 mm
Width
36V
970 mm
48V
970 mm
Wheel Base
36V
1,490 mm
48V
1,490 mm
DECK
Deck Height
36V
48V
Deck Length
36V
48V
Deck Width
36V
48V
BATTERY
Battery Weight
36V
48V
Battery Height
36V
600 mm
48V
600 mm
Battery Length
36V
910 mm
48V
910 mm
Battery Width
36V
430 mm
48V
430 mm

Specifications and standard equipment are subject to change without notice.
