The ultimate tow tractor. Reinvented.

The industry benchmark for compact tow tractors has once again raised the bar. Still a quiet and low-maintenance workhorse with an unbeatable turning radius and up to 9,000 Kg. towing capacity, but now with leaf spring suspension and shock absorbers, flat-free solid softy tyres, inching control, protected electrical components and much more – all standard. Power and performance are delivered through a brushless AC powertrain with efficient direct-drive differential, hefty 25mm rear-end plate and large drum brakes. We’ve also got your back with a long list of standard ergonomic and safety features.  EE rating avaialble.

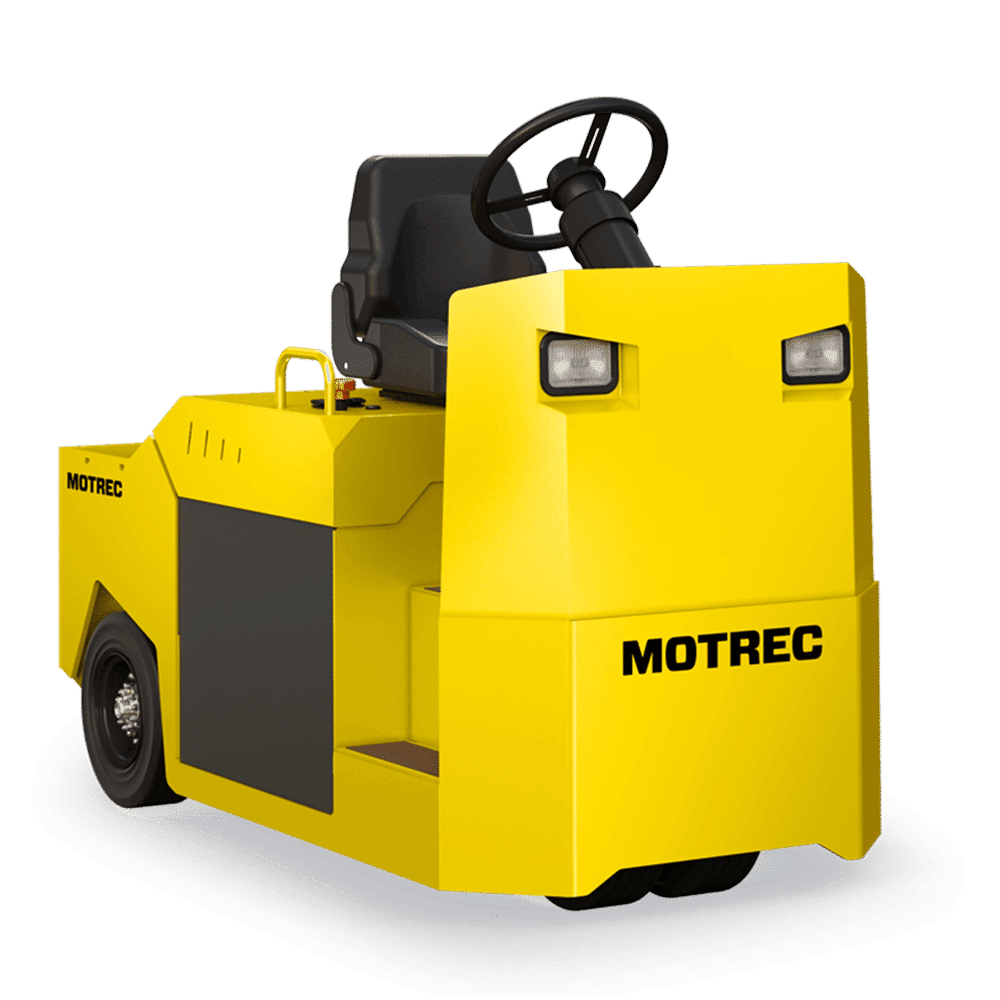

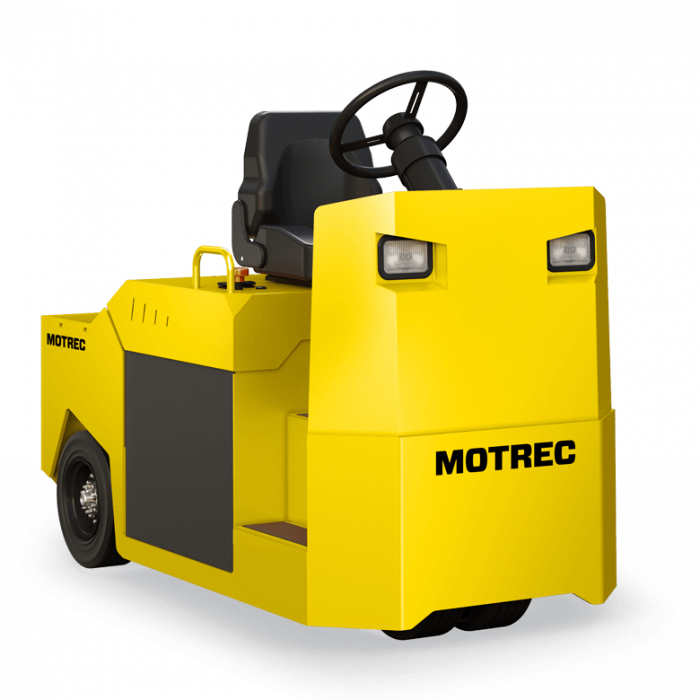

MT-340_01-FrontAngle_780x780
ul-logo@2x-40h
ansi-logo@2x-40h
MT 340 MODELS
Heading
Heading
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED
TURNING RADIUS
36V
1
230 Kg.
7,250 kg.
12.8 Kmh
1,490 mm
48V
1
230 Kg.
7,250 kg.
12.8 Kmh
1,490 mm
48V HD
1
230 Kg.
9,070 kg.
12.8 Kmh
1,720 mm
MT340 MODELS
36V
PASSENGERS
1
LOAD CAPACITY
230 Kg.
TOWING CAPACITY
7,250 kg.
SPEED
12.8 Kmh
TURNING RADIUS
1,490 mm
MT 340 MODELS
48V
PASSENGERS
1
LOAD CAPACITY
230 Kg.
TOWING CAPACITY
7,250 kg.
SPEED
12.8 Kmh
TURNING RADIUS
1,490 mm
MT 340 MODELS
48V HD
PASSENGERS
1
LOAD CAPACITY
230 Kg.
TOWING CAPACITY
9,070 kg.
SPEED
12.8 Kmh
TURNING RADIUS
1,720 mm

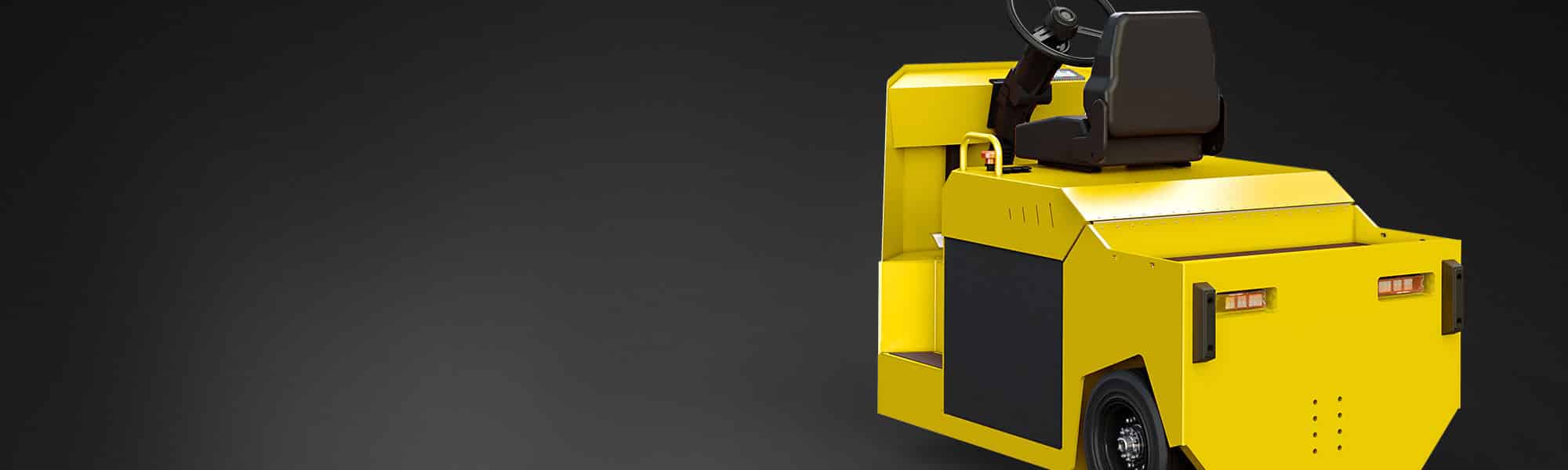

PERFORMANCE
Tow heavy loads with ease Leaf spring suspension & shock absorbers and a brawny AC
powertrain makes towing loads of up to 20,000 lbs. easy; rear wheel hydraulic drum
brakes make it safe. The inching control feature will also save you time and hassles
when hitching loads.
Image are for illustrative purposes only

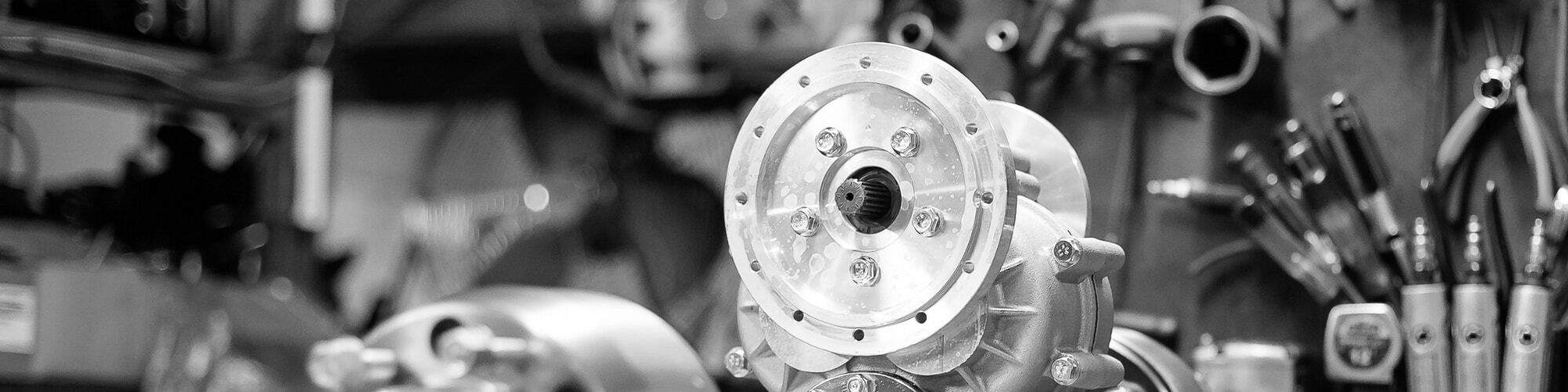

AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor equipped
with temperature and speed sensors.
Image are for illustrative purposes only
CONTROLLER
AC controller with sealed connectors paired with multifunction display Allows
for precise speed control for greater safety and vehicle performance. Includes
I indicators for speed, battery state of charge, hour meter, odometer and fault
warnings. Password-protected parameters and monitoring capability.
Image are for illustrative purposes only

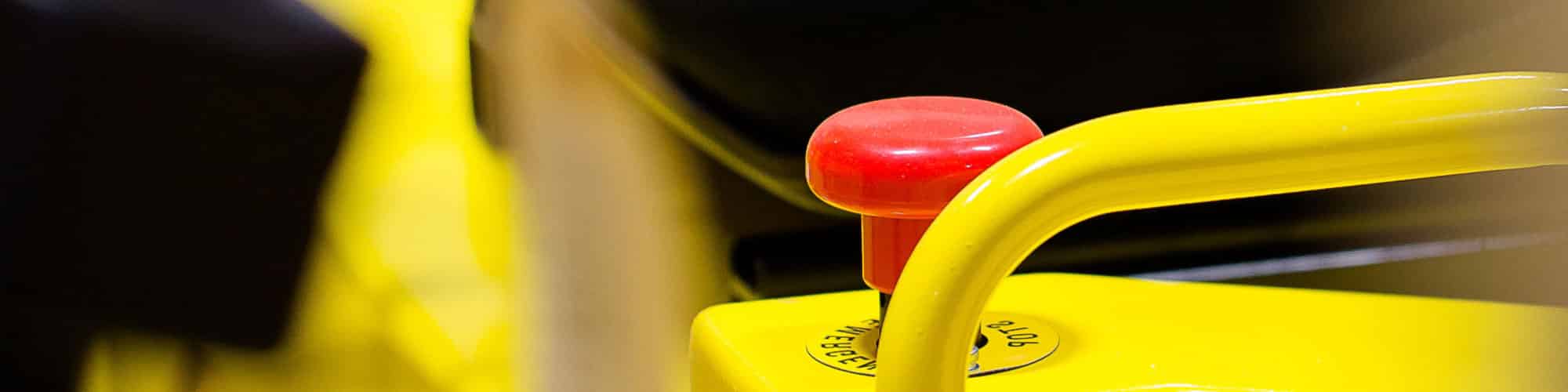

BATTERY
Robust long-life industrial batteries No more mid-shift recharging! These powerful batteries
can last a full shift, even with long distances. Supports Opportunity Rapid charging.
Encased for easy replacing. Various options and models available.
Image are for illustrative purposes only
Previous
Next
SPECIFICATIONS
36V
48V
48V HD
POWERTRAIN
Motor
10 HP brushless AC motor
15 HP brushless AC motor
15 HP brushless AC motor
Drive Axle
Helical gear differential
Helical gear differential
Helical gear differential
Transmission
Direct drive
Direct drive
Direct drive
Controller
Electronic AC speed controller
Electronic AC speed controller
Electronic AC speed controller
ENERGY
Voltage
36V
48V
48V
Battery
Battery to be specified
Battery to be specified
Battery to be specified
Charger
Charger to be specified
Charger to be specified
Charger to be specified
CHASSIS
Body
All-steel unibody construction, 25mm rear-end plate, powder coating
All-steel unibody construction, 25mm rear-end plate, powder coating
All-steel unibody construction, 50mm rear-end plate, powder coating
Suspension
Leaf springs rear suspension system
Leaf springs rear suspension system
Leaf springs rear suspension system
Brakes
Rear wheel hydraulic drum brakes, regenerative braking
Rear wheel hydraulic drum brakes, regenerative braking
Rear wheel hydraulic drum brakes, regenerative braking
Wheels
Solid Tyres
Solid Tyres
Solid Tyres
Steering
Automotive steering wheel
Automotive steering wheel
Automotive steering wheel
Seats
Semi-suspension seat on slide adjusters
Semi-suspension seat on slide adjusters
Semi-suspension seat on slide adjusters
EQUIPMENT
Lights
LED dual headlights & tail/brake lights
LED dual headlights & tail/brake lights
LED dual headlights & tail/brake lights
Indicators
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V/12V converter for 12-volt accessories, backlit and sealed buttons
48V/12V converter for 12-volt accessories, backlit and sealed buttons
48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
DIMENSIONS
VEHICLE
Weight
725 Kg.
725 Kg.
907 Kg.
Height
1,470 mm
1,470 mm
1,470 mm
Length
1,570 mm
1,570 mm
1,830 mm
Width
970 mm
970 mm
970 mm
Wheel Base
1,040 mm
1,040 mm
1,260 mm
DECK
Deck Height
670 mm
670 mm
670 mm
Deck Length
410 mm
410 mm
410 mm
Deck Width
940 mm
940 mm
940 mm
BATTERY
Battery Weight
Battery Height
600 mm
600 mm
600 mm
Battery Length
910 mm
910 mm
910 mm
Battery Width
430 mm
430 mm
660 mm
SPECIFICATIONS
POWERTRAIN
Motor
36V
10 HP brushless AC motor
48V
15 HP brushless AC motor
48V HD
15 HP brushless AC motor
Drive Axle
36V
Helical gear differential
48V
Helical gear differential
48V HD
Helical gear differential
Transmission
36V
Direct drive
48V
Direct drive
48V HD
Direct drive
Controller
36V
Electronic AC speed controller
48V
Electronic AC speed controller
48V HD
Electronic AC speed controller
ENERGY
Voltage
36V
36V
48V
48V
48V HD
48V
Battery
36V
Battery to be specified
48V
Battery to be specified
48V HD
Battery to be specified
Charger
36V
Charger to be specified
48V
Charger to be specified
48V HD
Charger to be specified
CHASSIS
Body
36V
All-steel unibody construction, 25mm rear-end plate, powder coating
48V
All-steel unibody construction, 25mm rear-end plate, powder coating
48V HD
All-steel unibody construction, 50mm rear-end plate, powder coating
Suspension
36V
Leaf springs rear suspension system
48V
Leaf springs rear suspension system
48V HD
Leaf springs rear suspension system
Brakes
36V
Rear wheel hydraulic drum brakes, regenerative braking
48V
Rear wheel hydraulic drum brakes, regenerative braking
48V HD
Rear wheel hydraulic drum brakes, regenerative braking
Wheels
36V
Solid Tyres
48V
Solid Tyres
48V HD
Solid Tyres
Steering
36V
Automotive steering wheel
48V
Automotive steering wheel
48V HD
Automotive steering wheel
Seats
36V
Semi-suspension seat on slide adjusters
48V
Semi-suspension seat on slide adjusters
48V HD
Semi-suspension seat on slide adjusters
EQUIPMENT
Lights
36V
LED dual headlights & tail/brake lights
48V
LED dual headlights & tail/brake lights
48V HD
LED dual headlights & tail/brake lights
Indicators
36V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V HD
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V
36V/12V converter for 12-volt accessories, backlit and sealed buttons
48V
48V/12V converter for 12-volt accessories, backlit and sealed buttons
48V HD
48V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
36V
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
48V
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
48V HD
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
DIMENSIONS
VEHICLE
Weight
36V
725 Kg.
48V
725 Kg.
48V HD
907 Kg.
Height
36V
1,470 mm
48V
1,470 mm
48V HD
1,470 mm
Length
36V
1,570 mm
48V
1,570 mm
48V HD
1,830 mm
Width
36V
970 mm
48V
970 mm
48V HD
1,040 mm
Wheel Base
36V
1,040 mm
48V
1,040 mm
48V HD
1,260 mm
DECK
Deck Height
36V
670 mm
48V
670 mm
48V HD
670 mm
Deck Length
36V
410 mm
48V
410 mm
48V HD
410 mm
Deck Width
36V
940 mm
48V
940 mm
48V HD
940 mm
BATTERY
Battery Weight
36V
48V
48V HD
Battery Height
36V
600 mm
48V
600 mm
48V HD
600 mm
Battery Length
36V
910 mm
48V
910 mm
48V HD
910 mm
Battery Width
36V
430 mm
48V
430 mm
48V HD
660 mm

Specifications and standard equipment are subject to change without notice.
