Stylish and extremely powerful.

MT-440

VEHICLE TYPE
TOW TRACTOR

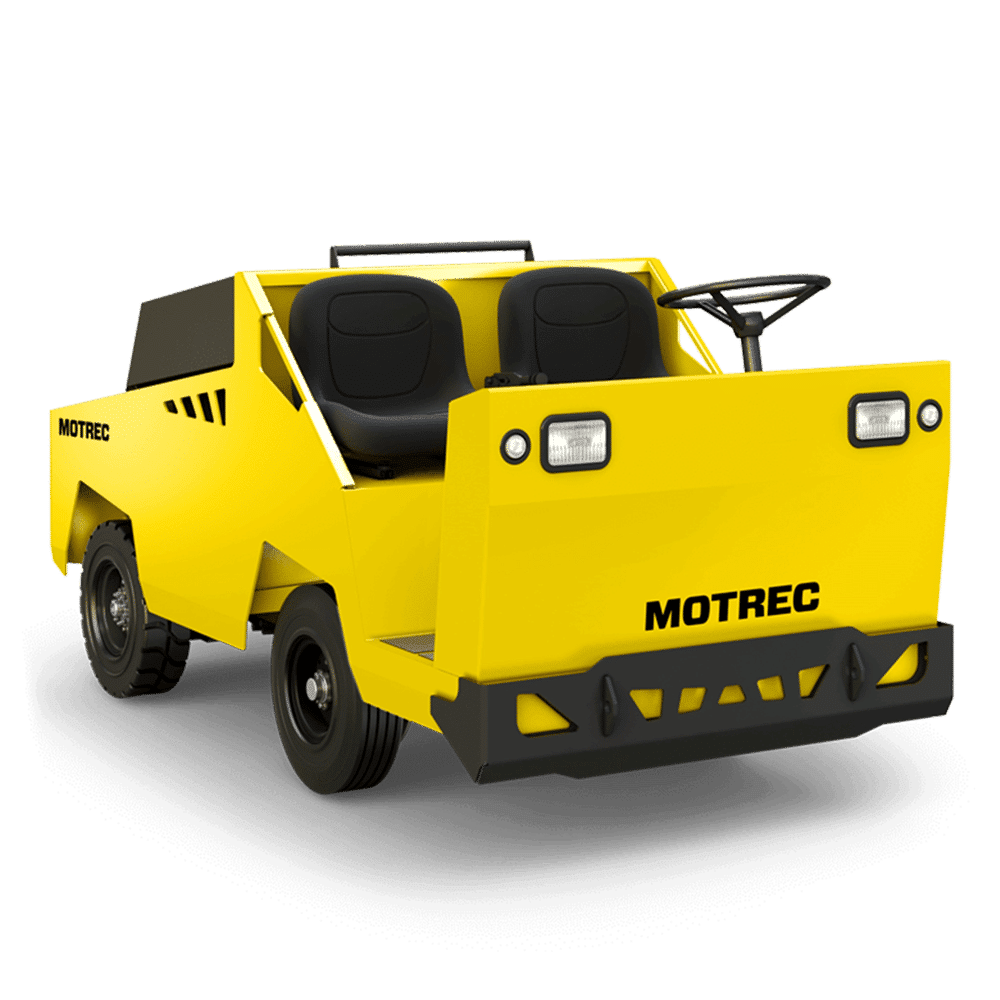

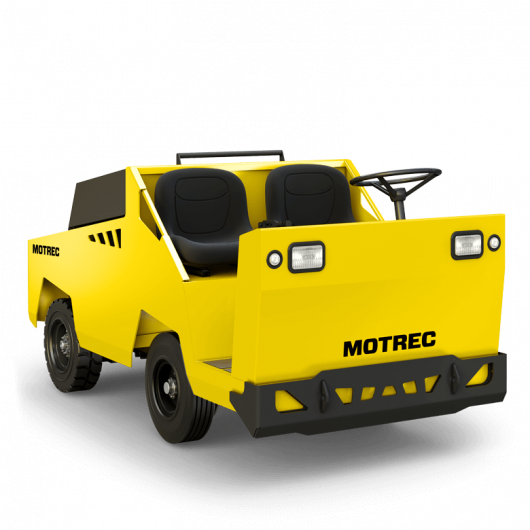

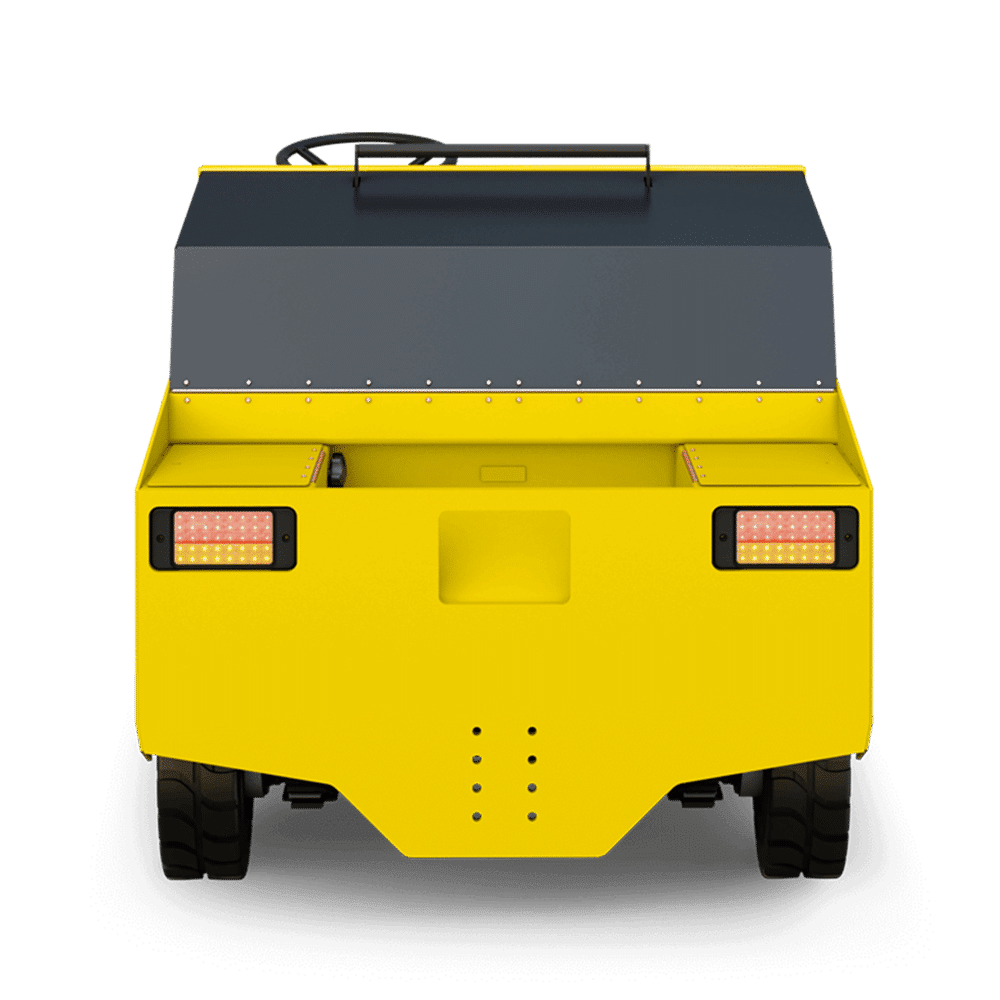

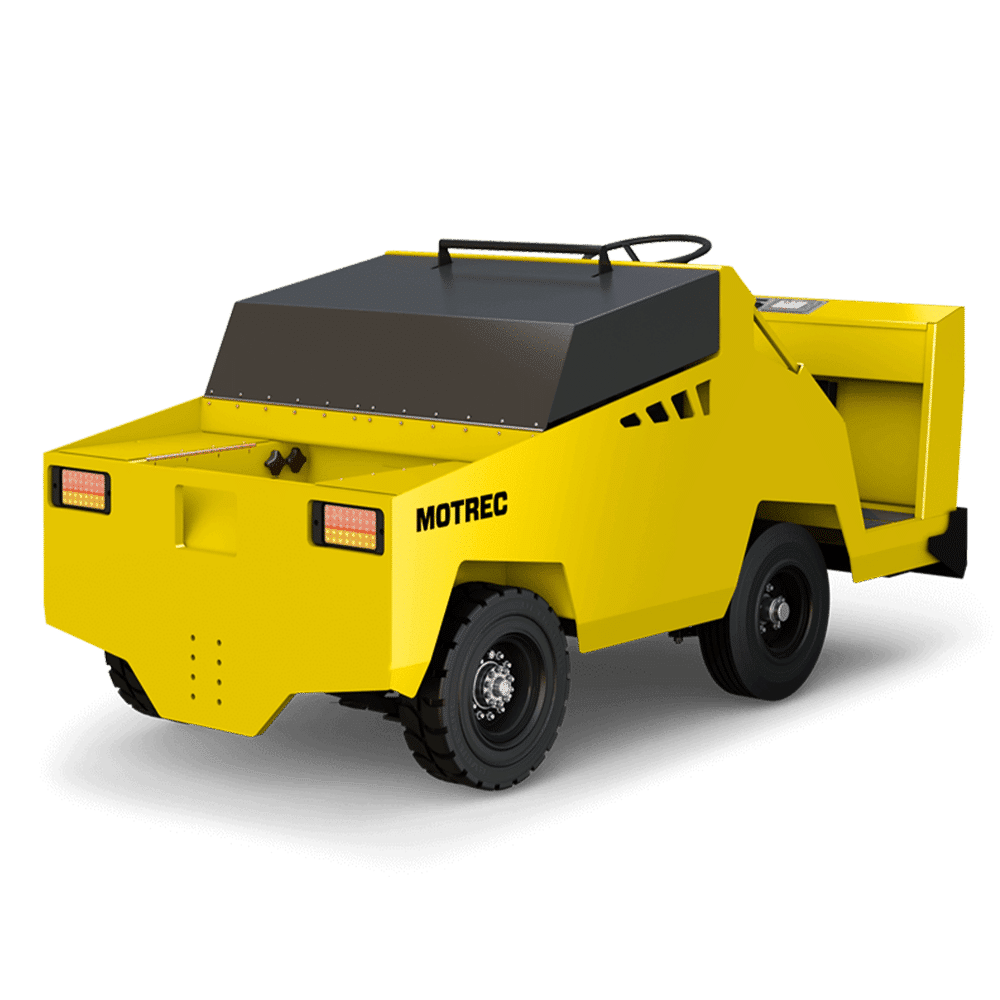

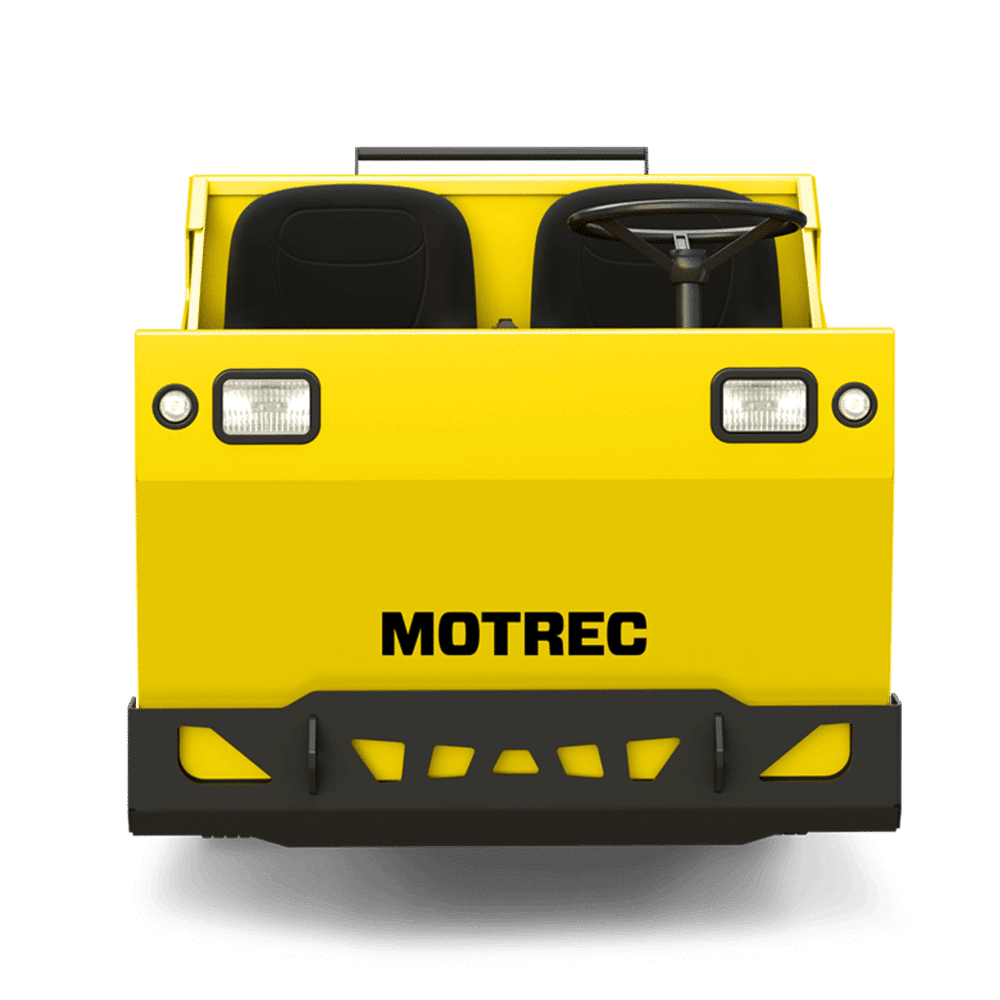

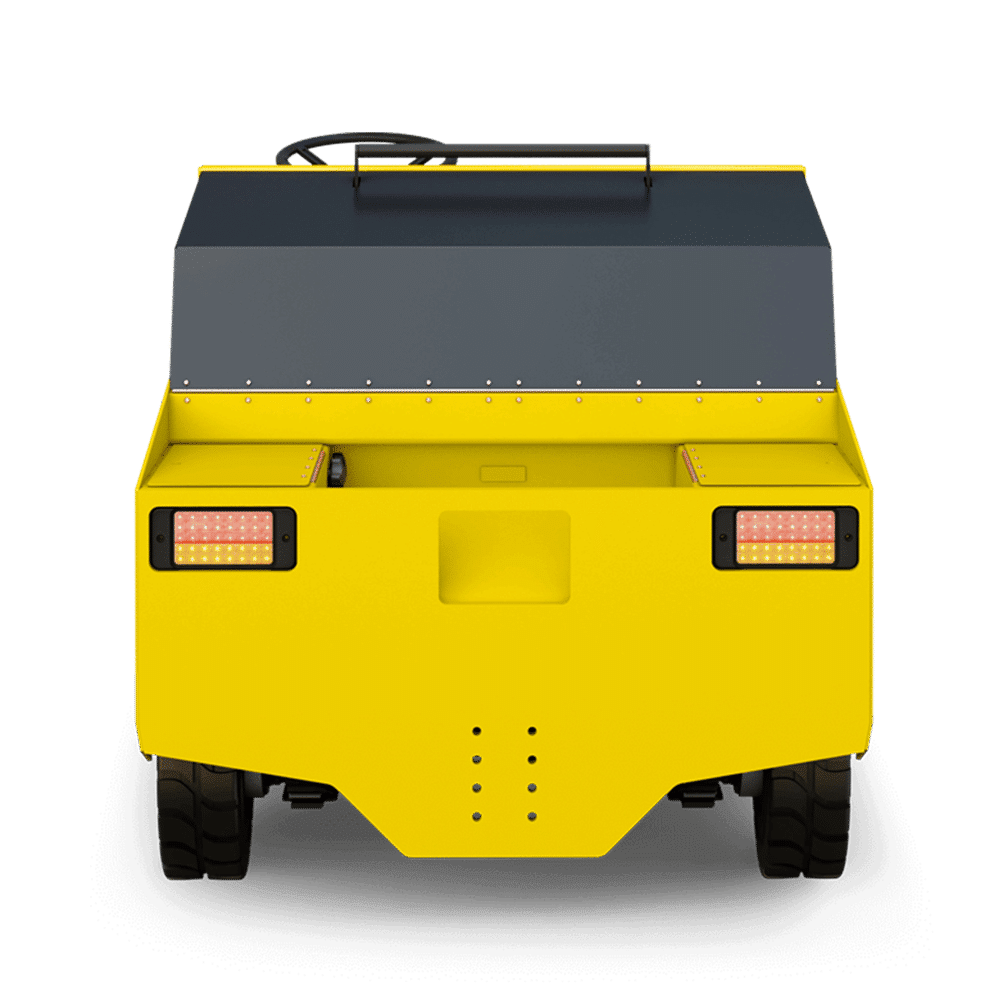

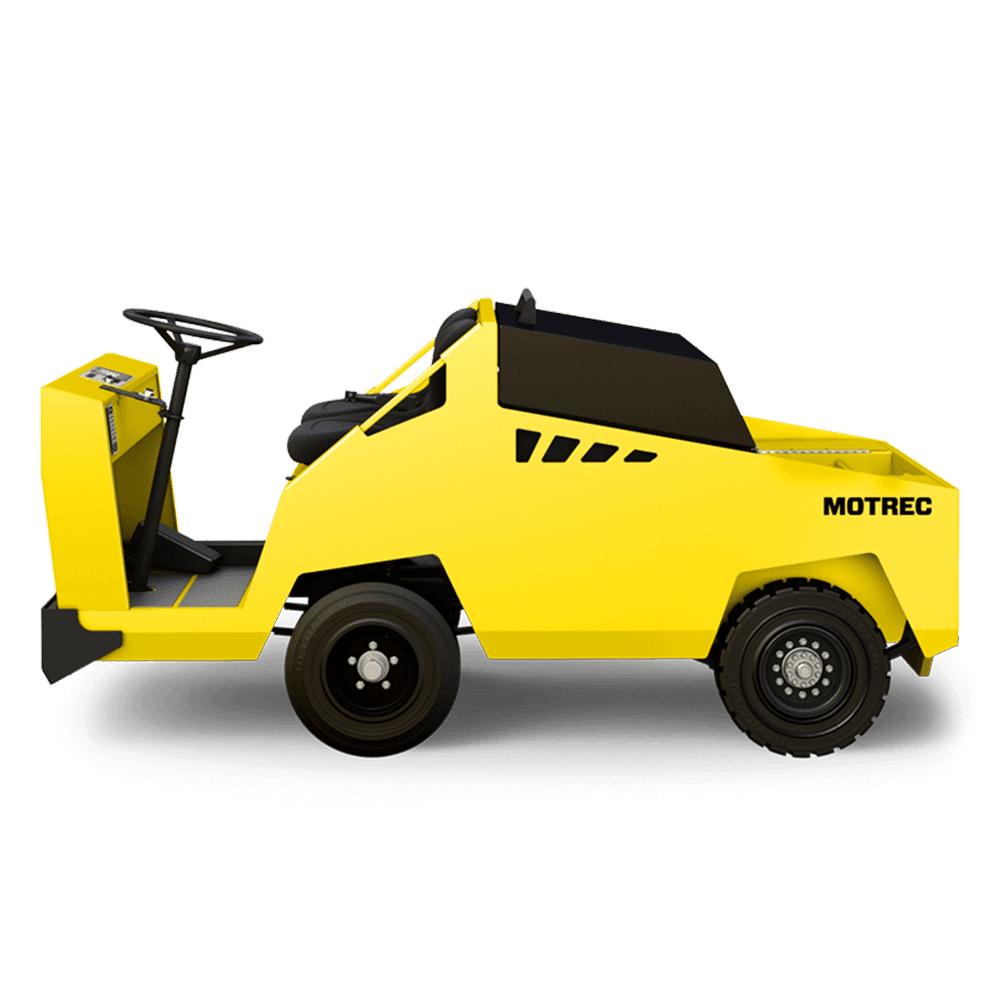

The MT-440 is the latest generation of heavy-duty tow tractors. Behind its stylish, compact design is a highly efficient AC direct-drive powertrain, plenty of power to haul 13,600 Kg.* loads over long distances, and an oversized industrial battery to lengthen running time. Features like tight turning radius, rear battery positioning and shock-dampening suspension deliver exceptional maneuverability, stability and comfort. This highly robust, low-maintenance two-seater is built to last—from bolt-on bumper to bumper. EE rating available.

MT 440 MODELS	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
48V	2	230 Kg.	9,070 kg.	16 Kmh	2,740 mm
48V Narrow	1	230 Kg.	9,070 kg.	12.8 Kmh	2,690 mm
80V	2	230 Kg.	13,600 kg.	11.2 Kmh	3,020 mm
IC	2	272 Kg.	13,600Kg.	16 Kmh	2,290 mm

MT 440 MODELS	48V
PASSENGERS	2
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	9,070 kg.
SPEED	16 Kmh
TURNING RADIUS	2.74 m

MT 440 MODELS	48V Narrow
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	9,070 kg.
SPEED	12.8 Kmh
TURNING RADIUS	2.69 m

MT 440 MODELS	80V
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	13,600 kg.
SPEED	11.2 Kmh
TURNING RADIUS	3,020 mm

MT 440 MODELS	IC
PASSENGERS	1
LOAD CAPACITY	272 Kg.
TOWING CAPACITY	13,600Kg.
SPEED	16 Kmh
TURNING RADIUS	2,290 mm

AC POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.

Image are for illustrative purposes only

CONTROLLER

AC controller with sealed connectors paired with multifunction display Allows
for precise speed control for greater safety and vehicle performance. Includes
indicators for speed, battery state of charge, hour meter, odometer and fault
warnings. Password-protected parameters and monitoring capability.

Image are for illustrative purposes only

BATTERY

Robust long-life industrial batteries No more mid-shift recharging! These powerful batteries
can last a full shift, even with long distances. Supports Opportunity Rapid charging. Encased
for easy replacing. Various options and models available.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	48V	48V Narrow	80V	IC

POWERTRAIN
Motor	15 hp Fan cooled AC motor	15 hp Fan cooled AC motor	25 hp Fan cooled shunt motor
Drive Axle	Helical gear differential	Helical gear differential	Differential with automotive ring gear
Transmission	Direct drive with ground-tooth gears	Direct drive with ground-tooth gears	Goodyear Eagle Synchronous drive	Hydrostatic transmission
Controller	Electronic AC speed controller	Electronic AC speed controller	Electronic AC speed controller
ENERGY
Voltage	48V	48V	80V
Battery	Battery to be specified	Battery to be specified	Battery to be specified
Charger	Charger to be specified	Charger to be specified	Charger to be specified
CHASSIS
Body	All-steel unibody construction	All-steel unibody construction	All-steel unibody construction	All-steel unibody construction
Suspension	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension	Front and rear leaf spring suspensions, dual shock absorbers on front
Brakes	Four-wheel hydraulic brakes, regenerative braking	Four-wheel hydraulic brakes, regenerative braking	Four-wheel hydraulic brakes, 280mm, regenerative braking	4-wheel hydraulic brakes, 280mm
Wheels	500x8 solid softy rubber wheels on split rims	500x8 solid softy rubber wheels on split rims	18x6x8 Solid Soft Rubber Wheels	Solid Tyres
Steering	Automotive steering wheel	Automotive steering wheel	Power Steering	Dual hydraulic rear wheel motors, Automotive steering wheel
Seats	Two bucket seats on slide adjusters	Bucket seat on slide adjusters	Two bucket seats on slide adjusters	Two bucket seats on slide adjusters
EQUIPMENT
Lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights
Indicators	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Battery status indicator	Seat switch, neutral start switch, reverse alarm, low oil and high temperature automatic engine shut down
Accessories	48V/12V converter for 12-volt accessories	48V/12V converter for 12-volt accessories	80V/12V converter for 12-volt accessories, horn	Bolt-on Front Bumpers
Safety	Reverse alarm, deadman seat switch, horn	Reverse alarm, deadman seat switch, horn	Reverse alarm, deadman seat switch, horn	Horn, Fuel gauge, temperature gauge, hour meter
DIMENSIONS
VEHICLE
Weight				907 Kg.
Height	1,140 mm	1,140 mm	1,240 mm	1,170 mm
Length	2,410 mm	2,410 mm	2,540 mm	2,400 mm
Width	1,140 mm	970 mm	1,120 mm	1,140 mm
Wheel Base	1,120 mm	1,120 mm	1,350 mnm	1,270 mm
DECK
Deck Height	710 mm
Deck Length	480 mm
Deck Width	1,170 mm
BATTERY
Battery Weight
Battery Height	610 mm	610 mm	680 mm
Battery Length	530 mm	530 mm	690 mm
Battery Width	1,090 mm	910 mm	1,090 mm

SPECIFICATIONS

POWERTRAIN
Motor
48V	15 hp Fan cooled AC motor
48V Narrow	15 hp Fan cooled AC motor
80V	25 hp Fan cooled shunt motor
IC
Drive Axle
48V	Helical gear differential
48V Narrow	Helical gear differential
80V	Differential with automotive ring gear
IC
Transmission
48V	Direct drive with ground-tooth gears
48V Narrow	Direct drive with ground-tooth gears
80V	Goodyear Eagle Synchronous drive
IC	Hydrostatic transmission
Controller
48V	Electronic AC speed controller
48V Narrow	Electronic AC speed controller
80V	Electronic AC speed controller
IC
ENERGY
Voltage
48V	48V
48V Narrow	48V
80V	80V
IC
Battery
48V	Battery to be specified
48V Narrow	Battery to be specified
80V	Battery to be specified
IC
Charger
48V	Charger to be specified
48V Narrow	Charger to be specified
80V	Charger to be specified
IC
CHASSIS
Body
48V	All-steel unibody construction
48V Narrow	All-steel unibody construction
80V	All-steel unibody construction
IC	All-steel unibody construction
Suspension
48V	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension
48V Narrow	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension
80V	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension
IC	Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension
Brakes
48V	Four-wheel hydraulic brakes, regenerative braking
48V Narrow	Four-wheel hydraulic brakes, regenerative braking
80V	Four-wheel hydraulic brakes, 280mm, regenerative braking
IC	4-wheel hydraulic brakes, 280mm
Wheels
48V	500x8 solid softy rubber wheels on split rims
48V Narrow	500x8 solid softy rubber wheels on split rims
80V	18x6x8 Solid Soft Rubber Wheels
IC	Solid Tyres
Steering
48V	Automotive steering wheel
48V Narrow	Automotive steering wheel
80V	Power Steering
IC	Dual hydraulic rear wheel motors, Automotive steering wheel
Seats
48V	Two bucket seats on slide adjusters
48V Narrow	Bucket seat on slide adjusters
80V	Two bucket seats on slide adjusters
IC	Two bucket seats on slide adjusters
EQUIPMENT
Lights
48V	Dual LED headlights & tail/brake lights
48V Narrow	Dual LED headlights & tail/brake lights
80V	Dual LED headlights & tail/brake lights
IC	Dual LED headlights & tail/brake lights
Indicators
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V Narrow	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
80V	Battery status indicator
IC	Seat switch, neutral start switch, reverse alarm, low oil and high temperature automatic engine shut down
Accessories
48V	48V/12V converter for 12-volt accessories
48V Narrow	48V/12V converter for 12-volt accessories
80V	80V/12V converter for 12-volt accessories, horn
IC	Bolt-on Front Bumpers
Safety
48V	Reverse alarm, deadman seat switch, horn
48V Narrow	Reverse alarm, deadman seat switch, horn
80V	Reverse alarm, deadman seat switch, horn
IC	Horn, Fuel gauge, temperature gauge, hour meter

DIMENSIONS

VEHICLE
Weight
48V
48V Narrow
80V
IC	907 Kg.
Height
48V	1,140 mm
48V Narrow	1,140 mm
80V	1,240 mm
IC	1,170 mm
Length
48V	2,410 mm
48V Narrow	2,410 mm
80V	2,540 mm
IC	2,400 mm
Width
48V	1,140 mm
48V Narrow	970 mm
80V	1,120 mm
IC	1,140 mm
Wheel Base
48V	1,120 mm
48V Narrow	1,120 mm
80V	1,350 mm
IC	1,270 mm
DECK
Deck Height
48V	710 mm
48V Narrow
80V
IC
Deck Length
48V	480 mm
48V Narrow
80V
IC
Deck Width
48V	1,170 mm
48V Narrow
80V
IC
BATTERY
Battery Weight
48V
48V Narrow
80V
IC
Battery Height
48V	610 mm
48V Narrow	610 mm
80V	680 mnm
IC
Battery Length
48V	530 mm
48V Narrow	530 mm
80V	690 mm
IC
Battery Width
48V	1,090 mm
48V Narrow	910 mm
80V	1,090 mm
IC
