Built for your toughest jobs.

The MT-800 is a compact two-seater that’s engineered to deliver massive towing power in cramped industrial settings. Its 40 hp AC direct-drive motor easily hauls long, heavy loads up to 22,690 Kg. Its dual planetary wheel drive with enclosed wet disks reduces maintenance. Its electric regenerative brakes lengthen running time. And its thick, one-piece welded steel plate chassis – reinforced at all high-stress areas – makes this rugged workhorse virtually indestructible.

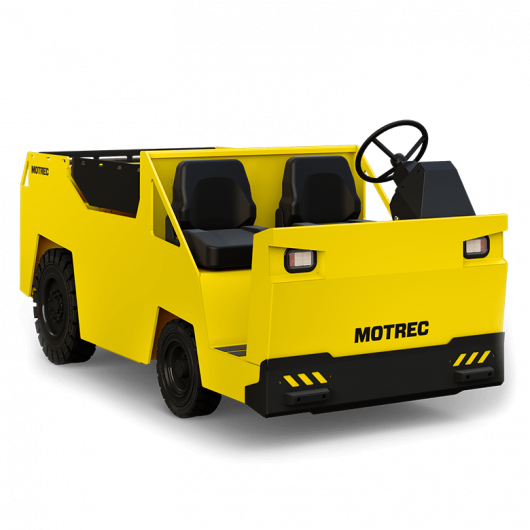

MT-800_01-FrontAngle_780x780-1
ul-logo@2x-40h
ansi-logo@2x-40h
MT 800 MODELS
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED
TURNING RADIUS
80V
2
680 Kg.
22,680 kg.
24 Kmh
3,050 mm
MT 800 MODELS
36V
PASSENGERS
2
LOAD CAPACITY
680 Kg.
TOWING CAPACITY
22,680 kg.
SPEED
24 Kmh
TURNING RADIUS
3,050 mm
AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.
Image are for illustrative purposes only
CONTROLLER
AC controller with sealed connectors paired with multifunction display Allows
for precise speed control for greater safety and vehicle performance. Includes
indicators for speed, battery state of charge, hour meter, odometer and fault
warnings. Password-protected parameters and monitoring capability.
Image are for illustrative purposes only
BATTERY
Robust long-life industrial batteries No more mid-shift recharging! These powerful batteries
can last a full shift, even with long distances. Supports Opportunity Rapid charging. Encased
for easy replacing. Various options and models available.
Image are for illustrative purposes only
INCHING CONTROL
Safe and efficient inching control buttons Makes hitching remarkably easy.
Just step out of the vehicle and use the buttons at the back to slowly and
safely inch it into position. Ideal for jobs requiring precise tow hitching.
Image are for illustrative purposes only
POWER STEERING
Silent and effortless electric power steering Increases maneuverability in tight settings.
Silent, effortless steering also reduces the operator fatigue that can lead to accidents.
Efficient steering that won’t drain batteries uselessly.
Image are for illustrative purposes only
Previous
Next
SPECIFICATIONS
80V
POWERTRAIN
Motor
40 hp AC motor
Drive Axle
Dual planetary wheel drives
Transmission
Integrated motor/axle, direct drive
Controller
Electronic speed controller, Inching controls on rear
ENERGY
Voltage
80V
Battery
Battery to be specified
Charger
Charger to be specified
CHASSIS
Body
All-steel unibody construction
Suspension
Front leaf spring suspension with dual shock absorbers, rear rubber spring suspension
Brakes
Electric regenerative braking, hydraulic brakes with front dry discs and rear wet discs, hand lever parking brake
Wheels
Solid softy wheels, front 600x9, rear 700x12
Steering
Power steering with hydrostatic orbitrol and hydraulic cylinder
Seats
Two suspension seats on slide adjusters
EQUIPMENT
Lights
LED dual headlights & tail/brake lights, turn signals
Indicators
Digital display, battery status, hour meter, Fault diagnostic
Accessories
80V/12V converter for 12-volt accessories, horn
Safety
Deadman seat switch, reverse alarm
DIMENSIONS
VEHICLE
Weight
1,588 kg.
Height
1,370 mm
Length
2,930 mm
Width
1,260 mm
Wheel Base
1,490 mm
DECK
Deck Height
1,100 mm
Deck Length
1,300 mm
Deck Width
1,220 mm
BATTERY
Battery Weight
Battery Height
800 mm
Battery Length
730 mm
Battery Width
1,160 mm
SPECIFICATIONS
POWERTRAIN
Motor
80V
40 hp AC motor
Drive Axle
80V
Dual planetary wheel drives
Transmission
80V
Integrated motor/axle, direct drive
Controller
80V
Electronic speed controller, Inching controls on rear
ENERGY
Voltage
80V
80V
Helical gear differential
Battery
80V
Battery to be specified
Charger
80V
Charger to be specified
CHASSIS
Body
80V
All-steel unibody construction
Suspension
80V
Front leaf spring suspension with dual shock absorbers, rear rubber spring suspension
Brakes
80V
Electric regenerative braking, hydraulic brakes with front dry discs and rear wet discs, hand lever parking brake
Wheels
80V
Solid softy wheels, front 600x9, rear 700x12
Steering
80V
Power steering with hydrostatic orbitrol and hydraulic cylinder
Seats
80V
Two suspension seats on slide adjusters
EQUIPMENT
Lights
80V
LED dual headlights & tail/brake lights, turn signals
Indicators
80V
Digital display, battery status, hour meter, Fault diagnostic
Accessories
80V
80V/12V converter for 12-volt accessories, horn
Safety
80V
Deadman seat switch, reverse alarm
DIMENSIONS
VEHICLE
Weight
80V
1,588 kg.
Height
80V
1,370 mm
Length
80V
2,930 mm
Width
80V
1,260 mm
Wheel Base
80V
1,490 mm
DECK
Deck Height
80V
1,100 mm
Deck Length
80V
1,300 mm
Deck Width
80V
1,220 mm
BATTERY
Battery Weight
80V
Battery Height
80V
800 mm
Battery Length
80V
730 mm
Battery Width
80V
1,160 mm

Specifications and standard equipment are subject to change without notice.
