Robust and
nimble, the key
to lean manufacturing.

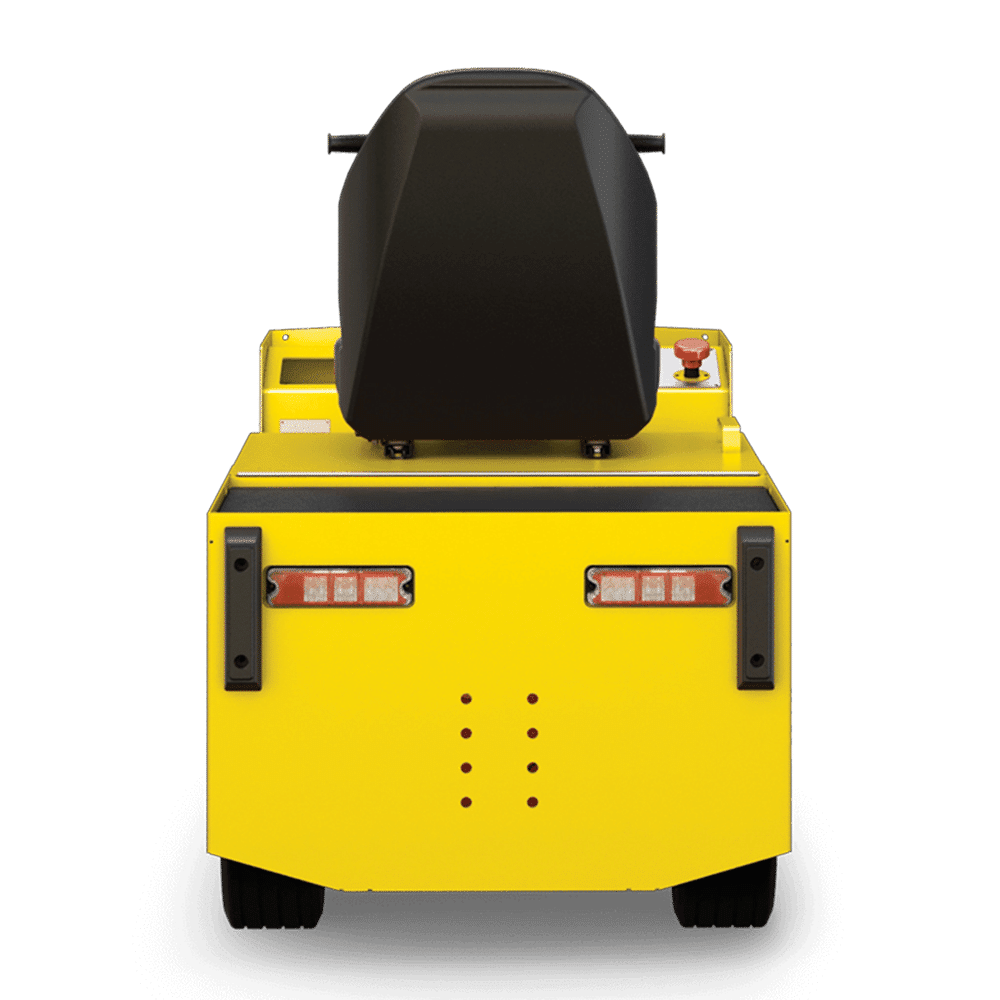

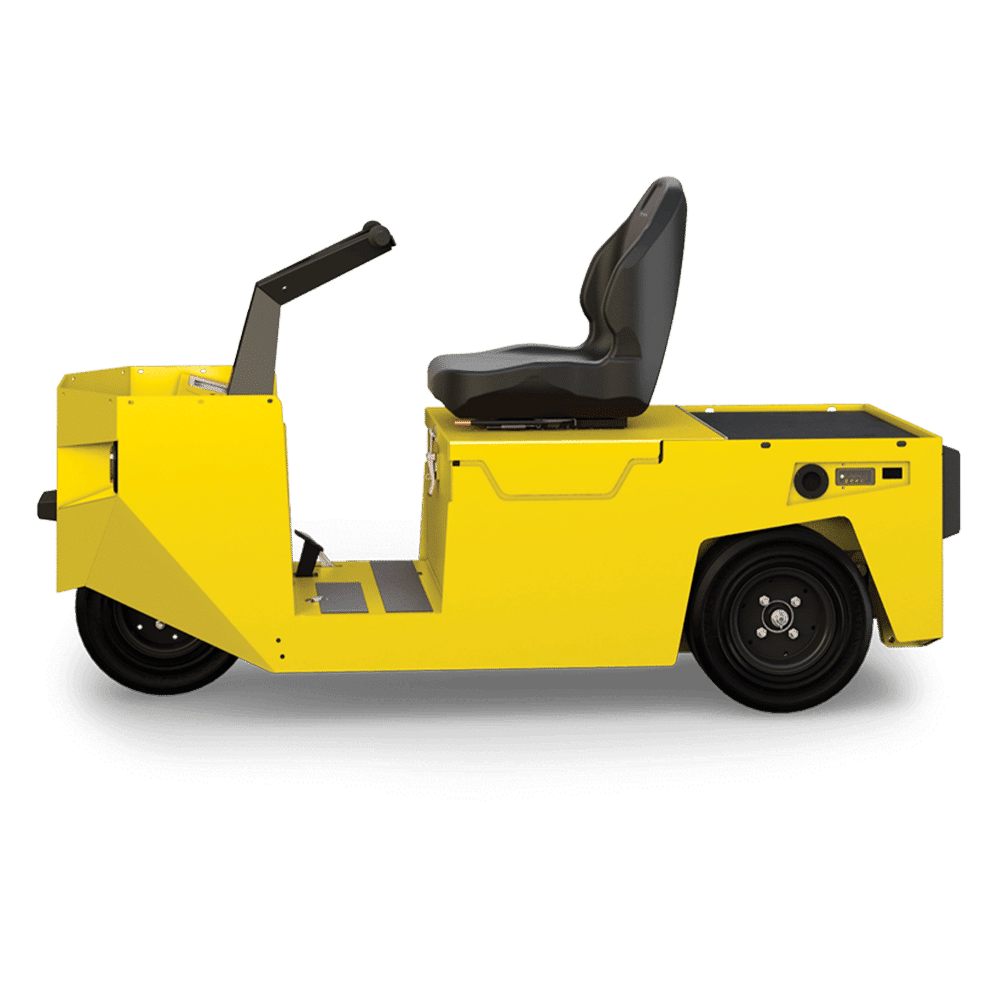

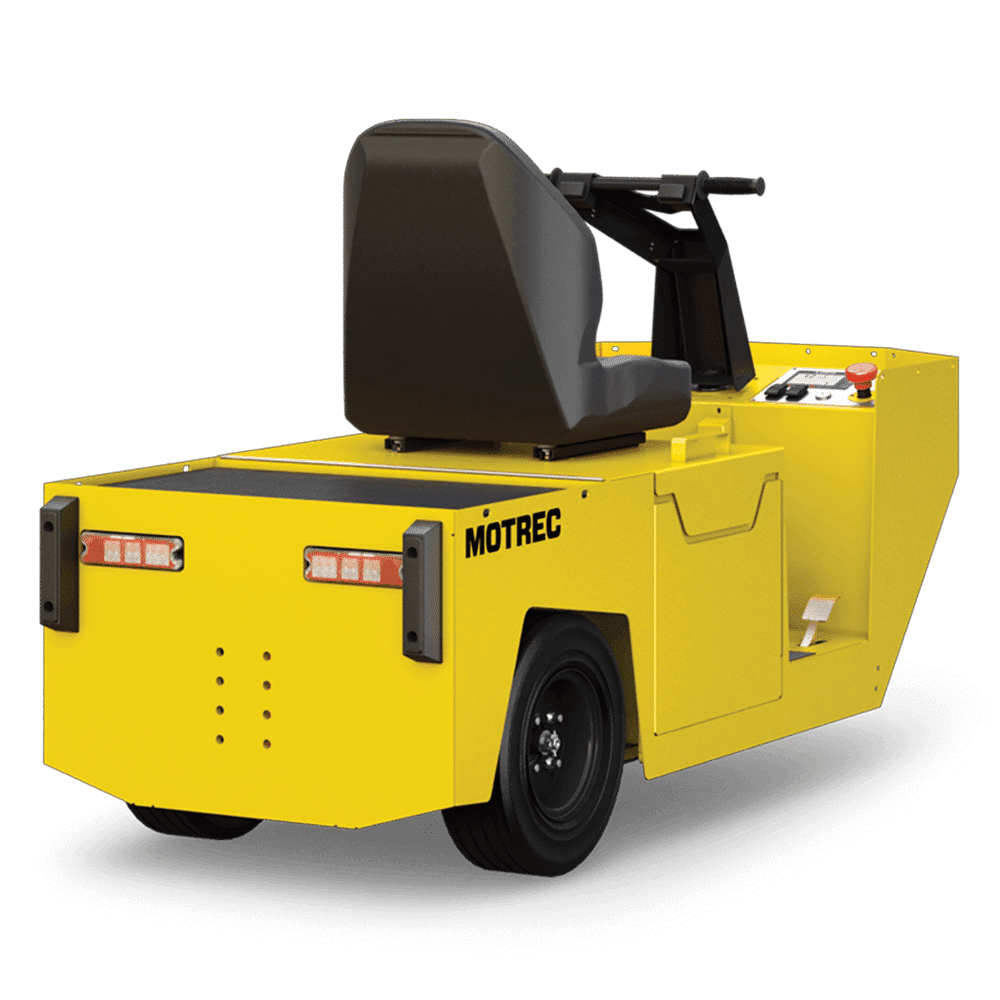

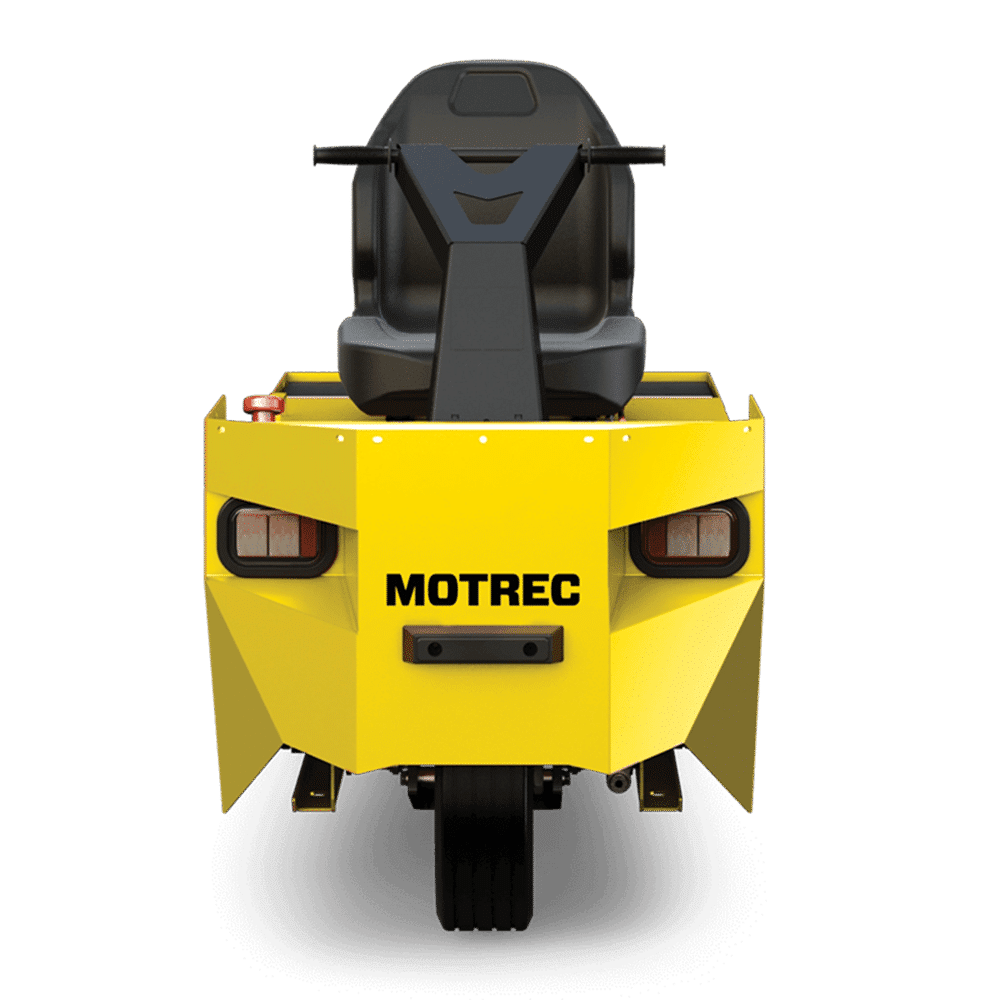

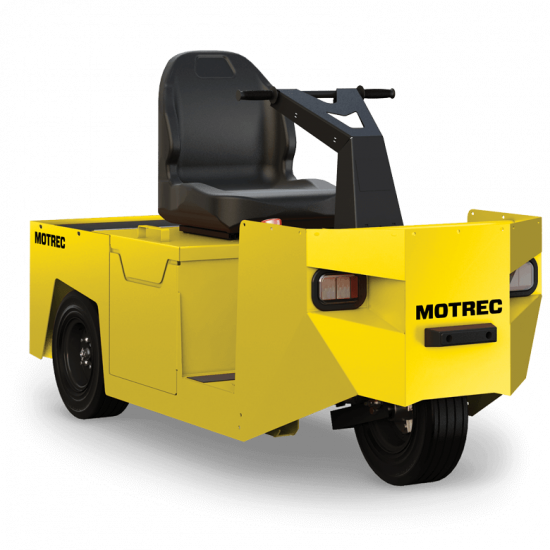

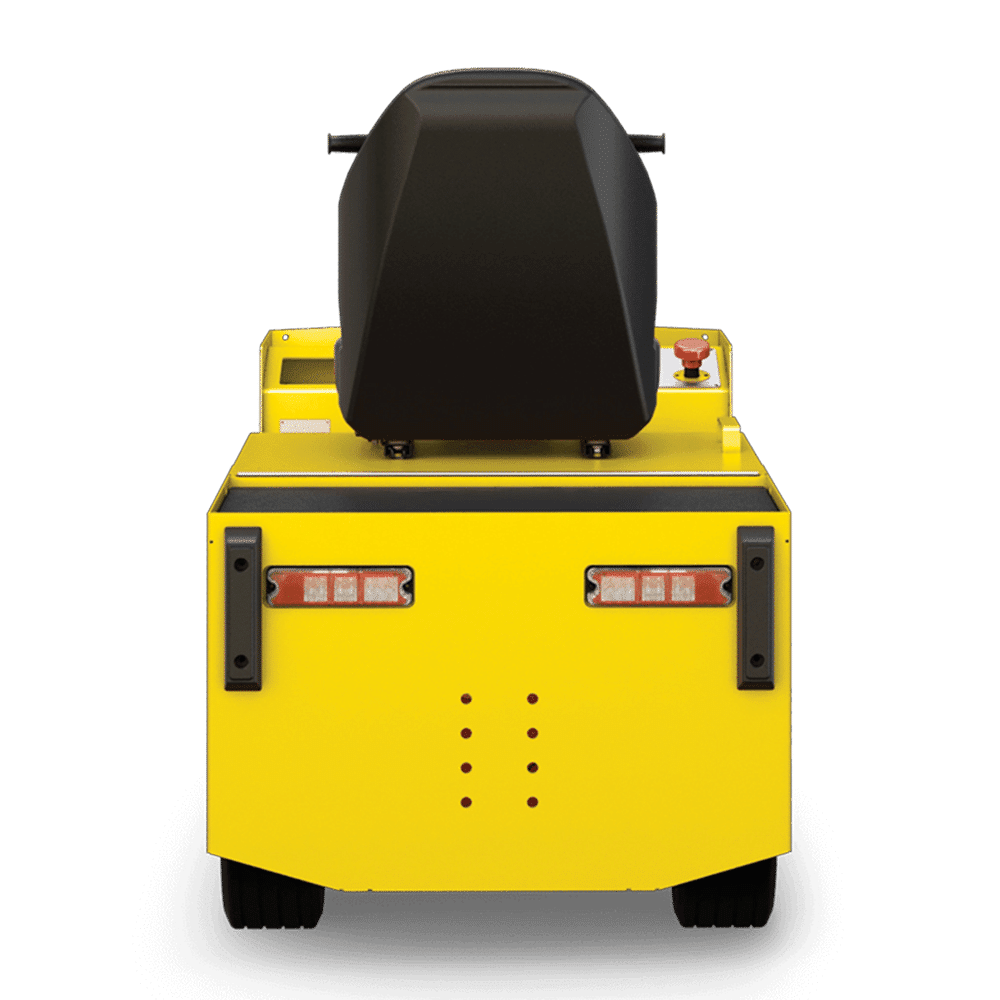

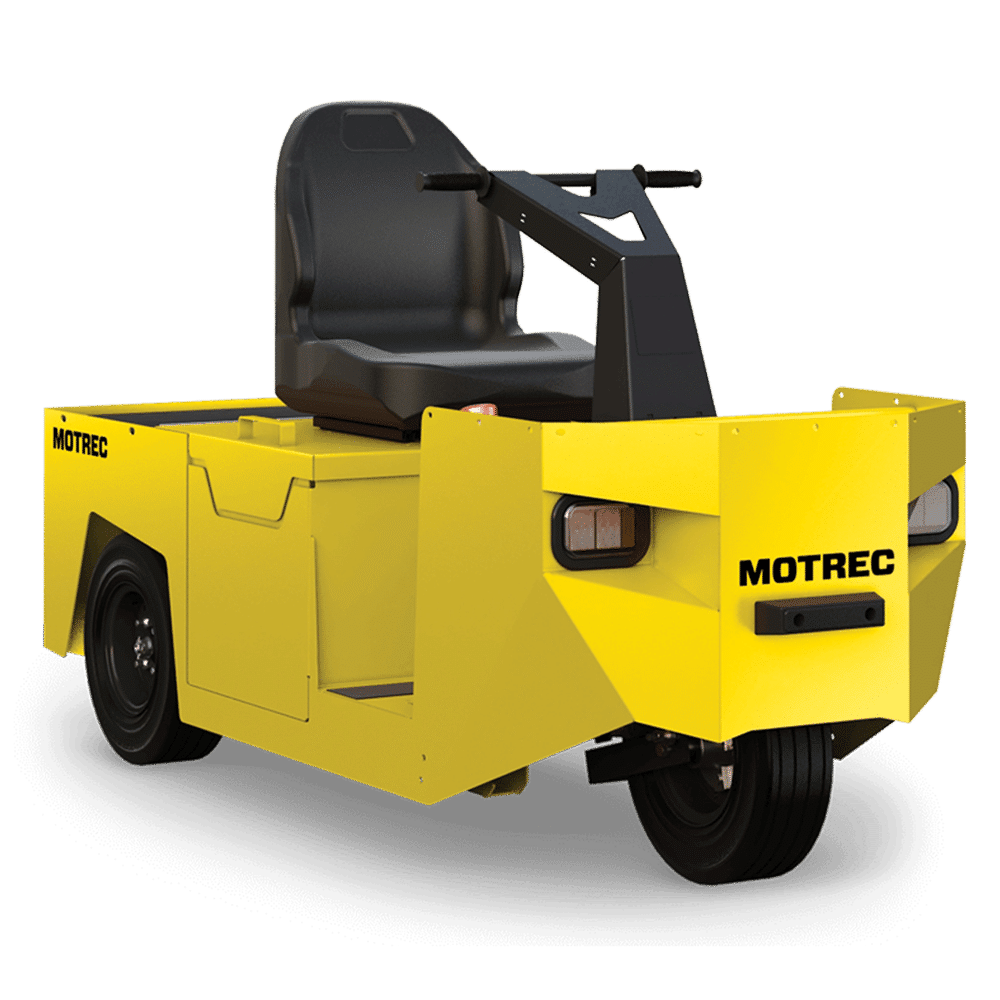

MT-180

VEHICLE TYPE
TOW TRACTORS

This hardworking tow tractor delivers outstanding performance. With its efficient motor and 4,500 kg. towing capacity, the MT-180 is ideal for moving trailers. It’s also narrow enough to fit through most door openings. From its all-steel construction to its all-wheel braking, this tow tractor is built for years of heavy use in total comfort and safety. All this combined with superior AC technology makes short work of tough requests.

MT 180 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
36V		1	230 Kg.	4,500 kg.	13 Kmh	1,800 mm
48V		1	230 Kg.	4,500 kg.	13 Kmh	1,800 mm

MT 180 MODELS	36V
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	4,500 kg.
SPEED	13 Kmh
TURNING RADIUS	1,800 mm

MT 180 MODELS	48V
PASSENGERS	1
LOAD CAPACITY	230 Kg.
TOWING CAPACITY	4,500 kg.
SPEED	13 Kmh
TURNING RADIUS	1,800 mm

AC POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.

Image are for illustrative purposes only

CONTROLLER

AC controller with sealed connectors paired with multifunction display
Allows for precise speed control for greater safety and vehicle performance.
Includes indicators for speed, battery state of charge, hour meter,
odometer and fault warnings. Password-protected parameters
and monitoring capability.

Image are for illustrative purposes only

CHARGER

Provides reliable, quality charging. High frequency power factor-corrected
charger improves battery performance and prevents power surges.
High efficiency and global AC input. Available in inboard or portable
models with several voltage options.

Image are for illustrative purposes only

BRAKES

Automatic parking brake Increases safety by automatically applying
the parking brake wheneverthe vehicle stops moving or is shut off.
Also doubles as an emergency stop. Entirely sealed to protect
it from debris, elements, etc.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	36V	48V

POWERTRAIN
Motor	10 HP brushless AC motor	15 HP brushless AC motor
Drive Axle	Helical gear differential	Helical gear differential
Transmission	Direct drive	Direct drive
Controller	Electronic AC speed controller	Electronic AC speed controller
ENERGY
Voltage	36V	48V
Battery	Six 6V-225AH batteries	48V TPPL battery pack, 157AH
Charger	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body	All-steel unibody construction	All-steel unibody construction
Suspension	Coil spring and shock absorbers on front, leaf spring on rear	Coil spring and shock absorbers on front, leaf spring on rear
Brakes	Front drum brake, Regenerative braking, electromagnetic parking brake.	Front drum brake, Regenerative braking, electromagnetic parking brake.
Wheels	4.8x8 LRC pneumatic tyres	4.8x8 LRC pneumatic tyres
Steering	Handlebar	Handlebar
Seats	Bucket seat on slide adjusters	Bucket seat on slide adjusters
EQUIPMENT
Lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights
Indicators	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories	36V/12V converter for 12-volt accessories, front and rear rubber bumpers	48V/12V converter for 12-volt accessories, front and rear rubber bumpers
Safety	Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn	Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn
DIMENSIONS
VEHICLE
Weight
Height	1,160 mm	1,160 mm
Length	2,030 mm	2,030 mm
Width	760 mm	760 mm
Wheel Base	1,350 mm	1,350 mm
DECK
Deck Height	600 mm	600 mm
Deck Length	460 mm	460 mm
Deck Width	760 mm	760 mm
BATTERY
Battery Weight
Battery Height	380 mm	380 mm
Battery Length	750 mm	750 mm
Battery Width	450 mm	450 mm

Specifications and standard equipment are subject to change without notice.

SPECIFICATIONS

POWERTRAIN
Motor
36V	10 HP brushless AC motor
48V	15 HP brushless AC motor
Drive Axle
36V	Helical gear differential
48V	Helical gear differential
Transmission
36V	Direct drive
48V	Direct drive
Controller
36V	Electronic AC speed controller
48V	Electronic AC speed controller
ENERGY
Voltage
36V	36V
48V	48V
Battery
36V	Six 6V-225AH batteries
48V	48V TPPL battery pack, 157AH
Charger
36V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body
36V	All-steel unibody construction
48V	All-steel unibody construction
Suspension
36V	Coil spring and shock absorbers on front, leaf spring on rear
48V	Coil spring and shock absorbers on front, leaf spring on rear
Brakes
36V	Front drum brake, Regenerative braking, electromagnetic parking brake.
48V	Front drum brake, Regenerative braking, electromagnetic parking brake.
Wheels
36V	4.8x8 LRC pneumatic tyres
48V	4.8x8 LRC pneumatic tyres
Steering
36V	Handlebar
48V	Handlebar
Seats
36V	Bucket seat on slide adjusters
48V	Bucket seat on slide adjusters
EQUIPMENT
Lights
36V	Dual LED headlights & tail/brake lights
48V	Dual LED headlights & tail/brake lights
Indicators
36V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V	36V/12V converter for 12-volt accessories, front and rear rubber bumpers
48V	48V/12V converter for 12-volt accessories, front and rear rubber bumpers
Safety
36V	Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn
48V	Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn

DIMENSIONS

VEHICLE
Weight
36V
48V
Height
36V	1,160 mm
48V	1,160 mm
Length
36V	2,030 mm
48V	2,030 mm
Width
36V	760 mm
48V	760 mm
Wheel Base
36V	1,350 mm
48V	1,350 mm
DECK
Deck Height
36V	600 mm
48V	460 mm
Deck Length
36V	460 mm
48V	460 mm
Deck Width
36V	760 mm
48V	760 mm
BATTERY
Battery Weight
36V
48V
Battery Height
36V	380 mm
48V	380 mm
Battery Length
36V	750 mm
48V	750 mm
Battery Width
36V	450 mm
48V	450 mm
