Built for
maneuvering
heavy loads.

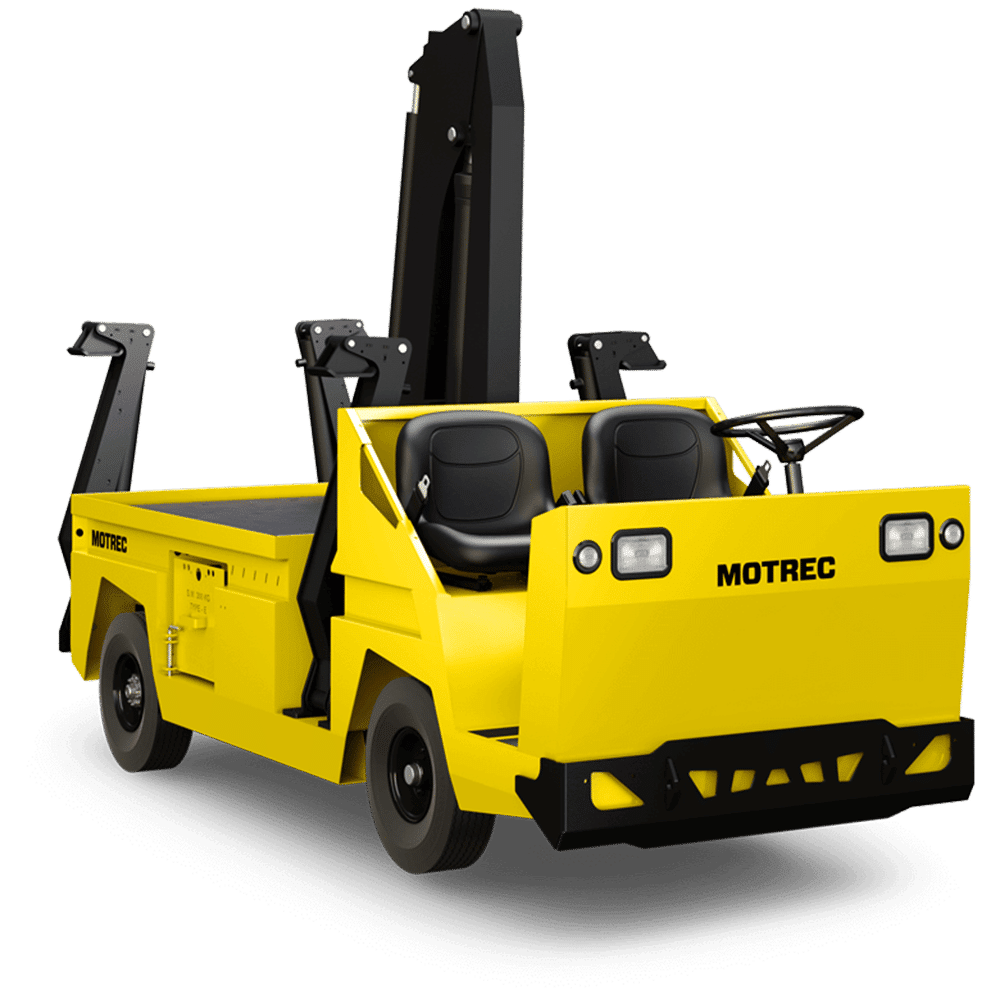

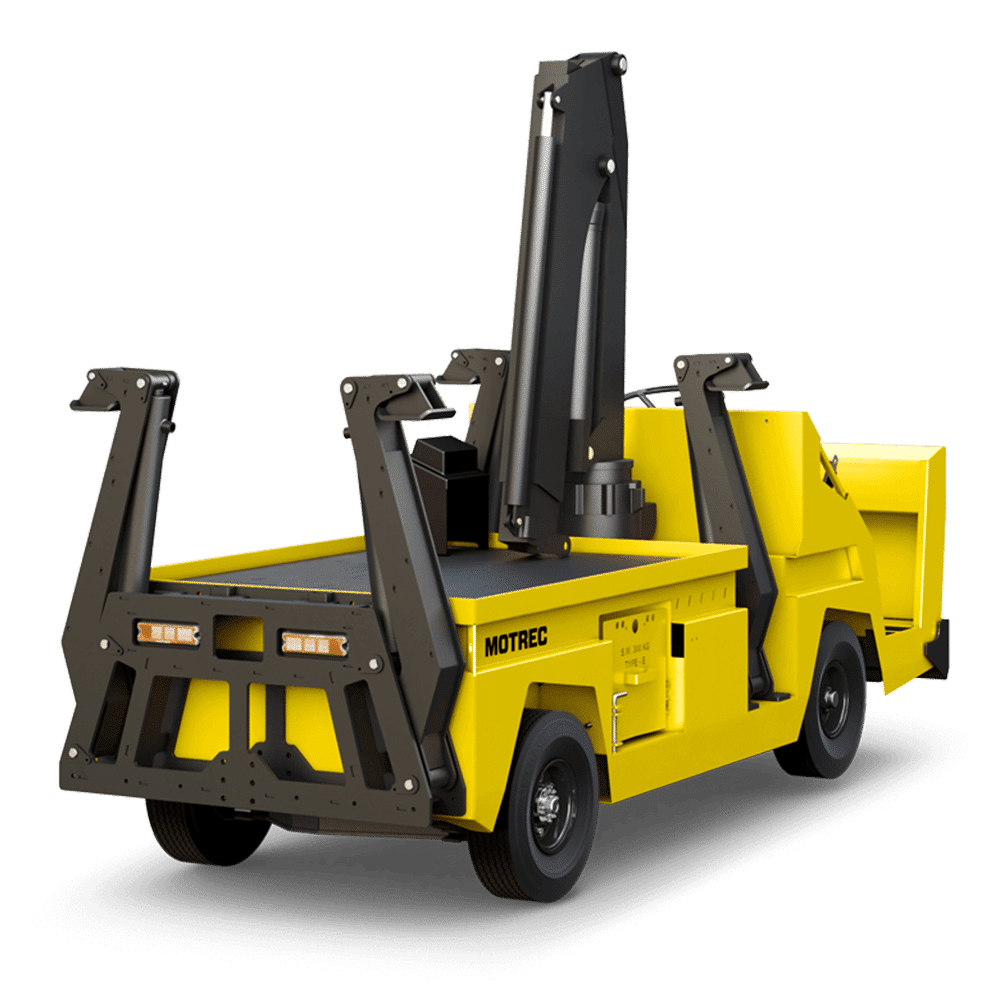

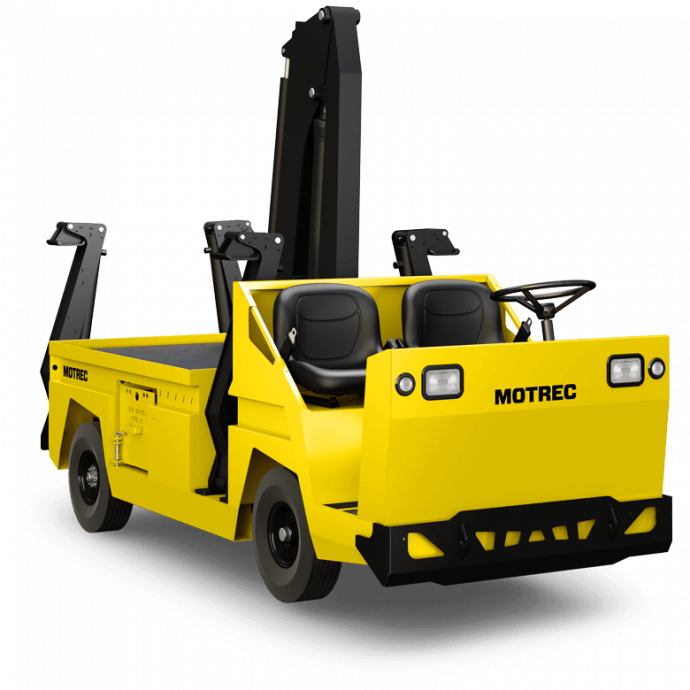

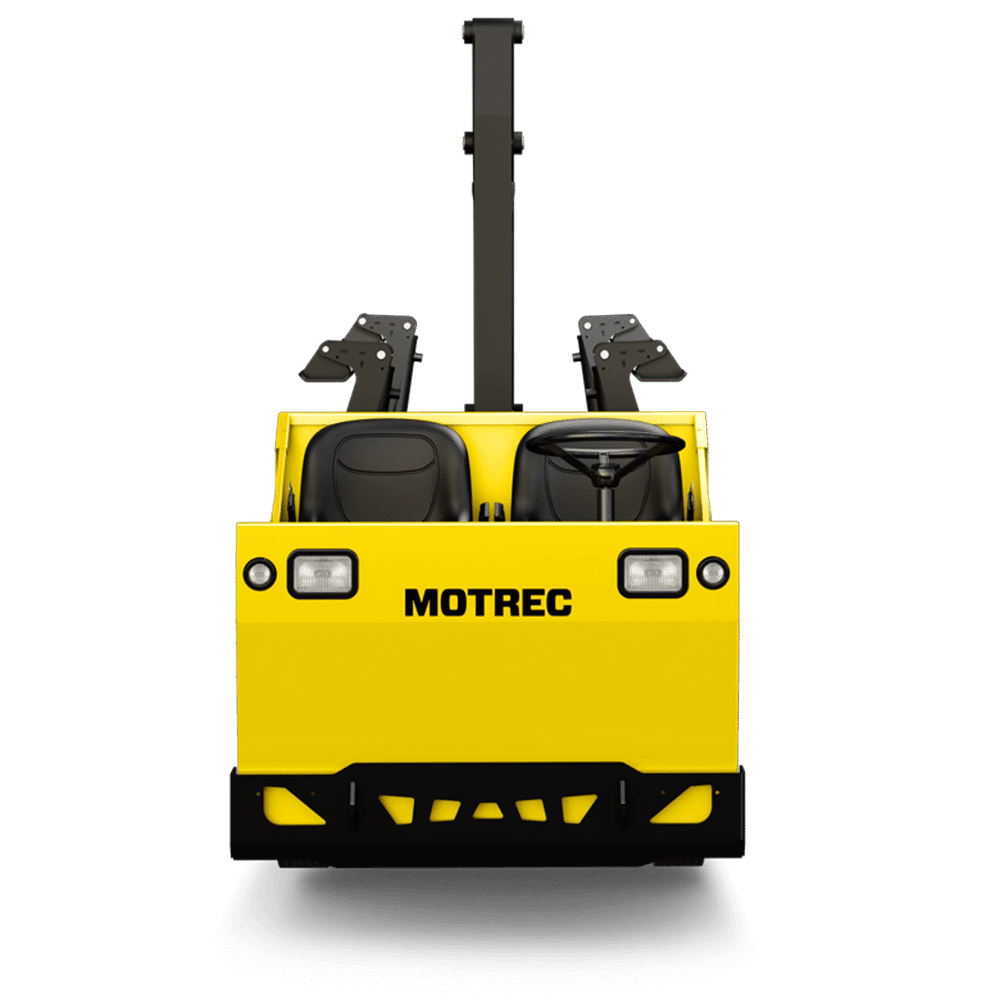

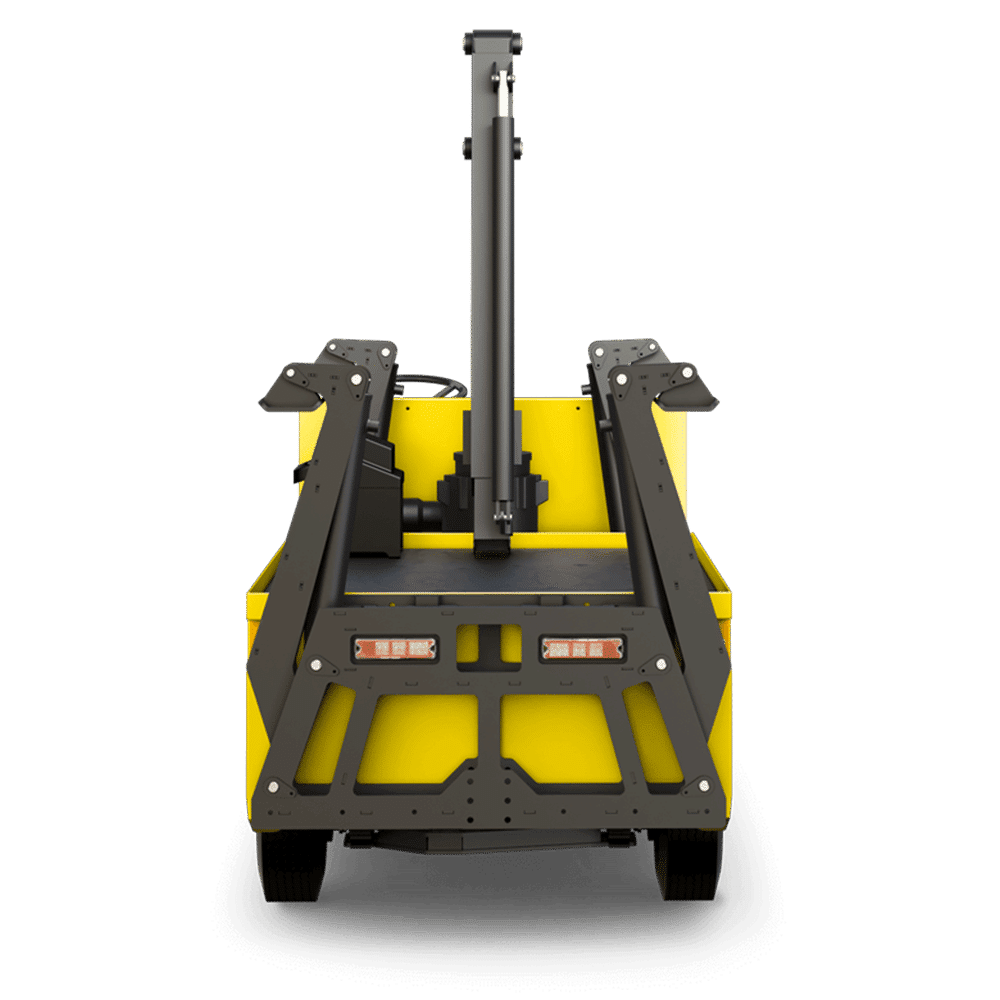

MX-480 Crane Truck

VEHICLE TYPE
CUSTOM VEHICLES

Confidently lift and haul heavy loads of up to 907 Kg. The multi-purpose MX-480 Boom Crane is more efficient than a chain block and can access tight spaces other lift systems cannot, thanks to its compact design, 3.81m turning radius and extendable, rear-facing boom crane. Standard features include four hydraulic outriggers for worry-free stability, a high-efficiency AC powertrain and controller, direct drive differential and large drum brakes. A sturdy, easy-to-operate vehicle with excellent maneuverability, traction and braking—even when hauling heavy loads. EE rating available.

MX 480 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
Crane Truck		1	907 Kg.	2,721 kg.	16 Kmh	3,810 mm

MX 480 MODELS	Crane Truck
PASSENGERS	1
LOAD CAPACITY	907 Kg.
TOWING CAPACITY	2,721 kg.
SPEED	16 Kmh
TURNING RADIUS	3,810 mm

BOOM CRANE

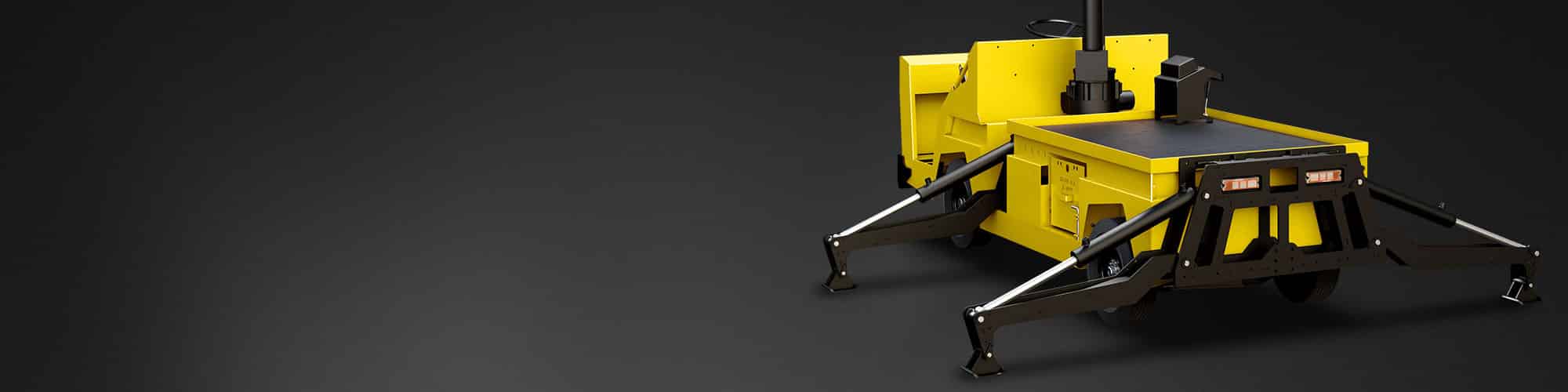

Safely maneuver heavy loads The extendable, rear-facing boom crane offers excellent balance,
capacity and reach, and is available in multiple configurations. Four hydraulic outriggers ensure
stable hoisting for up to 907 Kg.

Image are for illustrative purposes only

AC POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor Offers better control for full motor
performance, as well as higher possible speeds and better torque at low speeds.
Maintenance-free brushless electric motor equipped with temperature and speed sensors.

Image are for illustrative purposes only

CONTROLLER

AC controller with sealed connectors paired with multifunction display Allows for precise
speed control for greater safety and vehicle performance. Includes indicators for speed,
battery state of charge, hour meter, odometer and fault warnings. Password-protected
parameters and monitoring capability.

Image are for illustrative purposes only

BUMPERS

Time-saving roll-out battery compartment Makes changing batteries extremely quick and easy.
Just roll out the compartment to replace the battery with a fresh one and you’re good to go.
Keeps vehicles running round-the-clock. Easy maintenance.

Image are for illustrative purposes only

CAB

Safe and comfortable all-steel cabs Protects operators and everyone around. them Our
customizable cabs come with a long list of standard and optional features: lockable/
Mika/removable doors, canopy top, ladder/pipe rack, wipers, rear-view mirror, sliding
windows with safety glass, heater, air conditioning, cab-mounted strobe light, cab
sound proofing, rust proofing… the list goes on and on.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS		Crane Truck

POWERTRAIN
Motor		15 HP brushless AC motor
Drive Axle		Helical gear differential
Transmission		Direct drive
Controller		AC Electronic speed controller
ENERGY
Voltage		48V
Battery		Eight 6V-225AH batteries
Charger		High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
CHASSIS
Body		All-steel unibody construction. Powder Coating.
Suspension		Dual leaf springs on front and rear
Brakes		Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels		5.7x8 LRD pneumatic tires
Steering		Automotive steering wheel
Seats		Two bucket seats on slide adjusters
EQUIPMENT
Lights		LED dual headlights & tail/brake lights
Indicators		Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories		Bolt-on front bumper, DC/DC converter to equalize battery cells
Safety		Deadman seat switch, reverse alarm, horn
DIMENSIONS
VEHICLE
Weight
Height		2,230 mm
Length		3,310 mm
Width		1,200 mm
Wheel Base		1,820 mm
DECK
Deck Height		780 mm
Deck Length		1,510 mm
Deck Width		1,140 mm
BATTERY
Battery Weight
Battery Height
Battery Length
Battery Width

SPECIFICATIONS

POWERTRAIN
Motor
Crane Truck	15 HP brushless AC motor
Drive Axle
Crane Truck	Helical gear differential
Transmission
Crane Truck	Direct drive
Controller
Crane Truck	AC Electronic speed controller
ENERGY
Voltage
Crane Truck	48V
Battery
Crane Truck	Eight 6V-225AH batteries
Charger
Crane Truck	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
CHASSIS
Body
Crane Truck	All-steel unibody construction. Powder Coating.
Suspension
Crane Truck	Dual leaf springs on front and rear
Brakes
Crane Truck	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
Crane Truck	5.7x8 LRD pneumatic tires
Steering	Automotive steering wheel
Crane Truck	Automotive steering wheel
Seats
Crane Truck	Two bucket seats on slide adjusters
EQUIPMENT
Lights
Crane Truck	LED dual headlights & tail/brake lights
Indicators
Crane Truck	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Crane Truck	Bolt-on front bumper, DC/DC converter to equalize battery cells
Safety
Crane Truck	Deadman seat switch, reverse alarm, horn

DIMENSIONS

VEHICLE
Weight
Crane Truck
Height
Crane Truck	2,230 mm
Length
Crane Truck	3,300 mm
Width
Crane Truck	1,200 mm
Wheel Base
Crane Truck	1,820 mm
DECK
Deck Height
Crane Truck	780 mm
Deck Length
Crane Truck	1,510 mm
Deck Width
Crane Truck	1,140 mm
BATTERY
Battery Weight
Crane Truck
Battery Height
Crane Truck
Battery Length
Crane Truck
Battery Width
Crane Truck

Specifications and standard equipment are subject to change without notice.
