A do-it-all
maintenance /
mobile workshop.

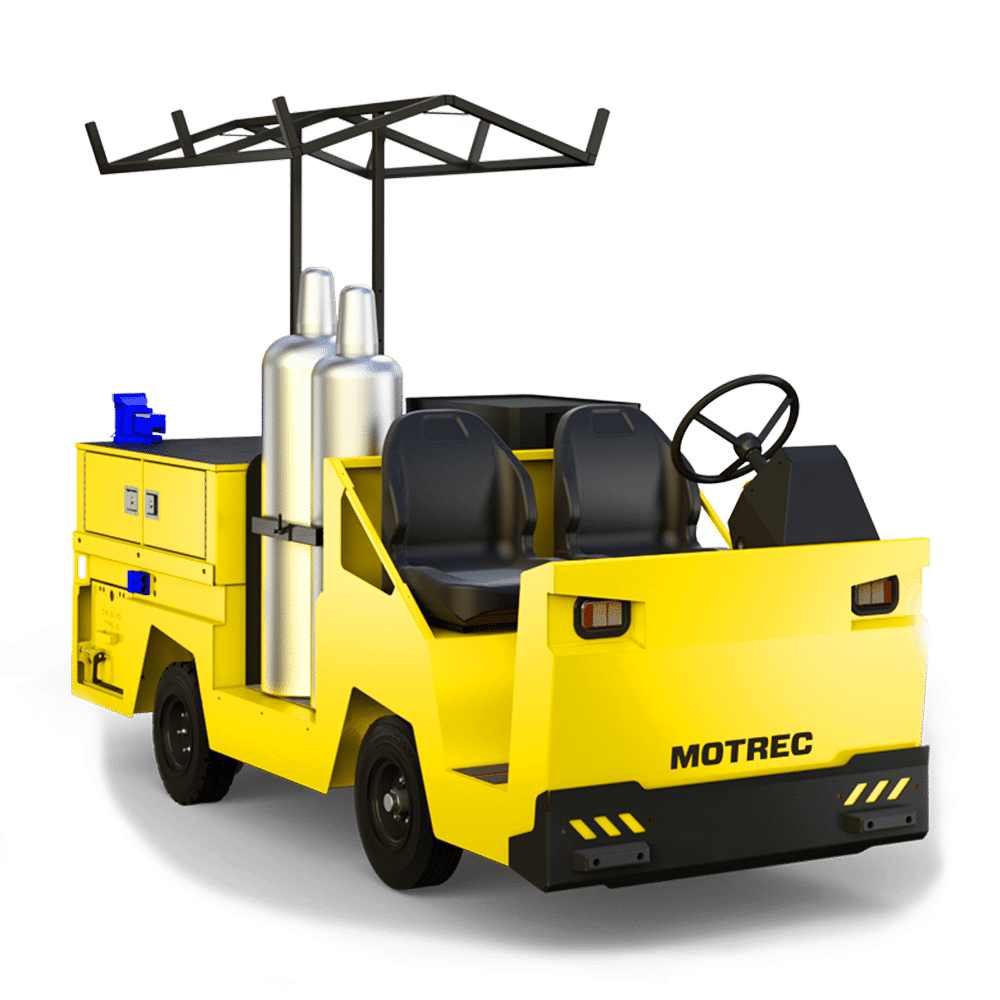

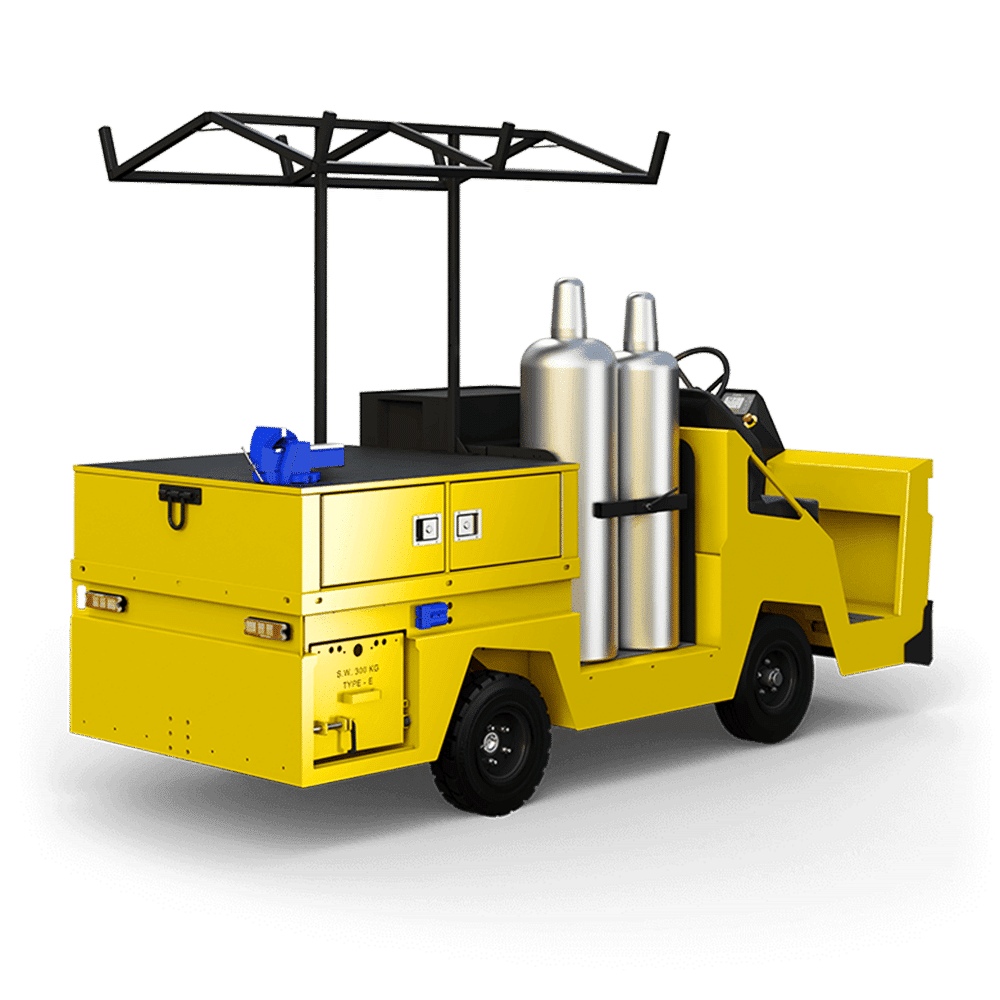

MX-480 Maintenance Truck

VEHICLE TYPE
CUSTOM VEHICLES

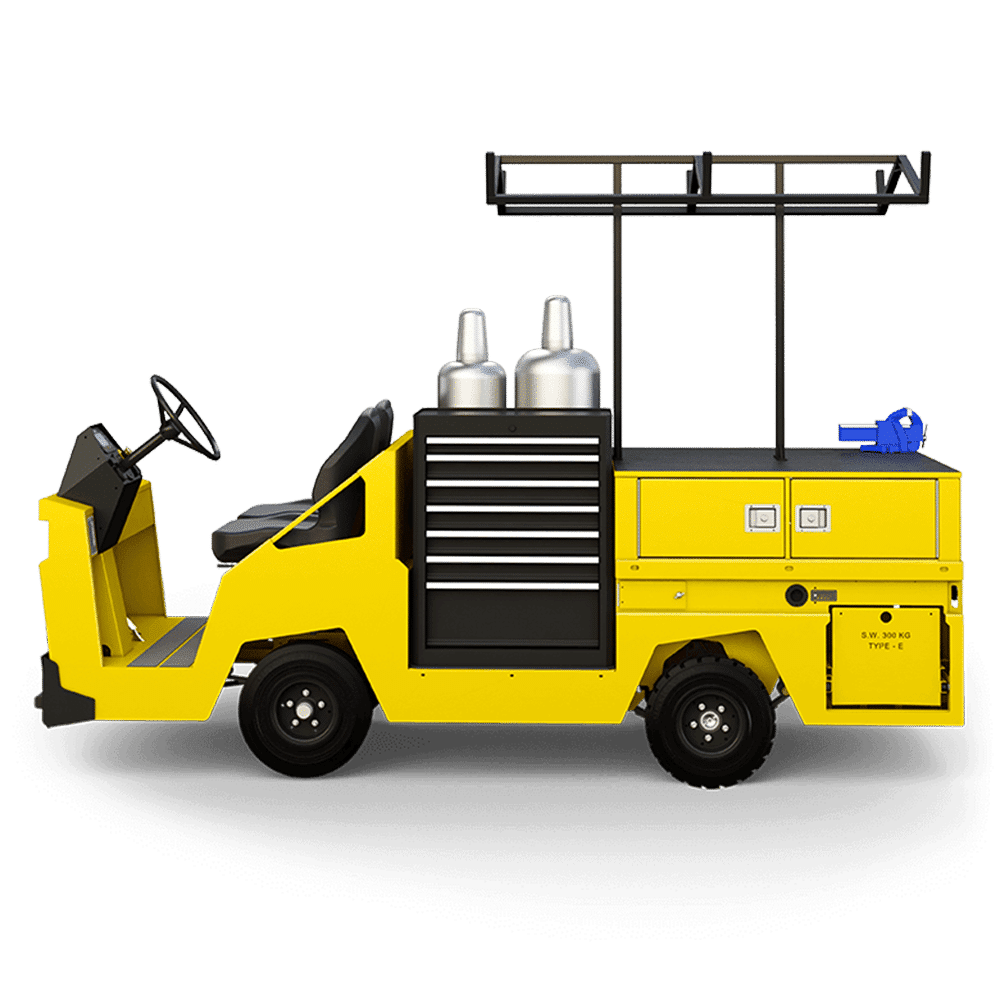

This dependable work truck adapts to a wide variety of jobs. Use it to access restricted spaces, or to quickly cover long distances much faster than on foot. The full-sized 7-drawer tool chest and large lockable compartments will hold all the parts and tools you need—and keep them safely where they belong. Standard features include a roll-out battery compartment, bolt-on front bumper, ladder/pipe rack and more. Several option packages available. Unlimited configurations

MX 480 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
Maintenance Truck		2	1,587 Kg.	2,721 kg.	16 Kmh	3,300 mm

MX 480 MODELS	Maintenance Truck
PASSENGERS	2
LOAD CAPACITY	1,587 Kg.
TOWING CAPACITY	2,721 kg.
SPEED	16 Kmh
TURNING RADIUS	3,300 mm

CONSOLE

Console on steering column Complete console on steering column to put all controls
and displays conveniently right where your fingers and eyes are. Now with a tilted
steering column for a more ergonomic and natural driving posture to reduce
operator fatigue and strain.

Image are for illustrative purposes only

BUMPERS

Reinforced bolt-on front and rear bumpers Protects vehicle components
from damage and keeps maintenance costs low. Equipped with anchors
for easier towing. Bumpers are easy to replace when needed.
An easy, low-cost way to protect your investment

Image are for illustrative purposes only

AC POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.

Image are for illustrative purposes only

CONTROLLER

AC controller with sealed connectors paired with multifunction display Allows
for precise speed control for greater safety and vehicle performance. Includes
indicators for speed, battery state of charge, hour meter, odometer and fault
warnings. Password-protected parameters and monitoring capability.

Image are for illustrative purposes only

CAB

Safe and comfortable all-steel cabs Protects operators and everyone around.
them Our customizable cabs come with a long list of standard and optional
features: lockable/Mika/removable doors, canopy top, ladder/pipe rack,
wipers, rear-view mirror, sliding windows with safety glass, heater, air
conditioning, cab-mounted strobe light, cab sound proofing, rust proofing…
the list goes on and on.

Image are for illustrative purposes only

BRAKES

Powerful automatic electromagnetic parking brake Increases safety by
automatically applying the parking brake whenever the vehicle stops
moving or is shut off. Also doubles as an emergency stop. Entirely
sealed to protect it from debris, elements, etc.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS		Maintenance Truck

POWERTRAIN
Motor		Brushless AC motor, 15 HP (9 HP continuous)
Drive Axle		Helical gear differential
Transmission		Direct drive
Controller		AC Electronic speed controller
ENERGY
Voltage		48V
Battery		Eight 6V-225AH batteries
Charger		High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
CHASSIS
Body		All-steel unibody construction. Powder coating.
Suspension		Dual leaf springs on front and rear
Brakes		Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels		5.7x8 LRD pneumatic tires
Steering		Automotive steering wheel, tilted steering column
Seats		Two premium seats on slide adjusters
EQUIPMENT
Lights		LED dual headlights & tail/brake lights, dual back-up lights
Indicators		Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories		Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety		Deadman seat switch, reverse alarm, horn, automatic parking brake
DIMENSIONS
VEHICLE
Weight
Height		2,190 mm
Length		3,210 mm
Width		1,150 mm
Wheel Base		1,470 mm
DECK
Deck Height		1,070 mm
Deck Length		2,000 mm
Deck Width		1,100 mm
BATTERY
Battery Weight
Battery Height
Battery Length
Battery Width

SPECIFICATIONS

POWERTRAIN
Motor
Maintenance Truck	Brushless AC motor, 15 HP (9 HP continuous)
Drive Axle
Maintenance Truck	Helical gear differential
Transmission
Maintenance Truck	Direct drive
Controller
Maintenance Truck	AC Electronic speed controller
ENERGY
Voltage
Maintenance Truck	48V
Battery
Maintenance Truck	Eight 6V-225AH batteries
Charger
Maintenance Truck	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
CHASSIS
Body
Maintenance Truck	All-steel unibody construction. Powder Coating.
Suspension
Maintenance Truck	Dual leaf springs on front and rear
Brakes
Maintenance Truck	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
Maintenance Truck	5.7x8 LRD pneumatic tires
Steering
Maintenance Truck	Automotive steering wheel
Seats
Maintenance Truck	Two premium seats on slide adjusters
EQUIPMENT
Lights
Maintenance Truck	LED dual headlights & tail/brake lights, dual back-up lights
Indicators
Maintenance Truck	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Maintenance Truck	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety
Maintenance Truck	Deadman seat switch, reverse alarm, horn, automatic parking brake

DIMENSIONS

VEHICLE
Weight
Maintenance Truck
Height
Maintenance Truck	2,190 mm
Length
Maintenance Truck	3,200 mm
Width
Maintenance Truck	1,150 mm
Wheel Base
Maintenance Truck	1,470 mm
DECK
Deck Height
Maintenance Truck	1,070 mm
Deck Length
Maintenance Truck	2,000 mm
Deck Width
Maintenance Truck	1,100 mm
BATTERY
Battery Weight
Maintenance Truck
Battery Height
Maintenance Truck
Battery Length
Maintenance Truck
Battery Width
Maintenance Truck

Specifications and standard equipment are subject to change without notice.

Our most popular options. Packaged for your convenience.

Customers often order the same group of options. So we created a number of packages to make building your perfect vehicle easier than ever.

The road to the perfect vehicle is paved with options.

If one of our option packages isn’t quite what you need, our long list of options will fit the bill. Here are just some of our more popular options. Contact us for the complete list.

A little or a lot, customization goes a long way.

Starting with greater productivity and safety. Less maintenance and lower TCO, too. Whatever the degree of customization needed, our engineering team will get your vehicle to you quickly and for less than you might think. Our handy ordering and quote request tools also make the process extremely easy.
