A low maintenance
vehicle that keeps
things clean.

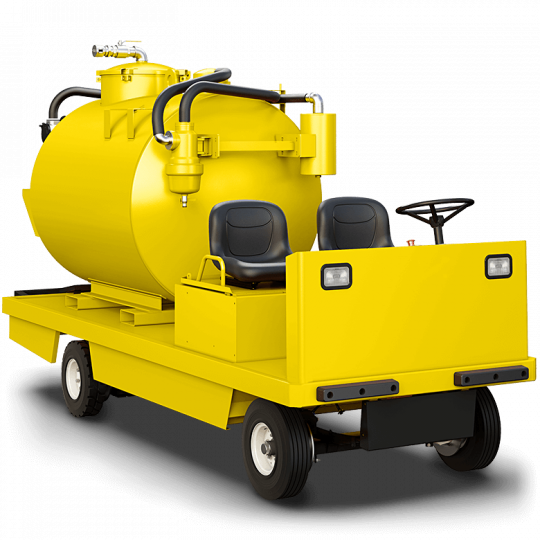

MX-660 Vacuum Truck

VEHICLE TYPE
PERSONNEL CARRIES

As a vacuum truck, the MX-660 is hard to beat: It has a long deck with a 2.27 Cubic meter tank, a 48V-10HP @ 2400 RPM electric vacuum pump motor with 20 in.Hg continuous / 27 in.Hg intermittent vacuum performance, top-and-rear clean-out doors and much more. With our option packages, it quickly becomes a potable water tank or high-pressure washing tank carrier. In fact, with its unlimited configurations, this zero-emission vehicle can adapt to virtually any application.

MX 660 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
Vacuum Truck		2	1,360 Kg.	2,721 kg.	11 Kmh	1,140 mm

MX 660 MODELS	Vacuum Truck
PASSENGERS	2
LOAD CAPACITY	1,360 Kg.
TOWING CAPACITY	2,721 kg.
SPEED	11 Kmh
TURNING RADIUS	1,140 mm

ALL-STEEL BODY

Built-to-last all-steel unibody construction Offers greater strength,
balance and stability for improved performance and safety under
any conditions. Exceptionally solid and rigid construction boasting
an automotive-inspired heavy-duty chassis. Reinforced at all
high-stress areas. Easily accommodates add-on components.

Image are for illustrative purposes only

PAINT

Heavy-duty powder paint & protection Cooked at a high temperature
for outstanding rust protection. Base colors include Federal Yellow
or Safety Orange; unlimited colors available upon request.

Image are for illustrative purposes only

TYRES

Smooth-ride wheels in multiple models and options Ensures a smooth,
comfortable ride over rough floors, resulting in less operator fatigue.
Wide range of flexible options: pneumatic or solid; non-marking;
traction or rib.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS		Vacuum Truck

POWERTRAIN
Motor		15 hp
Drive Axle		Automotive differential
Transmission		Goodyear Synchronous Drive
Controller		Electronic solid state
ENERGY
Voltage		48V
Battery		Not included
Charger		Not included
CHASSIS
Body
Suspension		Front and rear leaf springs
Brakes		Hydraulic disc brakes on front & rear
Wheels		Solid rubber wheels
Steering		Automotive steering wheel
Seats		Two bucket seats on slide adjusters
EQUIPMENT
Lights		LED dual headlights & tail/brake lights
Indicators		Digital battery indicator with hour meter
Accessories		Deadman seat switch, reverse alarm, digital battery indicator, hour meter, 48V/12VDC converter, horn
Safety		Deadman seat switch, reverse alarm, horn
DIMENSIONS
VEHICLE
Weight
Height		1,390 mm
Length
Width		1,370 mm
Wheel Base		2,000 mm
DECK
Deck Height		550 mm
Deck Length		1,930 mm
Deck Width		1,370 mm
BATTERY
Battery Weight
Battery Height		500 mm
Battery Length		570 mm
Battery Width		620 mm

SPECIFICATIONS

POWERTRAIN
Motor
Vacuum Truck	15 hp
Drive Axle
Vacuum Truck	Automotive differential
Transmission
Vacuum Truck	Goodyear Synchronous Drive
Controller
Vacuum Truck	Electronic solid state
ENERGY
Voltage
Vacuum Truck	48V
Battery
Vacuum Truck	Not included
Charger
Vacuum Truck	Not included
CHASSIS
Body
Vacuum Truck	Not included
Suspension
Vacuum Truck	Front and rear leaf springs
Brakes
Vacuum Truck	Hydraulic disc brakes on front & rear
Wheels
Vacuum Truck	Solid rubber wheels
Steering
Vacuum Truck	Automotive steering wheel
Seats
Vacuum Truck	Two bucket seats on slide adjusters
EQUIPMENT
Lights
Vacuum Truck	LED dual headlights & tail/brake lights
Indicators
Vacuum Truck	Digital battery indicator with hour meter
Accessories
Vacuum Truck	Deadman seat switch, reverse alarm, digital battery indicator, hour meter, 48V/12VDC converter, horn
Safety
Vacuum Truck	Deadman seat switch, reverse alarm, horn

DIMENSIONS

VEHICLE
Weight
Vacuum Truck
Height
Vacuum Truck	1,390 mm
Length
Vacuum Truck
Width
Vacuum Truck	1,370 mm
Wheel Base
Vacuum Truck	2,000 mm
DECK
Deck Height
Vacuum Truck	550 mm
Deck Length
Vacuum Truck	1,930 mm
Deck Width
Vacuum Truck	1,370 mm
BATTERY
Battery Weight
Vacuum Truck
Battery Height
Vacuum Truck	500 mm
Battery Length
Vacuum Truck	570 mm
Battery Width
Vacuum Truck	620 mm
