The best way
to work at a
height.

MX 700

VEHICLE TYPE
CUSTOM VEHICLES

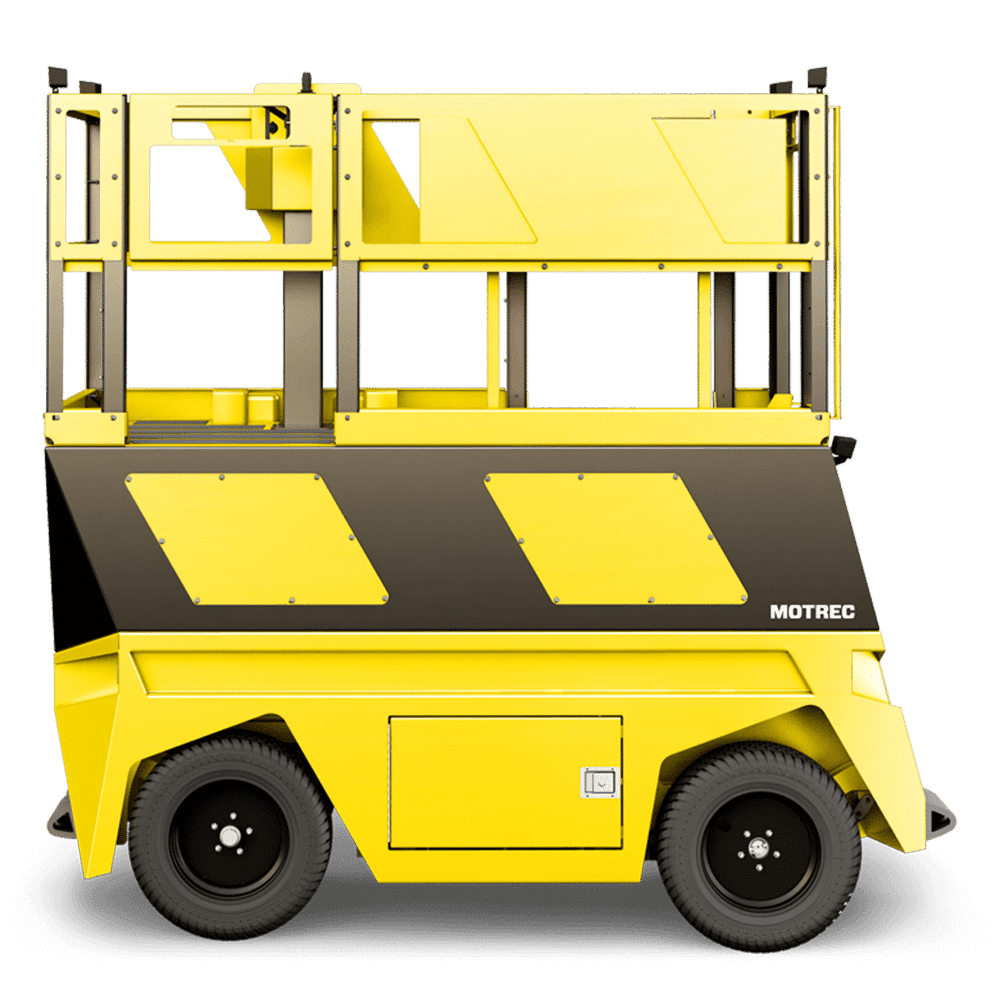

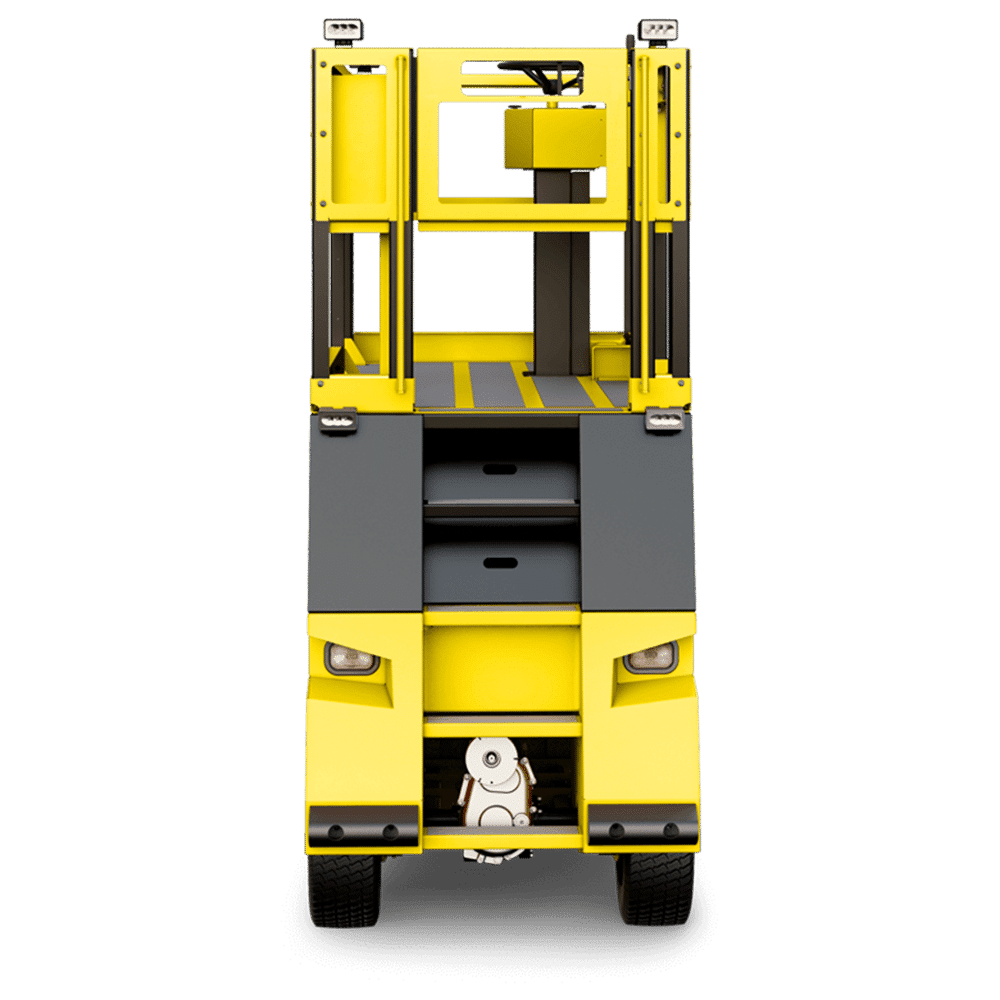

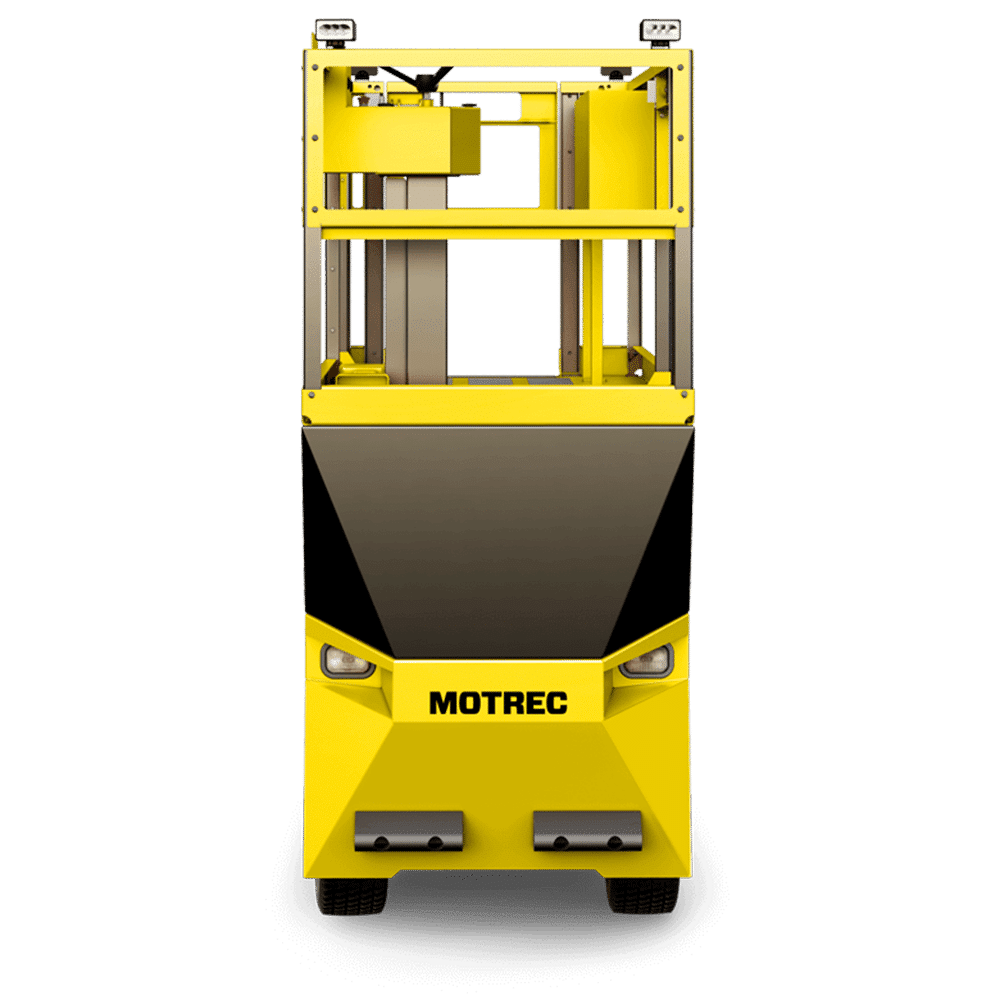

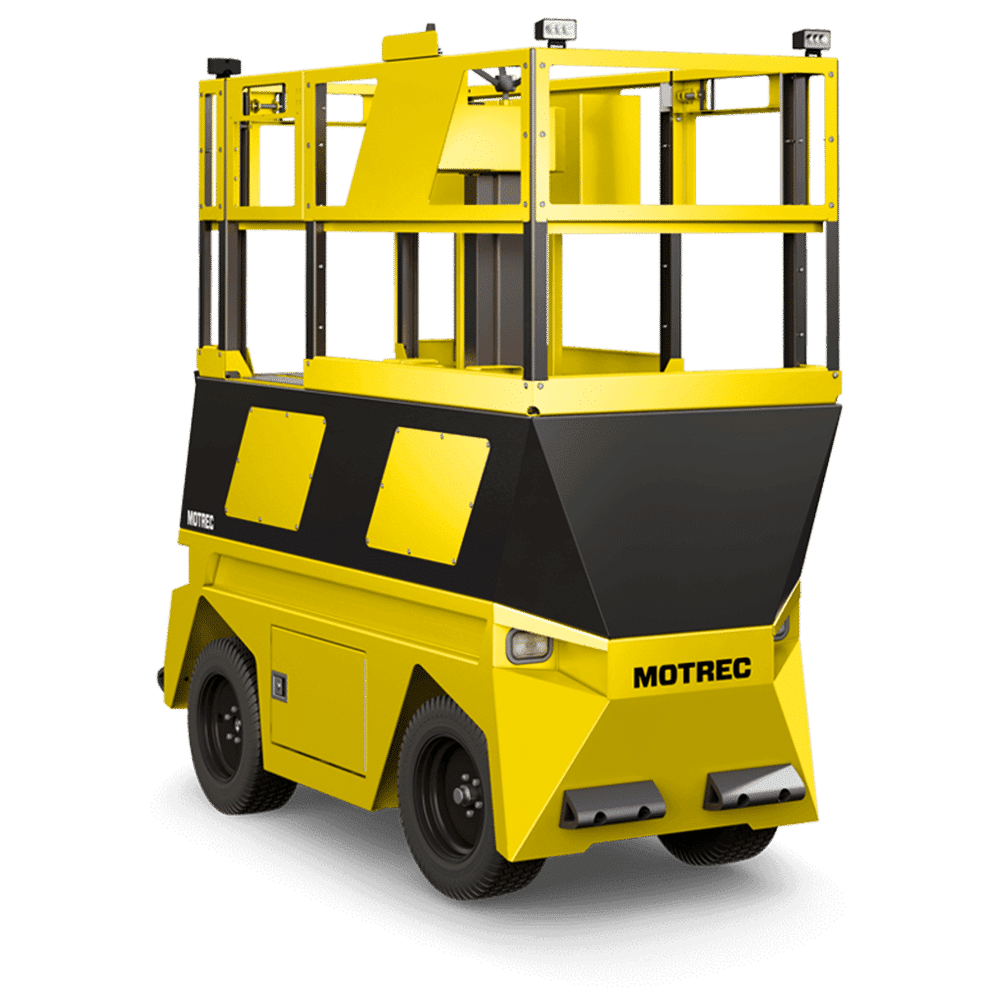

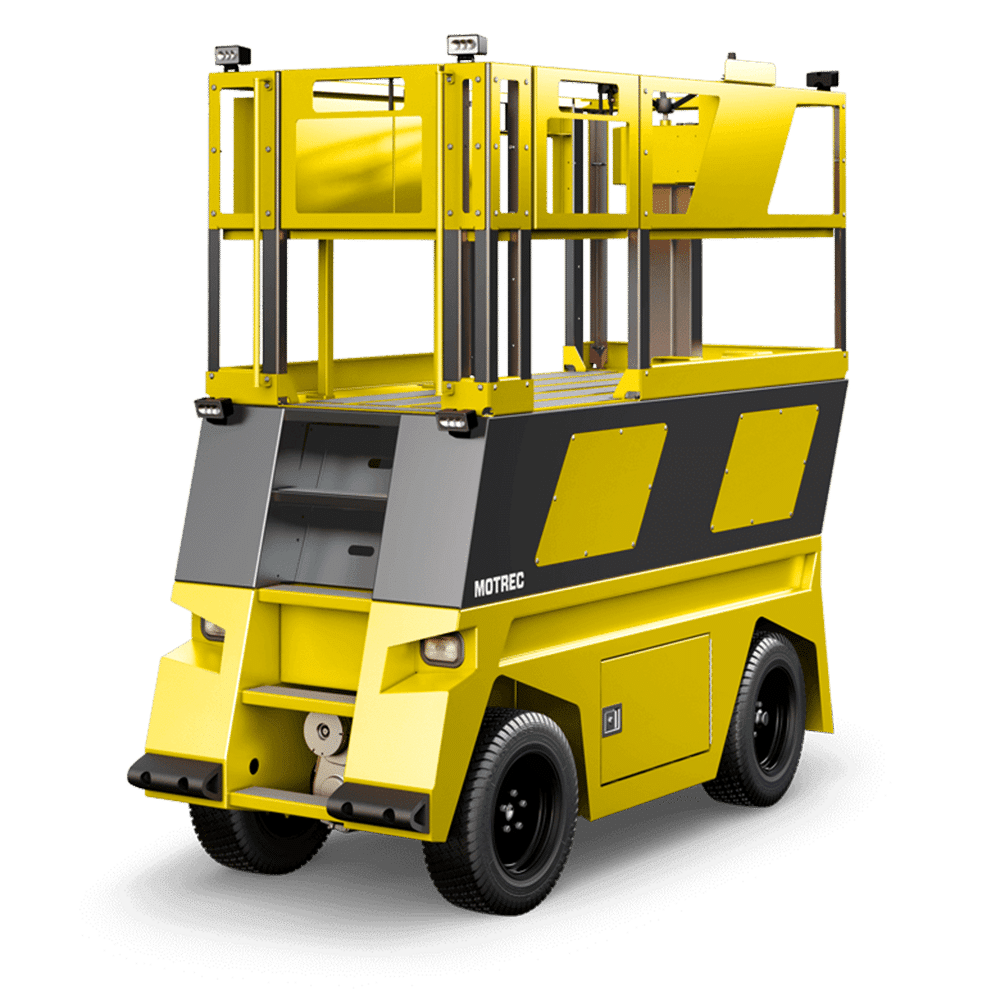

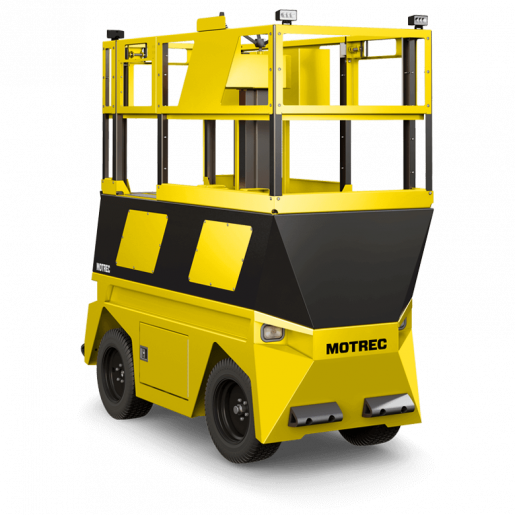

With its elevated platform and bi-directional driving, the MX-700 is the ideal vehicle for working at a height in narrow spaces. It’s also designed with operator safety and productivity in mind: Smooth and precise controls for easy handling, rugged all-steel body for heavy-duty use, low-maintenance design for long-lasting reliability – and best of all, state-of-the-art AC technology for quiet, emission-free operation. Like all Motrec vehicles, the MX-700 can be customized to your specific needs.

MX 700 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
48V		1	272 Kg.	0 kg.	9.6 Kmh	3,090 mm

MX 700 MODELS	48V
PASSENGER	1
LOAD CAPACITY	272 Kg.
TOWING CAPACITY	0 kg.
SPEED	9.6 Kmh
TURNING RADIUS	3.09 m

AC-POWERTRAIN

High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.

Image are for illustrative purposes only

ALL-STEEL BODY

Built-to-last all-steel unibody construction Offers greater strength,
balance and stability for improved performance and safety under
any conditions. Exceptionally solid and rigid construction boasting
an automotive-inspired heavy-duty chassis. Reinforced at all
high-stress areas. Easily accommodates add-on components.

Image are for illustrative purposes only

CONTROLLER

AC controller with sealed connectors paired with multifunction display
Allows for precise speed control for greater safety and vehicle performance.
Includes indicators for speed, battery state of charge, hour meter,
odometer and fault warnings. Password-protected parameters
and monitoring capability.

Image are for illustrative purposes only

BRAKES

Heavy-duty braking power Provides faster braking and shorter stopping distances,
even when towing heavy loads. Stronger, more durable and more efficient design
ensures superior braking performance with less maintenance vs. competing brakes.
Brake safely and confidently every time.

Image are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS		48V

POWERTRAIN
Motor		15 HP brushless AC motor
Drive Axle		Helical gear differential
Transmission		Direct drive
Controller		Electronic AC speed controller
ENERGY
Voltage		48V
Battery		TPPL batteries, 186AH
Charger		No charger included
CHASSIS
Body		All-steel unibody construction. Powder Coating.
Suspension		Dual leaf springs on rear
Brakes		Rear wheel hydraulic drum brakes, regenerative braking
Wheels		25" pneumatic wheels
Steering		Automotive steering wheel, hydraulic power steering, drivable from both sides
Seats
EQUIPMENT
Lights		LED dual headlights & tail/brake lights at both ends. Front & back work lights
Indicators		Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Safety		Front and rear rubber bumpers, reverse alarm, double deadman foot switch, horn, emergency stop button, doors with interlock switch
DIMENSIONS
VEHICLE
Weight
Height		2,710 mm
Length		2,760 mm
Width		3,650 mm
Wheel Base		1,620 mm
DECK
Deck Height		1,540 mm
Deck Length		2,280 mm
Deck Width		1,010 mm
BATTERY
Battery Weight
Battery Height
Battery Length
Battery Width

SPECIFICATIONS

POWERTRAIN
Motor
48V	15 HP brushless AC motor
Drive Axle
48V	Helical gear differential
Transmission
48V	Direct drive
Controller
48V	Electronic speed controller
ENERGY
Voltage
48V	48V
Battery
48V	TPPL batteries, 186AH
Charger
48V	No charger included
CHASSIS
Body
48V	All-steel unibody construction. Powder Coating.
Suspension
48V	Dual leaf springs on rear
Brakes
48V	Rear wheel hydraulic drum brakes, regenerative braking
Wheels
48V	25" pneumatic wheels
Steering
48V	Automotive steering wheel, hydraulic power steering, drivable from both sides
Seats
48V
EQUIPMENT
Lights
48V	LED dual headlights & tail/brake lights at both ends. Front & back work lights
Indicators
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
48V
Safety
48V	Front and rear rubber bumpers, reverse alarm, double deadman foot switch, horn, emergency stop button, doors with interlock switch

DIMENSIONS

VEHICLE
Weight

Height
48V	2,710 mm
Length
48V	2,760 mm
Width
48V	3,650 mm
Wheel Base
48V	1,620 mm
DECK
Deck Height
48V	1,540 mm
Deck Length
48V	2,280 mm
Deck Width
48V	1,010 mm
BATTERY
Battery Weight
48V
Battery Height
48V
Battery Length
48V
Battery Width
48V
