24V
|
---|---|
PASSENGERS
|
1
|
LOAD CAPACITY
|
226 Kg.
|
TOWING CAPACITY
|
907 Kg.
|
SPEED
|
12 Kmh
|
TURNING RADIUS
|
2.0 m
|
Motrec MX-240 Maintenance
Make life easier for
maintenance staff.
MX-240 Maintenance
VEHICLE TYPE
UTILITY VEHICLES

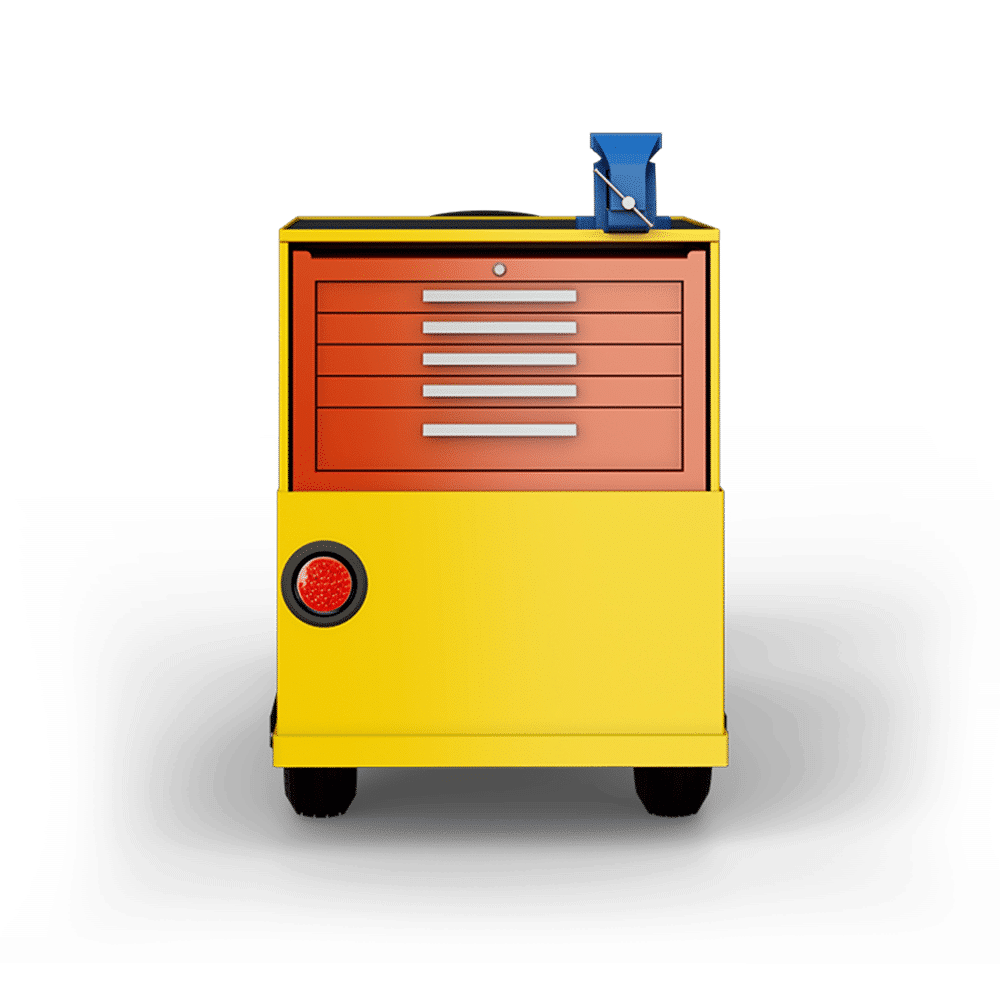

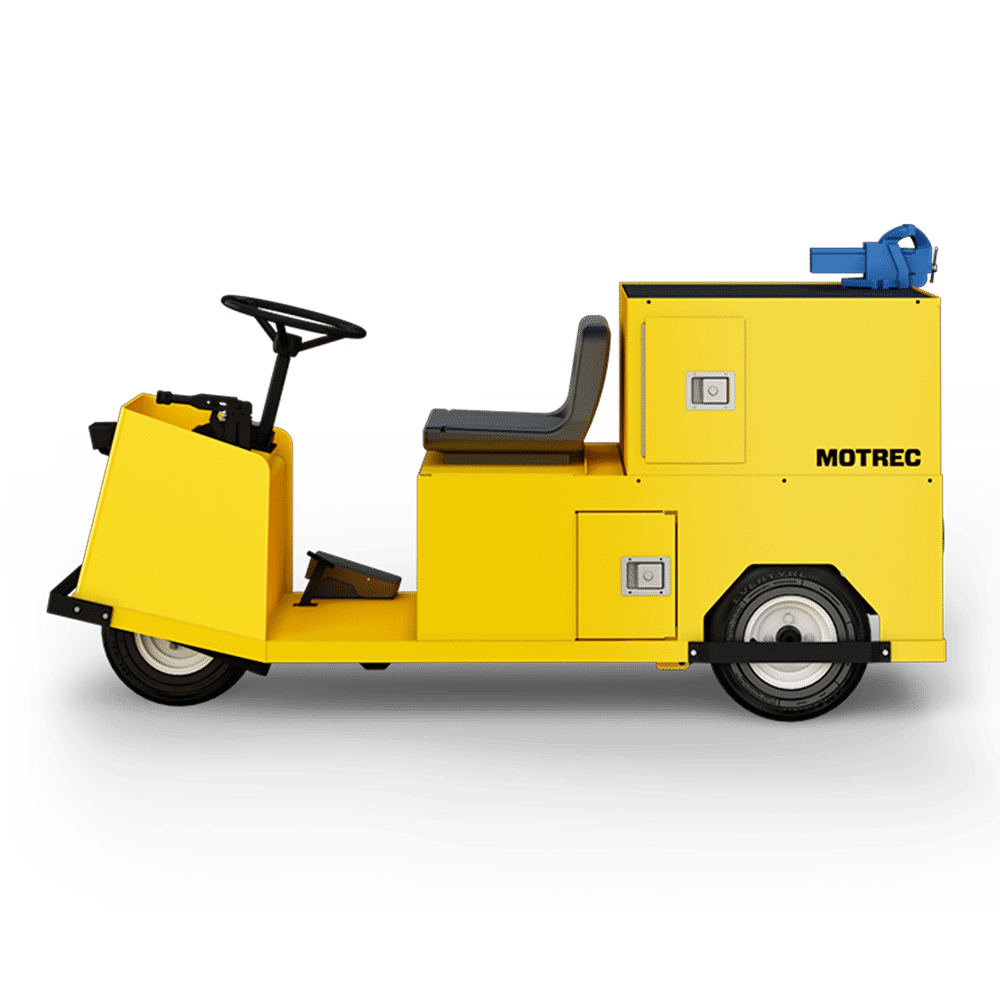

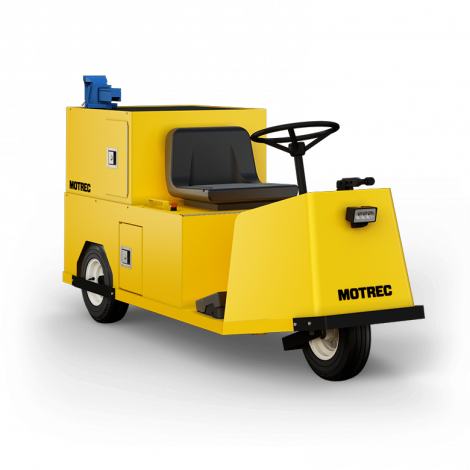

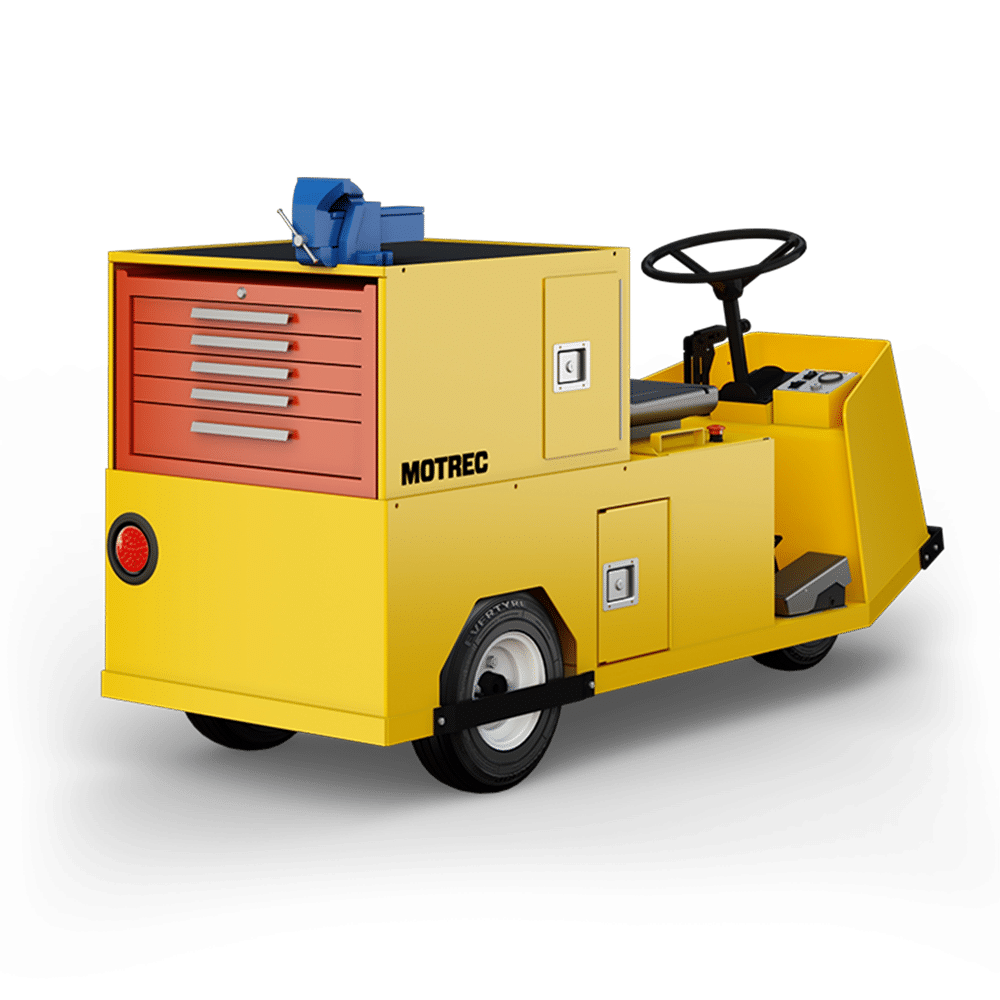

This dependable compact work truck adapts to a wide variety of jobs. Use it to access restricted spaces, or to quickly cover long distances much faster than on foot. The full-sized 5-drawer tool chest and 2 large lockable compartments will hold all the parts and tools you need — and keep them safely where they belong. Standard features also include vice. Our zero-emission electric maintenance trucks can also be customized to your exact needs.



MX 240 MODELS
|
Heading
|
PASSENGER
|
LOAD CAPACITY
|
TOWING CAPACITY
|
SPEED
|
TURNING RADIUS
|
---|---|---|---|---|---|---|
24V
|
|
1
|
226 Kg.
|
907 kg.
|
12 Kmh
|
2.0 m
|
36V
|
|
1
|
226 Kg.
|
2721 kg.
|
12 Kmh
|
2.0 m
|
|
36V
|
---|---|
PASSENGERS
|
1
|
LOAD CAPACITY
|
226 Kg.
|
TOWING CAPACITY
|
907 Kg.
|
SPEED
|
12 Kmh
|
TURNING RADIUS
|
2.0 m
|
BUMPERS
Reinforced bolt-on front and rear bumpers
Protects vehicle components from damage and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers are easy to replace when needed. An easy, low-cost way to protect your investment.
Image are for illustrative purposes only and may differ from the actual product.
Protects vehicle components from damage and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers are easy to replace when needed. An easy, low-cost way to protect your investment.
Image are for illustrative purposes only and may differ from the actual product.
LIF-OUT
Time-saving lift-out battery compartment
Makes changing batteries quick and easy. Because the batteries are not attached to the vehicle, maintenance is easier, too. Simply lift out the compartment and replace batteries with fresh ones.
Image are for illustrative purposes only and may differ from the actual product.
Makes changing batteries quick and easy. Because the batteries are not attached to the vehicle, maintenance is easier, too. Simply lift out the compartment and replace batteries with fresh ones.
Image are for illustrative purposes only and may differ from the actual product.

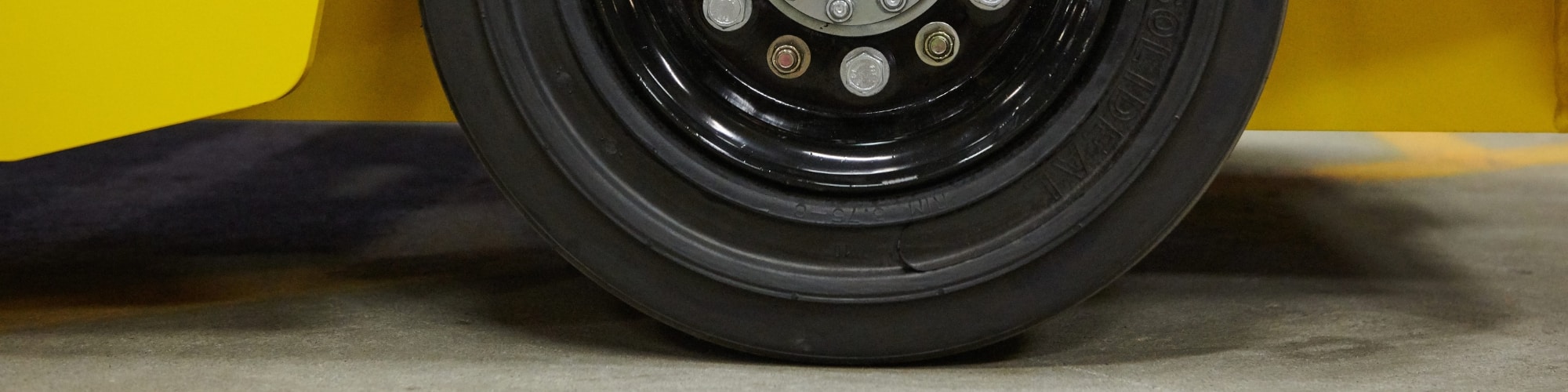

SUSPENSION
Fatigue- and accident-saving ergonomic suspension
Increases stability for a smoother, safer ride even on challenging terrain. Ergonomic design lessens impacts, resulting in greater operator comfort and less risk of injury. Travel of 1.5 inches. Various configurations available.
Image are for illustrative purposes only and may differ from the actual product.
Increases stability for a smoother, safer ride even on challenging terrain. Ergonomic design lessens impacts, resulting in greater operator comfort and less risk of injury. Travel of 1.5 inches. Various configurations available.
Image are for illustrative purposes only and may differ from the actual product.
Previous slide
Next slide
SPECIFICATIONS
|
26V
|
36V
|
---|---|---|
|
|
|
POWERTRAIN
|
||
Motor
|
6 hp shunt motor
|
10 hp shunt motor
|
Drive Axle
|
Helical gear Differential
|
Helical gear Differential
|
Transmission
|
Direct drive
|
Direct drive
|
Controller
|
SEPEX Electronic speed controller
|
SEPEX Electronic speed controller
|
ENERGY
|
||
Voltage
|
24V
|
36V
|
Battery
|
Four 6V-225AH batteries
|
Six 6V-225AH batteries
|
Charger
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
|
High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
|
CHASSIS
|
||
Body
|
All-steel unibody construction. Powder Coating.
|
All-steel unibody construction. Powder Coating.
|
Suspension
|
Dual coil springs and shock absorber on rear
|
Dual coil springs and shock absorber on rear
|
Brakes
|
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
|
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
|
Wheels
|
4.8x8 LRC pneumatic tires
|
4.8x8 LRC pneumatic tires
|
Steering
|
Automotive steering wheel
|
Automotive steering wheel
|
Seats
|
Bucket seat on slide adjusters
|
Bucket seat on slide adjusters
|
EQUIPMENT
|
||
Lights
|
LED headlight & tail/brake light
|
LED headlight & tail/brake light
|
Indicators
|
Battery status indicator
|
Battery status indicator
|
Accessories
|
Bolt-on bumpers and rear wheel guards, 12V accessories
|
Bolt-on bumpers and rear wheel guards, 12V accessories
|
Safety
|
Reverse alarm, deadman seat switch, horn
|
Reverse alarm, deadman seat switch, horn
|
DIMENSIONS (mm)
|
||
VEHICLE
|
||
Weight
|
|
|
Height
|
1143
|
1143
|
Length
|
2235
|
2235
|
Width
|
762
|
762
|
Wheel Base
|
1550
|
1550
|
DECK
|
||
Deck Height
|
1066
|
1066
|
Deck Length
|
787
|
787
|
Deck Width
|
762
|
762
|
BATTERY
|
||
Battery Weight
|
|
|
Battery Height
|
|
|
Battery Length
|
|
|
Battery Width
|
|
|
|
|
|
|
|
---|---|
|
|
POWERTRAIN
|
|
Motor
|
|
24V
|
6 hp shunt motor
|
36V
|
10 hp shunt motor
|
Drive Axle
|
|
24V
|
Helical gear Differential
|
36V
|
Helical gear differential
|
Transmission
|
|
24V
|
Direct drive
|
36V
|
Direct drive
|
Controller
|
|
24V
|
SEPEX Electronic speed controller
|
36V
|
SEPEX Electronic speed controller
|
ENERGY
|
|
Voltage
|
|
24V
|
24V
|
36V
|
36V
|
Battery
|
|
24V
|
Four 6V-225AH batteries
|
36V
|
Six 6V-225AH batteries
|
Charger
|
|
24V
|
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
|
36V
|
High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
|
CHASSIS
|
|
Body
|
|
24V
|
All-steel unibody construction. Powder Coating.
|
36V
|
All-steel unibody construction. Powder Coating.
|
Suspension
|
|
24V
|
Dual coil springs and shock absorber on rear
|
36V
|
Dual coil springs and shock absorber on rear
|
Brakes
|
|
24V
|
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
|
36V
|
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
|
Wheels
|
|
24V
|
4.8x8 LRB pneumatic tires
|
36V
|
4.8x8 LRB pneumatic tires
|
Steering
|
|
24V
|
Automotive steering wheel
|
36V
|
Automotive steering wheel
|
Seats
|
|
24V
|
Bucket seat on slide adjusters
|
36V
|
Bucket seat on slide adjusters
|
EQUIPMENT
|
|
Lights
|
|
24V
|
LED headlight & tail/brake light
|
36V
|
LED headlight & tail/brake light
|
Indicators
|
|
24V
|
Battery status indicator
|
36V
|
Battery status indicator
|
Accessories
|
|
24V
|
Bolt-on bumpers and rear wheel guards, 12V accessories
|
36V
|
Bolt-on bumpers and rear wheel guards, 12V accessories
|
Safety
|
|
24V
|
Reverse alarm, deadman seat switch, horn
|
36V
|
Reverse alarm, deadman seat switch, horn
|
|
|
---|---|
|
|
VEHICLE
|
|
Weight
|
|
24V
|
|
36V
|
|
Height
|
|
24V
|
1143
|
36V
|
1143
|
Length
|
|
24V
|
2235
|
36V
|
2235
|
Width
|
|
24V
|
762
|
36V
|
762
|
Wheel Base
|
|
24V
|
1550
|
36V
|
1550
|
DECK
|
|
Deck Height
|
|
24V
|
1066
|
36V
|
1066
|
Deck Length
|
|
24V
|
787
|
36V
|
787
|
Deck Width
|
|
24V
|
762
|
36V
|
762
|
BATTERY
|
|
Battery Weight
|
|
24V
|
|
36V
|
|
Battery Height
|
|
24V
|
|
36V
|
|
Battery Length
|
|
24V
|
|
36V
|
|
Battery Width
|
|
24V
|
|
36V
|
|
Specifications and standard equipment are subject to change without notice.
