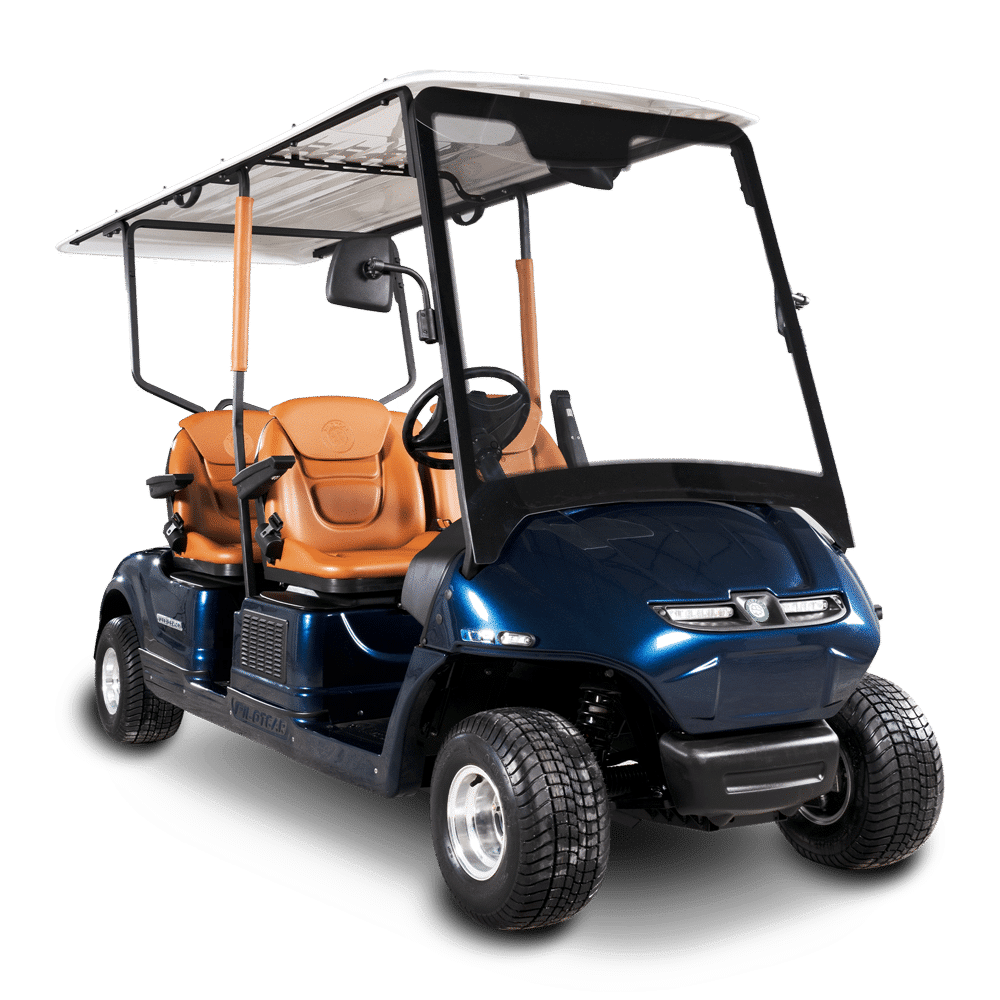

Freedom, without limits! This commercial rated electric utility vehicle is the ultimate workhorse. You decide how you want to use it.
A powerful and reliable motor delivering up to 16hp means even loads of up to 600 kg are able to be moved effortlessly. It highspeed gear box also allows this utility to travel speeds of 45km/h allowing tasks to be completed faster.
PC-4 | AC 4 kW | ||||||
|---|---|---|---|---|---|---|
Power Train | ||||||
|---|---|---|---|---|---|---|
Motor | AC 4 kW (5.44 hp) Rated, 9.6 kW (13 hp)Peak | AC 6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak | |||||
Drive Axel | – | |||||
Transmission | – | |||||
Controller | AC CURTIS (350 A-450 A) | |||||
Energy | ||||||
|---|---|---|---|---|---|---|
Voltage | – | |||||
Battery | Lead-Acid Battery Package 8x6V (11.52 kWh) | Lithium Battery Package (10.8 kWh) | |||||
Charger | Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@8 1A/48V | Lithium Battery Package OVARTECH 3.3 kW Onboard Charge Unit 85-265 VAC@16A 40A/48V | |||||
Chassis | ||||||
|---|---|---|---|---|---|---|
Body | Chassis: Naturally colored Thermoplastic ABS White, Midnight Blue, Red, Black | Body:Naturally colored Thermoplastic ABS White, Midnight Blue, Red, Black | |||||
Suspension | Front: Fully independent McPherson style strut suspension | Rear: Semi independent, swing arm with coil springs over hydraulic shock absorbers | |||||
Brakes | Service: Self-adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system | Parking: Foot actuated multi-lock parking brake Option: Elektromagnetic parking brake | |||||
Wheels | 18 x 8.5-8 (6 PLY) | 22 x 9.50-10 Off-Road Tyre **Only applied w/ lift kit option | |||||
Steering | Self-compensating double reduction helical rack-and-pinion | |||||
Seats | Premium Leather Seats | |||||
Equipment | ||||||
|---|---|---|---|---|---|---|
Lights | – | |||||
Indicators | – | |||||
Accessories | – | |||||
Safety | – | |||||
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | AC 4 kW (5.44 hp) Rated, 9.6 kW (13 hp)Peak | AC 6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak | |
Drive Axel | – | |
Transmission | – | |
Controller | AC CURTIS (350 A-450 A) | |
Energy | ||
|---|---|---|
Voltage | – | |
Battery | Lead-Acid Battery Package 8x6V (11.52 kWh) | Lithium Battery Package (10.8 kWh) | |
Charger | Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@8 1A/48V | Lithium Battery Package OVARTECH 3.3 kW Onboard Charge Unit 85-265 VAC@16A 40A/48V | |
Chassis | ||
|---|---|---|
Body | – | |
Suspension | Front: Fully independent McPherson style strut suspension | Rear: Semi independent, swing arm with coil springs over hydraulic shock absorbers | |
Brakes | Service: Self-adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system | Parking: Foot actuated multi-lock parking brake Option: Elektromagnetic parking brake | |
Wheels | 18 x 8.5-8 (6 PLY) | 22 x 9.50-10 Off-Road Tyre **Only applied w/ lift kit option | |
Steering | Self-compensating double reduction helical rack-and-pinion | |
Seats | Premium Leather Seats | |
Equipment | ||
|---|---|---|
Lights | – | |
Indicators | – | |
Accessories | – | |
Safety | – | |
Specifications and standard equipment are subject to change without notice.
