Built with durability in mind

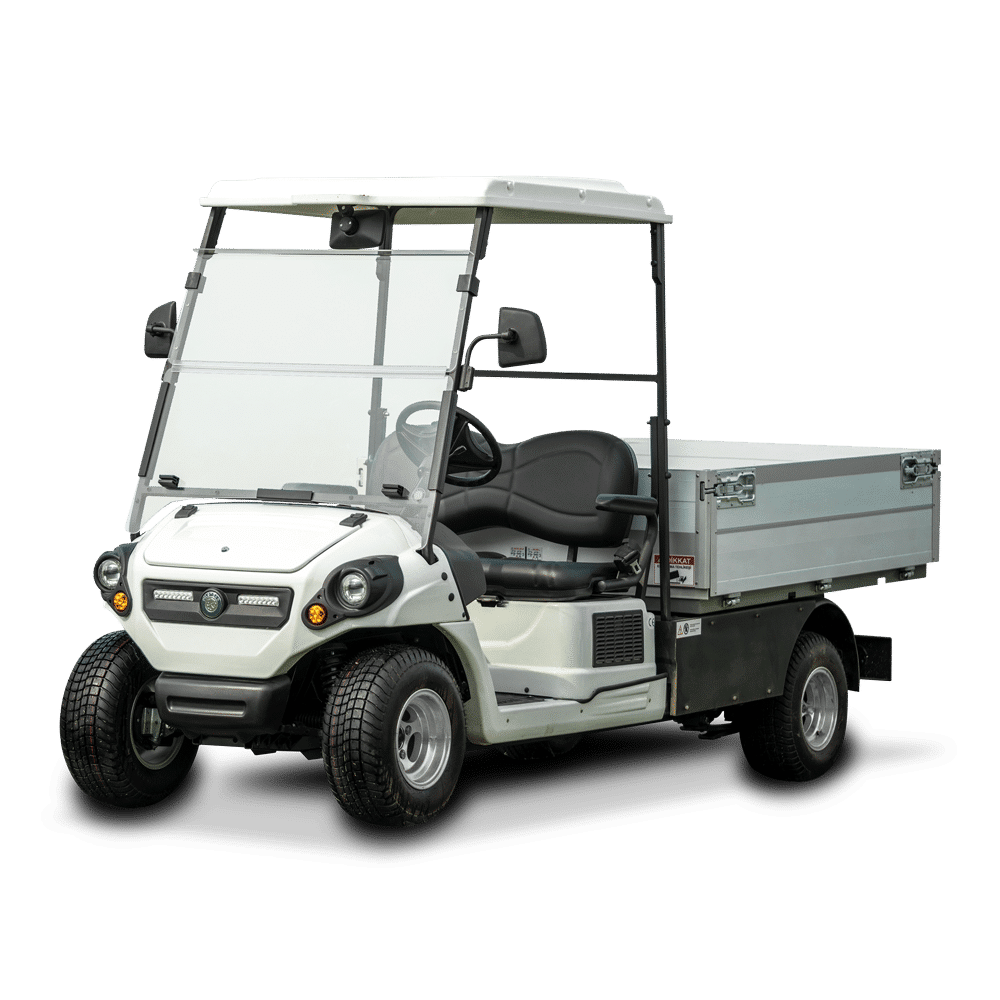

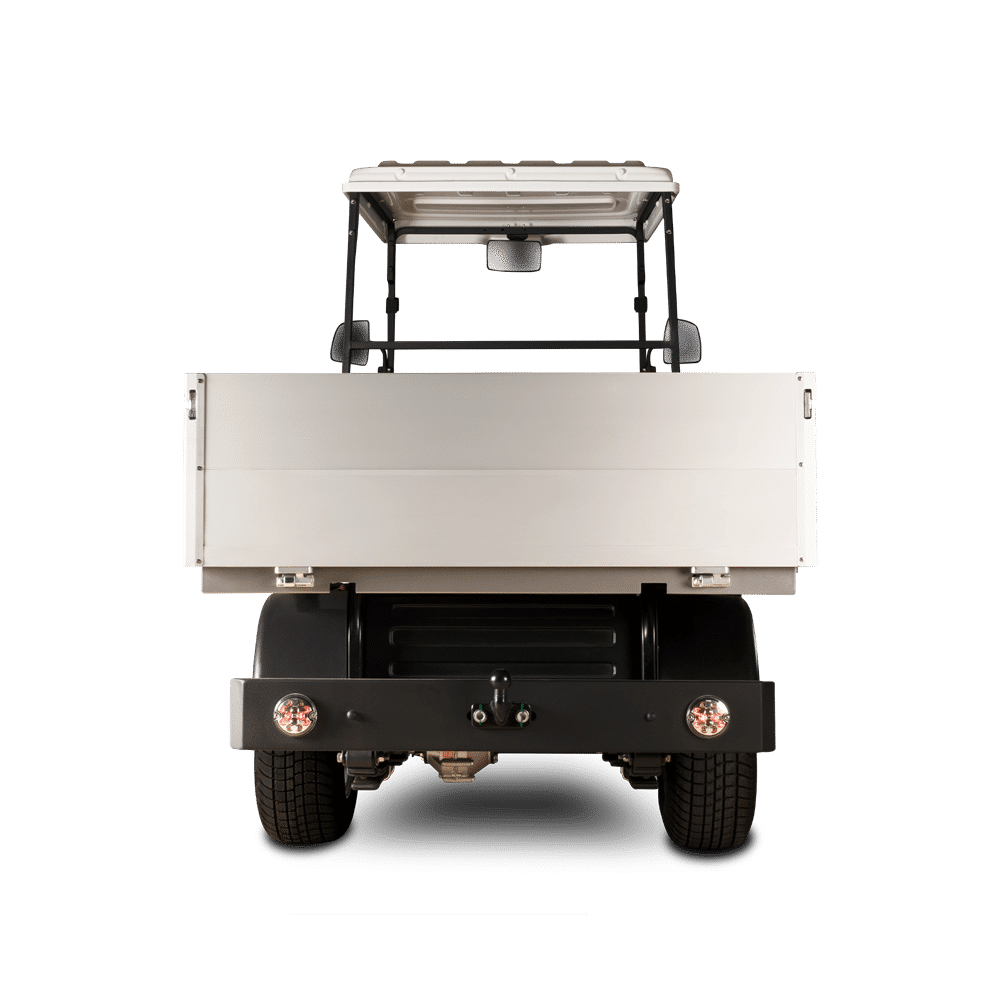

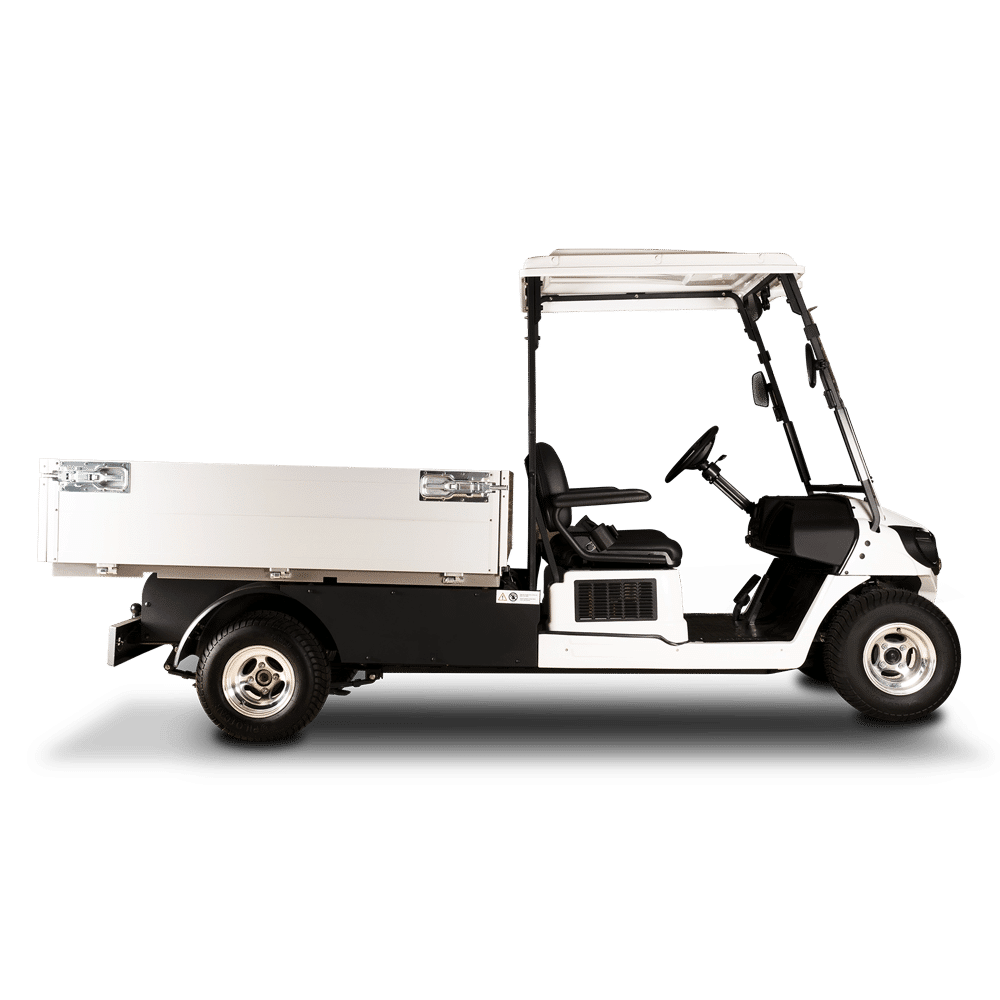

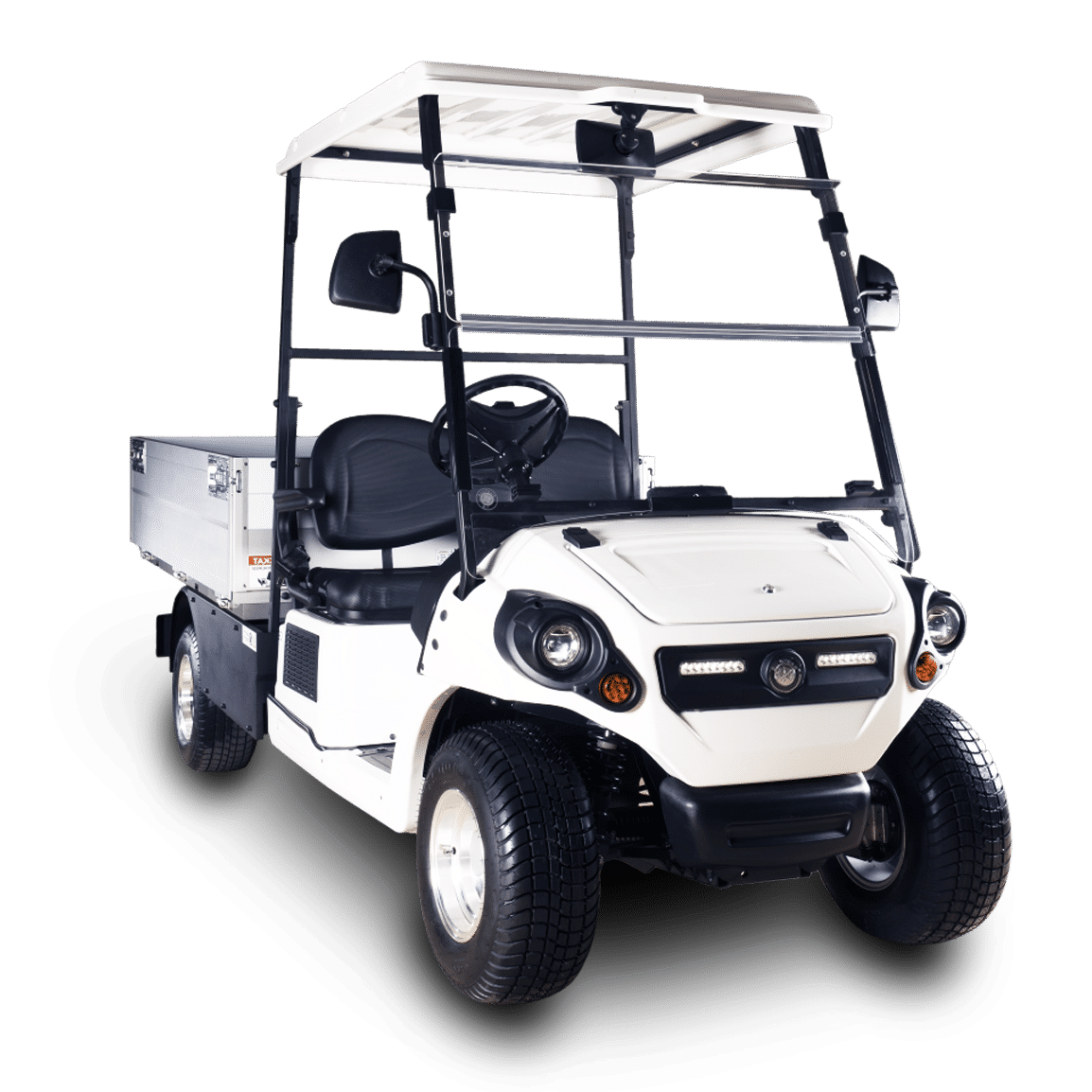

The Pilotcar PC-W is built for the kind of jobs that demand strength, stability, and endurance. With an 800 kg payload and the ability to tow up to 2,000 kg, it’s purpose-built for moving heavy materials and equipment efficiently over long distances. Its steel chassis, motor options, and robust braking system make it a reliable workhorse for industrial facilities, logistics hubs, large campuses, and any operation where high-capacity transport is part of the daily routine.
Why Choose This Model
AC 6 kW Motor | ||||||
|---|---|---|---|---|---|---|
Power Train | ||||||
|---|---|---|---|---|---|---|
Motor | AC 6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak | |||||
Drive Axel | – | |||||
Transmission | – | |||||
Controller | AC CURTIS (450 A-600 A) | |||||
Energy | ||||||
|---|---|---|---|---|---|---|
Voltage | – | |||||
Battery | Lead-Acid Battery Package 8x6V (11.52 kWh) | Lithium Battery Package (10.8 kWh) | |||||
Charger | Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@8 1A/48V | Lithium Battery Package OVARTECH 3.3 kW Onboard Charge Unit 85-265 VAC@16A 40A/48V | |||||
Chassis | ||||||
|---|---|---|---|---|---|---|
Body | Naturally colored Thermoplastic ABS, White | Chassis: Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint | |||||
Suspension | Front: Fully independent McPherson style strut suspension | Rear: Semi independent leaf springs w/dual hydraulic shocks | |||||
Brakes | Self adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system | |||||
Wheels | 20.5 x 8-10 (6 ply) | |||||
Steering | Self-compensating double reduction helical rack-and-pinion | |||||
Seats | Premium Seat Carbon Black | |||||
Equipment | ||||||
|---|---|---|---|---|---|---|
Lights | – | |||||
Indicators | – | |||||
Accessories | – | |||||
Safety | – | |||||
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | AC 6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak | |
Drive Axel | – | |
Transmission | – | |
Controller | AC CURTIS (450 A-600 A) | |
Energy | ||
|---|---|---|
Voltage | – | |
Battery | Lead-Acid Battery Package 8x6V (11.52 kWh) | Lithium Battery Package (10.8 kWh) | |
Charger | Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@8 1A/48V | Lithium Battery Package OVARTECH 3.3 kW Onboard Charge Unit 85-265 VAC@16A 40A/48V | |
Chassis | ||
|---|---|---|
Body | – | |
Suspension | Front: Fully independent McPherson style strut suspension | Rear: Semi independent leaf springs w/dual hydraulic shocks | |
Brakes | Self adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system | |
Wheels | 20.5 x 8-10 (6 ply) | |
Steering | Self-compensating double reduction helical rack-and-pinion | |
Seats | Premium Seat Carbon Black | |
Equipment | ||
|---|---|---|
Lights | – | |
Indicators | – | |
Accessories | – | |
Safety | – | |
Specifications and standard equipment are subject to change without notice.
Get the most out of the Work bench with in-depth training to streamline integration into your daily workflows.
Enjoy peace of mind with access to the Sitecraft trusted network of service across Australia.
Schedule routine maintenance and gain quick access to replacement parts to ensure consistent, long-term performance.
