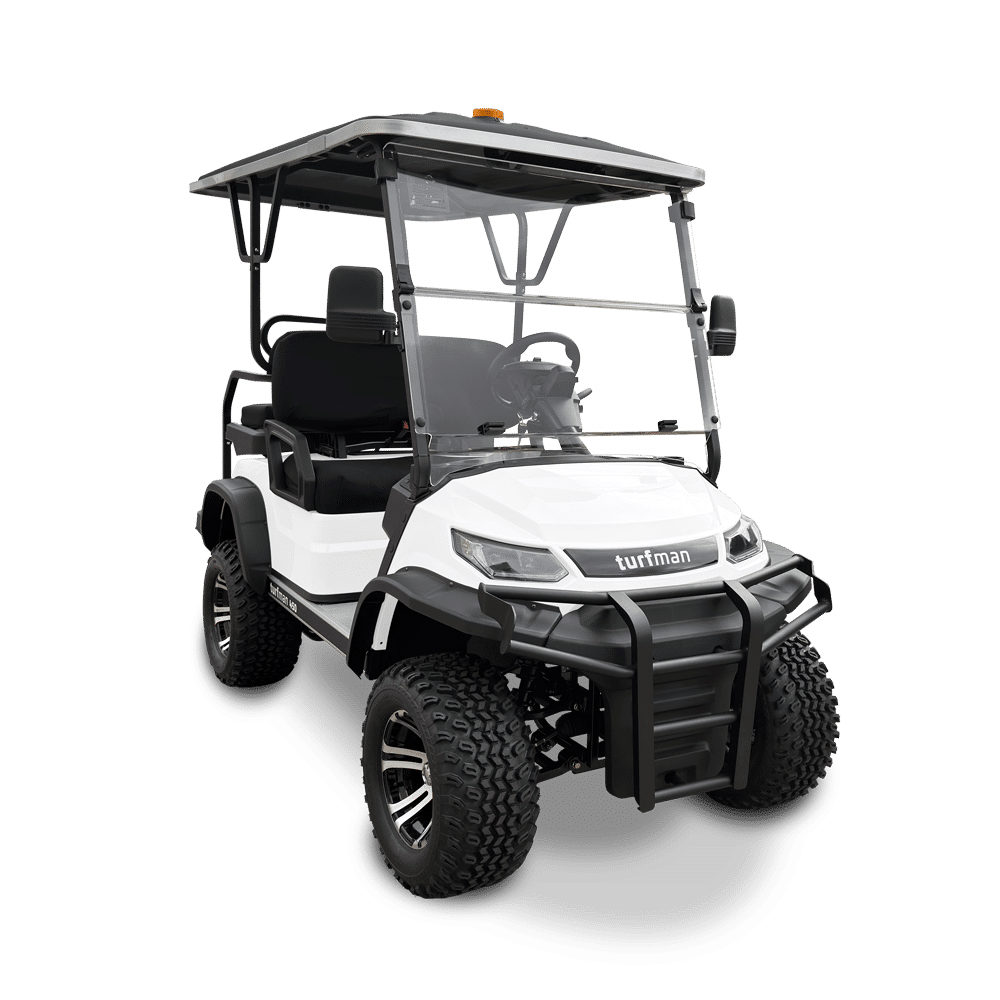

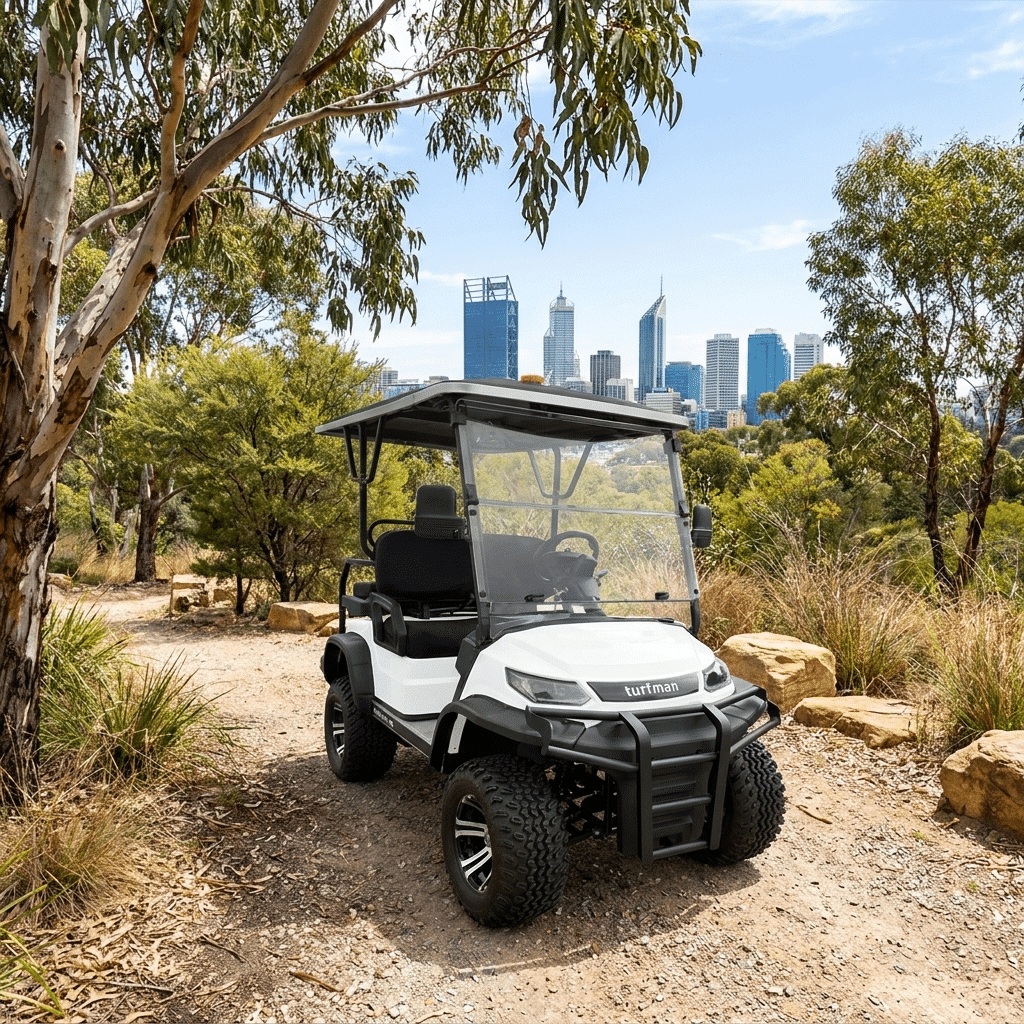

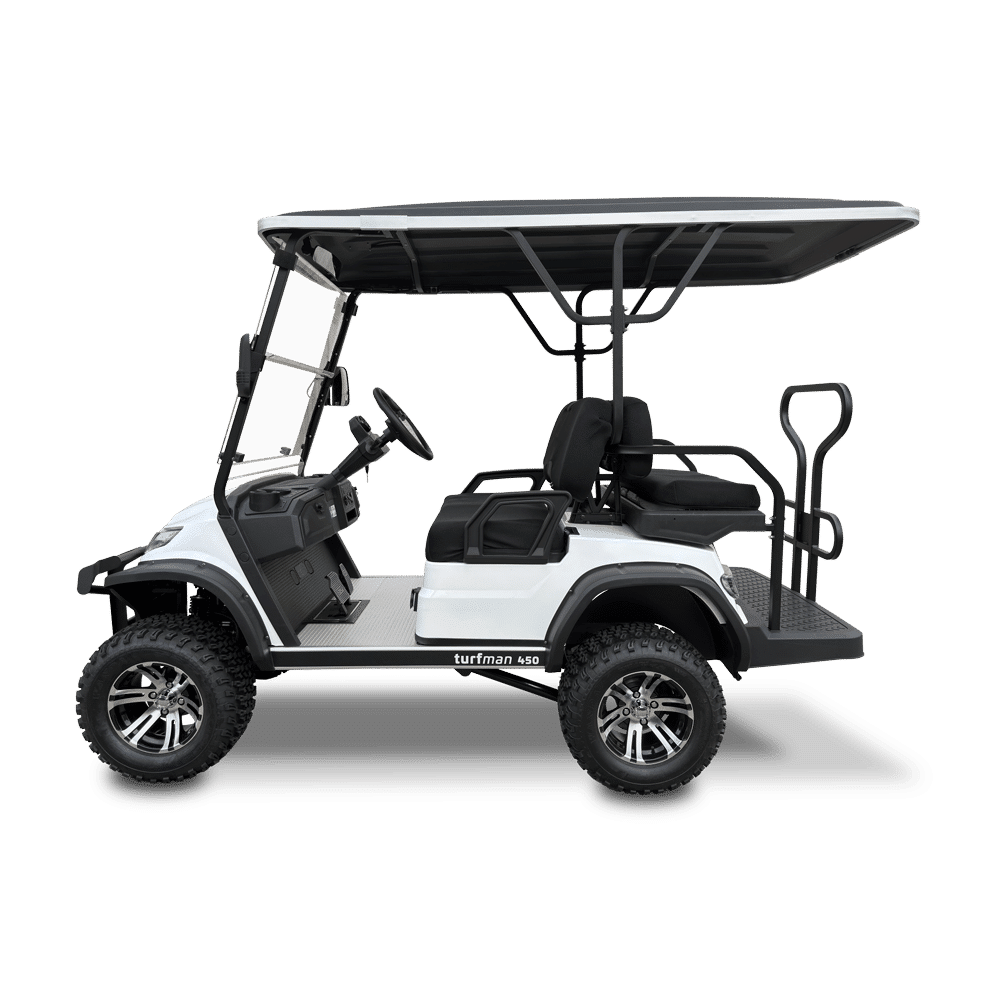

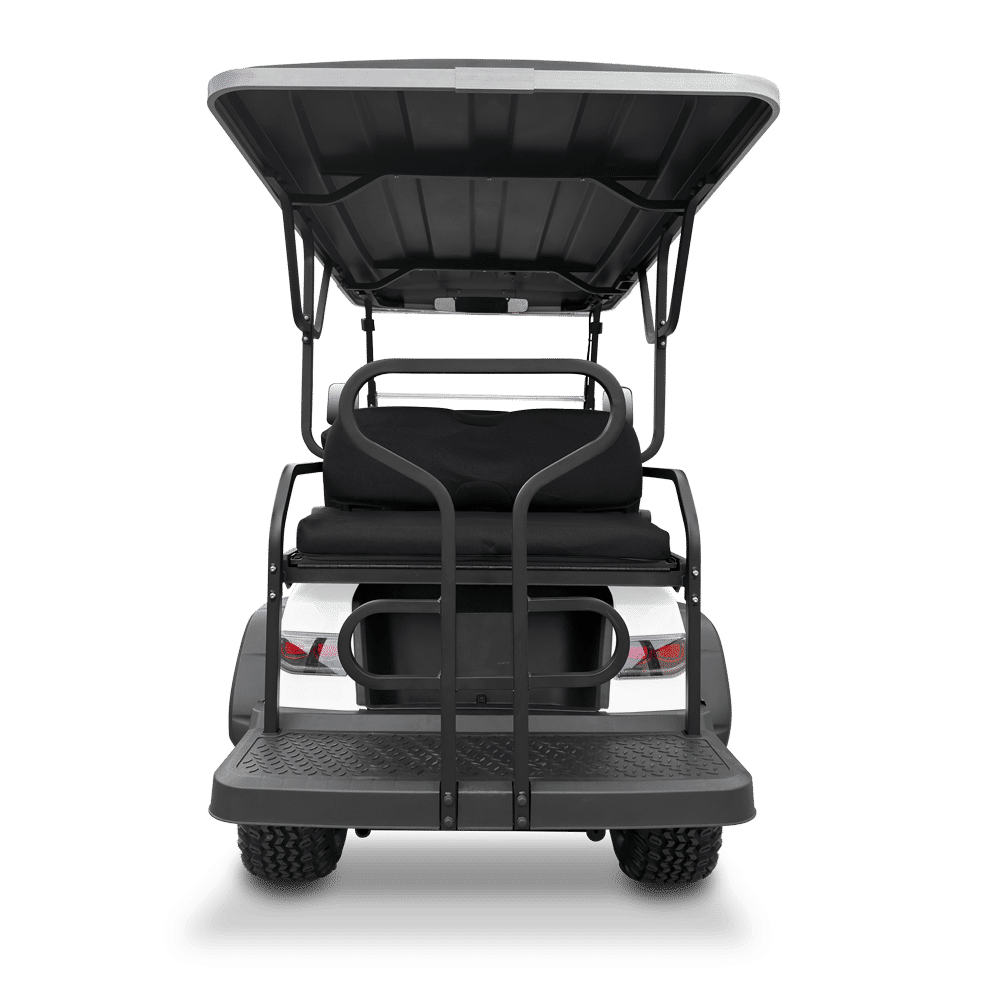

Move people between work areas and facilities with the Turfman 450 Short Wheelbase electric vehicle. This SWB version combines seating for four in a 2+2 configuration with an overall vehicle length of 2,930 mm, giving you a clear starting point when assessing vehicle dimensions against your site routes and parking areas.
The factory suspension upgrade provides increased ground clearance, larger tyres and upgraded fenders. An electric motor delivering up to 4 kW powers the vehicle, with a maximum speed of 25 km/h and customisable speed settings.
Why Choose This Model
Up to 5 Years Warranty Coverage:
Turfman 450 SWB 4 Seater | ||||||
|---|---|---|---|---|---|---|
Power Train | ||||||
|---|---|---|---|---|---|---|
Motor | 4.0 kw AC Electric | |||||
Drive Axel | Integral rear axle with 16:1 ratio | |||||
Transmission | – | |||||
Controller | AC motor controller | |||||
Energy | ||||||
|---|---|---|---|---|---|---|
Voltage | 48 V | |||||
Battery | 51.2 V, 156 Ah lithium iron phosphate battery (8 kWh) | |||||

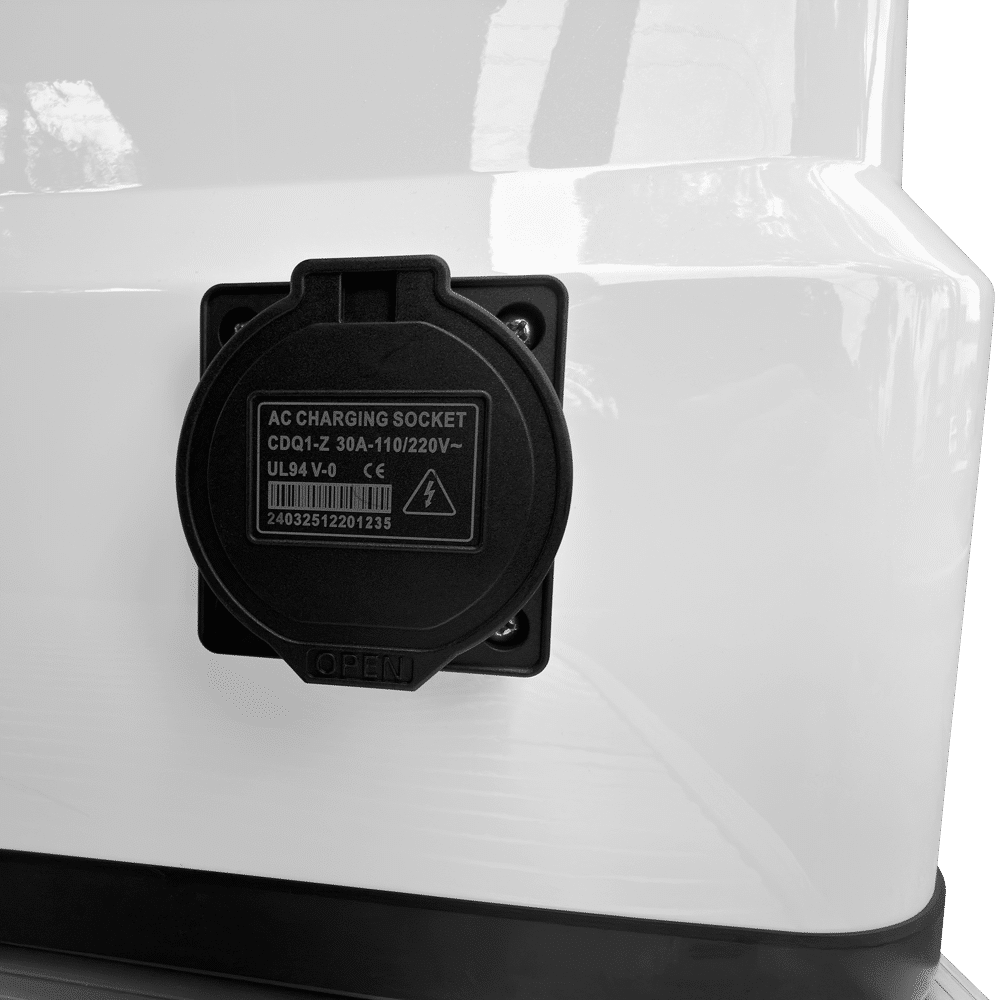

Charger | Intelligent 48 V, 30 A charger; charging time under 5 hours | |||||
Chassis | ||||||
|---|---|---|---|---|---|---|
Body | Injection-moulded PP front cover, seat base and body panels; matte black aluminium roof supports | |||||
Suspension | Front: independent double-arm suspension with coil springs and hydraulic shock absorbers. Rear: integral axle with coil springs, hydraulic shock absorbers and stabiliser bar | |||||
Brakes | Dual-circuit hydraulic braking with four-wheel disc brakes and electronic parking brake | |||||

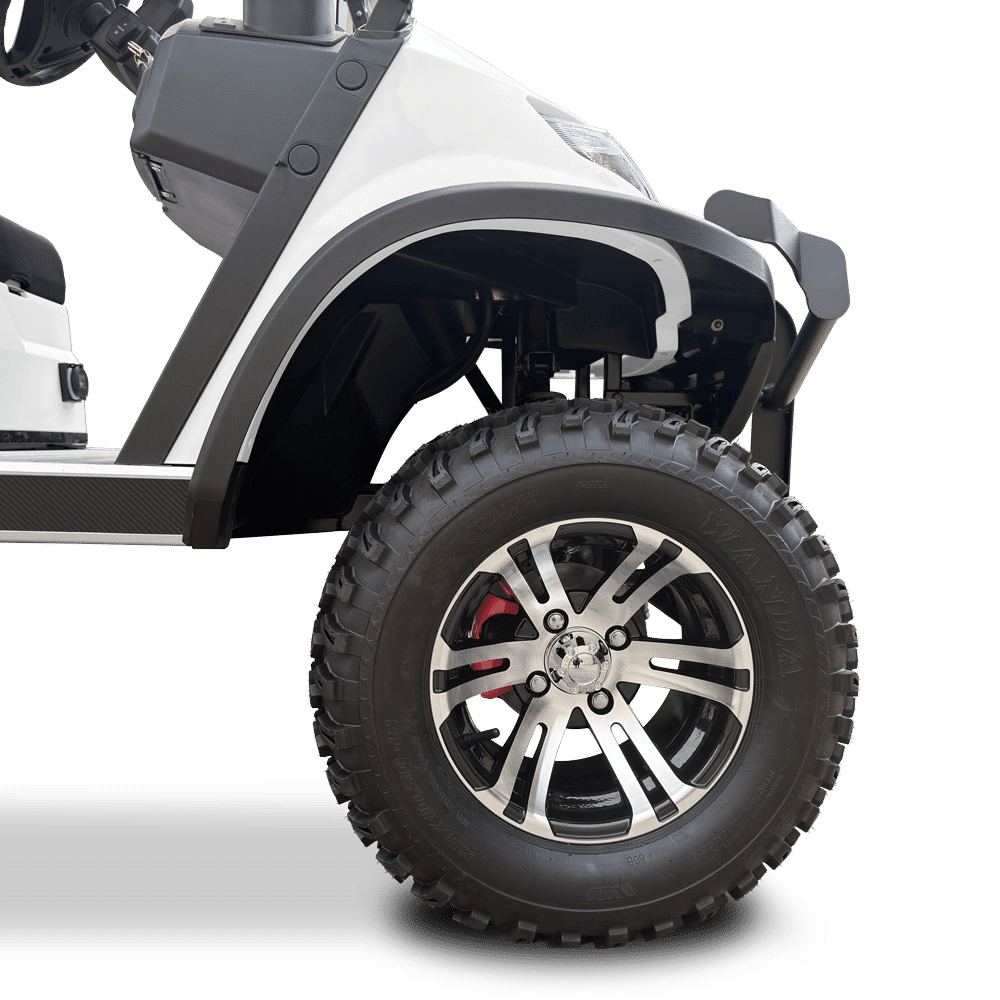

Wheels | 23 × 10.5–12 tyres on 12-inch aluminium rims; wheel diameter 580 mm | |||||
Steering | Bidirectional rack-and-pinion steering with automatic clearance compensation | |||||

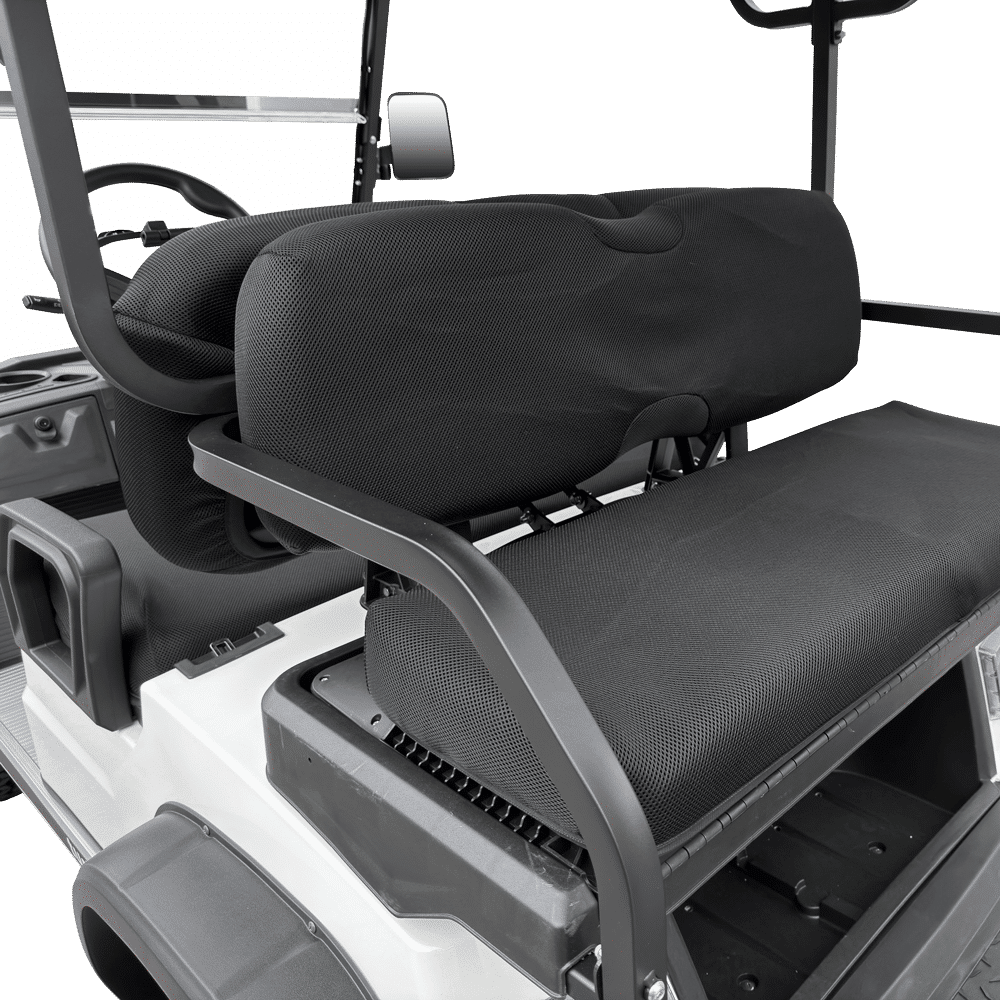

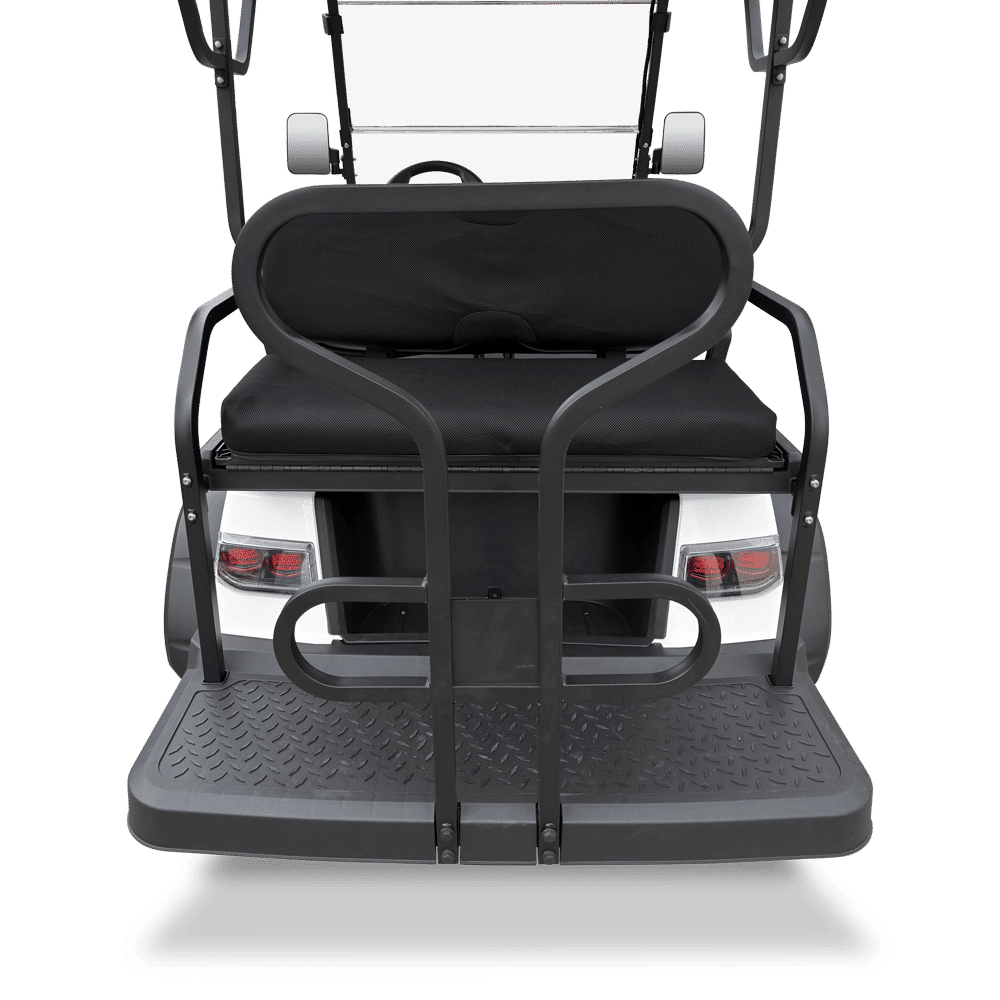

Seats | Ergonomic PU leather seats; 4 seats. *Optional Cool and Dry Seat Covers | |||||
Equipment | ||||||
|---|---|---|---|---|---|---|
Lights | LED headlights with low and high beam, daytime running lights and position lights; LED rear brake and position lights | |||||
Indicators | Front and rear turn indicators | |||||
Accessories | Manually adjustable folding side mirrors, dual USB ports, 12 V power outlet, LCD instrument display and horn | |||||
Safety | Reversing buzzer, electronic parking brake and anti-slip aluminium floor | |||||
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | 4.0 kw AC Electric | |
Drive Axel | Integral rear axle with 16:1 ratio | |
Transmission | – | |
Controller | AC motor controller | |
Energy | ||
|---|---|---|
Voltage | 48 V | |
Battery | 51.2 V, 156 Ah lithium iron phosphate battery (8 kWh) | |
Charger | Intelligent 48 V, 30 A charger; charging time under 5 hours | |
Chassis | ||
|---|---|---|
Body | – | |
Suspension | Front: independent double-arm suspension with coil springs and hydraulic shock absorbers. Rear: integral axle with coil springs, hydraulic shock absorbers and stabiliser bar | |
Brakes | Dual-circuit hydraulic braking with four-wheel disc brakes and electronic parking brake | |
Wheels | 23 × 10.5–12 tyres on 12-inch aluminium rims; wheel diameter 580 mm | |
Steering | Bidirectional rack-and-pinion steering with automatic clearance compensation | |
Seats | Ergonomic PU leather seats; 4 seats. *Optional Cool and Dry Seat Covers | |
Equipment | ||
|---|---|---|
Lights | LED headlights with low and high beam, daytime running lights and position lights; LED rear brake and position lights | |
Indicators | Front and rear turn indicators | |
Accessories | Manually adjustable folding side mirrors, dual USB ports, 12 V power outlet, LCD instrument display and horn | |
Safety | Reversing buzzer, electronic parking brake and anti-slip aluminium floor | |
Specifications and standard equipment are subject to change without notice.
