Airfloat Air Bearing Skids (or air castors) are a versatile pneumatic/air support device. These provide a safe, near frictionless movement of heavy loads and large equipment. Underneath the heavy duty steel load, the support platform is a durable and flexible urethane diaphragm that is inflated using compressed air. This air inflates the diaphragm, passing through the many small holes, which enables the load to float on a thin film of air.

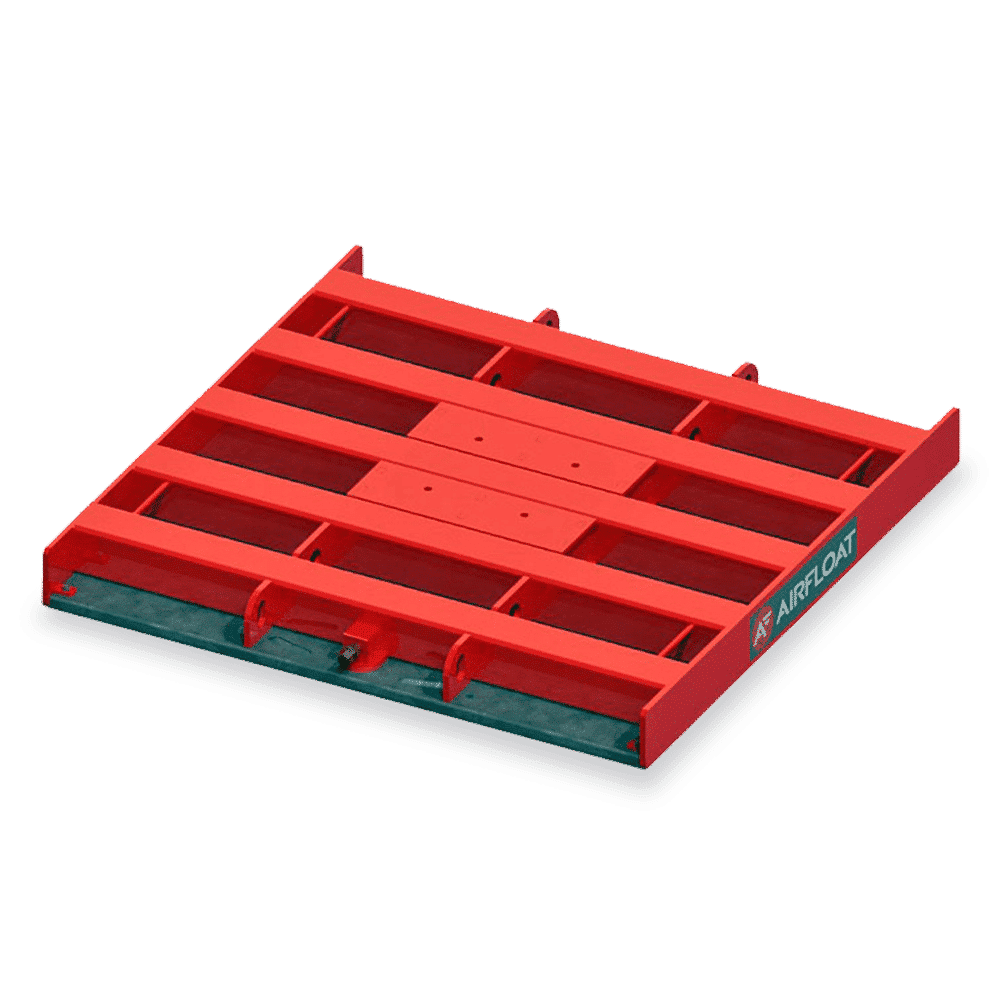

The Airfloat 1200 mm air skid has a massive load capacity of 23,864 kg. These may be purchased as a single unit or in a set of 4 skids giving a combined capacity of 95,000 kg.
Product Code | Product Name | Capacity (kg) | Height (mm) | Length (mm) | Weight (kg) | Width (mm) | Price |
---|---|---|---|---|---|---|---|
49641014 | Single Air Skid 1200mm | 23864  | 127  | 1270  | 195  | 1257  | |
49641015 | 4 Piece Air Skid Kit | 95455  | 127  | 1270  | 782  | 1257  |
Product Code | 49641014 |
Product Name | Single Air Skid 1200mm |
Capacity (kg) | 23864  |
Height (mm) | 127  |
Length (mm) | 1270  |
Weight (kg) | 195  |
Width (mm) | 1257  |
Break | |
Product Code | 49641015 |
Product Name | 4 Piece Air Skid Kit |
Capacity (kg) | 95455  |
Height (mm) | 127  |
Length (mm) | 1270  |
Weight (kg) | 782  |
Width (mm) | 1257  |
Break |
Product Code | 49641014 | 49641015 |
Product Name | Single Air Skid 1200mm | 4 Piece Air Skid Kit |
Capacity (kg) | 23864 | 95455 |
Height (mm) | 127 | 127 |
Length (mm) | 1270 | 1270 |
Weight (kg) | 195 | 782 |
Width (mm) | 1257 | 1257 |
Product Code | 49641014 |
Product Name | Single Air Skid 1200mm |
Capacity (kg) | 23864 |
Height (mm) | 127 |
Length (mm) | 1270 |
Weight (kg) | 195 |
Width (mm) | 1257 |
Product Code | 49641015 |
Product Name | 4 Piece Air Skid Kit |
Capacity (kg) | 95455 |
Height (mm) | 127 |
Length (mm) | 1270 |
Weight (kg) | 782 |
Width (mm) | 1257 |
Product Code | 49641014 | 49641015 |
Product Name | Single Air Skid 1200mm | 4 Piece Air Skid Kit |
Capacity (kg) | 23864 | 95455 |
Height (mm) | 127 | 127 |
Length (mm) | 1270 | 1270 |
Weight (kg) | 195 | 782 |
Width (mm) | 1257 | 1257 |
Product Code | 49641014 |
Product Name | Single Air Skid 1200mm |
Capacity (kg) | 23864 |
Height (mm) | 127 |
Length (mm) | 1270 |
Weight (kg) | 195 |
Width (mm) | 1257 |
Product Code | 49641015 |
Product Name | 4 Piece Air Skid Kit |
Capacity (kg) | 95455 |
Height (mm) | 127 |
Length (mm) | 1270 |
Weight (kg) | 782 |
Width (mm) | 1257 |
