Everything a
burden carrier
should be.

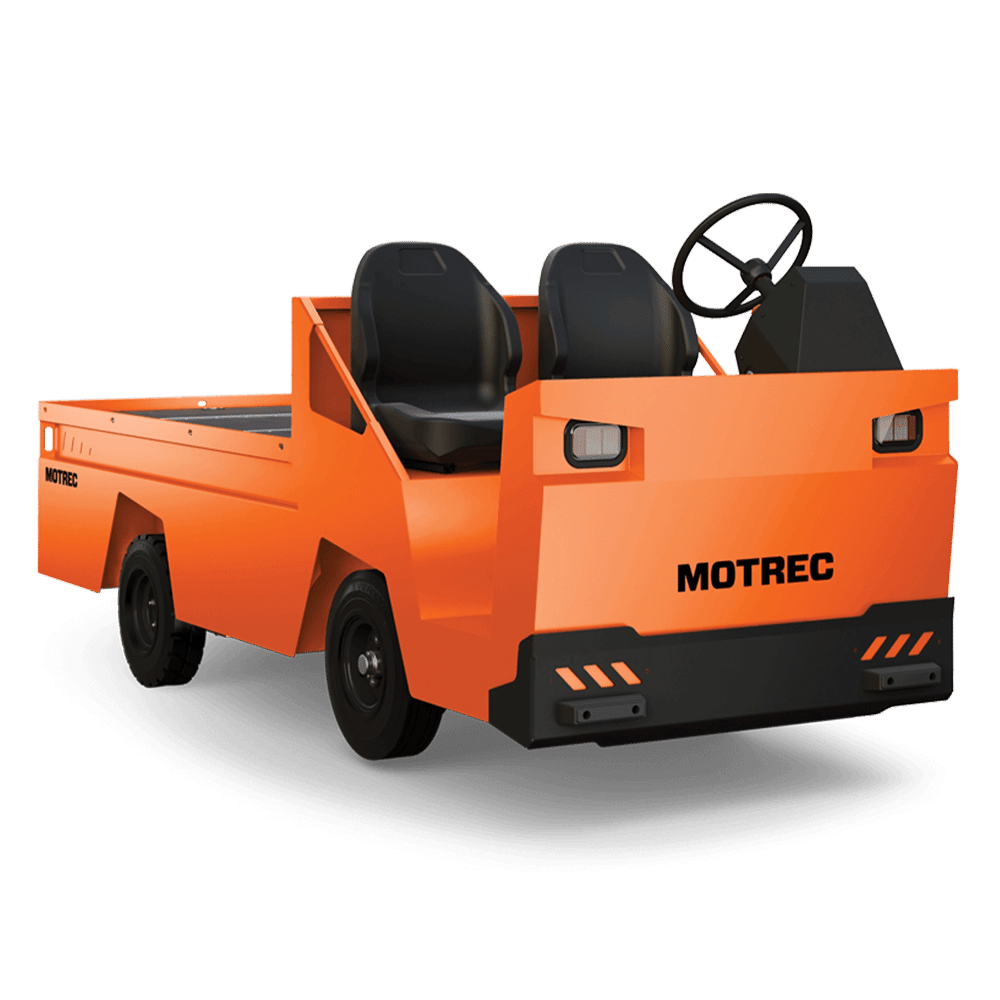

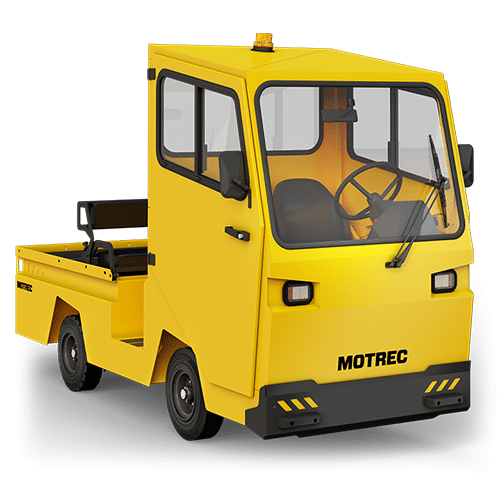

The MC-480 has long been the ruler of rugged, reliable burden carriers. On top of boasting a smart modular design, an all-steel unibody and advanced engineering, this high-efficiency AC vehicle offers a roomier and more ergonomic driver compartment to make long shifts more comfortable and productive. If you need a do-it-all vehicle that’s strong, safe and easy to operate, you can’t beat the MC-480 – or its unlimited configurations and 3-year warranty.  EE rating available.

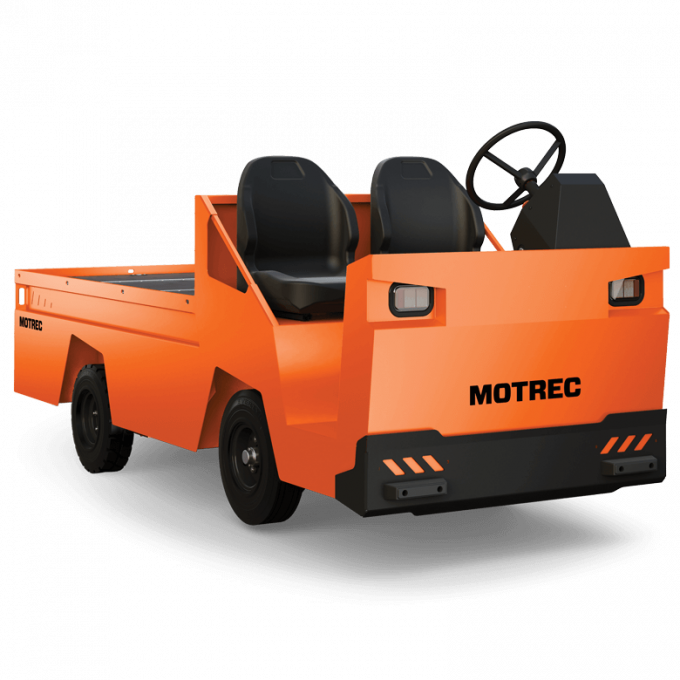

MC-480_01-FrontAngle_780x780
ul-logo@2x-40h
ansi-logo@2x-40h
MC 480 MODELS
Heading
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED
TURNING RADIUS
36V LD
2
907 kg
2721 kg
16 kmh
3,220 mm
48V LD
2
907 kg
2721 kg
16 kmh
3,220 mm
36V
2
1587 kg
2721 kg
16 kmh
3,220 mm
48V
2
1587 kg
2721 kg
16 kmh
3,220 mm
48V HD
2
2267 kg
2721 kg
16 kmh
3,220 mm
MC 480 MODELS
36V LD
PASSENGERS
2
LOAD CAPACITY
907 kg
TOWING CAPACITY
2,721 kg
SPEED
16 kmh
TURNING RADIUS
3,220 mm
MC 480 MODELS
48V LD
PASSENGERS
2
LOAD CAPACITY
907 kg
TOWING CAPACITY
2,721 kg
SPEED
16 kmh
TURNING RADIUS
3,220 mm
MC 480 MODELS
36V
PASSENGERS
2
LOAD CAPACITY
1,587 kg
TOWING CAPACITY
2,721 kg
SPEED
16 kmh
TURNING RADIUS
3,220 mm
MC 480 MODELS
48V
PASSENGERS
2
LOAD CAPACITY
1,587 kg
TOWING CAPACITY
2,721 kg
SPEED
16 kmh
TURNING RADIUS
3,220 mm
MC 480 MODELS
48V HD
PASSENGERS
2
LOAD CAPACITY
2,267 kg
TOWING CAPACITY
2,721 kg
SPEED
16 kmh
TURNING RADIUS
3,220 mm

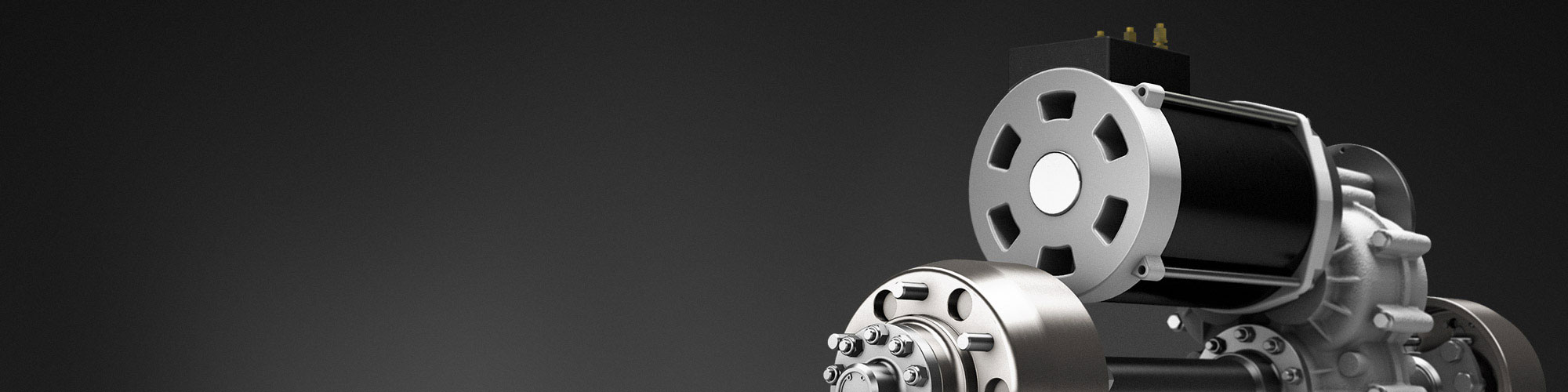

AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor Offers better control for
full motor performance, as well as higher possible speeds and better torque
at low speeds. Maintenance-free brushless electric motor equipped with
temperature and speed sensors.
Image are for illustrative purposes only

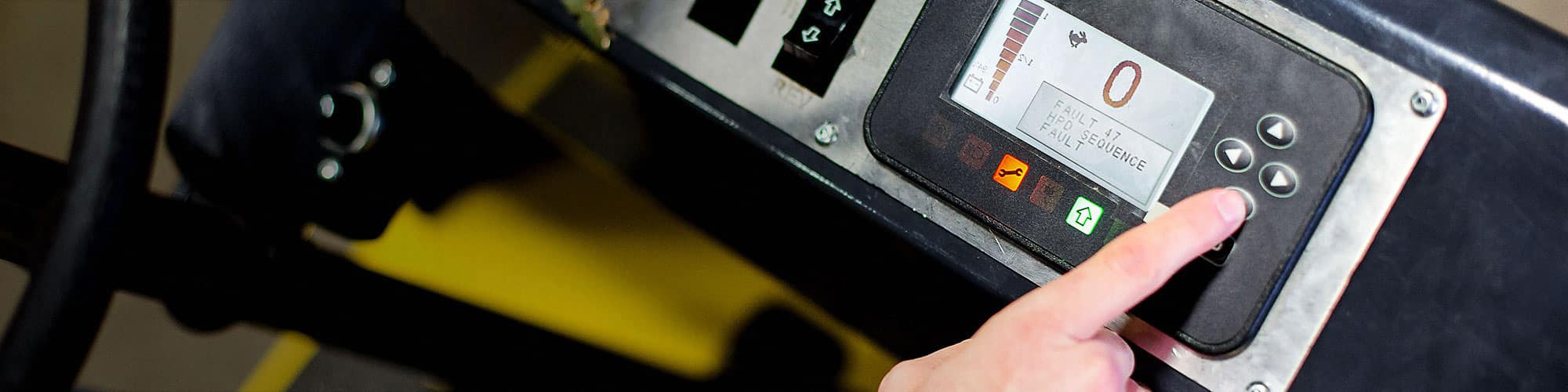

CONTROLLER
AC controller with sealed connectors paired with multifunction
display Allows for precise speed control for greater safety and
vehicle performance. Includes indicators for speed, battery state
of charge, hour meter, odometer and fault warnings. Password
-protected parameters and monitoring capability.
Image are for illustrative purposes only

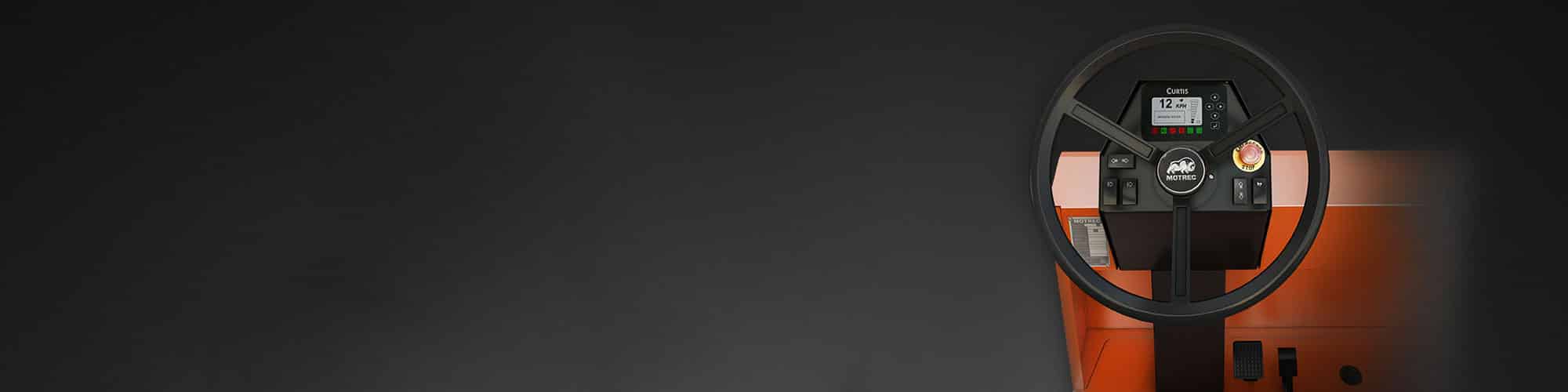

CONSOLE
Console on steering column Complete console on steering column to put
all controls and displays conveniently right where your fingers and eyes
are. Now with a tilted steering column for a more ergonomic and natural
driving posture to reduce operator fatigue and strain.
Image are for illustrative purposes only

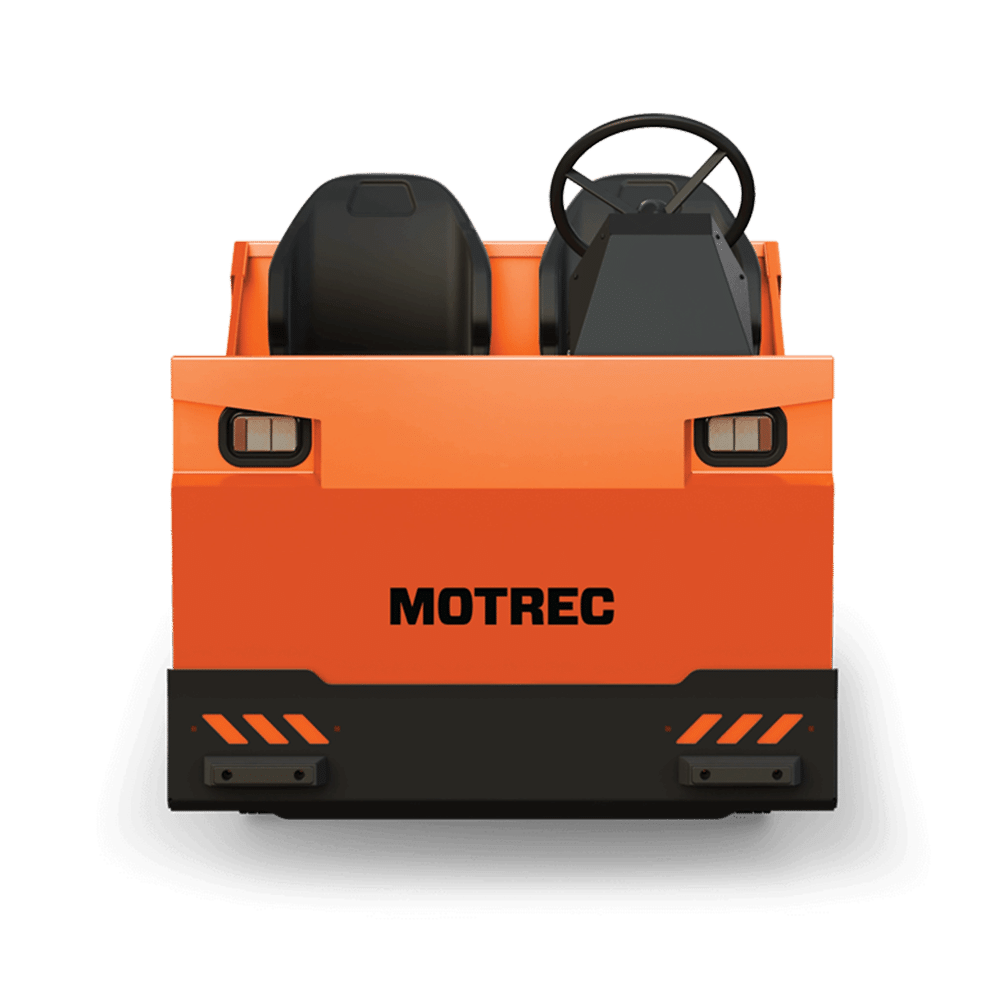

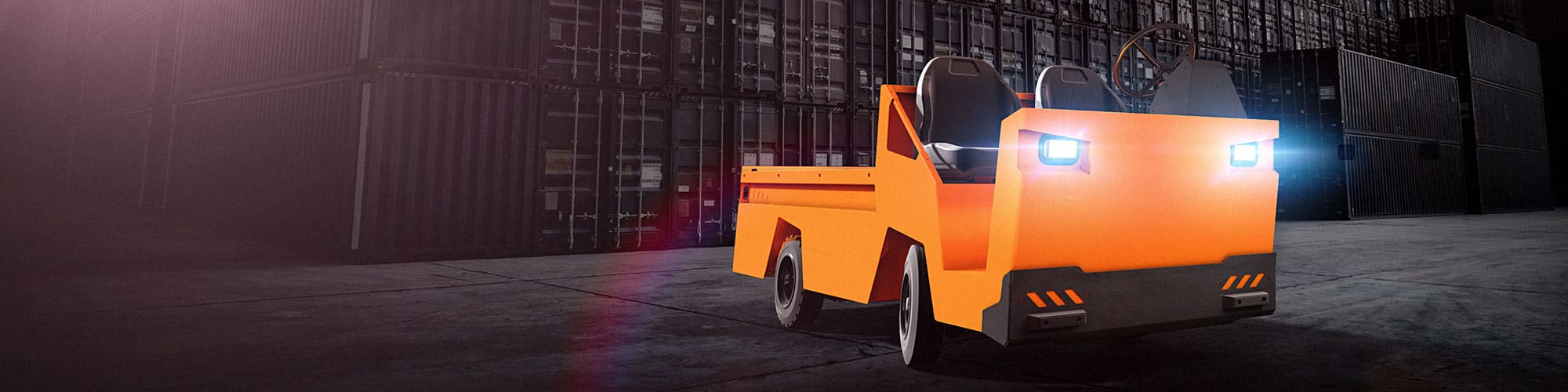

BUMPERS
Reinforced bolt-on front and rear bumpers Protects vehicle components
from damageand keeps maintenance costs low. Equipped with anchors
for easier towing. Bumpers are easy to replace when needed.
An easy, low-cost way to protectyour investment.
Image are for illustrative purposes only

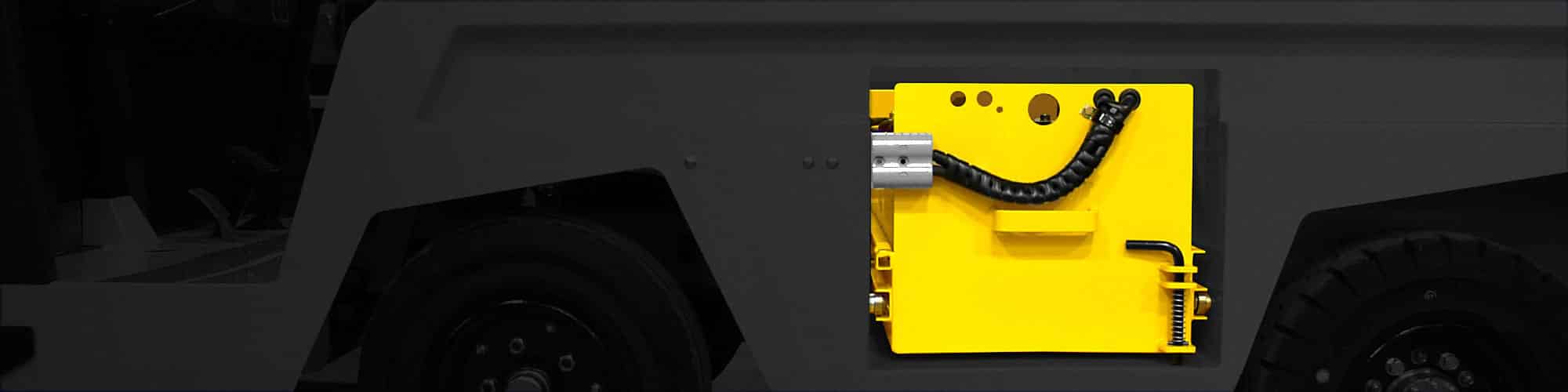

ROLL-OUT
Time-saving roll-out battery compartment Makes changing batteries
extremely quick and easy. Just roll out the compartment to replace
the battery with a fresh one and you’re good to go. Keeps vehicles
v running round-the-clock. Easy maintenance.
Image are for illustrative purposes only

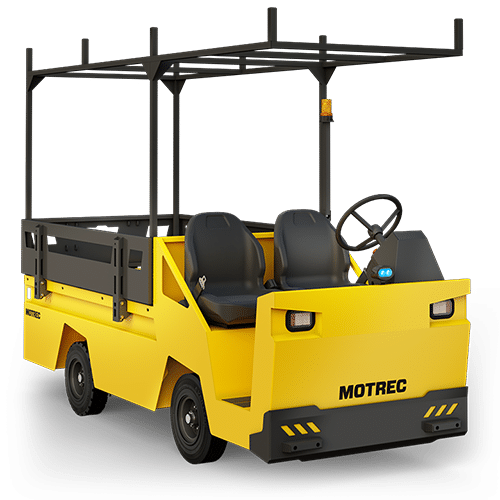

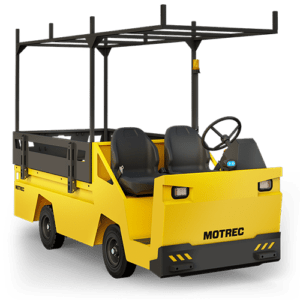

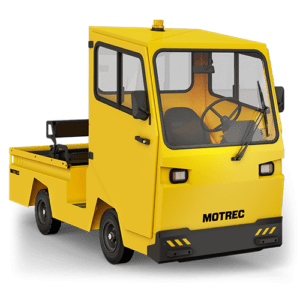

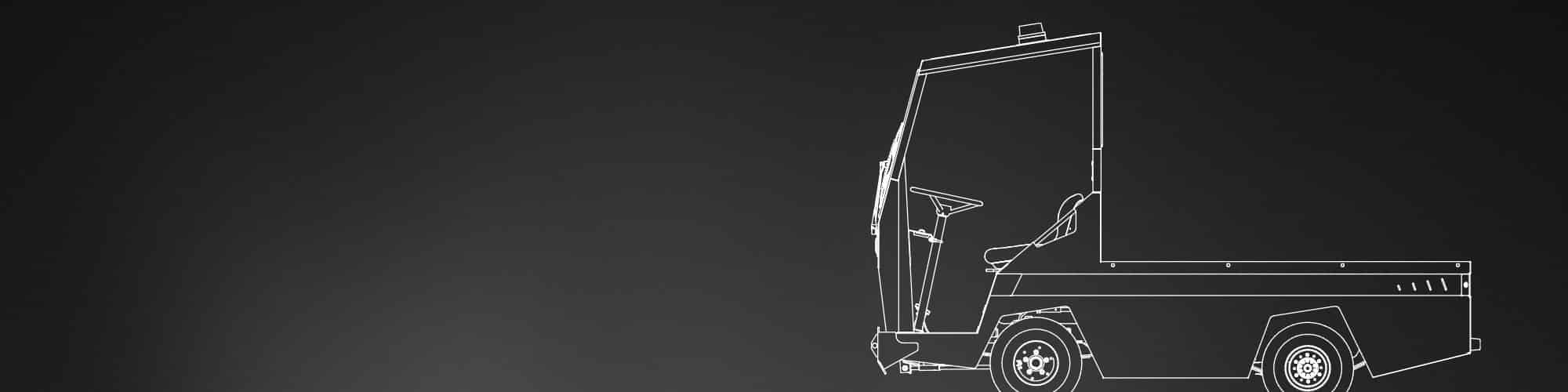

CAB
Safe and comfortable all-steel cabs Protects operators and everyone
around them. Our customizable cabs come with a long list of standard
and optional features: lockable/Mika/removable doors, canopy top,
ladder/pipe rack, wipers, rear-view mirror, sliding windows with safety
glass, heater, air conditioning, cab-mounted strobe light, cab sound
proofing, rust proofing…the list goes on and on.
Image are for illustrative purposes only
BRAKES
Powerful automatic electromagnetic parking brake Increases safety
by automatically applying the parking brake whenever the vehicle
stops moving or is shut off. Also doubles as an emergency stop.
Entirely sealed to protect it from debris, elements, etc.
Image are for illustrative purposes only
Previous
Next
SPECIFICATIONS
36V LD
48V LD
36V
48V
48V HD
POWERTRAIN
Motor
Brushless AC motor, 10 HP Max (7.5 HP Continuous)
Brushless AC motor, 15 HP Max (9 HP Continuous)
Brushless AC motor, 10 HP Max (7.5 HP Continuous)
Brushless AC motor, 15 HP Max (9 HP Continuous)
Brushless AC motor, 15 HP Max (9 HP Continuous)
Drive Axle
Helical gear differential
Helical gear differential
Helical gear differential
Helical gear differential
Helical gear differential
Transmission
Direct drive
Direct drive
Direct drive
Direct drive
Direct drive
Controller
Electronic AC speed controller
Electronic AC speed controller
Electronic AC speed controller
Electronic AC speed controller
Electronic AC speed controller
ENERGY
Voltage
36V
48V
36V
48V
48V
Battery
Six 6V-225AH batteries
Eight 6V-225AH batteries
Six 6V-225AH batteries
Eight 6V-225AH batteries
Eight 6V-225AH batteries
Charger
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body
All-steel unibody construction. Powder Coated.
All-steel unibody construction. Powder Coated.
All-steel unibody construction. Powder Coated.
All-steel unibody construction. Powder Coated.
All-steel unibody construction. Powder Coated.
Suspension
Dual leaf springs on front and rear
Dual leaf springs on front and rear
Dual leaf springs on front and rear
Dual leaf springs on front and rear
Dual leaf springs on front and rear
Brakes
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Rear disc brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
5.7x8 LRD pneumatic tires
5.7x8 LRD pneumatic tires
5.7x8 LRD pneumatic tires
5.7x8 LRD pneumatic tires
500x8 solid softy rubber wheels on split rims
Steering
Automotive steering wheel, tilted steering column
Automotive steering wheel, tilted steering column
Automotive steering wheel, tilted steering column
Automotive steering wheel, tilted steering column
Automotive steering wheel, tilted steering column
Seats
Two bucket seats on slide adjusters
Two bucket seats on slide adjusters
Two premium seats on slide adjusters
Two premium seats on slide adjusters
Two premium seats on slide adjusters
EQUIPMENT
Lights
LED dual headlights & tail/brake lights, dual back-up lights
LED dual headlights & tail/brake lights, dual back-up lights
LED dual headlights & tail/brake lights, dual back-up lights
LED dual headlights & tail/brake lights, dual back-up lights
LED dual headlights & tail/brake lights, dual back-up lights
Indicators
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety
Deadman seat switch, reverse alarm, horn
Deadman seat switch, reverse alarm, horn, automatic parking brake
Deadman seat switch, reverse alarm, horn, automatic parking brake
Deadman seat switch, reverse alarm, horn, automatic parking brake
Deadman seat switch, reverse alarm, horn, automatic parking brake
DIMENSIONS
VEHICLE
Weight
Height
1,140 mm
1,140 mm
1,140 mm
1,140 mm
1,140 mm
Length
3,200 mm
3,200 mm
3,200 mm
3,200 mm
3,200 mm
Width
1,140 mm
1,140 mm
1,140 mm
1,140 mm
1,140 mm
Wheel Base
1,420 mm
1,420 mm
1,420 mm
1,420 mm
1,420 mm
DECK
Deck Height
790 mm
790 mm
790 mm
790 mm
790 mm
Deck Length
1,930 mm
1,930 mm
1,930 mm
1,930 mm
1,930 mm
Deck Width
1,140 mm
1,140 mm
1,140 mm
1,140 mm
1,140 mm
BATTERY
Battery Weight
Battery Height
Battery Length
Battery Width
SPECIFICATIONS
POWERTRAIN
Motor
36V LD
Brushless AC motor, 10 HP Max (7.5 HP Continuous)
48V LD
Brushless AC motor, 15 HP Max (9 HP Continuous)
36V
Brushless AC motor, 10 HP Max (7.5 HP Continuous)
48V
Brushless AC motor, 15 HP Max (9 HP Continuous)
48V HD
Brushless AC motor, 15 HP Max (9 HP Continuous)
Drive Axle
36V LD
Helical gear differential
48V LD
Helical gear differential
36V
Helical gear differential
48V
Helical gear differential
48V HD
Helical gear differential
Transmission
36V LD
Direct drive
48V LD
Direct drive
36V
Direct drive
48V
Direct drive
48V HD
Direct drive
Controller
36V LD
Electronic AC speed controller
48V LD
Electronic AC speed controller
36V
Electronic AC speed controller
48V
Electronic AC speed controller
48V HD
Electronic AC speed controller
ENERGY
Voltage
36V LD
36V
48V LD
48V
36V
36V
48V
48V
48V HD
48V
Battery
36V LD
Six 6V-225AH batteries
48V LD
Eight 6V-225AH batteries
36V
Six 6V-225AH batteries
48V
Eight 6V-225AH batteries
48V HD
Eight 6V-225AH batteries
Charger
36V LD
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V LD
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
36V
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V HD
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body
36V LD
All-steel unibody construction. Powder Coated.
48V LD
All-steel unibody construction. Powder Coated.
36V
All-steel unibody construction. Powder Coated.
48V
All-steel unibody construction. Powder Coated.
48V HD
All-steel unibody construction. Powder Coated.
Suspension
36V LD
Dual leaf springs on front and rear
48V LD
Dual leaf springs on front and rear
36V
Dual leaf springs on front and rear
48V
Dual leaf springs on front and rear
48V HD
Dual leaf springs on front and rear
Brakes
36V LD
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
48V LD
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
36V
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
48V
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
48V HD
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
36V LD
5.7x8 LRD pneumatic tires
48V LD
5.7x8 LRD pneumatic tires
36V
5.7x8 LRD pneumatic tires
48V
5.7x8 LRD pneumatic tires
48V HD
500x8 solid softy rubber wheels on split rims
Steering
36V LD
Automotive steering wheel, tilted steering column
48V LD
Automotive steering wheel, tilted steering column
36V
Automotive steering wheel, tilted steering column
48V
Automotive steering wheel, tilted steering column
48V HD
Automotive steering wheel, tilted steering column
Seats
36V LD
Two bucket seats on slide adjusters
48V LD
Two bucket seats on slide adjusters
36V
Two premium seats on slide adjusters
48V
Two premium seats on slide adjusters
48V HD
Two premium seats on slide adjusters
EQUIPMENT
Lights
36V LD
LED dual headlights & tail/brake lights, dual back-up lights
48V LD
LED dual headlights & tail/brake lights, dual back-up lights
36V
LED dual headlights & tail/brake lights, dual back-up lights
48V
LED dual headlights & tail/brake lights, dual back-up lights
48V HD
LED dual headlights & tail/brake lights, dual back-up lights
Indicators
36V LD
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V LD
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
36V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V HD
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V LD
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
48V LD
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
36V
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
48V
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
48V HD
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety
36V LD
Deadman seat switch, reverse alarm, horn
48V LD
Deadman seat switch, reverse alarm, horn, automatic parking brake
36V
Deadman seat switch, reverse alarm, horn, automatic parking brake
48V
Deadman seat switch, reverse alarm, horn, automatic parking brake
48V HD
Deadman seat switch, reverse alarm, horn, automatic parking brake
DIMENSIONS
VEHICLE
Weight
36V LD
48V LD
36V
48V
48V HD
Height
36V LD
1,140 mm
48V LD
1,140 mm
36V
1,140 mm
48V
1,140 mm
48V HD
1,140 mm
Length
36V LD
3,200 mm
48V LD
3,200 mm
36V
3,200 mm
48V
3,200 mm
48V HD
3,200 mm
Width
36V LD
1,140 mm
48V LD
1,140 mm
36V
1,140 mm
48V
1,140 mm
48V HD
1,140 mm
Wheel Base
36V LD
1,420 mm
48V LD
1,420 mm
36V
1,420 mm
48V
1,420 mm
48V HD
1,420 mm
DECK
Deck Height
36V LD
790 mm
48V LD
790 mm
36V
790 mm
48V
790 mm
48V HD
790 mm
Deck Length
36V LD
1,930 mm
48V LD
1,930 mm
36V
1,930 mm
48V
1,930 mm
48V HD
1,930 mm
Deck Width
36V LD
1,140 mm
48V LD
1,140 mm
36V
1,140 mm
48V
1,140 mm
36V
1,140 mm
BATTERY
Battery Weight
36V LD
48V LD
36V
48V
48V HD
Battery Height
36V LD
48V LD
36V
48V
48V HD
Battery Length
36V LD
48V LD
36V
48V
48V HD
Battery Width
36V LD
48V LD
36V
48V
48V HD

Specifications and standard equipment are subject to change without notice.

LIKE WHAT YOU SEE ?

Every Motrec vehicle is engineered to offer years of reliable, low-maintenance
performance to help you boost productivity and lower TCO.

FIND OUR EXPERT TODAY
NEED MORE INFORMATION ? OUR TEAM IS ALWAYS AVAILABLE
Page: Motrec MC-480 Burden Carrier

We appreciate you contacting us/ Sitecraft Materials Handling.

One of our colleagues will get back in touch with you soon!Have a great day!
