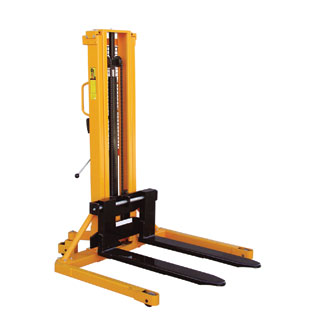

Manual Load Lifters

The Manual Load Lifter's are available in either Straddle or Non-Straddle variants.
The Non Straddle Manual Load Lifter is designed to move skid type pallets (only) where forklift access is limited. This unit is also able to fit through a standard doorway.
The Straddle Manual Load Lifter is designed to move standard pallets and skids where forklift access is limited.  As the front wheels of the unit straddle the pallet, this unit is limited to standard size pallets or smaller. Lifting action is activated by manual foot pump hydraulics. These units are not recommended for high volume operations.

Lift capacity 1000kg
Fits through a standard door opening (non-straddle only)
Hydraulic pump and cylinder
3 way hand control with neutral, allows operator to manoeuvre the load safely
Maximum lift height 1525mm
Width between legs; 440 mm
Product Code Product Name Lift Height (mm)Load Capacity (kg)Mast Height (mm)Width (mm)Weight (kg) Price
9161001 Manual Load Lifters 1525  500  1980  640
9161002 Manual Load Lifter - Straddle 1525  500  1980  1420  240

Specifications

Product Code 9161001 9161002
Product Name Manual Load Lifters Manual Load Lifter – Straddle
Lift Height (mm) 1525 1525
Load Capacity (kg) 500 500
Mast Height (mm) 1980 1980
Width (mm) 640 1420
Weight (kg) 240

Specifications

Product Code 9161001 9161002
Product Name Manual Load Lifters Manual Load Lifter – Straddle
Lift Height (mm) 1525 1525
Load Capacity (kg) 500 500
Mast Height (mm) 1980 1980
Width (mm) 640 1420
Weight (kg) 240
