Access Platforms

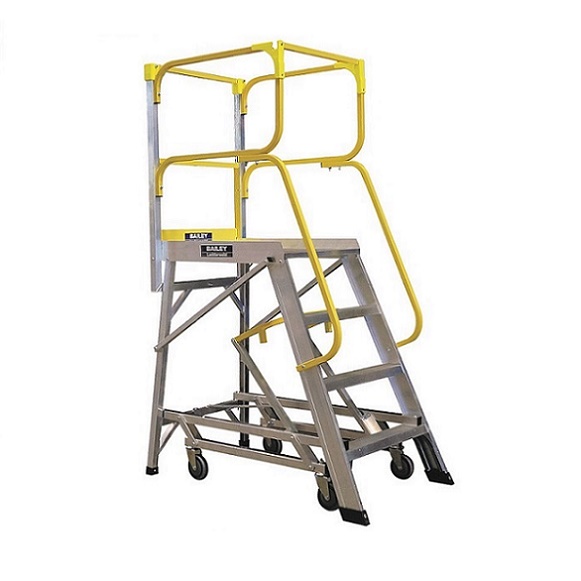

The Access Platform is designed for tasks such as stock picking, mezzanine or truck access, and vehicle or plant maintenance.  It can be used as a step-through ladder if required, by removal of the rear toe board and mid rail.  The front and rear top rails lift up to give access.  A shelf is included as standard, providing an idea place to place products, components or tools.  For mobility, four swivel wheels can be deployed by pulling and latching a yellow handle over the third step. This also acts as a deterrent  to anyone attempting to climb the ladder when the wheels are deployed.  These ladders are made to Australian standard AS/NZA 1892.1
Capacity(kg): 170
Platform Dimensions(mm): 800L x 590W
Supplied Flat-packed.  (Assembly available at extra cost)
Product Code Product Name Base Dimensions (mm)Platform Height (mm)Weight (kg) Price
10061043 3 Step Model 1168L x 724W  828
10061044 4 Step Model 1309L x 764W  1104  40.6
10061045 5 Step Model 1451L x 804W  1381
10061046 6 Step Model 1592L x 844W  1656
10061047 7 Step Model 1733L x 884W  1933
10061048 8 Step Model 1875L x 924W  2209
10061049 10 Step Model 2157L x 1003W  2761
10061050 12 Step Model 2440L x 1083W  3313
10061051 14 Step Model 2723L x 1164W  3866

Specifications

Product Code 10061043 10061044 10061045 10061046 10061047 10061048 10061049 10061050 10061051
Product Name 3 Step Model 4 Step Model 5 Step Model 6 Step Model 7 Step Model 8 Step Model 10 Step Model 12 Step Model 14 Step Model
Base Dimensions (mm) 1168L x 724W 1309L x 764W 1451L x 804W 1592L x 844W 1733L x 884W 1875L x 924W 2157L x 1003W 2440L x 1083W 2723L x 1164W
Platform Height (mm) 828 1104 1381 1656 1933 2209 2761 3313 3866
Weight (kg) 40.6

Specifications

Product Code 10061043 10061044 10061045 10061046 10061047 10061048 10061049 10061050 10061051
Product Name 3 Step Model 4 Step Model 5 Step Model 6 Step Model 7 Step Model 8 Step Model 10 Step Model 12 Step Model 14 Step Model
Base Dimensions (mm) 1168L x 724W 1309L x 764W 1451L x 804W 1592L x 844W 1733L x 884W 1875L x 924W 2157L x 1003W 2440L x 1083W 2723L x 1164W
Platform Height (mm) 828 1104 1381 1656 1933 2209 2761 3313 3866
Weight (kg) 40.6
