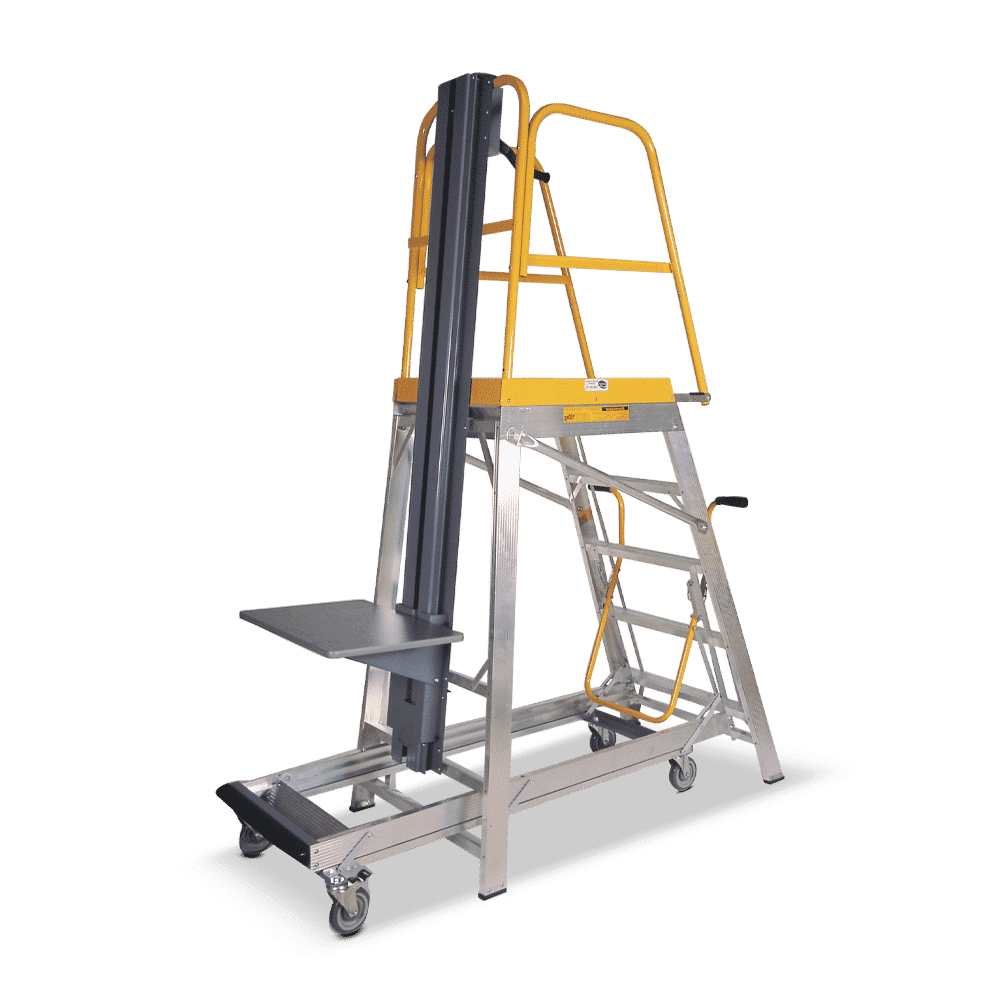

Lift-Truk Ladders

The Lift-Truk provides a solution to the dangerous practice of carrying items up and down ladders.  Loads of up to 50kg can be lifted or lowered with the hand winch operated lifting table, providing a cost effective solution for the handling of items in low to moderate volumes.  In the picking process, items may be selected, lowered and transported in one seamless action, eliminating the need for separate ladders and trolleys, therefore improving productivity.
The Lift-Truk features an innovative mobility control system where the operator effortlessly engages a two handed lever that both deploys the caster wheels and provides steering control. Release of the lever automatically retracts the wheels, returning Lift-Truk to the stationary mode where it is very stable with all four feet maintaining floor contact. Up on the platform, the top half of the side railings can be removed giving greater access to the shelving or object being accessed.  An optional autogate is available for added operator safety.  Lift-Truk meets or exceeds all the requirements of the Australian / New Zealand standard AS/NZS 1892.1:1996.
Platform Capacity(kg): 150
Lifting Tray Capacity(kg): 50
Platform Dimensions(mm): 750L x 530W
Assembly: Available as an extra cost option
Product Code Product Name Base Dimensions (mm)Platform Height (mm) Price
2681035 4-Step Lift-Truk Ladder 1765L x 755W  1145
2681038 5-Step Lift-Truk Ladder 1895L x 795W  1435
2681041 6-Step Lift-Truk Ladder 2025L x 835W  1720
2681044 7-Step Lift-Truk Ladder 2155L x 875W  2005
2681047 8-Step Lift-Truk Ladder 2285L x 915W  2295
2681050 9-Step Lift-Truk Ladder 2415L x 955W  2580
2681020 10-Step Lift-Truk Ladder 2545L x 995W  2865
2681023 11-Step Lift-Truk Ladder 2675L x 1035W  3155
2681026 12-Step Lift-Truk Ladder 2805L x 1075W  3440
2681029 13-Step Lift-Truk Ladder 2935L x 1115W  3725
2681032 14-Step Lift-Truk Ladder 3105L x 1155W  4015
2681079 Optional Auto Gate

Specifications

Product Code 2681035 2681038 2681041 2681044 2681047 2681050 2681020 2681023 2681026 2681029 2681032 2681079
Product Name 4-Step Lift-Truk Ladder 5-Step Lift-Truk Ladder 6-Step Lift-Truk Ladder 7-Step Lift-Truk Ladder 8-Step Lift-Truk Ladder 9-Step Lift-Truk Ladder 10-Step Lift-Truk Ladder 11-Step Lift-Truk Ladder 12-Step Lift-Truk Ladder 13-Step Lift-Truk Ladder 14-Step Lift-Truk Ladder Optional Auto Gate
Base Dimensions (mm) 1765L x 755W 1895L x 795W 2025L x 835W 2155L x 875W 2285L x 915W 2415L x 955W 2545L x 995W 2675L x 1035W 2805L x 1075W 2935L x 1115W 3105L x 1155W
Platform Height (mm) 1145 1435 1720 2005 2295 2580 2865 3155 3440 3725 4015

Specifications

Product Code 2681035 2681038 2681041 2681044 2681047 2681050 2681020 2681023 2681026 2681029 2681032 2681079
Product Name 4-Step Lift-Truk Ladder 5-Step Lift-Truk Ladder 6-Step Lift-Truk Ladder 7-Step Lift-Truk Ladder 8-Step Lift-Truk Ladder 9-Step Lift-Truk Ladder 10-Step Lift-Truk Ladder 11-Step Lift-Truk Ladder 12-Step Lift-Truk Ladder 13-Step Lift-Truk Ladder 14-Step Lift-Truk Ladder Optional Auto Gate
Base Dimensions (mm) 1765L x 755W 1895L x 795W 2025L x 835W 2155L x 875W 2285L x 915W 2415L x 955W 2545L x 995W 2675L x 1035W 2805L x 1075W 2935L x 1115W 3105L x 1155W
Platform Height (mm) 1145 1435 1720 2005 2295 2580 2865 3155 3440 3725 4015
