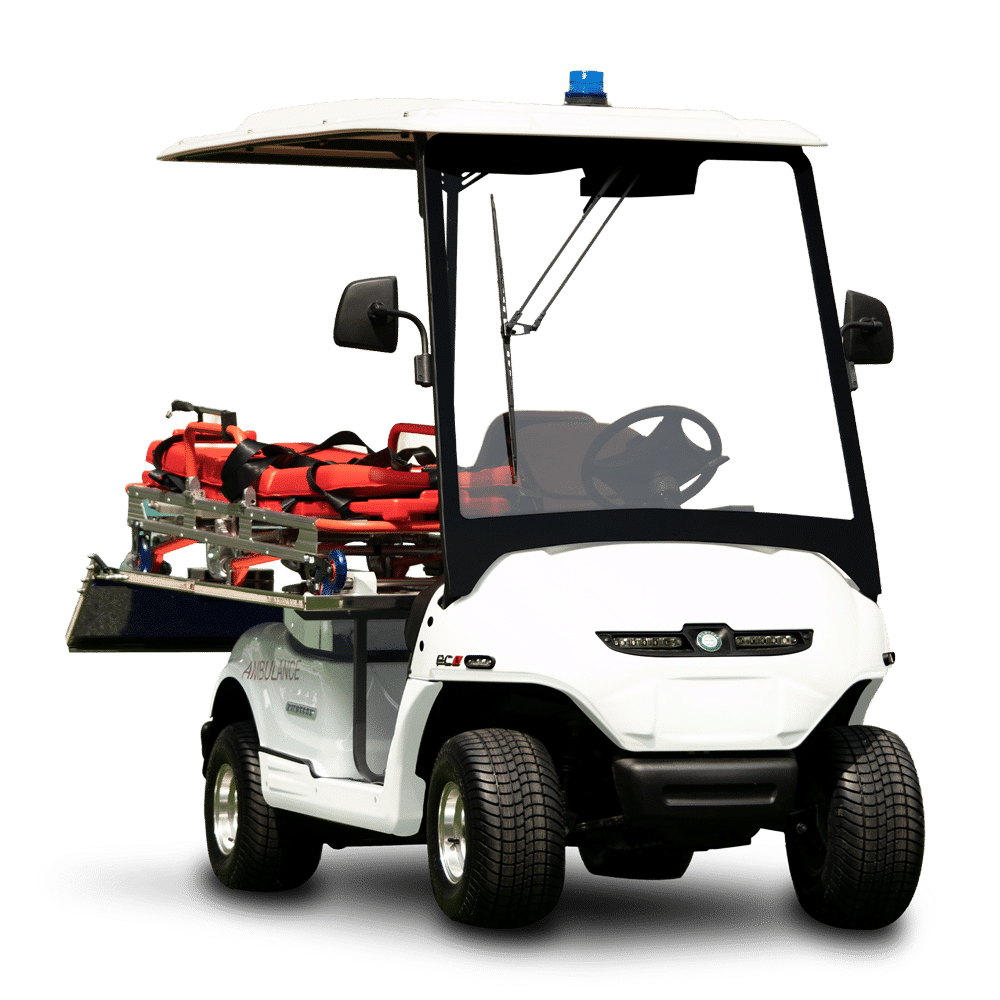

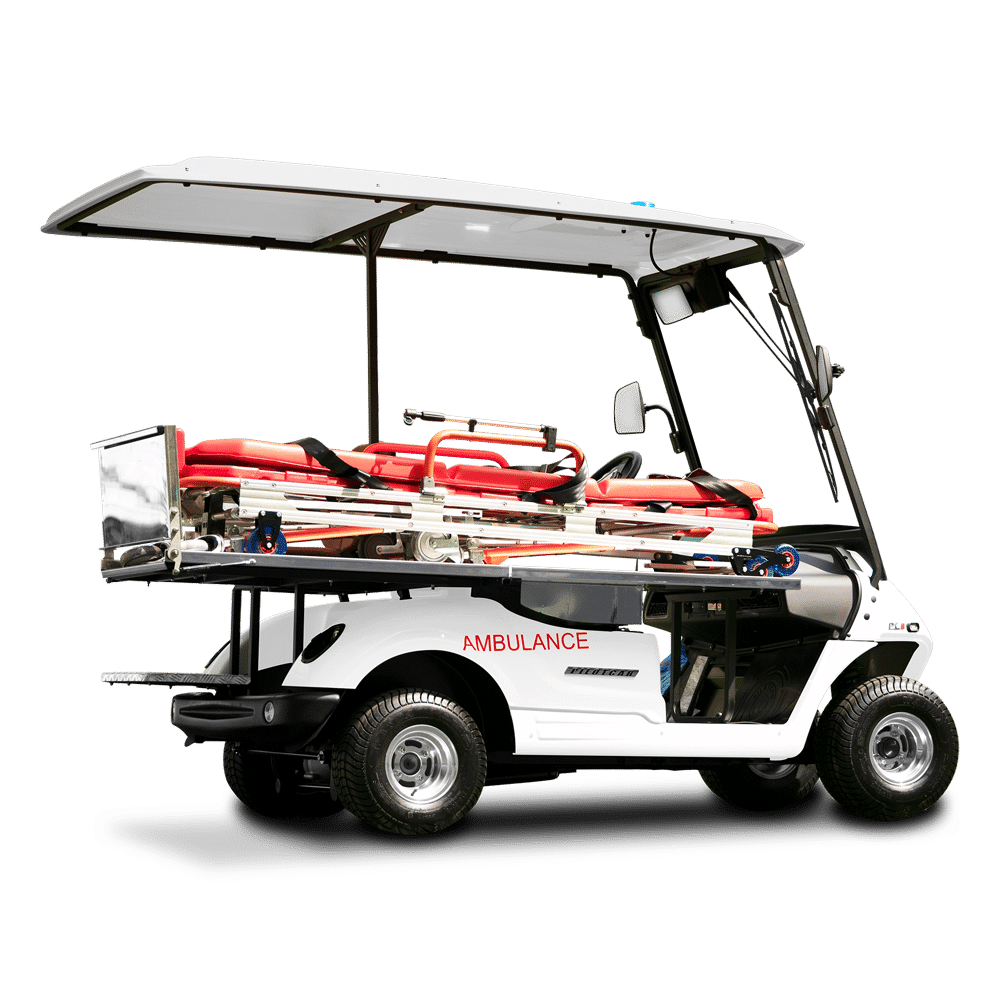

Freedom, without limits! This commercial-rated electric utility vehicle is the ultimate workhorse. You decide how you want to use it.
A powerful and reliable motor delivering up to 16hp means even loads of up to 300 kg are able to be moved effortlessly. It highspeed gear box also allows this utility to travel speeds of 30km/h allowing tasks to be completed faster.
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
AC, 4 kW (5.44 hp) Rated, 9.6 kW (13 hp) Peak | AC, 6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak | |||||
Drive Axel | |||||
– | |||||
Transmission | |||||
– | |||||
Controller | |||||
– | |||||
ENERGY |
|---|
Voltage |
– |
Battery |
Lead-Acid Battery Package 6x8V (8.16 kWh) | Lithium Battery Package (10.8 kWh) |
Charger |
Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@8 1A/48V | Lithium Battery Package OVARTECH 3.3 kW Onboard Charge Unit 85-265 VAC@16A 40A/48V |
CHASSIS |
|---|
Body |
– |
Suspension |
Front: Fully independent McPherson style strut suspension | Rear: Semi independent, swing arm with coil springs over hydraulic shock absorbers |
Brakes |
Self adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system |
Wheels |
18 x 8.5-8 (6 ply) |
Steering |
Self-compensating double reduction helical rack-and-pinion |
Seats |
– |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
– | |||||
Indicators | |||||
– | |||||
Accessories | |||||
– | |||||
Safety | |||||
– | |||||
Specifications and standard equipment are subject to change without notice.
Motor | AC, 4 kW (5.44 hp) Rated, 9.6 kW (13 hp) Peak | AC, 6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak |
|---|
Drive Axle | – |
|---|
Transmission | – |
|---|
Controller | – |
|---|
Voltage | – |
|---|
Battery | Lead-Acid Battery Package 6x8V (8.16 kWh) | Lithium Battery Package (10.8 kWh) |
|---|
Charger | Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@8 1A/48V | Lithium Battery Package OVARTECH 3.3 kW Onboard Charge Unit 85-265 VAC@16A 40A/48V |
|---|
Body |
|---|
– |
Suspension | Front: Fully independent McPherson style strut suspension | Rear: Semi independent, swing arm with coil springs over hydraulic shock absorbers |
|---|
Brakes | Self adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system |
|---|
Wheels | 18 x 8.5-8 (6 ply) |
|---|
Steering | Self-compensating double reduction helical rack-and-pinion |
|---|
Seats | – |
|---|
Lights | – |
|---|
Indicators | – |
|---|
Accessories | – |
|---|
Safety | – |
|---|
Specifications and standard equipment are subject to change without notice.
