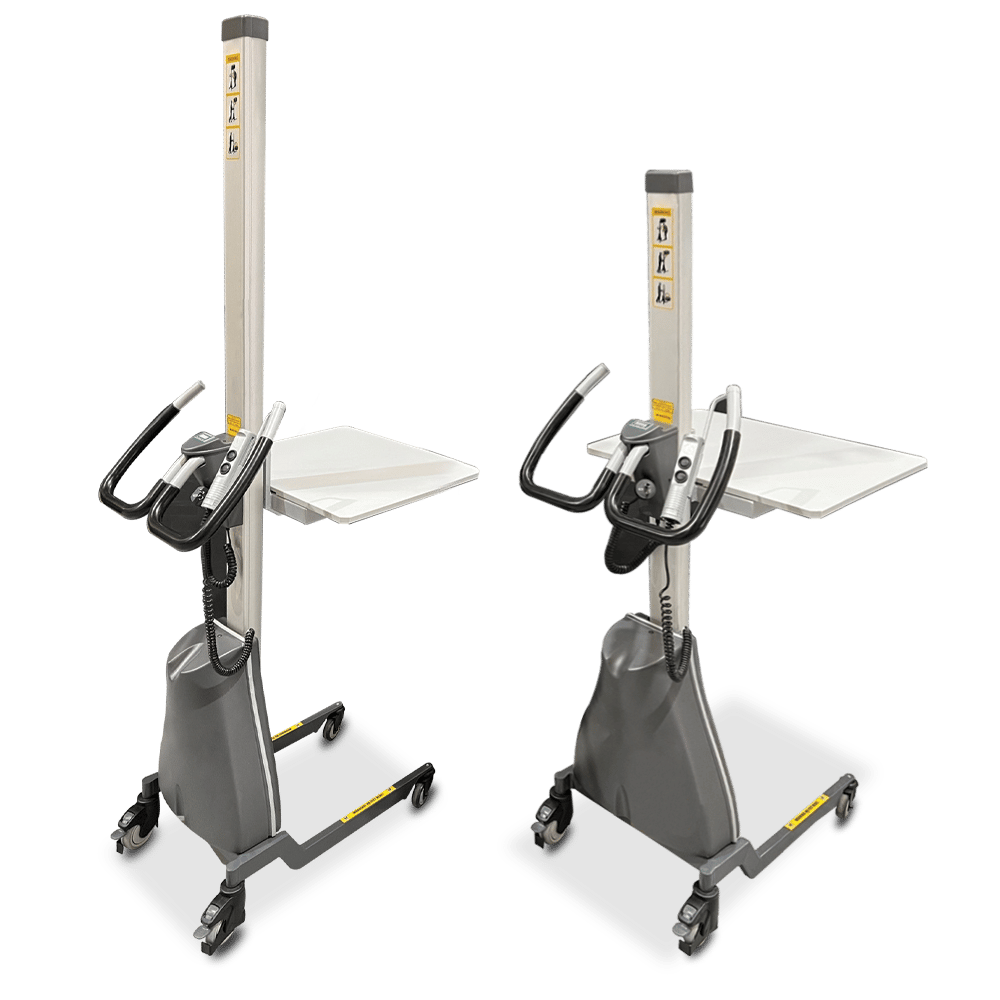

Lightweight Lifter

These lightweight materials handling aids offer quiet, battery powered operation with dual speed elevation and descent for more effective control. Supplied with swivel castors, they provide a versatile system for transporting and positioning loads quickly. Ideal for many applications from pharmaceutical to catering, from warehouse to industry , wherever loads up to 80kg need lifting and positioning. Supplied with internal sealed battery with internal charger. A polyethylene load platform is standard.

Cradle or expanding mandrel for handling rolls and coils
Drum and coil rotators
Product Code Product Name Lift Height (mm)Load Capacity (kg)Max Platform Height (mm)Min Platform Height (mm)Net Weight (kg)Platform Size (mm) Price

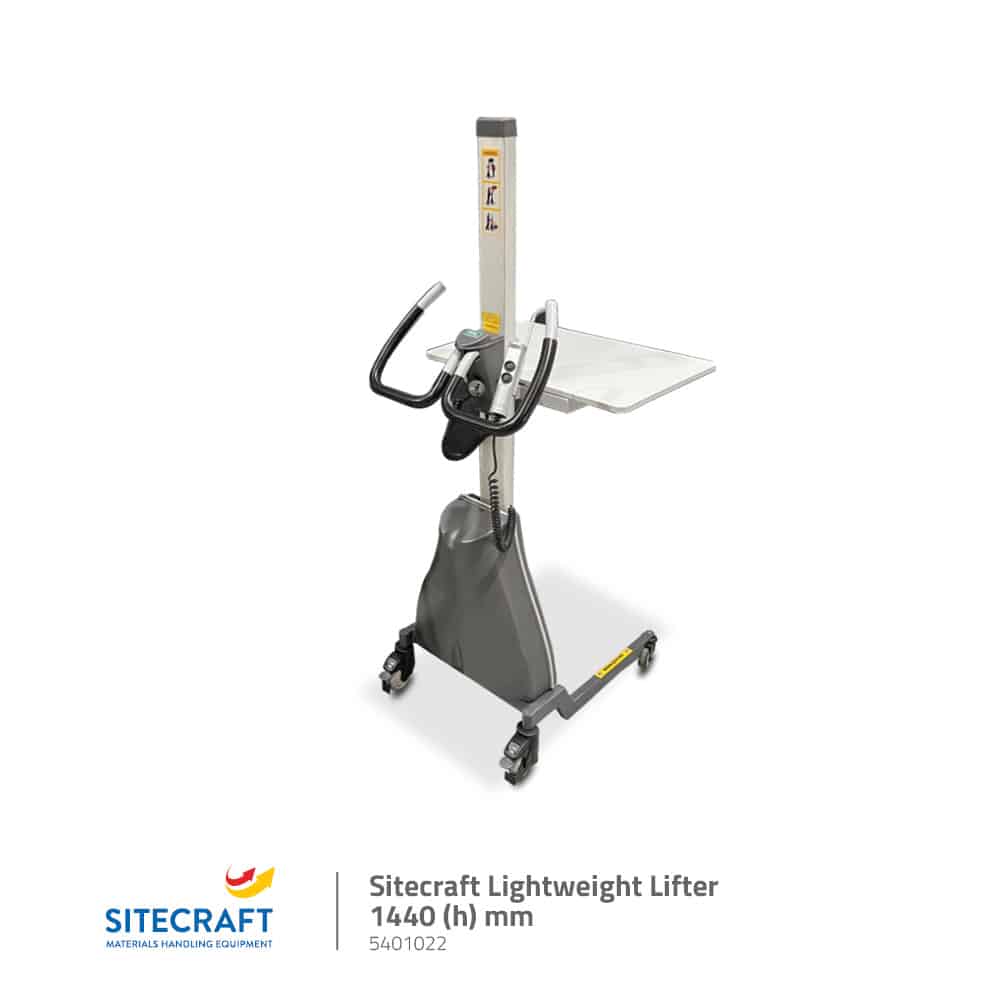

5401022 Light Weight Crate Lifter 1440  85  1440  125  39  470 x 600

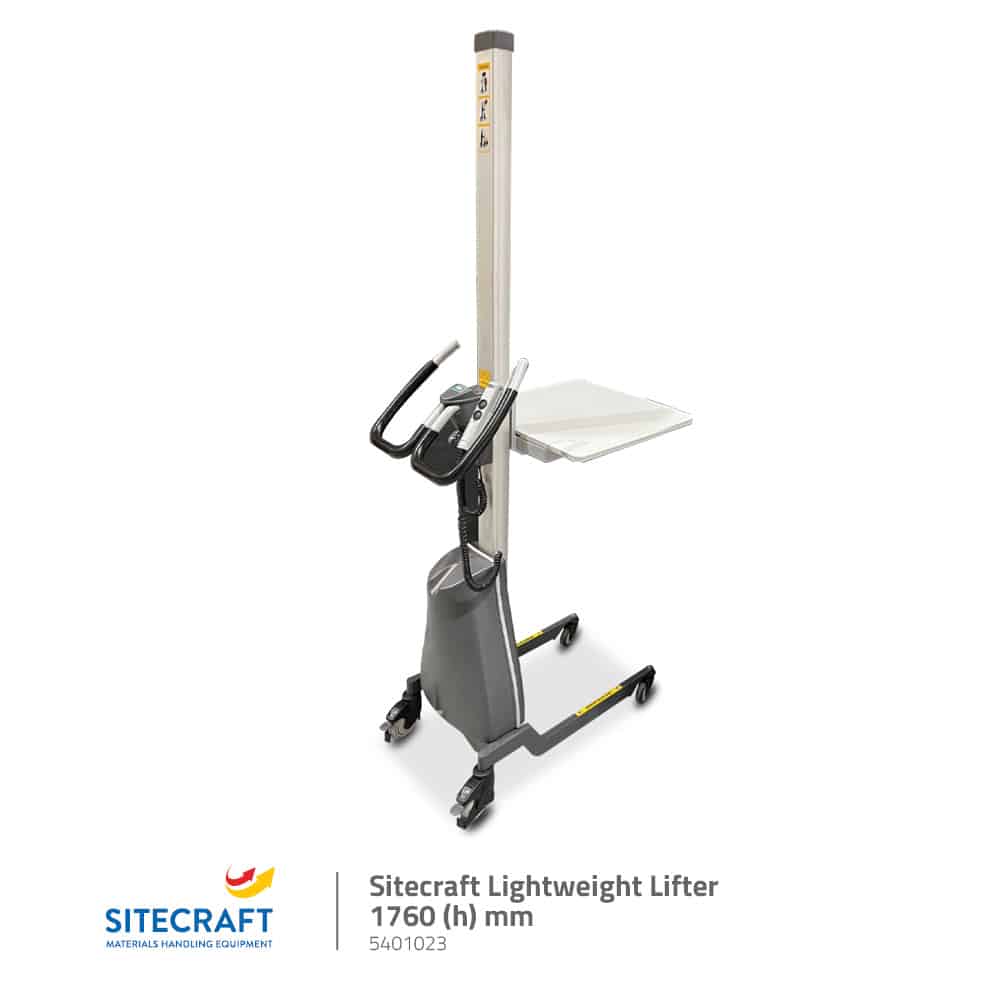

5401023 Light Weight Crate Lifter 1760  80  1760  125  42  470 x 600
Lightweight Lifter

Specifications

Product Code 5401022 5401023
Product Name Light Weight Crate Lifter Light Weight Crate Lifter
Lift Height (mm) 1440 1760
Load Capacity (kg) 85 80
Max Platform Height (mm) 1440 1760
Min Platform Height (mm) 125 125
Net Weight (kg) 39 42
Platform Size (mm) 470 x 600 470 x 600

Specifications

Product Code 5401022 5401023
Product Name Light Weight Crate Lifter Light Weight Crate Lifter
Lift Height (mm) 1440 1760
Load Capacity (kg) 85 80
Max Platform Height (mm) 1440 1760
Min Platform Height (mm) 125 125
Net Weight (kg) 39 42
Platform Size (mm) 470 x 600 470 x 600
