Logistec Manual Lifter

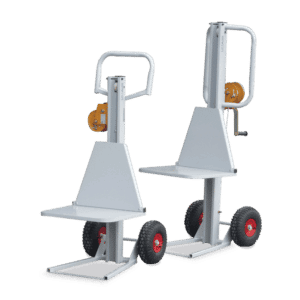

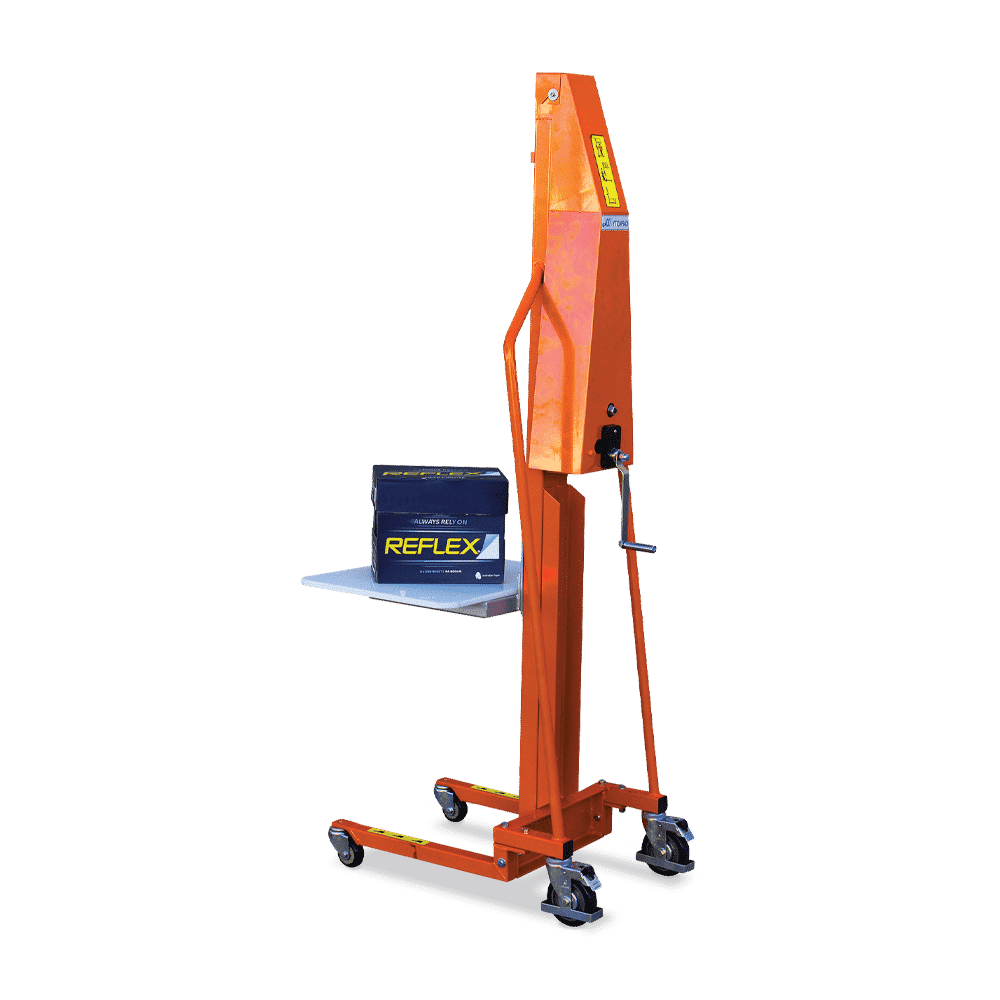

This entry level lifter is light and compact making it easy to maneuver in tight spaces. The lifter raises and lowers the load with a simple robust winch system, which is fully enclosed to ensure operator safety. The lifters are easily modified to suit various applications and there are a number of different attachments available for reel handling. These lifters are widely used in many different applications including: Packing lines, Fabrication workshops, Food processing lines.
Lift Height; 1500mm
Load Capacity; 200kg
Low Height; 130mm
Dimentions; 450mm wide x 720mm long x 1930mm high
Unit Weight; 60kg
Lifting System; Geared winch with auto-brake
Rear braked steer castors
Front leg height without platform; 110mm
Includes polyethylene 470mm deep x 600mm wide load lifting platform as standard
Product Code Product Name Price
5781040 Logistec Manual Lifter
5781041 Single Spindle Attachment
5781042 Double Spindle Attachment
5781043 V-Block Attachment
5781044 Expanding Reel Rotator

Specifications

Product Code 5781040 5781041 5781042 5781043 5781044
Product Name Logistec Manual Lifter Single Spindle Attachment Double Spindle Attachment V-Block Attachment Expanding Reel Rotator

Specifications

Product Code 5781040 5781041 5781042 5781043 5781044
Product Name Logistec Manual Lifter Single Spindle Attachment Double Spindle Attachment V-Block Attachment Expanding Reel Rotator
