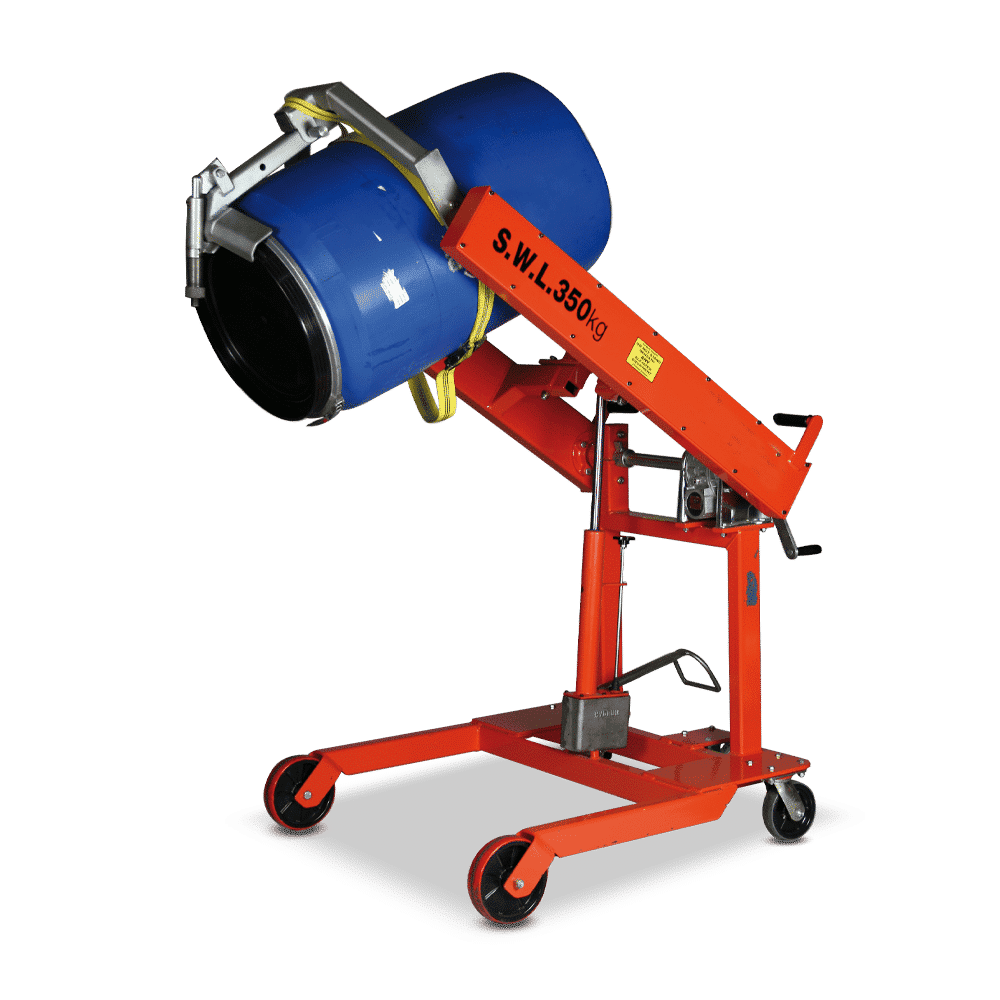

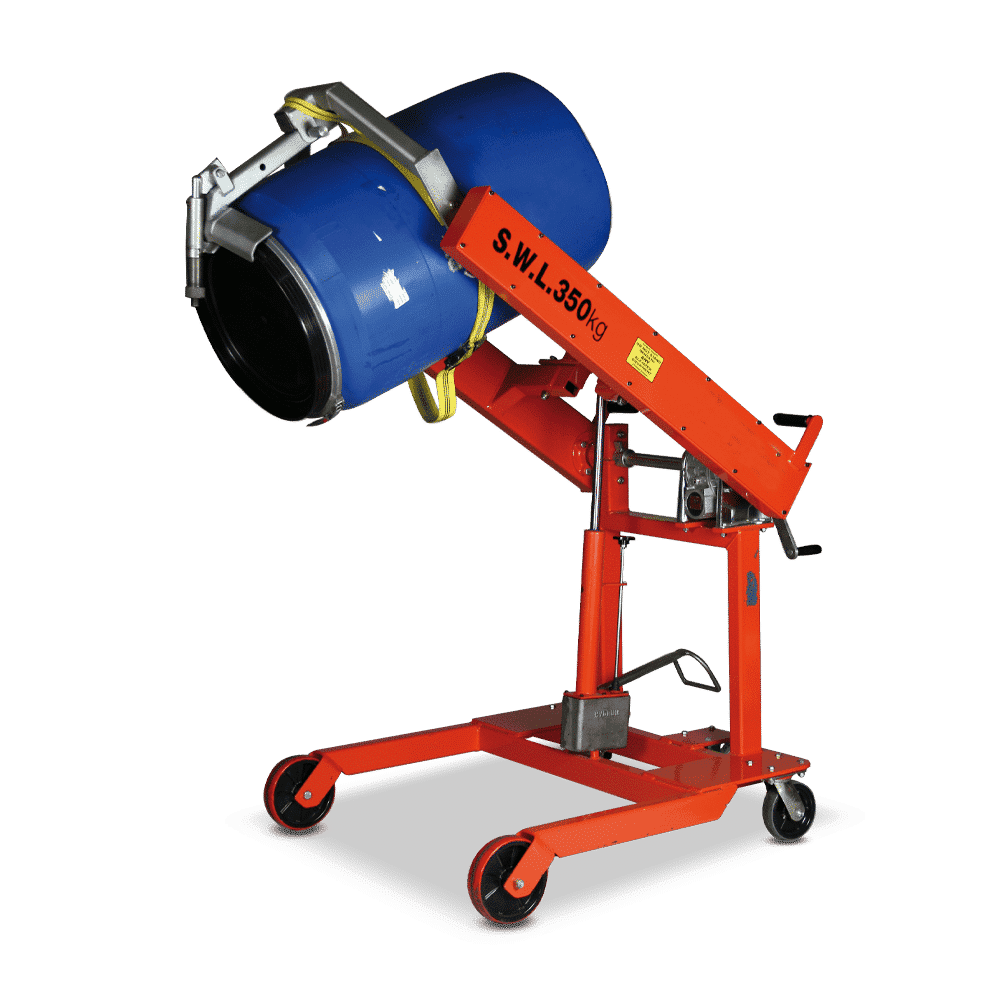

Rim Grip Drum Lift and Tip

The Rim Grip Drum Lifter handles a wide variety of drum styles and sizes without complicated adjustments or exchanging attachments. Following are some of the options available for this product; stainless steel construction, zinc plated finish, battery electric powered lift, air powered lift and grippers for other drum types.
Drums are raised and transported simply by engaging the screw operated rim clamp
When tipping, a webbing strap and quick action buckle are applied
Raise drum hydraulically with a foot operated hydraulic pump
Tip drum precisely through the fully enclosed chain drive and crank operated worm, gearbox
Load and off load from pallets and racking
Transports drums about your works on large diameter wheels .A variety of castor types available.
Product Code Product Name Capacity (kg)Max Lift Height (mm) Price
4361021 Rim Grip Drum Lift and Tip - 1600mm Lift 350  1600 (To Centre of Drum)
4361022 Rim Grip Drum Lift and Tip - 2000mm LIft 350  2000 (To Centre of Drum)
4361023 Rim Grip Drum Lift and Tip - 2700mm Lift 350  2700 (To Centre of Drum)
4361239 Rim Grip Drum Lift and Tip 350  1600 (To Centre of Drum)

Specifications

Product Code 4361021 4361022 4361023 4361239
Product Name Rim Grip Drum Lift and Tip – 1600mm Lift Rim Grip Drum Lift and Tip – 2000mm LIft Rim Grip Drum Lift and Tip – 2700mm Lift Rim Grip Drum Lift and Tip
Capacity (kg) 350 350 350 350
Max Lift Height (mm) 1600 (To Centre of Drum) 2000 (To Centre of Drum) 2700 (To Centre of Drum) 1600 (To Centre of Drum)

Specifications

Product Code 4361021 4361022 4361023 4361239
Product Name Rim Grip Drum Lift and Tip – 1600mm Lift Rim Grip Drum Lift and Tip – 2000mm LIft Rim Grip Drum Lift and Tip – 2700mm Lift Rim Grip Drum Lift and Tip
Capacity (kg) 350 350 350 350
Max Lift Height (mm) 1600 (To Centre of Drum) 2000 (To Centre of Drum) 2700 (To Centre of Drum) 1600 (To Centre of Drum)
