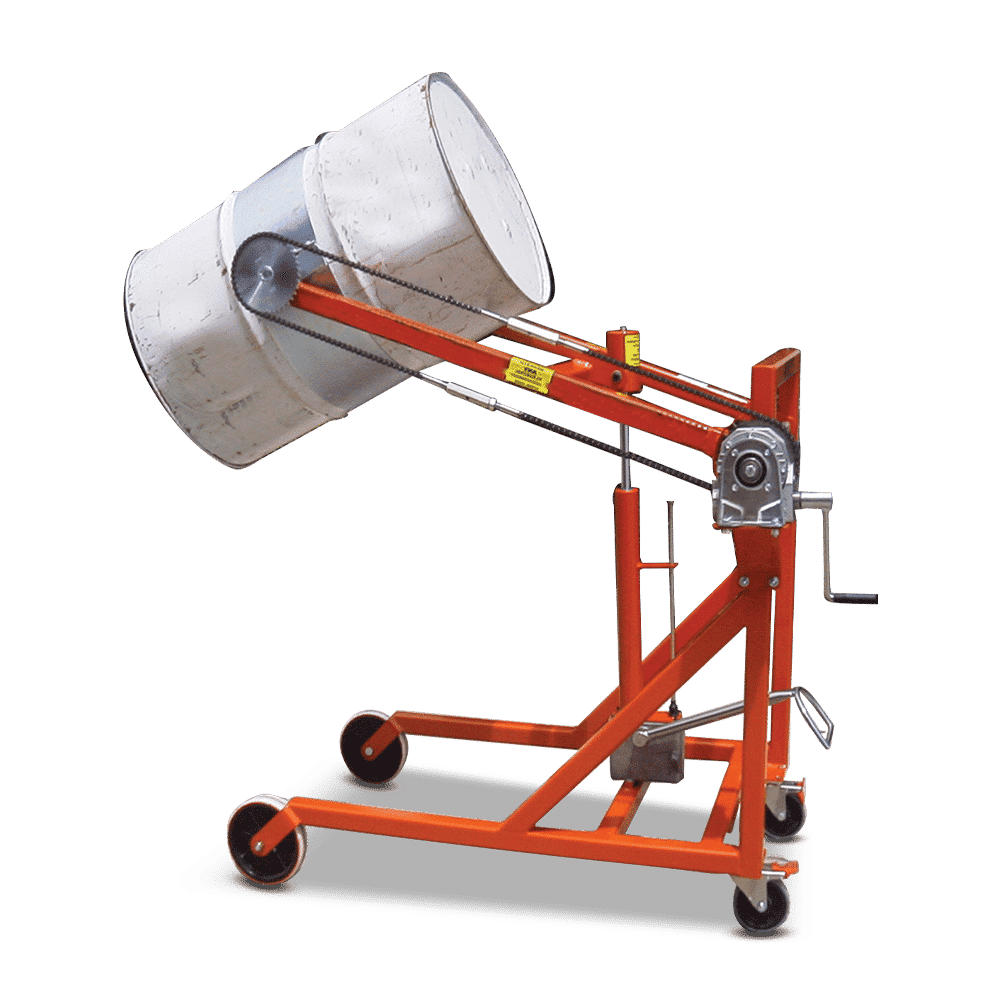

Drum Girdle Type Lift and Tip

This range of lift and tip machines has been proved over 30 years and with its compact design, suits tight working areas and mezzanine floors or situations where lighter framed operators are involved with the drum handling process. A heavy duty steel girdle is employed with a quick acting over centre clamp to secure the drum. A foot operated hydraulic pump is used for lifting and a heavy duty gearbox facilitates 320 degrees of controlled tipping of the drum. The standard machine is designed to handle a 205 litre steel drum with two equally spaced chimes over its length. Available in three lift heights and can be modified to handle a variety of drums or appliances and can be fitted with an optional compressed air component for effortless lifting.

Product Code Product Name Capacity (kg)Height (mm)Length (mm)Lift Height (mm)Width (mm) Price
4361024 Drum Girdle Type Lift and Tip - 1900mm Lift Height 350  1180  1300  1900  830
4361025 Drum Girdle Type Lift and Tip - 2100mm Lift Height 350  1180  1500  2100  830
4361026 Drum Girdle Type Lift and Tip - 2700mm Lift Height 350  1430  1650  2700  1120

Specifications

Product Code 4361024 4361025 4361026
Product Name Drum Girdle Type Lift and Tip – 1900mm Lift Height Drum Girdle Type Lift and Tip – 2100mm Lift Height Drum Girdle Type Lift and Tip – 2700mm Lift Height
Capacity (kg) 350 350 350
Height (mm) 1180 1180 1430
Length (mm) 1300 1500 1650
Lift Height (mm) 1900 2100 2700
Width (mm) 830 830 1120

Specifications

Product Code 4361024 4361025 4361026
Product Name Drum Girdle Type Lift and Tip – 1900mm Lift Height Drum Girdle Type Lift and Tip – 2100mm Lift Height Drum Girdle Type Lift and Tip – 2700mm Lift Height
Capacity (kg) 350 350 350
Height (mm) 1180 1180 1430
Length (mm) 1300 1500 1650
Lift Height (mm) 1900 2100 2700
Width (mm) 830 830 1120
