A versatile work tool with unlimited configurations.

MP-240

VEHICLE TYPE
PERSONNEL CARRIES

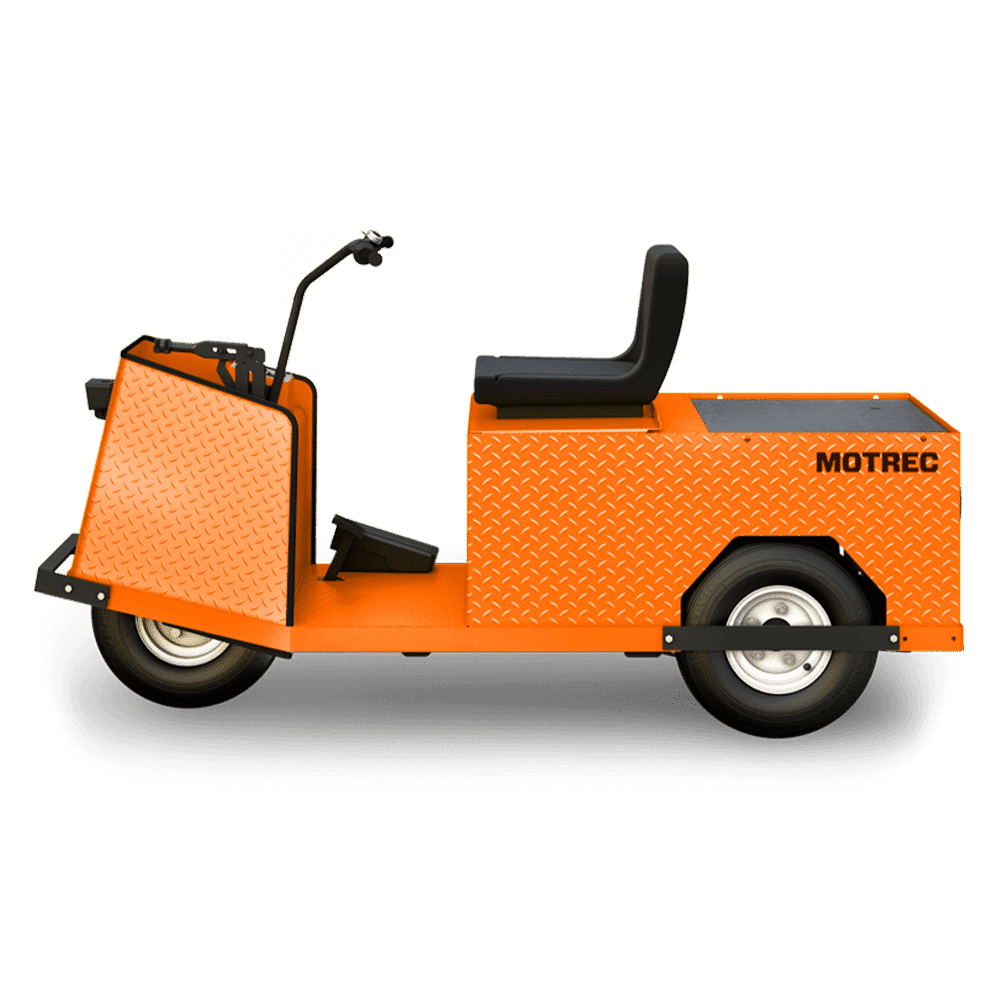

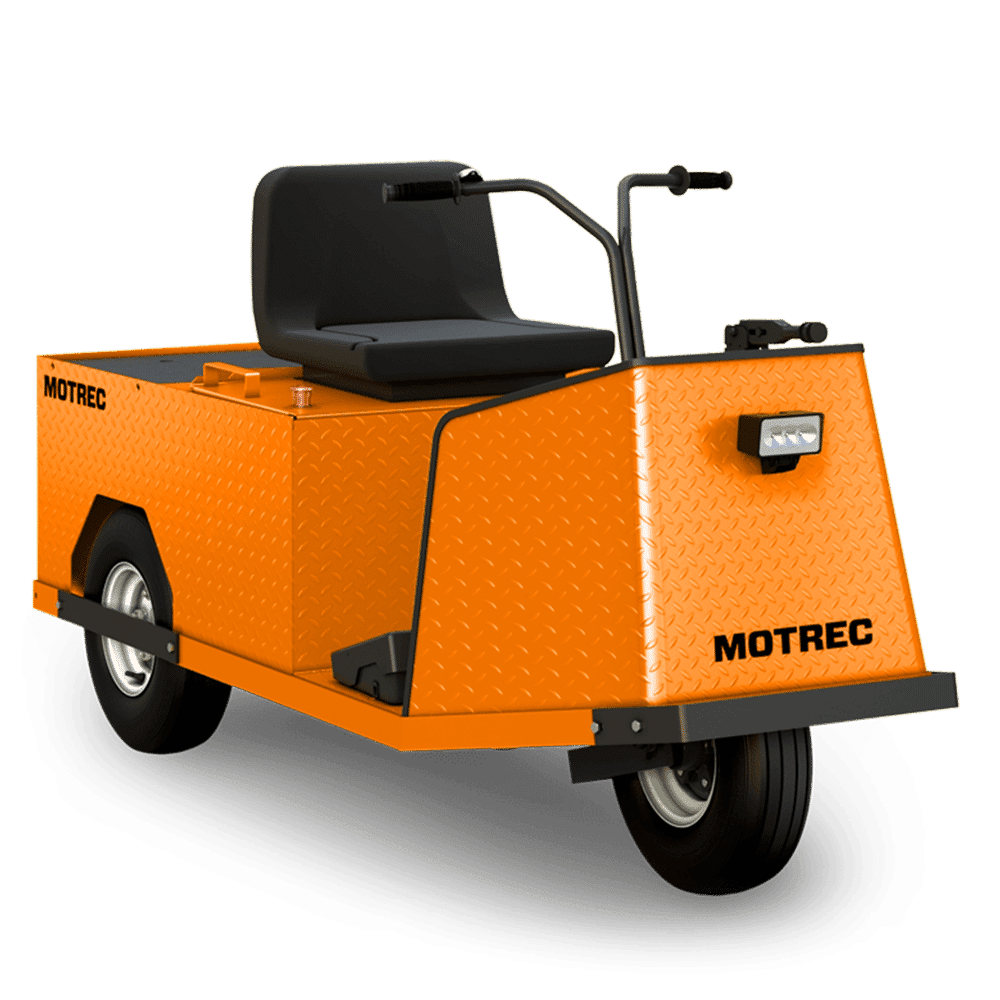

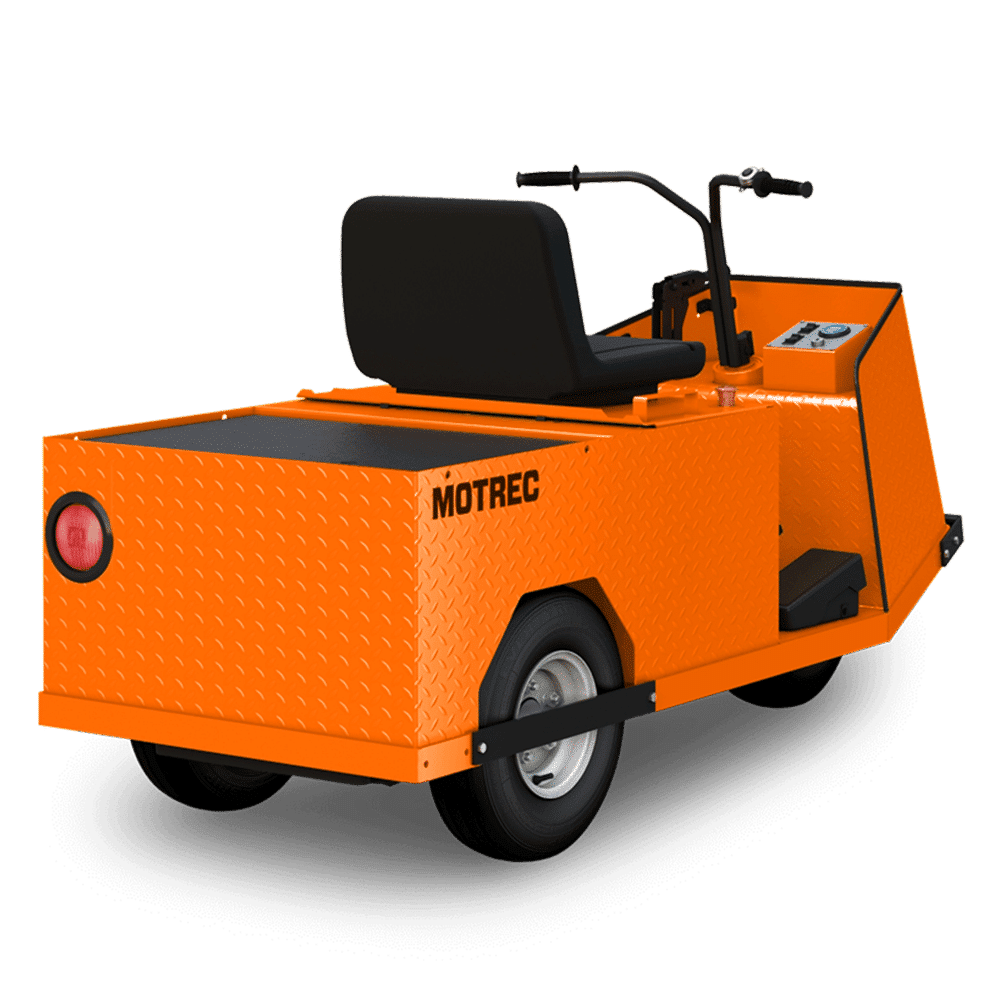

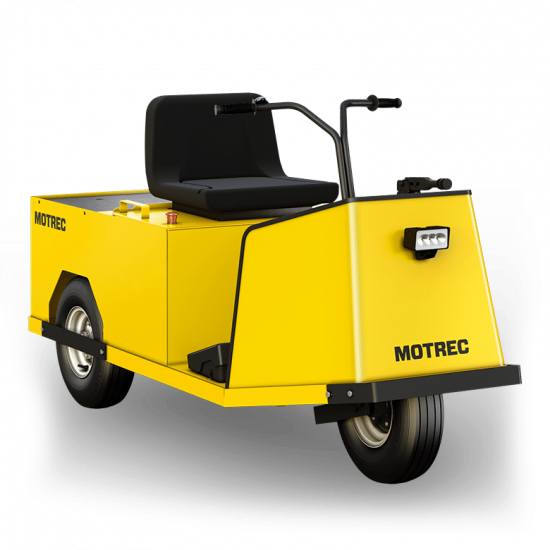

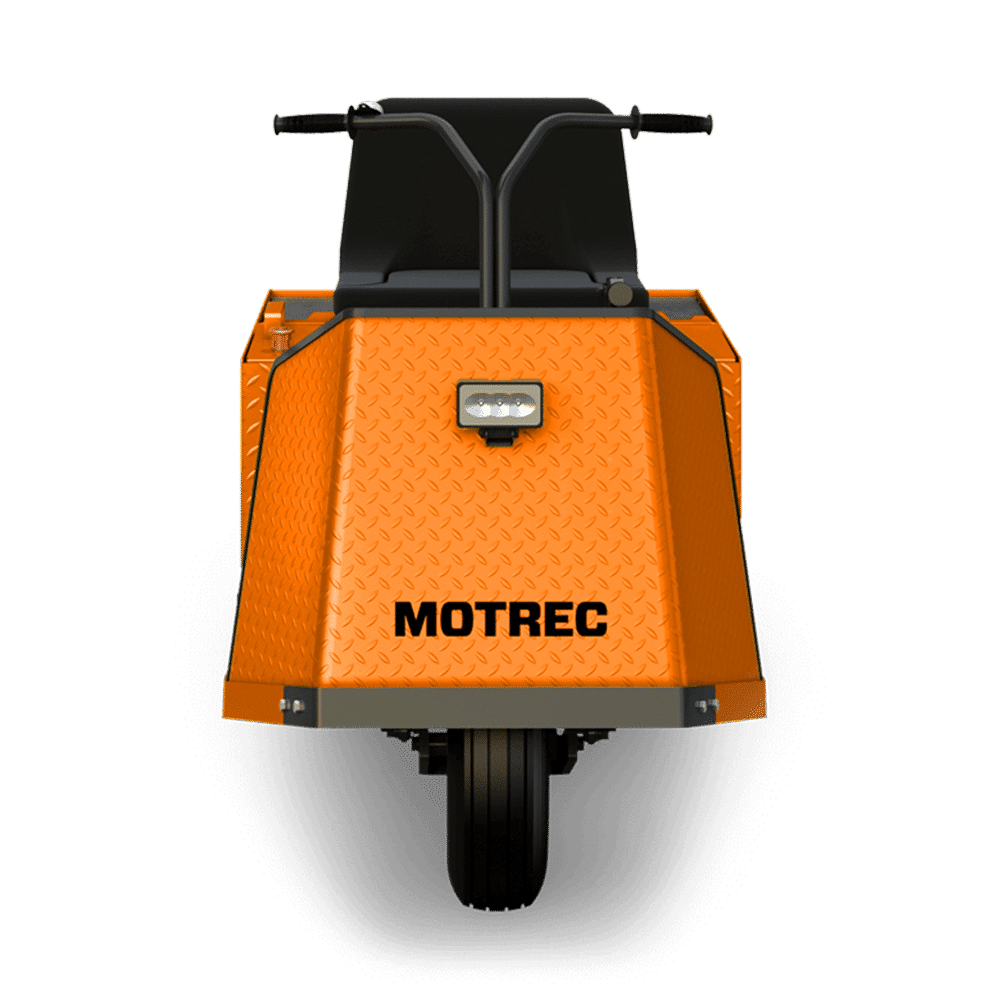

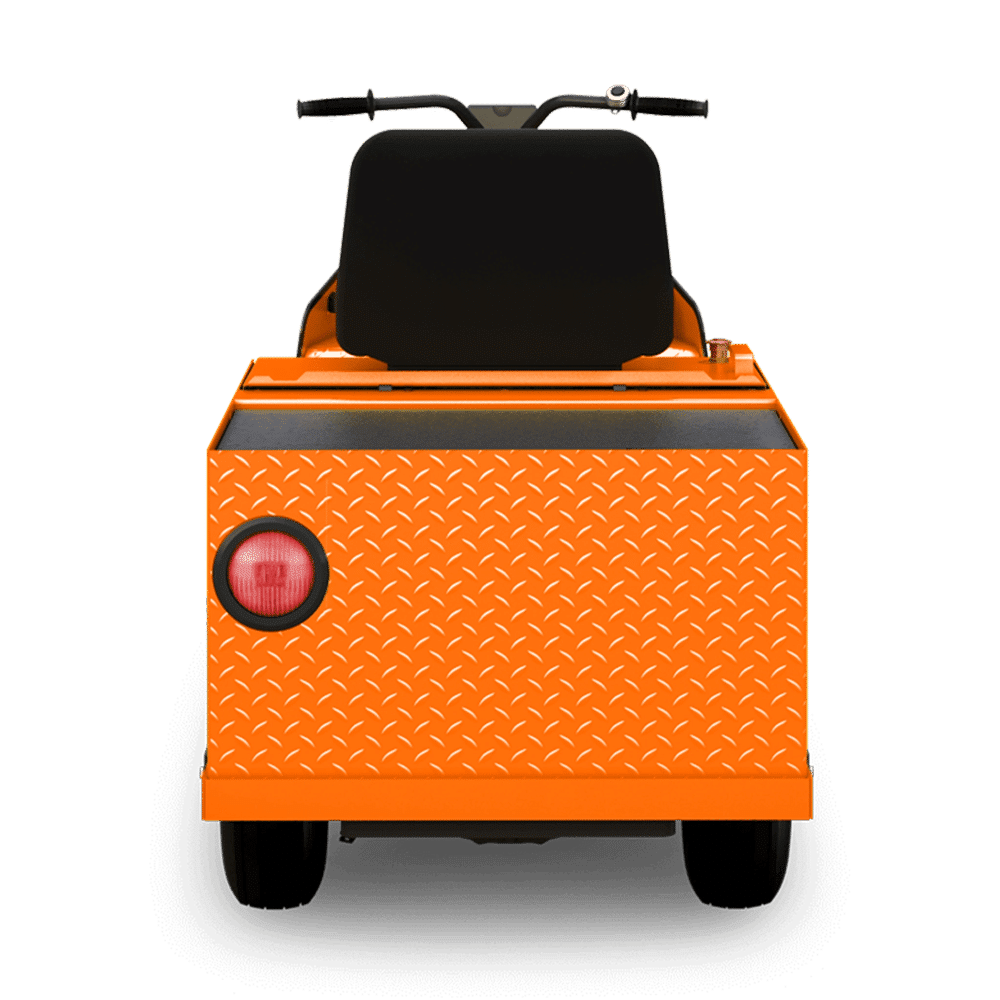

The MP-240 is an economic and cost-effective vehicle that can adapt to any industry. It’s narrow and maneuverable enough to fit through door openings, but tough enough to withstand years of abuse. It’ll move you and your stock three times faster than on foot, quickly boosting operational productivity. Features include under-seat battery compartment, low-step entry, and front and lateral protection bars. Optional lift-out battery box and fold-down back seat. A multi-purpose vehicle offering great value and day-to-day reliability.

MP 240 MODELS	Heading	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS
24V		1	230 Kg	900 kg	11 Kmh	1,800 mm
36V		1	230 Kg	2,700 kg	14.4 Kmh	1,800 mm

MP 240 MODELS	24V
PASSENGERS	1
LOAD CAPACITY	230 Kg
TOWING CAPACITY	900 kg
SPEED	11 Kmh
TURNING RADIUS	1,800 mm

MP 240 MODELS	36V
PASSENGERS	1
LOAD CAPACITY	230 Kg
TOWING CAPACITY	2,700 kg
SPEED	14.4 Kmh
TURNING RADIUS	1,800 mm

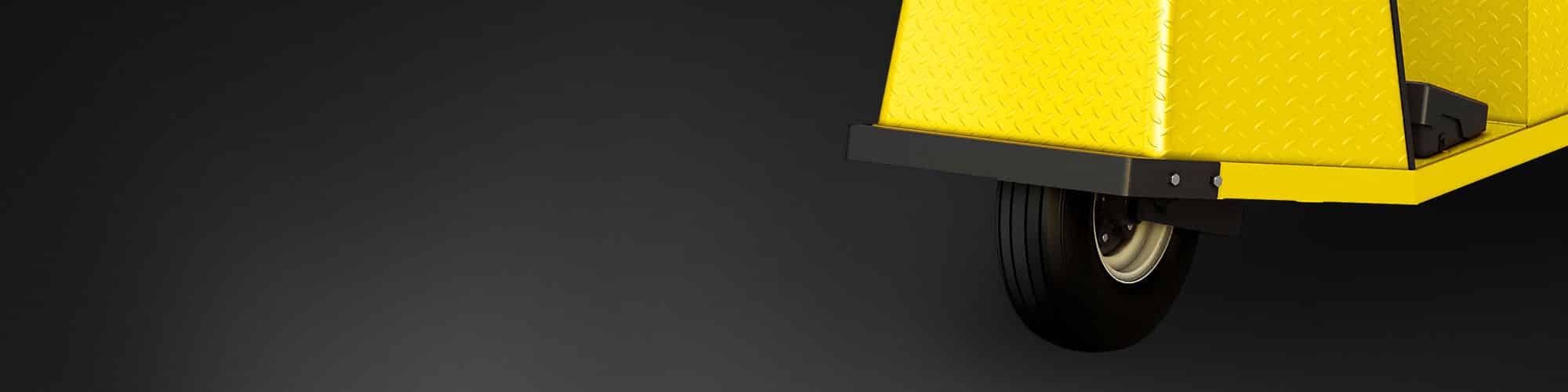

BUMPERS

Reinforced bolt-on front and rear bumpers. Protects vehicle components from damage
and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers
are easy to replace when needed. An easy, low-cost way to protect your investment.

Images are for illustrative purposes only

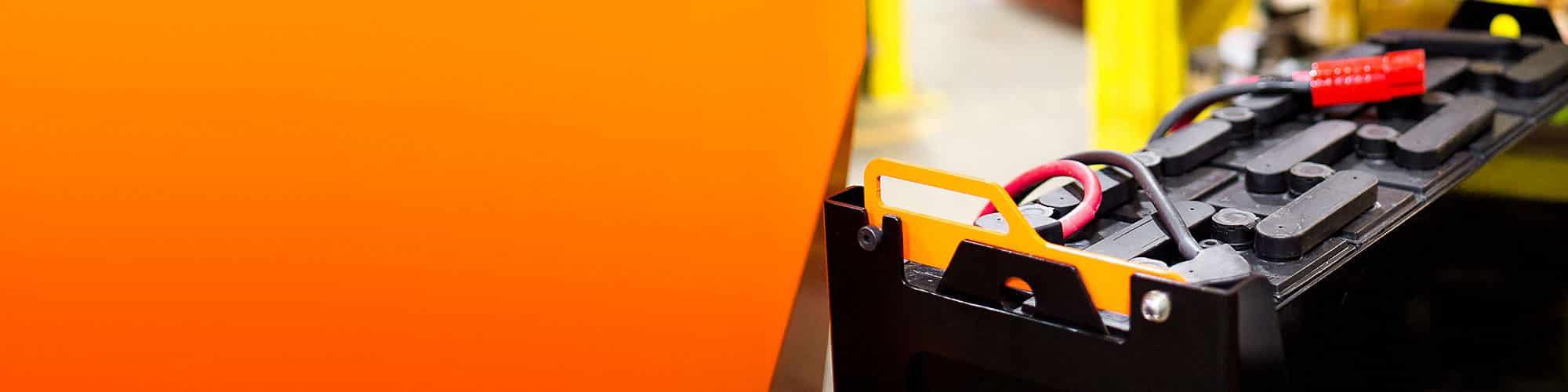

LIFT-OUT

Time-saving lift-out battery compartment Makes changing batteries quick and easy.
Because the batteries are not attached to the vehicle, maintenance is easier, too.
Simply lift out the compartment and replace batteries with fresh ones.

Images are for illustrative purposes only

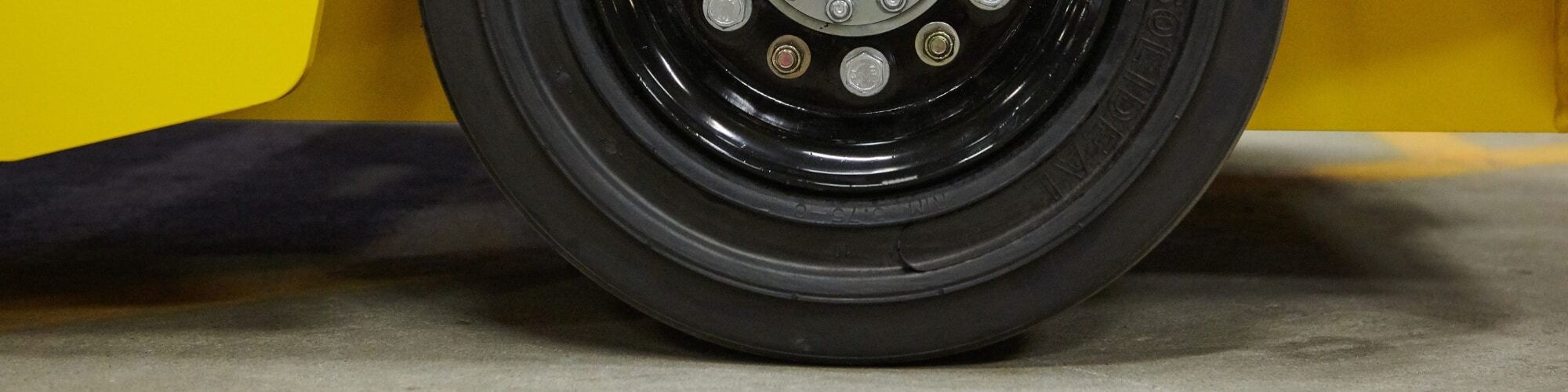

SUSPENSION

Fatigue- and accident-saving ergonomic suspension Increases stability for a smoother,
safer ride even on challenging terrain. Ergonomic design lessens impacts, resulting in
greater operator comfort and less risk of injury. Travel of 1.5 inches.
Various configurations available.

Images are for illustrative purposes only

Previous slide

Next slide

SPECIFICATIONS	24V	36V

POWERTRAIN
Motor	5 HP brushless AC motor	10 HP brushless AC motor
Drive Axle	Helical gear differential	Helical gear differential
Transmission	Direct drive	Direct drive
Controller	SEPEX Electronic speed controller	SEPEX Electronic speed controller
ENERGY
Voltage	24V	36V
Battery	Four 6V-225AH batteries	Six 6V-225AH batteries
Charger	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body	14-G diamond-plate steel body, tubular frame, powder coating.	14-G diamond-plate steel body, tubular frame, powder coating.
Suspension	Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear	Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear
Brakes	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
Wheels	4.8x8 LRC pneumatic tires	4.8x8 LRC pneumatic tires
Steering	Handlebar	Handlebar
Seats	Bucket seat on slide adjusters	Bucket seat on slide adjusters
EQUIPMENT
Lights	Dual LED headlights & tail/brake lights	Dual LED headlights & tail/brake lights
Indicators	Battery status indicator	Battery status indicator
Accessories	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
Safety	Reverse alarm, Deadman foot switch, Horn	Reverse alarm, Deadman foot switch, Horn
DIMENSIONS
VEHICLE
Weight	220 Kg	450 Kg
Height	1,000 mm	1,160 mm
Length	1,980 mm	2,000 mm
Width	760 mm	760 mm
Wheel Base	1,270 mm	1,440 mm
DECK
Deck Height	630 mm	630 mm
Deck Length	500 mm	500 mm
Deck Width	760 mm	760 mm

SPECIFICATIONS

POWERTRAIN
Motor
24V	5 HP brushless AC motor
36V	10 HP brushless AC motor
Drive Axle
24V	Helical gear differential
36V	Helical gear differential
Transmission
24V	Direct drive
36V	Direct drive
Controller
24V	SEPEX Electronic speed controller
36V	SEPEX Electronic speed controller
ENERGY
Voltage
24V	24V
36V	36V
Battery
24V	Four 6V-225AH batteries
36V	Six 6V-225AH batteries
Charger
24V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
36V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body
24V	14-G diamond-plate steel body, tubular frame, powder coating.
36V	14-G diamond-plate steel body, tubular frame, powder coating.
Suspension
24V	Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear
36V	Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear
Brakes
24V	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
36V	Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
Wheels
24V	4.8x8 LRC pneumatic tires
36V	4.8x8 LRC pneumatic tires
Steering
24V	Handlebar
36V	Handlebar
Seats
24V	Bucket seat on slide adjusters
36V	Bucket seat on slide adjusters
EQUIPMENT
Lights
24V	Dual LED headlights & tail/brake lights
36V	Dual LED headlights & tail/brake lights
Indicators
24V	Battery status indicator
36V	Battery status indicator
Accessories
24V	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
36V	Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
Safety
24V	Reverse alarm, Deadman foot switch, Horn
36V	Reverse alarm, Deadman foot switch, Horn

DIMENSIONS

VEHICLE
Weight
24V	220 Kg
36V	450 Kg
Height
24V	1,000 mm
36V	1,160 mm
Length
24V	1,980 mm
36V	2,000 mm
Width
24V	760 mm
36V	760 mm
Wheel Base
24V	1,270 mm
36V	1,440 mm
DECK
Deck Height
24V	630 mm
36V	630 mm
Deck Length
24V	500 mm
36V	500 mm
Deck Width
24V	760 mm
36V	760 mm
