24V Narrow
|
|---|---|
|
PASSENGERS
|
1
|
|
LOAD CAPACITY
|
226 Kg.
|
|
TOWING CAPACITY
|
2,720 kg.
|
|
SPEED
|
10 Kmh
|
|
TURNING RADIUS
|
1,830 mm
|
Strength & agility on 4 wheels.

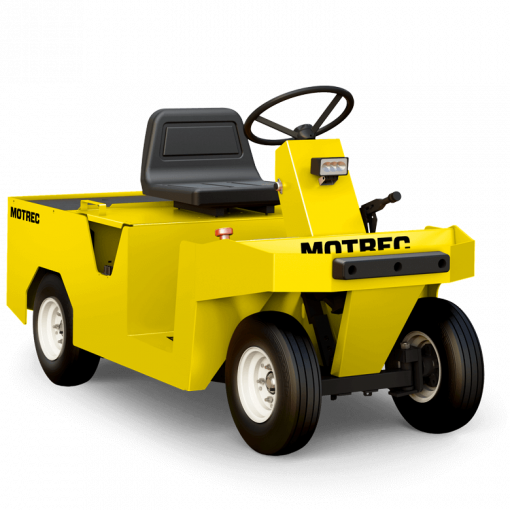

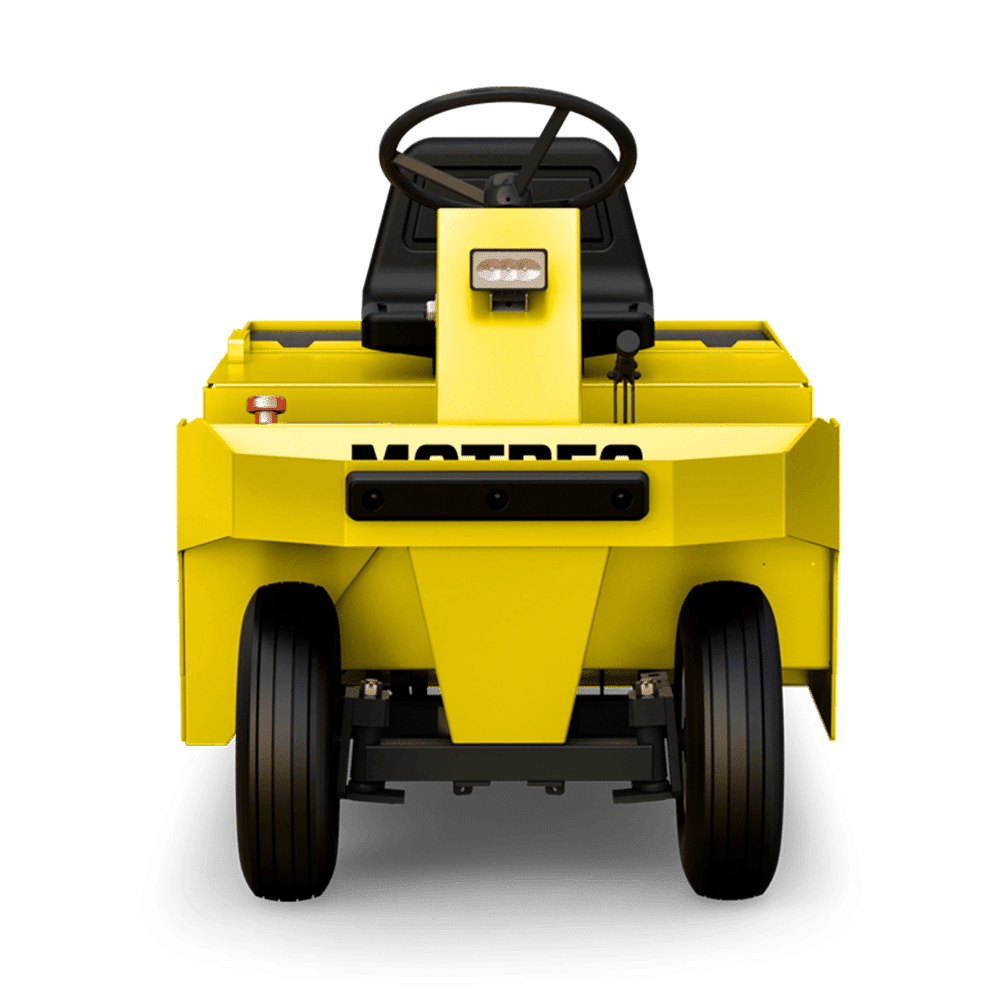

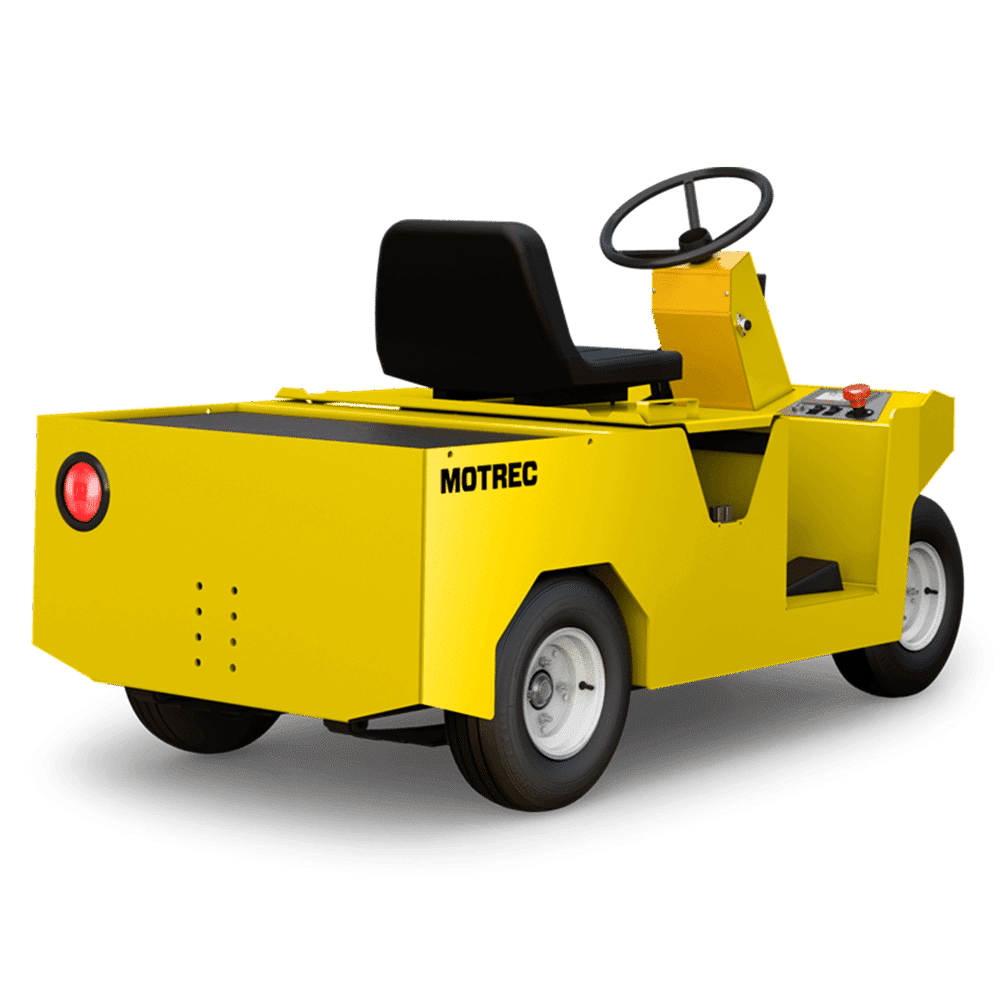

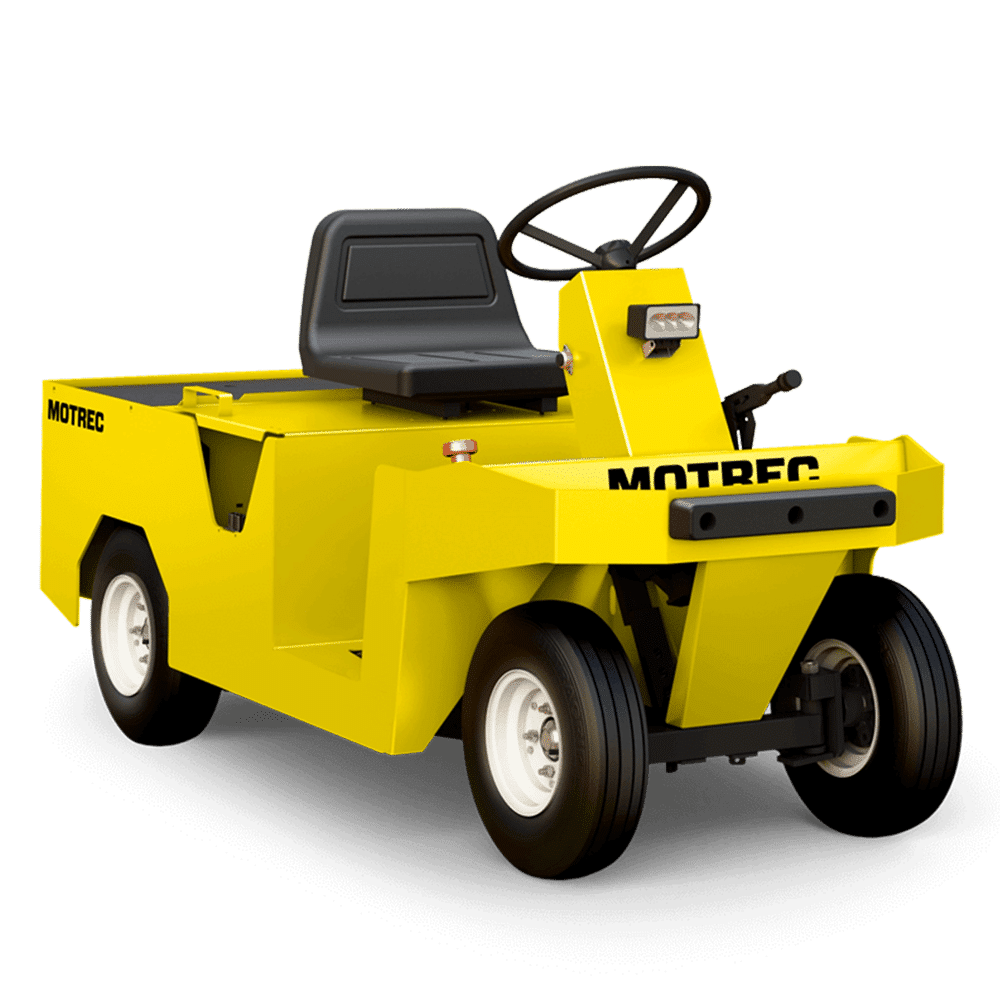

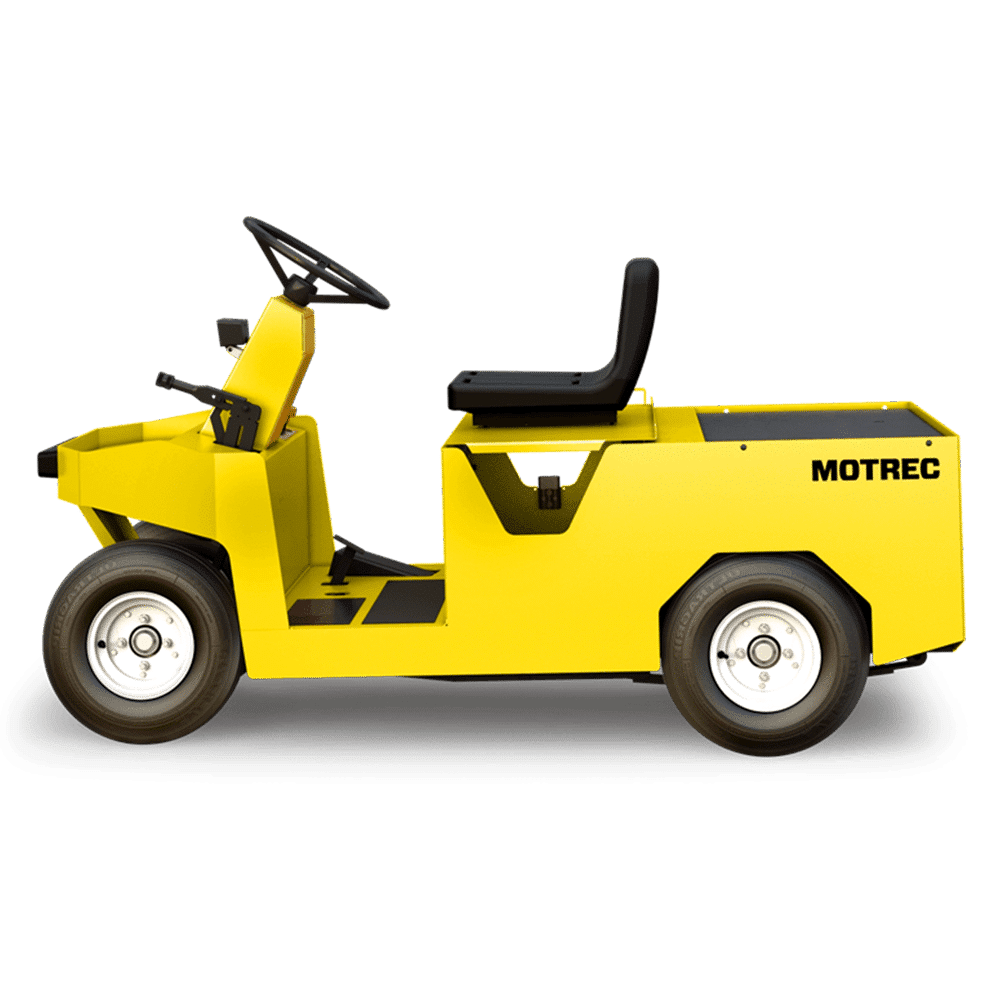

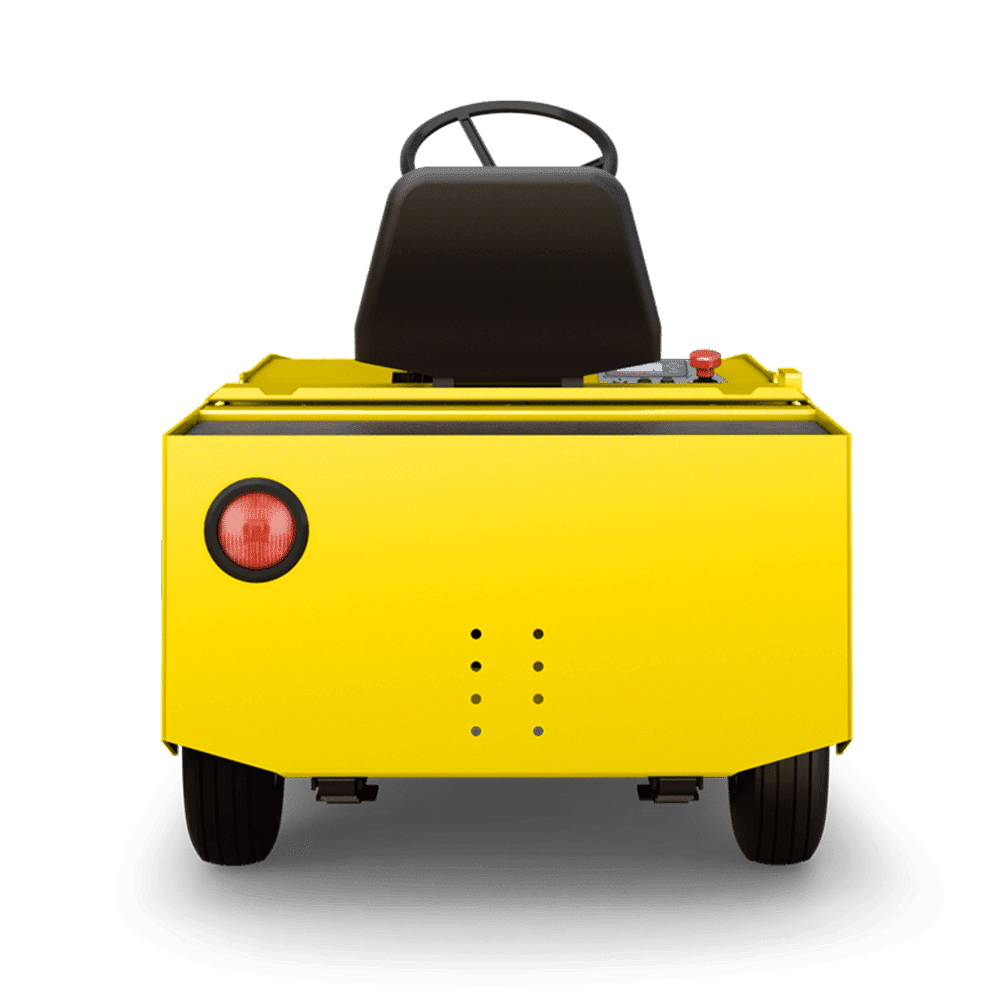

MT-290
Built on our popular MP-250 base, the more powerful MT-290 is equal parts modern workhorse and mobile workshop. Its efficient AC motor offers impressive acceleration, even when towing loads of 7,257 kg.* Its all-steel construction and four-wheel vibration dampening design ensure a smooth and stable ride even on bumpy surfaces. This agile, round-the-clock tow tractor effortlessly maneuvers through challenging areas, including doorways. A multi-purpose tow tractor boasting a long-lasting industrial battery with easy under-the-seat access. EE rating available.
|
MT 290 MODELS
|
Heading
|
PASSENGER
|
LOAD CAPACITY
|
TOWING CAPACITY
|
SPEED
|
TURNING RADIUS
|
|---|---|---|---|---|---|---|
|
24V Narrow
|
|
1
|
226 Kg.
|
2,720 kg.
|
10 Kmh
|
1,830 mm
|
|
36V HD
|
|
1
|
318 Kg.
|
4,535 kg.
|
12.8 Kmh
|
1,960 mm
|
|
48V
|
|
1
|
318 Kg.
|
7,257 kg.
|
12.8 Kmh
|
1,960 mm
|
|
|
36V HD
|
|---|---|
|
PASSENGERS
|
1
|
|
LOAD CAPACITY
|
318 Kg.
|
|
TOWING CAPACITY
|
4,535 kg.
|
|
SPEED
|
12.8 Kmh
|
|
TURNING RADIUS
|
1,960 mm
|
|
|
48V
|
|---|---|
|
PASSENGERS
|
1
|
|
LOAD CAPACITY
|
318 Kg.
|
|
TOWING CAPACITY
|
7,257 kg.
|
|
SPEED
|
12.8 Kmh
|
|
TURNING RADIUS
|
1,960 mm
|
Previous slide
Next slide
|
SPECIFICATIONS
|
24V Narrow
|
36V HD
|
48V
|
|---|---|---|---|
|
|
|
|
|
|
POWERTRAIN
|
|||
|
Motor
|
6 hp shunt motor
|
Brushless AC motor, 7.5 HP Intermittent, 10 HP Max
|
Brushless AC motor, 9 HP Intermittent, 15 HP Max
|
|
Drive Axle
|
Differential with automotive ring gear
|
Helical gear differential
|
Helical gear differential
|
|
Transmission
|
Dual V-belt drive
|
Direct drive
|
Direct drive
|
|
Controller
|
SEPEX Electronic speed controller
|
Electronic AC speed controller
|
Electronic AC speed controller
|
|
ENERGY
|
|||
|
Voltage
|
24V
|
36V
|
48V
|
|
Battery
|
Four 6V-225AH batteries
|
Battery to be specified
|
Battery to be specified
|
|
Charger
|
High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
|
Charger to be specified
|
Charger to be specified
|
|
CHASSIS
|
|||
|
Body
|
14-G diamond-plate steel body, tubular frame
|
All-steel unibody construction
|
All-steel unibody construction
|
|
Suspension
|
Dual leaf springs on rear
|
Dual leaf springs on rear
|
Dual leaf springs on rear
|
|
Brakes
|
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
|
Rear hydraulic drum brakes, regenerative braking
|
Rear hydraulic drum brakes, regenerative braking
|
|
Wheels
|
4.8x8 LRC pneumatic tyres
|
4.8x8 LRC pneumatic tyres
|
4.8x8 LRC pneumatic tyres
|
|
Steering
|
Automotive steering wheel
|
Automotive steering wheel
|
Automotive steering wheel
|
|
Seats
|
Bucket seat on slide adjusters
|
Bucket seat on slide adjusters
|
Bucket seat on slide adjusters
|
|
EQUIPMENT
|
|||
|
Lights
|
LED headlight & tail/brake light
|
LED headlight & tail/brake light
|
LED headlight & tail/brake light
|
|
Indicators
|
Battery status indicator
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
|
Accessories
|
Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life
|
36V/12V converter for 12-volt accessories, bolt-on front bumper
|
48V/12V converter for 12-volt accessories, bolt-on bumpers and rear wheel guards
|
|
Safety
|
Reverse alarm, deadman seat switch, horn
|
Reverse alarm, deadman seat switch, horn
|
Reverse alarm, deadman seat switch, horn
|
|
DIMENSIONS
|
|||
|
VEHICLE
|
|||
|
Weight
|
|
544 Kg
|
544 Kg
|
|
Height
|
1,140 mm
|
1,120 mm
|
1,140 mm
|
|
Length
|
|
1,980 mm
|
1,980 mm
|
|
Width
|
740 mm
|
970 mm
|
970 mm
|
|
Wheel Base
|
1,320 mm
|
1,320 mm
|
1,290 mm
|
|
DECK
|
|||
|
Deck Height
|
630 mm
|
630 mm
|
630 mm
|
|
Deck Length
|
500 mm
|
530 mm
|
530 mm
|
|
Deck Width
|
740 mm
|
960 mm
|
960 mm
|
|
BATTERY
|
|||
|
Battery Weight
|
|
|
|
|
Battery Height
|
600 mm
|
450 mm
|
450 mm
|
|
Battery Length
|
520 mm
|
400 mm
|
400 mm
|
|
Battery Width
|
980 mm
|
890 mm
|
890 mm
|
|
|
|
|---|---|
|
|
|
|
POWERTRAIN
|
|
|
Motor
|
|
|
24V Narrow
|
6 hp shunt motor
|
|
36V HD
|
Brushless AC motor, 7.5 HP Intermittent, 10 HP Max
|
|
48V
|
Brushless AC motor, 9 HP Intermittent, 15 HP Max
|
|
Drive Axle
|
|
|
24V Narrow
|
Differential with automotive ring gear
|
|
36V HD
|
Helical gear differential
|
|
48V
|
Helical gear differential
|
|
Transmission
|
|
|
24V Narrow
|
Dual V-belt drive
|
|
36V HD
|
Direct drive
|
|
48V
|
Direct drive
|
|
Controller
|
|
|
24V Narrow
|
SEPEX Electronic speed controller
|
|
36V HD
|
Electronic AC speed controller
|
|
48V
|
Electronic AC speed controller
|
|
ENERGY
|
|
|
Voltage
|
|
|
24V Narrow
|
24V
|
|
36V HD
|
36V
|
|
48V
|
48V
|
|
Battery
|
|
|
24V Narrow
|
Four 6V-225AH batteries
|
|
36V HD
|
Battery to be specified
|
|
48V
|
Battery to be specified
|
|
Charger
|
|
|
24V Narrow
|
High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
|
|
36V HD
|
Charger to be specified
|
|
48V
|
Charger to be specified
|
|
CHASSIS
|
|
|
Body
|
|
|
24V Narrow
|
14-G diamond-plate steel body, tubular frame
|
|
36V HD
|
All-steel unibody construction
|
|
48V
|
All-steel unibody construction
|
|
Suspension
|
|
|
24V Narrow
|
Dual leaf springs on rear
|
|
36V HD
|
Dual leaf springs on rear
|
|
48V
|
Dual leaf springs on rear
|
|
Brakes
|
|
|
24V Narrow
|
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
|
|
36V HD
|
Rear hydraulic drum brakes, regenerative braking
|
|
48V
|
Rear hydraulic drum brakes, regenerative braking
|
|
Wheels
|
|
|
24V Narrow
|
4.8x8 LRC pneumatic tyres
|
|
36V HD
|
4.8x8 LRC pneumatic tyres
|
|
48V
|
4.8x8 LRC pneumatic tyres
|
|
Steering
|
|
|
24V Narrow
|
Automotive steering wheel
|
|
36V HD
|
Automotive steering wheel
|
|
48V
|
Automotive steering wheel
|
|
Seats
|
|
|
24V Narrow
|
Bucket seat on slide adjusters
|
|
36V HD
|
Bucket seat on slide adjusters
|
|
48V
|
Bucket seat on slide adjusters
|
|
EQUIPMENT
|
|
|
Lights
|
|
|
24V Narrow
|
LED headlight & tail/brake light
|
|
36V HD
|
LED headlight & tail/brake light
|
|
48V
|
LED headlight & tail/brake light
|
|
Indicators
|
|
|
24V Narrow
|
Battery status indicator
|
|
36V HD
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
|
48V
|
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
|
|
Accessories
|
|
|
24V Narrow
|
Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life
|
|
36V HD
|
36V/12V converter for 12-volt accessories, bolt-on front bumper
|
|
48V
|
48V/12V converter for 12-volt accessories, bolt-on bumpers and rear wheel guards
|
|
Safety
|
|
|
24V Narrow
|
Reverse alarm, deadman seat switch, horn
|
|
36V HD
|
Reverse alarm, deadman seat switch, horn
|
|
48V
|
Reverse alarm, deadman seat switch, horn
|
|
|
|
|---|---|
|
|
|
|
VEHICLE
|
|
|
Weight
|
|
|
24V Narrow
|
|
|
36V HD
|
544 Kg
|
|
48V
|
544 Kg
|
|
Height
|
|
|
24V Narrow
|
1,140 mm
|
|
36V HD
|
1,120 mm
|
|
48V
|
1,140 mm
|
|
Length
|
|
|
24V Narrow
|
|
|
36V HD
|
1,980 mm
|
|
48V
|
1,980 mm
|
|
Width
|
|
|
24V Narrow
|
740 mm
|
|
36V HD
|
970 mm
|
|
48V
|
970 mm
|
|
Wheel Base
|
|
|
24V Narrow
|
1,320 mm
|
|
36V HD
|
1,320 mm
|
|
48V
|
1,290 mm
|
|
DECK
|
|
|
Deck Height
|
|
|
24V Narrow
|
630 mm
|
|
36V HD
|
630 mm
|
|
48V
|
630 mm
|
|
Deck Length
|
|
|
24V Narrow
|
500 mm
|
|
36V HD
|
530 mm
|
|
48V
|
530 mm
|
|
Deck Width
|
|
|
24V Narrow
|
740 mm
|
|
36V HD
|
960 mm
|
|
48V
|
960 mm
|
|
BATTERY
|
|
|
Battery Weight
|
|
|
24V Narrow
|
|
|
36V HD
|
|
|
48V
|
|
|
Battery Height
|
|
|
24V Narrow
|
600 m
|
|
36V HD
|
450 mm
|
|
48V
|
450 mm
|
|
Battery Length
|
|
|
24V Narrow
|
520 mm
|
|
36V HD
|
400 mm
|
|
48V
|
400 mm
|
|
Battery Width
|
|
|
24V Narrow
|
980 mm
|
|
36V HD
|
890 mm
|
|
48V
|
890 mm
|
Specifications and standard equipment are subject to change without notice.
