A high-capacity,
zero‑emission
refuse hauler.

Solve your trash problems and improve maintenance productivity. This zero-noise, zero-emission refuse hauler makes a great choice for shopping malls, campuses, resorts, and more. It holds an impressive 0.5 tons of trash, reducing the number of return trips needed per shift. Optional cab and roll-out battery compartment. A safe, rugged vehicle with unlimited configurations.

ul-logo@2x-40h
ansi-logo@2x-40h
MX 480 MODELS
Heading
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED

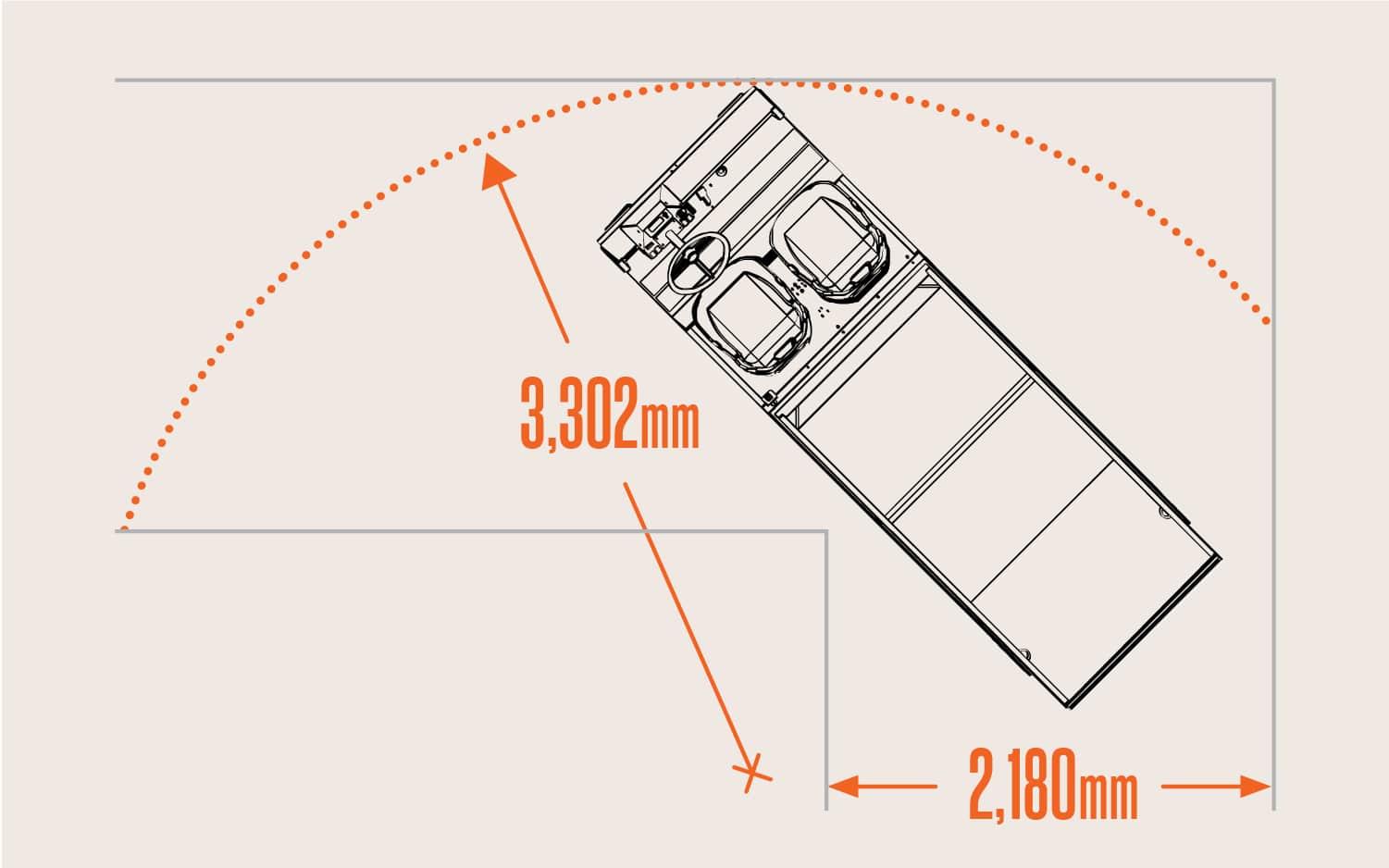

TURNING RADIUS
Refuse Hauler
2
1,587 Kg.
2,721 kg.
16 Kmh
3,200 mm
MX 480 MODELS
Refuse Hauler
PASSENGERS
2
LOAD CAPACITY
1,587 Kg.
TOWING CAPACITY
2,721 kg.
SPEED
16 Kmh
TURNING RADIUS
3,200 mm
CONSOLE
Console on steering column Complete console on steering column to put all controls
and displays conveniently right where your fingers and eyes are. Now with a tilted
steering column for a more ergonomic and natural driving posture to reduce
operator fatigue and strain.
Image are for illustrative purposes only
AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor Offers better control
for full motor performance, as well as higher possible speeds and better
torque at low speeds. Maintenance-free brushless electric motor
equipped with temperature and speed sensors.
Image are for illustrative purposes only
CONTROLLER
AC controller with sealed connectors paired with multifunction display Allows
for precise speed control for greater safety and vehicle performance. Includes
indicators for speed, battery state of charge, hour meter, odometer and fault
warnings. Password-protected parameters and monitoring capability.
Image are for illustrative purposes only
Previous
Next
SPECIFICATIONS
Refuse Hauler
POWERTRAIN
Motor
Brushless AC motor, 10 HP Max
(7.5 HP Continuous)
Drive Axle
Helical gear differential
Transmission
Direct drive
Controller
AC Electronic speed controller
ENERGY
Voltage
36V
Battery
Six 6V-225AH batteries
Charger
High-frequency (85-265VAC / 45-65Hz, 1kw),
built-in and automatic.
CHASSIS
Body
All-steel unibody construction. Powder Coating.
Suspension
Dual leaf springs on front and rear
Brakes
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
5.7x8 LRD pneumatic tires
Steering
Automotive steering wheel
Seats
Two premium seats on slide adjusters
EQUIPMENT
Lights
LED dual headlights & tail/brake lights, dual back-up lights
Indicators
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety
Deadman seat switch, reverse alarm, horn

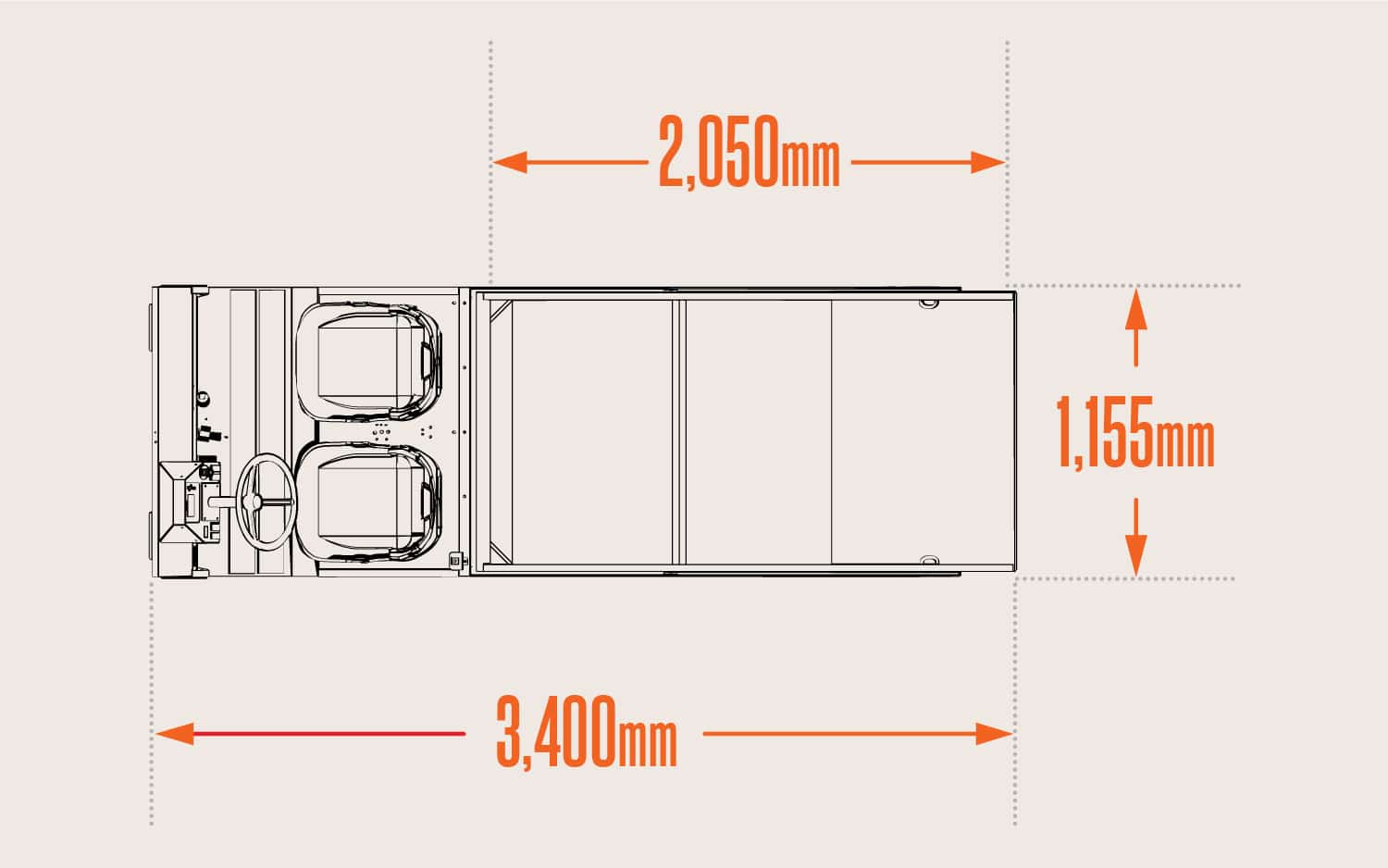

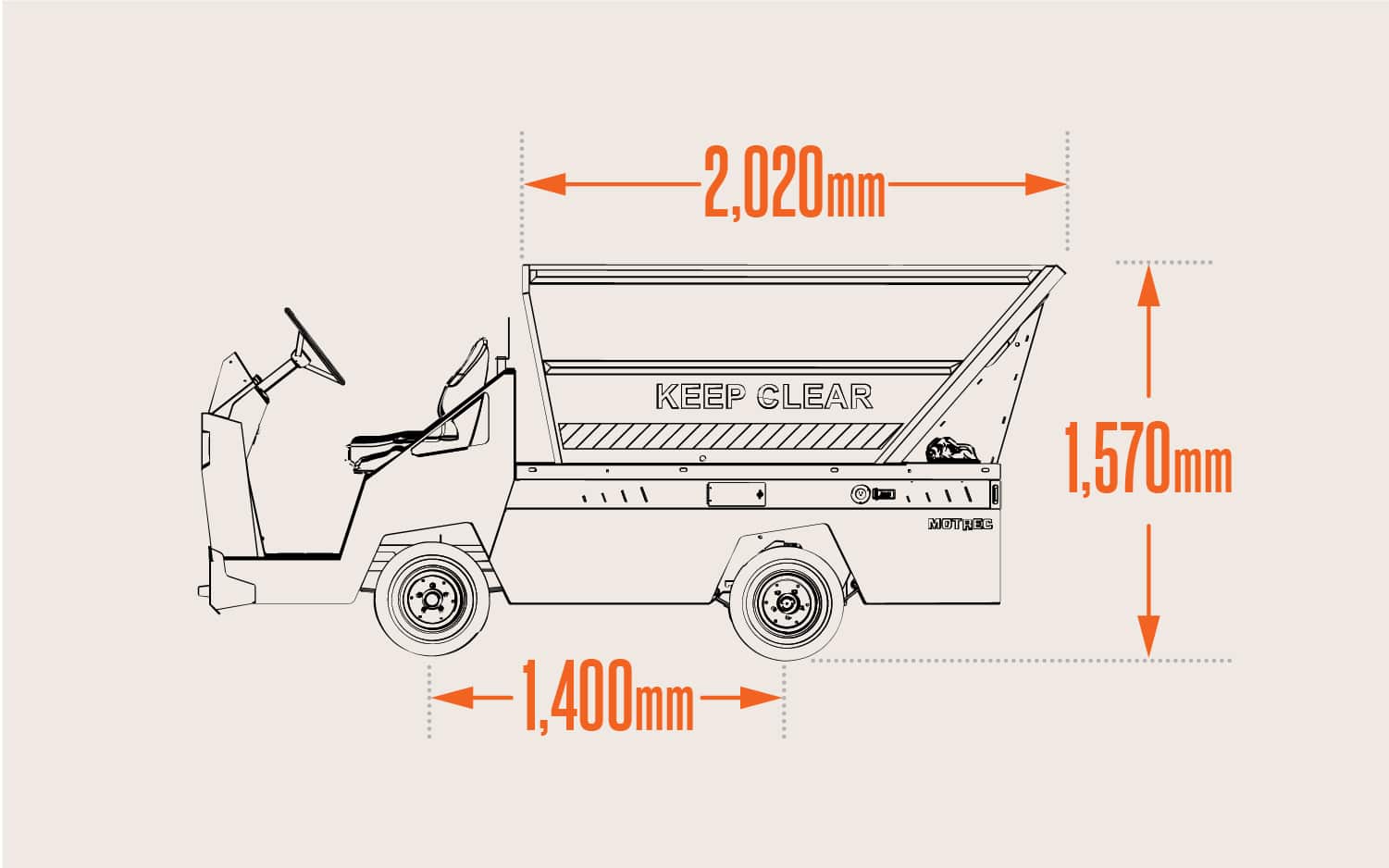

DIMENSIONS
VEHICLE
Weight
2,426 kg.
Height
1,140 mm
Length
3,200 mm
Width
1,140 mmn
Wheel Base
1,420 mm
DECK
Deck Height
780 mm
Deck Length
1,930 mm
Deck Width
1,140 mm
BATTERY
Battery Weight
Battery Height
Battery Length
Battery Width
SPECIFICATIONS
POWERTRAIN
Motor
Refuse Hauler
Brushless AC motor, 10 HP Max (7.5 HP Continuous)
Drive Axle
Refuse Hauler
Helical gear differential
Transmission
Refuse Hauler
Direct drive
Controller
Refuse Hauler
AC Electronic speed controller
ENERGY
Voltage
Refuse Hauler
36V
Battery
Refuse Hauler
Six 6V-225AH batteries
Charger
Refuse Hauler
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
CHASSIS
Body
Refuse Hauler
All-steel unibody construction. Powder Coating.
Suspension
Refuse Hauler
Dual leaf springs on front and rear
Brakes
Refuse Hauler
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
Refuse Hauler
5.7x8 LRD pneumatic tires
Steering
Refuse Hauler
Automotive steering wheel
Seats
Refuse Hauler
Two premium seats on slide adjusters
EQUIPMENT
Lights
Refuse Hauler
LED dual headlights & tail/brake lights, dual back-up lights
Indicators
Refuse Hauler
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Refuse Hauler
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety
Refuse Hauler
Deadman seat switch, reverse alarm, horn, automatic parking brake
DIMENSIONS
VEHICLE
Weight
Refuse Hauler
2,426 kg.
Height
Refuse Hauler
1,140 mm
Length
Refuse Hauler
3,200 mm
Width
Refuse Hauler
1,140 mm
Wheel Base
Refuse Hauler
1,420 mm
DECK
Deck Height
Refuse Hauler
780 mm
Deck Length
Refuse Hauler
1,930 mm
Deck Width
Refuse Hauler
1,140 mm
BATTERY
Battery Weight
Refuse Hauler
Battery Height
Refuse Hauler
Battery Length
Refuse Hauler
Battery Width
Refuse Hauler

Specifications and standard equipment are subject to change without notice.
