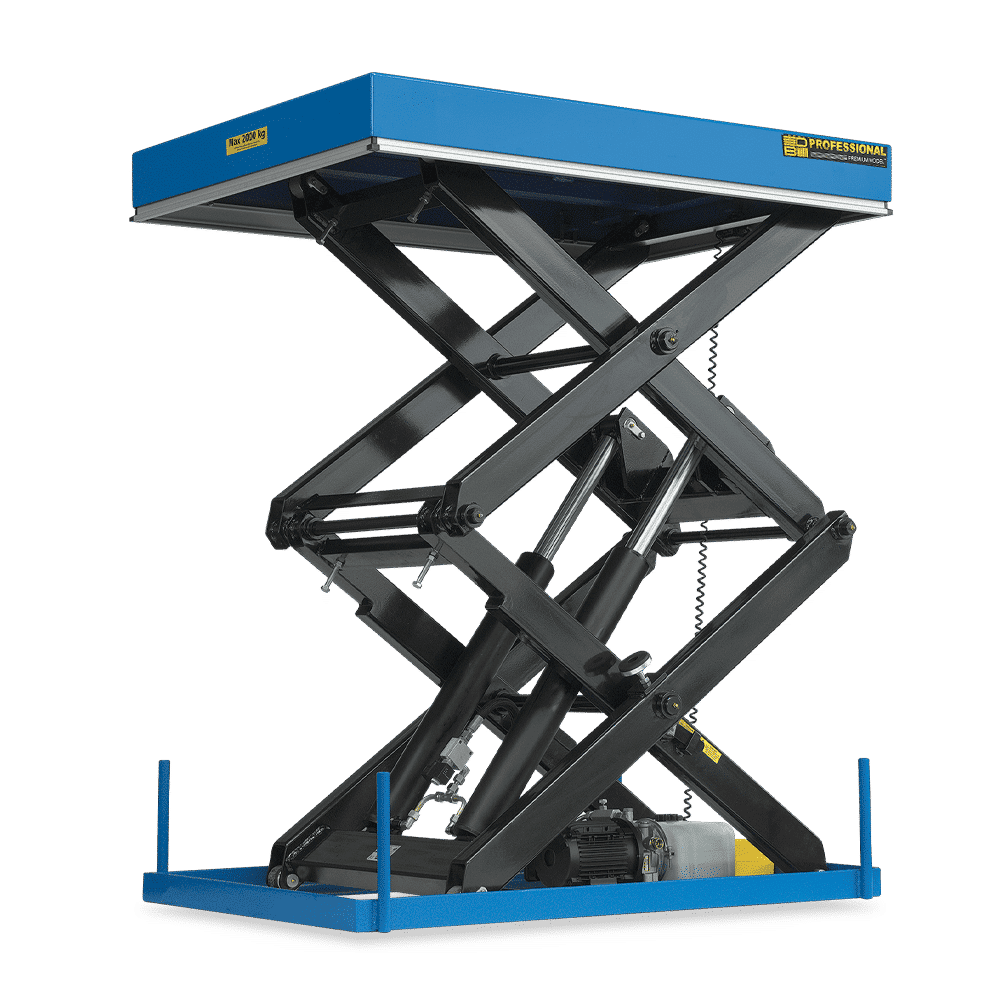

High Lift Scissor Lift Table

Code: 1941127
The Logistec High Scissor Lift Tables are designed to assist with issues faced by multi-level warehouses. These high quality scissor lift tables are driven by an electric motor mounted under the table, which is controlled by a pendant hand controller on a curly cable. The table utilizes a safety bar around the perimeter to sense any foreign objects in which case it will stop the movement instantly. These tables are normally operated from the factory floor but can be installed in a pit (require eye bolt lifting lugs). There are a range of standard models with varying capacities, lifting heights, table sizes etc. but they can be fully customised to user specifications.
Inbuilt compact hydraulic power unit. The unit is IP65 with the motor IP55
Cylinders fitted with a hose burst valve
Box beam scissor arms give superior lateral stability
Aluminum safety trip bar minimizes risk of injury
Upper travel limit switch with easy adjustment of stroke
Safety props for service and maintenance work
Electric components with protection class IP55
24V control voltage unit with 4m cable
Constant pressure push button controls

Specifications

Product Code 1941127
Product Name High Lift Scissor Lift Table
Capacity (kg) 1000
Max Platform Height (mm) 2050
Min Platform Height (mm) 450
Motor (kW) 3 Phase
Platform Size (mm) 1350 x 1200

Specifications

Product Code 1941127
Product Name High Lift Scissor Lift Table
Capacity (kg) 1000
Max Platform Height (mm) 2050
Min Platform Height (mm) 450
Motor (kW) 3 Phase
Platform Size (mm) 1350 x 1200
