Logistec Spring Pallet Positioner – Galvanised – Pallet Jack Compatible

Code: 5781448

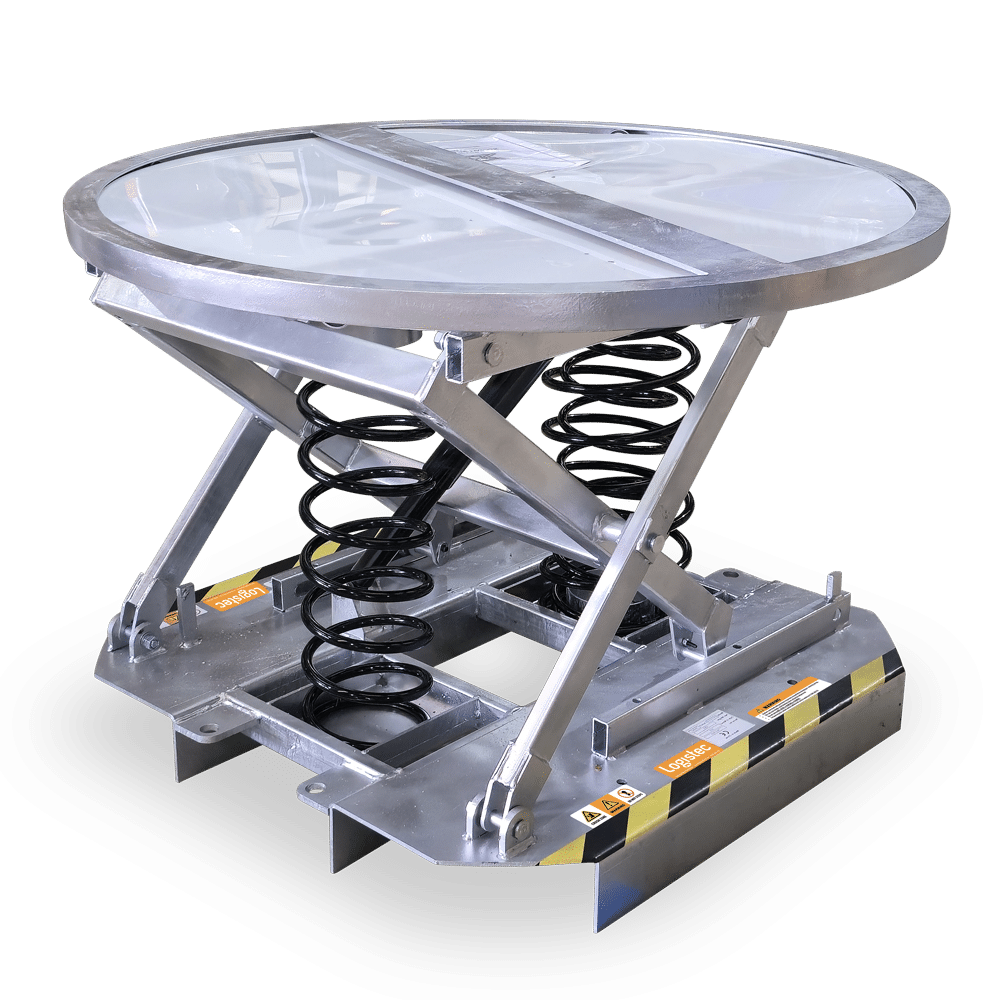

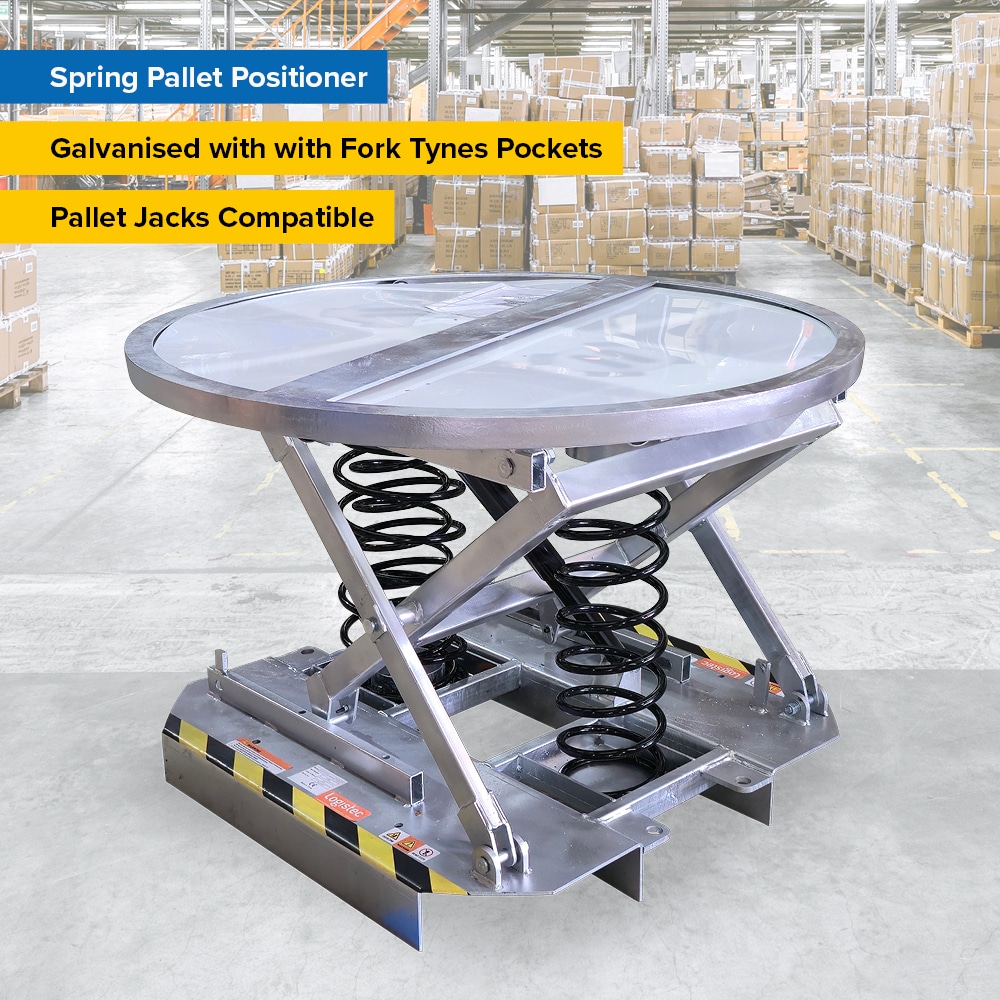

The Logistec Spring Pallet Positioner saves effort, time, and the risk of injury when loading and unloading pallets. It does this by keeping the top of a pallet load at an ergonomic height by automatically lifting or lowering as items are removed or added. The pallet load can also be rotated as the task proceeds allowing the operator to work from just one side of the pallet. It comes with three springs giving four spring combinations to suit different load weights. A mobile base is available as an option. It is suitable for most environments and with proper attention to the low maintenance requirements, this unit will provide years of trouble free service.

Spring Pallet Positioner Features

Suit Pallets From 190kg to 2000kg

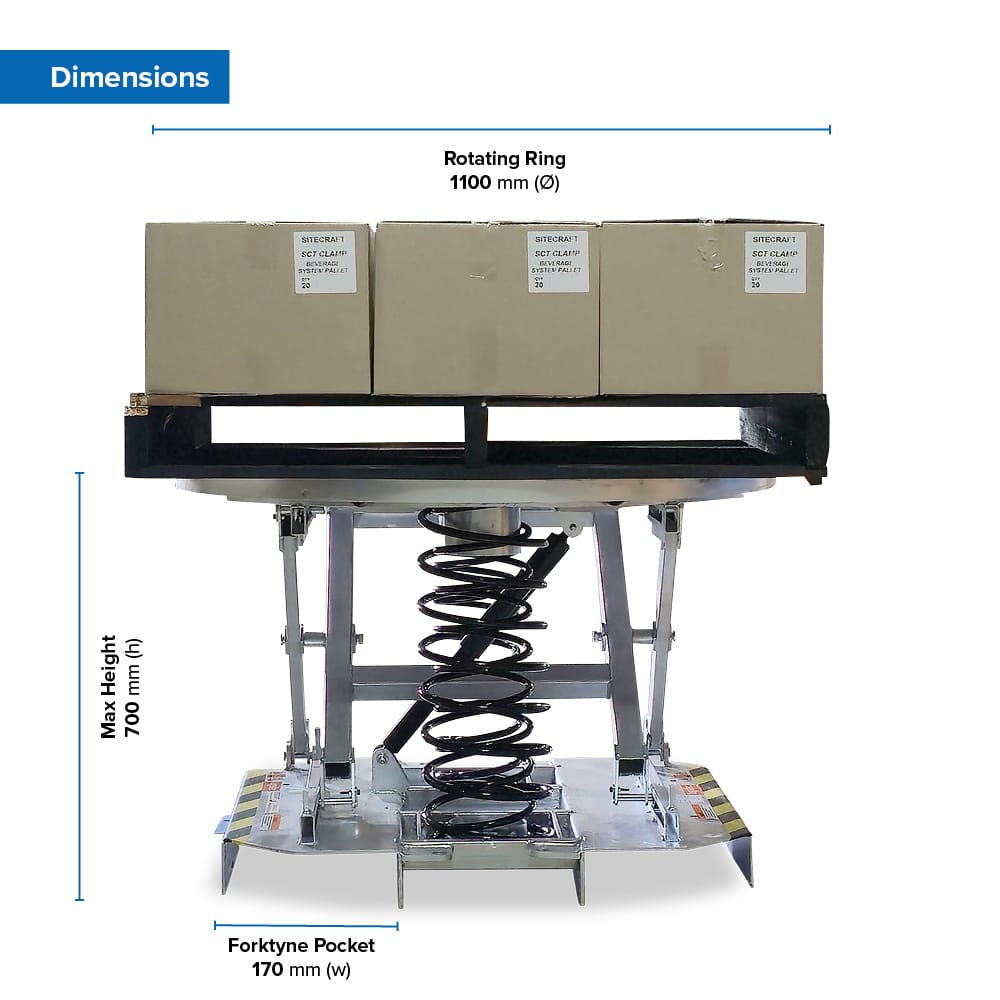

Compressed Height: 230mm
Raised Height: 700mm
Table Diameter: 1100mm
Unit Weight: 170kg

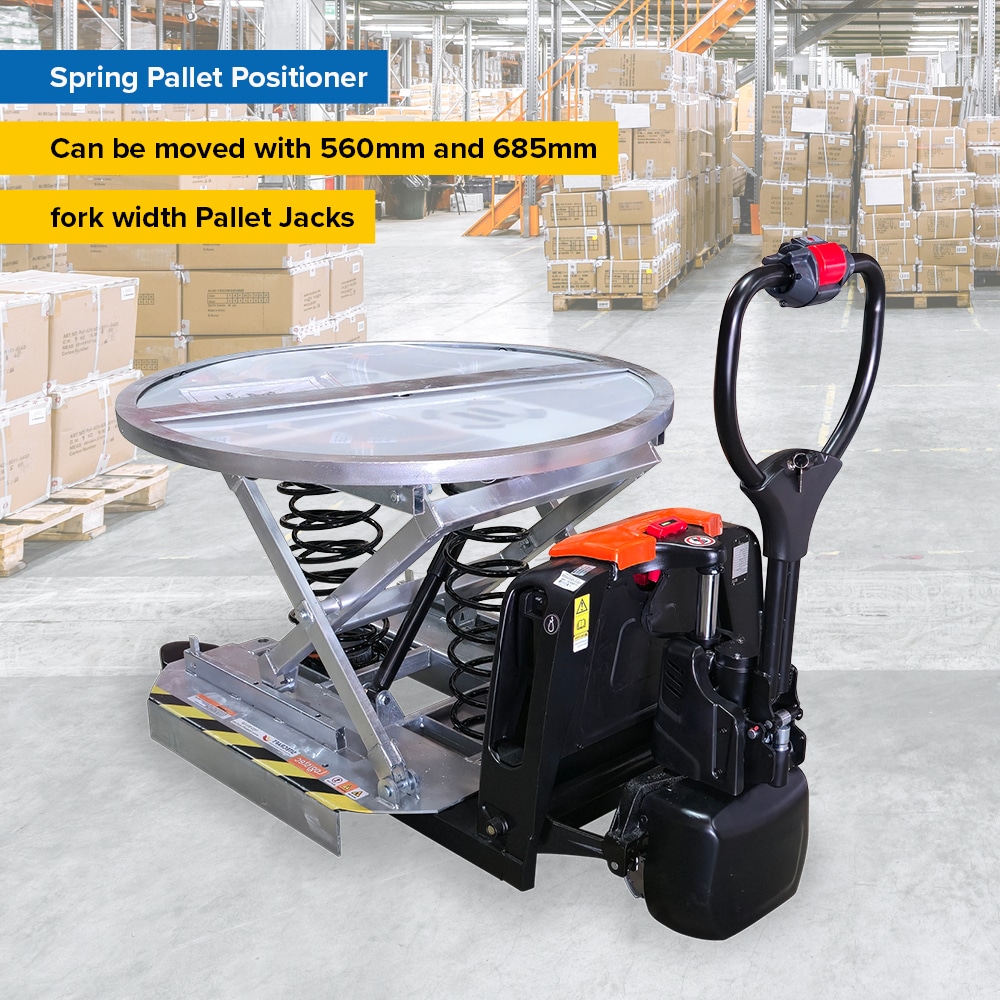

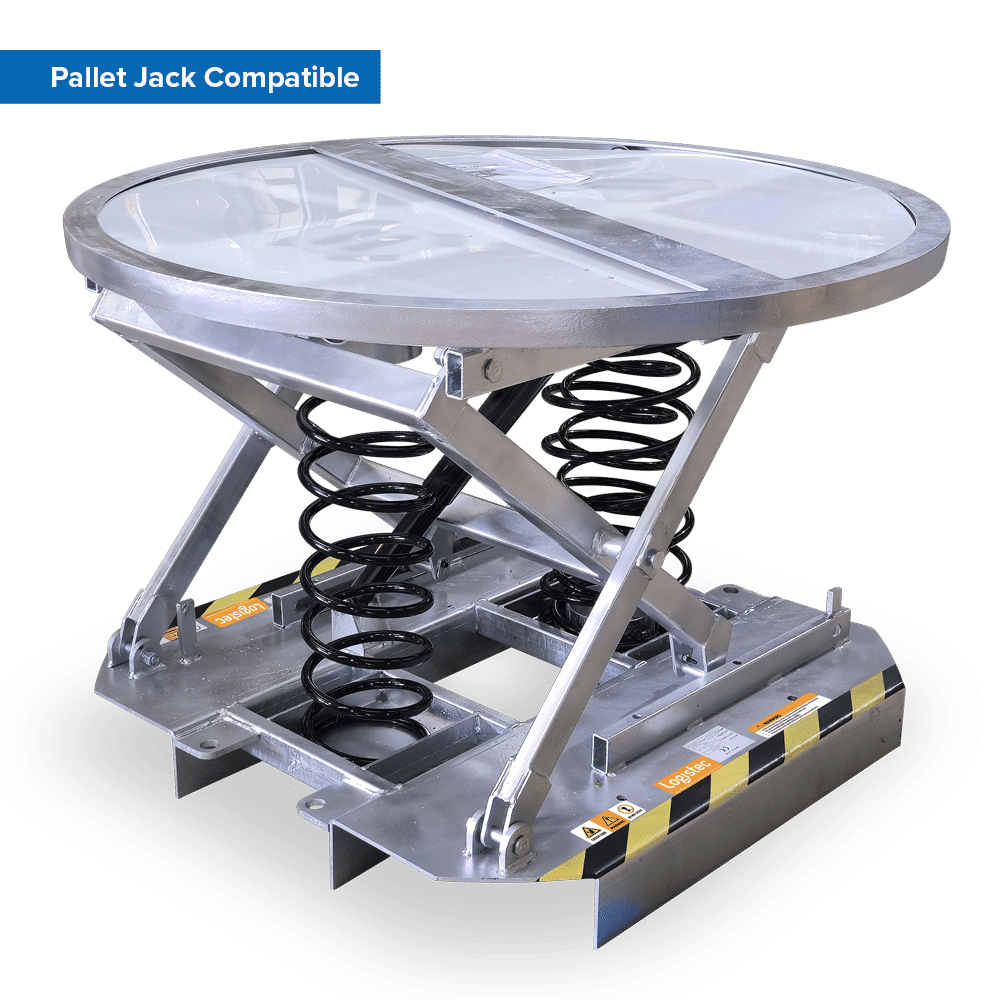

Modified base size to match with pallet jack (560mm, 685mm fork width)
3x Springs Included

Specifications

Product Code 5781448
Product Name Galvanised Logistec Spring Pallet Positioner, Pallet Jack Compatible
Diameter (mm) 1100mm
Lift Height (mm) 700
Load Capacity (kg) 2000kg
Low Height (mm) 230
Net Weight (kg) 170

Specifications

Product Code 5781448
Product Name Galvanised Logistec Spring Pallet Positioner, Pallet Jack Compatible
Diameter (mm) 1100mm
Lift Height (mm) 700
Load Capacity (kg) 2000kg
Low Height (mm) 230
Net Weight (kg) 170
