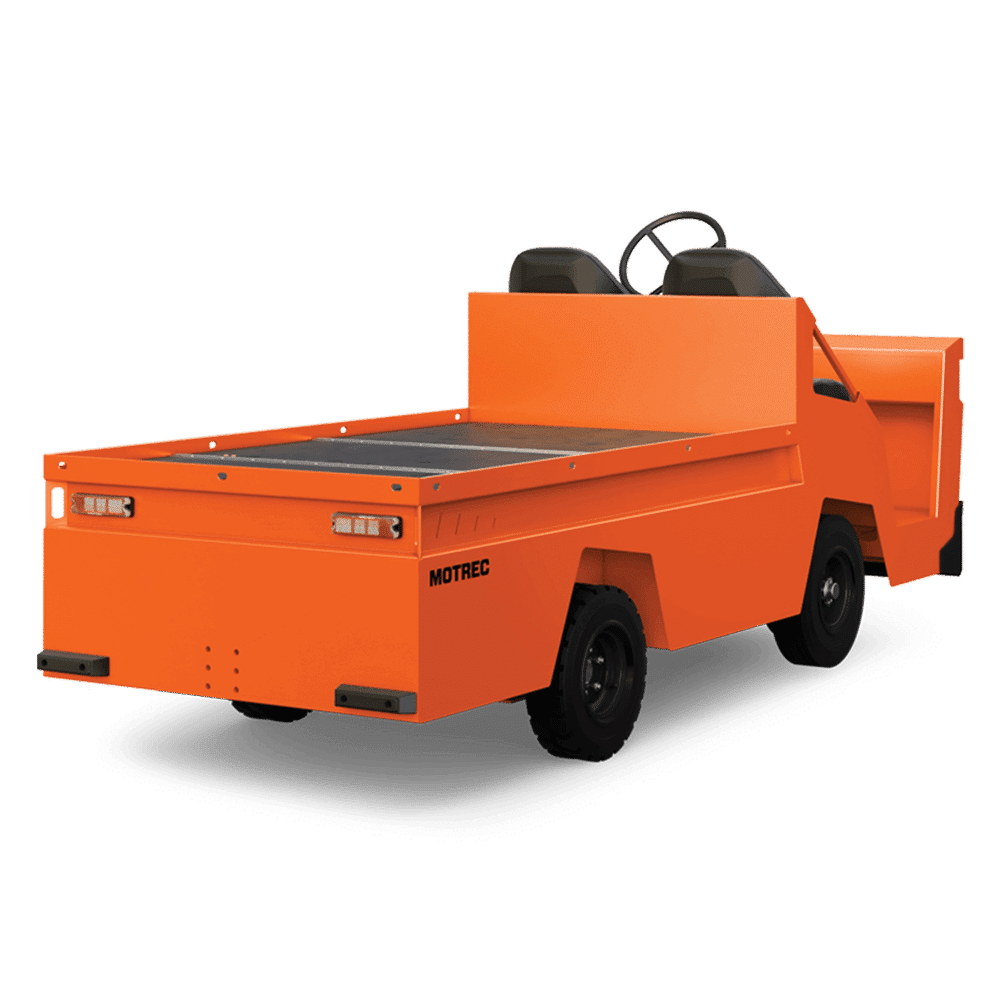

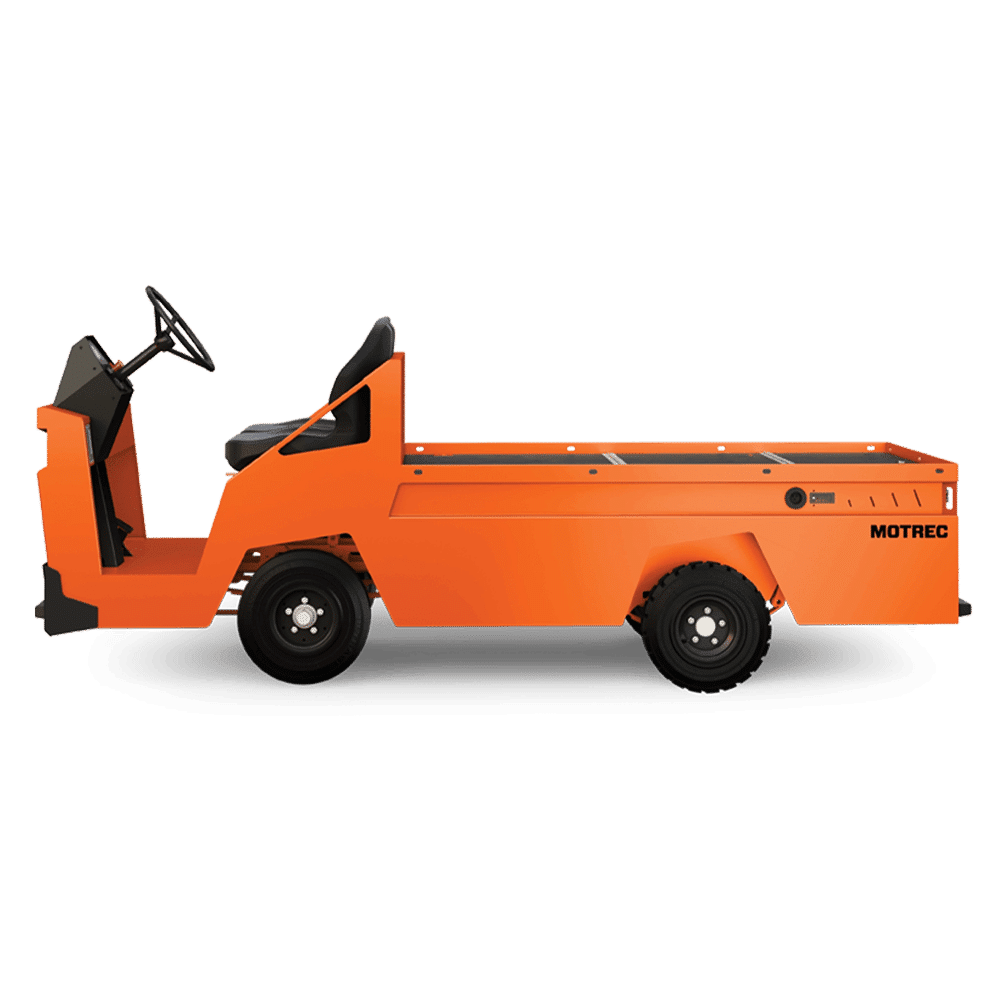

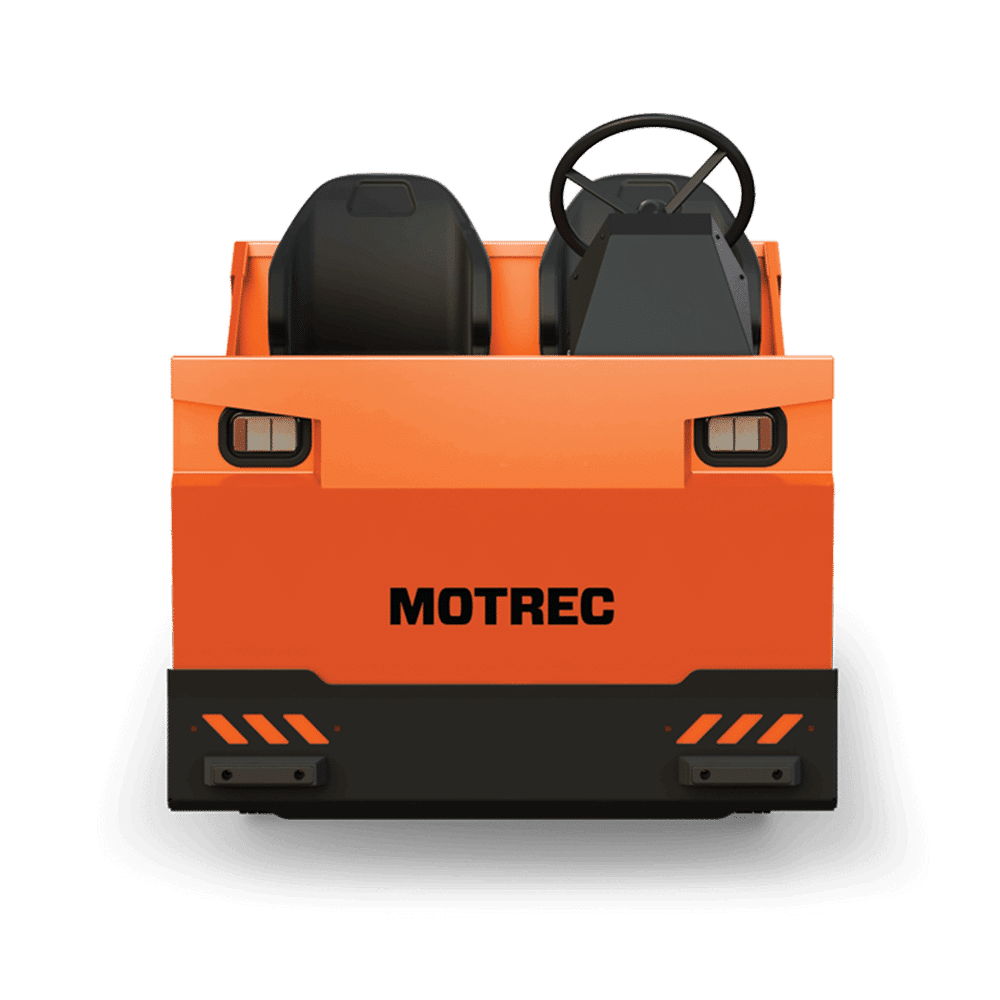

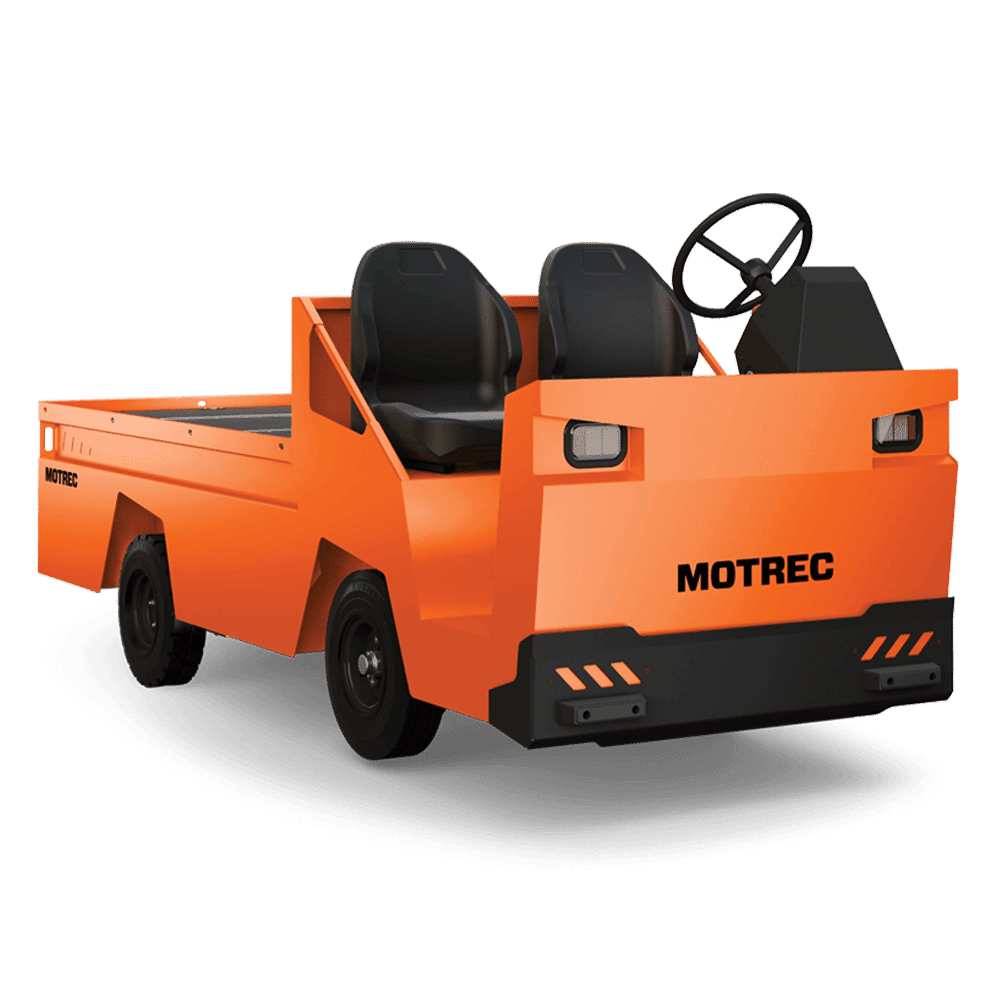

Motrec MC-480 Burden Carrier

Products Electric Utility Vehicles... Industrial Utility Vehicles Motrec MC-480 Burden Carrier

Motrec MC-480 Burden Carrier

VEHICLE TYPE | Utility Electric Vehicles

Code: 64491005_M

The MC-480 has long been the ruler of rugged, reliable burden carriers. On top of boasting a smart modular design, an all-steel unibody and advanced engineering, this high-efficiency AC vehicle offers a roomier and more ergonomic driver compartment to make long shifts more comfortable and productive. If you need a do-it-all vehicle that’s strong, safe and easy to operate, you can’t beat the MC-480 – or its unlimited configurations and 3-year warranty. EE rating available.

	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS


Specifications and standard equipment are subject to change without notice.
36V LD	2	907 kg	2721 kg	16 kmh	3,220 mm
48V LD	2	907 kg	2721 kg	16 kmh	3,220 mm
36V	2	1587 kg	2721 kg	16 kmh	3,220 mm
48V	2	1587 kg	2721 kg	16 kmh	3,220 mm
48V HD	2	2267 kg	2721 kg	16 kmh	3,220 mm

36V LD
Passengers	2
Load Capacity	907 kg
Towing Capacity	2721 kg
Speed	16 kmh
Turning Radius	3,220 mm

48V LD
Passengers	2
Load Capacity	907 kg
Towing Capacity	2721 kg
Speed	16 kmh
Turning Radius	3,220 mm

36V
Passengers	2
Load Capacity	1587 kg
Towing Capacity	2721 kg
Speed	16 kmh
Turning Radius	3,220 mm

48V
Passengers	2
Load Capacity	1587 kg
Towing Capacity	2721 kg
Speed	16 kmh
Turning Radius	3,220 mm

48V HD
Passengers	2
Load Capacity	2267 kg
Towing Capacity	2721 kg
Speed	16 kmh
Turning Radius	3,220 mm

36V LD	48V LD	36V	48V	48V HD

POWER TRAIN
Motor
Brushless AC motor, 10 HP Max (7.5 HP Continuous)	Brushless AC motor, 15 HP Max (9 HP Continuous)	Brushless AC motor, 10 HP Max (7.5 HP Continuous)	Brushless AC motor, 15 HP Max (9 HP Continuous)	Brushless AC motor, 15 HP Max (9 HP Continuous)
Drive Axel
Direct drive	Helical gear differential	Helical gear differential	Helical gear differential	Helical gear differential
Transmission
Helical gear differential	Direct drive	Direct drive	Direct drive	Direct drive
Controller
Electronic AC speed controller	Electronic AC speed controller	Electronic AC speed controller	Electronic AC speed controller	Electronic AC speed controller

ENERGY
Voltage
36V	48V	36V	48V	48V
Battery
Six 6V-225AH batteries	Eight 6V-225AH batteries	Six 6V-225AH batteries	Eight 6V-225AH batteries	Eight 6V-225AH batteries
Charger
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic

CHASSIS
Body
All-steel unibody construction. Powder Coated.	All-steel unibody construction. Powder Coated.	Brushless AC motor, 10 HP Max (7.5 HP Continuous)	Brushless AC motor, 15 HP Max (9 HP Continuous)	Brushless AC motor, 15 HP Max (9 HP Continuous)
Suspension
Dual leaf springs on front and rear	Dual leaf springs on front and rear	Dual leaf springs on front and rear	Dual leaf springs on front and rear	Dual leaf springs on front and rear
Brakes
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking	Rear hydraulic drum brakes, hand lever parking brake, regenerative braking	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking	Rear disc brakes, electromagnetic parking brake with manual hand release, regenerative braking
Wheels
5.7×8 LRD pneumatic tires	5.7×8 LRD pneumatic tires	5.7×8 LRD pneumatic tires	5.7×8 LRD pneumatic tires	500×8 solid softy rubber wheels on split rims
Steering
Automotive steering wheel, tilted steering column	Automotive steering wheel, tilted steering column	Automotive steering wheel, tilted steering column	Automotive steering wheel, tilted steering column	Automotive steering wheel, tilted steering column
Seats
Two bucket seats on slide adjusters	Two bucket seats on slide adjusters	Two premium seats on slide adjusters	Two premium seats on slide adjusters	Two premium seats on slide adjusters

EQUIPMENT
Lights
LED dual headlights & tail/brake lights, dual back-up lights	LED dual headlights & tail/brake lights, dual back-up lights	LED dual headlights & tail/brake lights, dual back-up lights	LED dual headlights & tail/brake lights, dual back-up lights	LED dual headlights & tail/brake lights, dual back-up lights
Indicators
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Safety
Deadman seat switch, reverse alarm, horn	Deadman seat switch, reverse alarm, horn, automatic parking brake	Deadman seat switch, reverse alarm, horn, automatic parking brake	Deadman seat switch, reverse alarm, horn, automatic parking brake	Deadman seat switch, reverse alarm, horn, automatic parking brake

Specifications and standard equipment are subject to change without notice.

Motor
36V LD	Brushless AC motor, 10 HP Max (7.5 HP Continuous)
48V LD	Brushless AC motor, 15 HP Max (9 HP Continuous)
36V	Brushless AC motor, 10 HP Max (7.5 HP Continuous)
48V	Brushless AC motor, 15 HP Max (9 HP Continuous)
48V HD	Brushless AC motor, 15 HP Max (9 HP Continuous)

Drive Axle
36V LD	Direct drive
48V LD	Helical gear differential
36V	Helical gear differential
48V	Helical gear differential
48V	Helical gear differential

Transmission
36V LD	Helical gear differential
48V LD	Direct drive
36V	Direct drive
48V	Direct drive
48V HD	Direct drive

Controller
36V LD	Electronic AC speed controller
48V LD	Electronic AC speed controller
36V	Electronic AC speed controller
48V	Electronic AC speed controller
48V HD	Electronic AC speed controller

Voltage
36V LD	36V
48V LD	48V
36V	36V
48V	48V
48V HD	48V

Battery
36V LD	Six 6V-225AH batteries
48V LD	Eight 6V-225AH batteries
36V	Six 6V-225AH batteries
48V	Eight 6V-225AH batteries
48V HD	Eight 6V-225AH batteries

Charger
36V LD	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V LD	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
36V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V HD	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic

Body
36V LD	All-steel unibody construction. Powder Coated.
48V LD	All-steel unibody construction. Powder Coated.
36V	All-steel unibody construction. Powder Coated.
48V	All-steel unibody construction. Powder Coated.
48V HD	All-steel unibody construction. Powder Coated.

Suspension
36V LD	Dual leaf springs on front and rear
48V LD	Dual leaf springs on front and rear
36V	Dual leaf springs on front and rear
48V	Dual leaf springs on front and rear
48V HD	Dual leaf springs on front and rear

Brakes
36V LD	Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
48V LD	Rear hydraulic drum brakes, hand lever parking brake, regenerative braking
36V	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
48V	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
48V HD	Rear disc brakes, electromagnetic parking brake with manual hand release, regenerative braking

Wheels
36V LD	5.7×8 LRD pneumatic tires
48V LD
36V	5.7×8 LRD pneumatic tires
48V	5.7×8 LRD pneumatic tires
48V HD	500×8 solid softy rubber wheels on split rims

Steering
36V LD	Automotive steering wheel, tilted steering column
36V LD	Automotive steering wheel, tilted steering column
36V	Automotive steering wheel, tilted steering column
48V	Automotive steering wheel, tilted steering column
48V HD	Automotive steering wheel, tilted steering column

Seats
36V LD	Two bucket seats on slide adjusters
48V LD	Two bucket seats on slide adjusters
36V	Two premium seats on slide adjusters
48V	Two premium seats on slide adjusters
48V HD	Two premium seats on slide adjusters

Lights
36V LD	LED dual headlights & tail/brake lights, dual back-up lights
36V LD	LED dual headlights & tail/brake lights, dual back-up lights
36V	LED dual headlights & tail/brake lights, dual back-up lights
48V	LED dual headlights & tail/brake lights, dual back-up lights
48V HD	LED dual headlights & tail/brake lights, dual back-up lights

Indicators
36V LD	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V LD	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
36V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
48V HD	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.

Accessories
36V LD	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
48V LD	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
36V	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
48V	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
48V HD	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator

Safety
36V LD	Deadman seat switch, reverse alarm, horn
48V LD	Deadman seat switch, reverse alarm, horn, automatic parking brake
36V	Deadman seat switch, reverse alarm, horn, automatic parking brake
48V	Deadman seat switch, reverse alarm, horn, automatic parking brake
48V HD	Deadman seat switch, reverse alarm, horn, automatic parking brake

Specifications and standard equipment are subject to change without notice.

36V LD	48V LD	36V	48V	48V HD

VEHICLE DIMENSIONS
Height
1,140 mm	1,140 mm	1,140 mm	1,140 mm	1,140 mm
Length
3,200 mm	3,200 mm	3,200 mm	3,200 mm	3,200 mm
Width
1,140 mm	1,140 mm	1,140 mm	1,140 mm	1,140 mm
Wheel Base
1,420 mm	1,420 mm	1,420 mm	1,420 mm	1,420 mm

DECK DIMENSIONS
Deck Height
790 mm		790 mm	790 mm	790 mm
Deck Length
1,930 mm	1,930 mm	1,930 mm	1,930 mm	1,930 mm
Deck Width
1,140 mm	1,140 mm	1,140 mm	1,140 mm	1,140 mm

BATTERY DIMENSIONS
Battery Weight
–	–	–	–	–
Battery Height
–	–	–	–	–
Battery Length
–	–	–	–	–
Battery Width
–	–	–	–	–

Specifications and standard equipment are subject to change without notice.

Height
36V LD	1,140 mm
48V LD	1,140 mm
36V	1,140 mm
48V	1,140 mm
48V HD	1,140 mm

Length
36V LD	3,200 mm
48V LD	3,200 mm
36V	3,200 mm
48V	3,200 mm
48V HD	3,200 mm

Width
36V LD	1,140 mm
48V LD	1,140 mm
36V	1,140 mm
48V	1,140 mm
48V HD	1,140 mm

Wheel Base
36V LD	1,420 mm
48V LD	1,420 mm
36V	1,420 mm
48V	1,420 mm
48V HD	1,420 mm

Deck Height
36V LD	790 mm
48V LD
36V	790 mm
48V	790 mm
2	790 mm

Deck Length
36V LD	1,930 mm
48V LD	1,930 mm
36V	1,930 mm
48V	1,930 mm
48V HD	1,930 mm

Deck Width
36V LD	1,140 mm
48V LD	1,140 mm
36V	1,140 mm
48V	1,140 mm
48V HD	1,140 mm

Specifications and standard equipment are subject to change without notice.
