24V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 900 kg |
Speed | 11 kmh |
Turning Radius | 1800 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 2700 kg |
Speed | 14.5 kmh |
Turning Radius | 1800 mm |

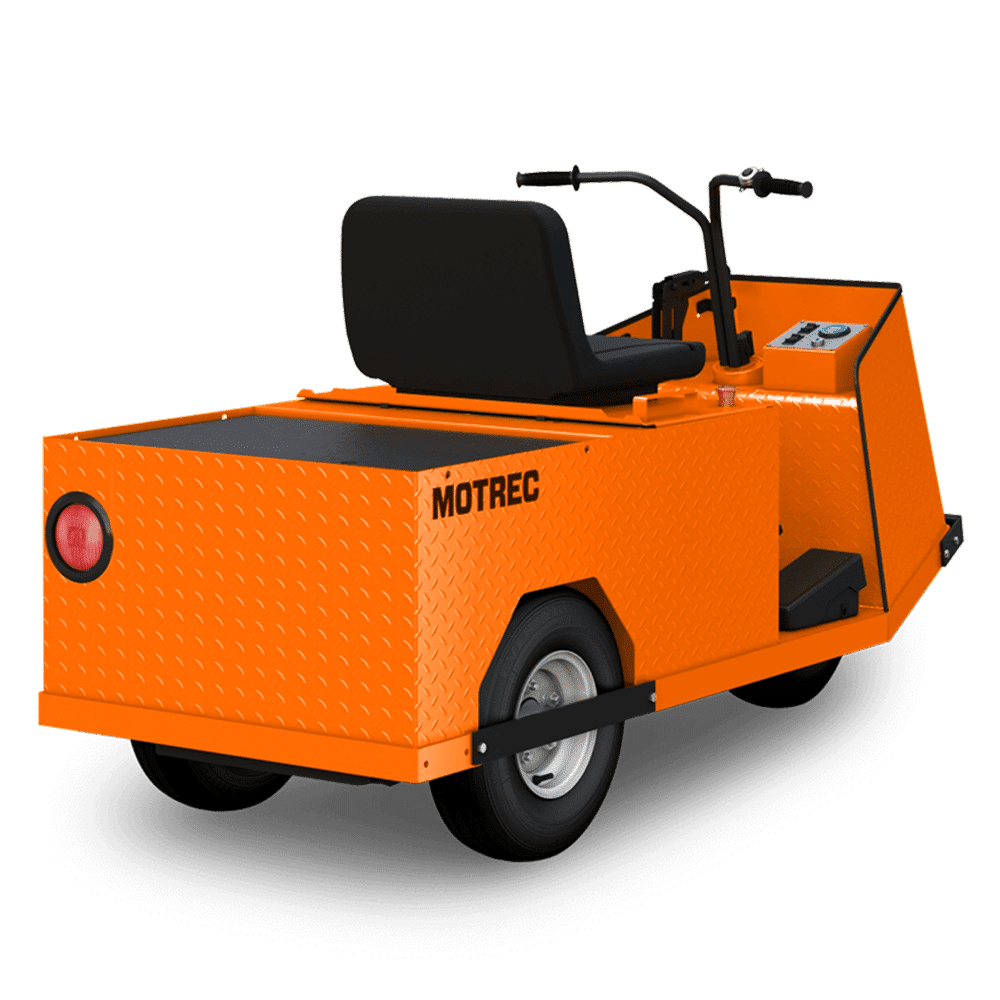

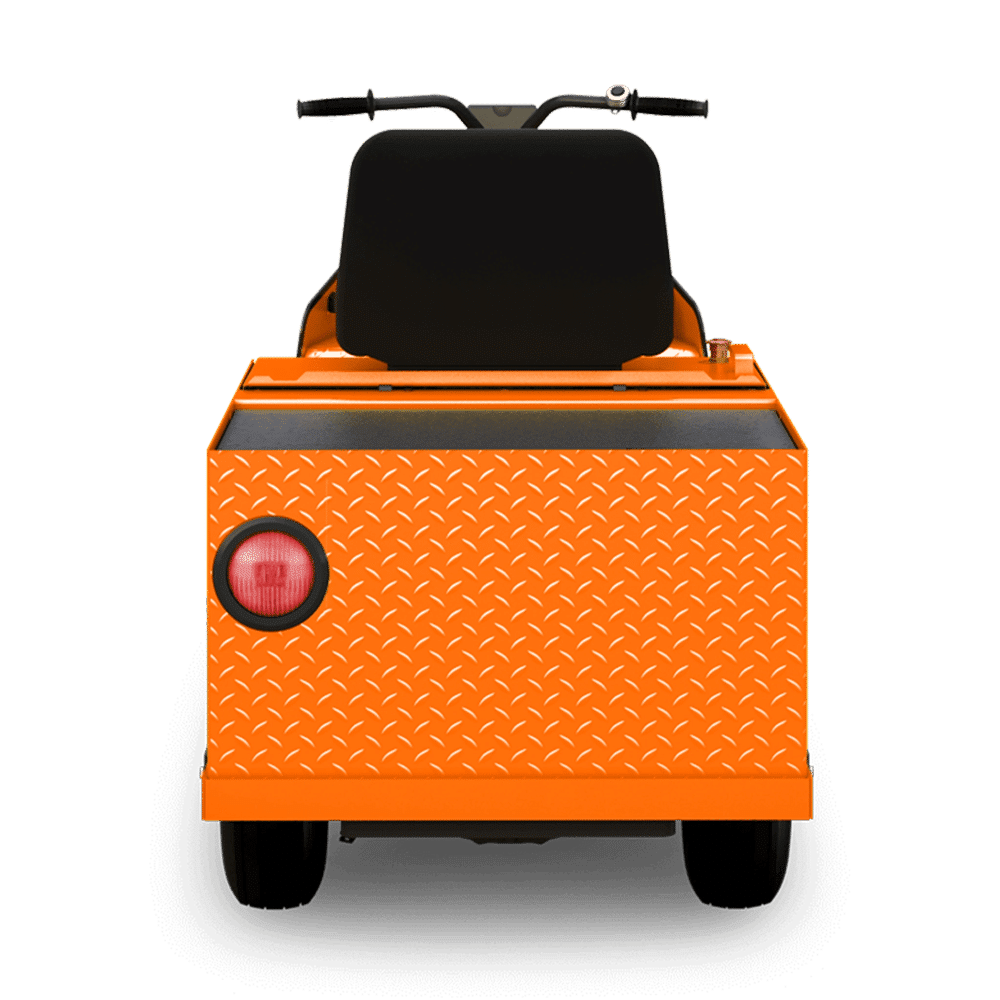

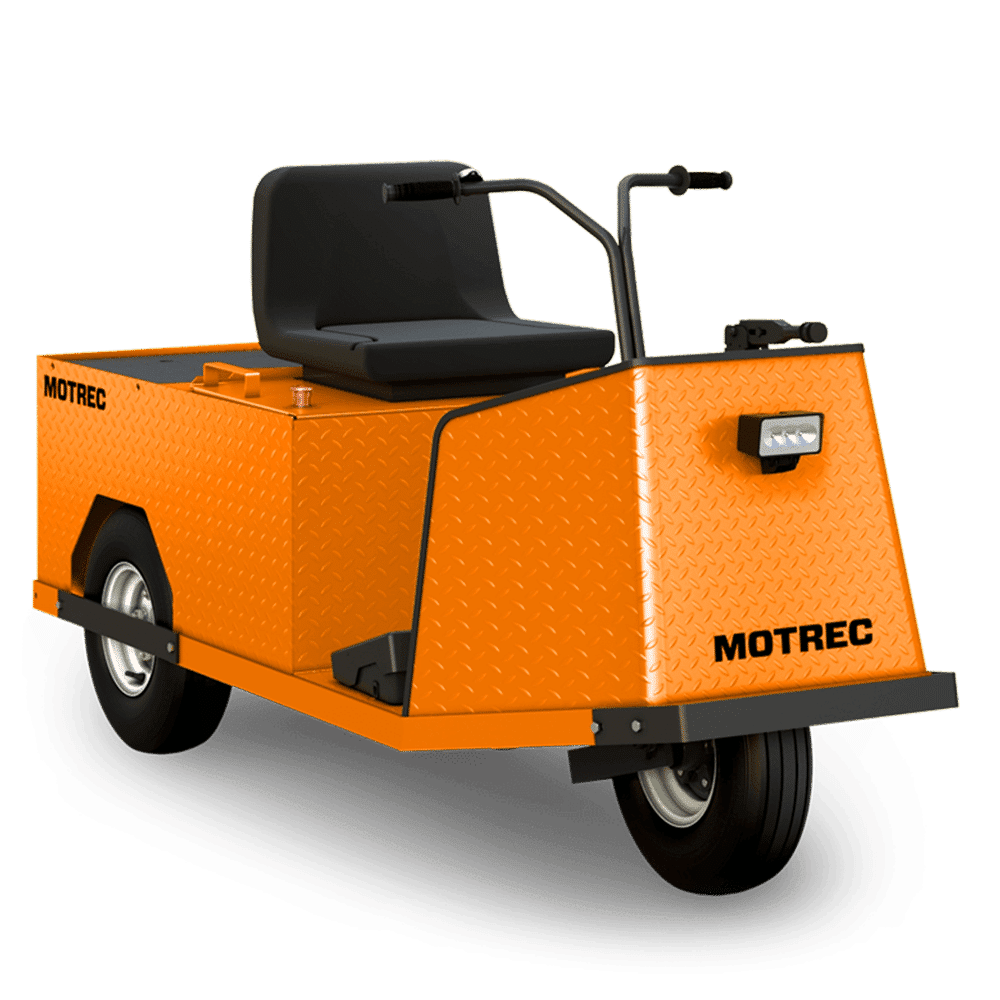

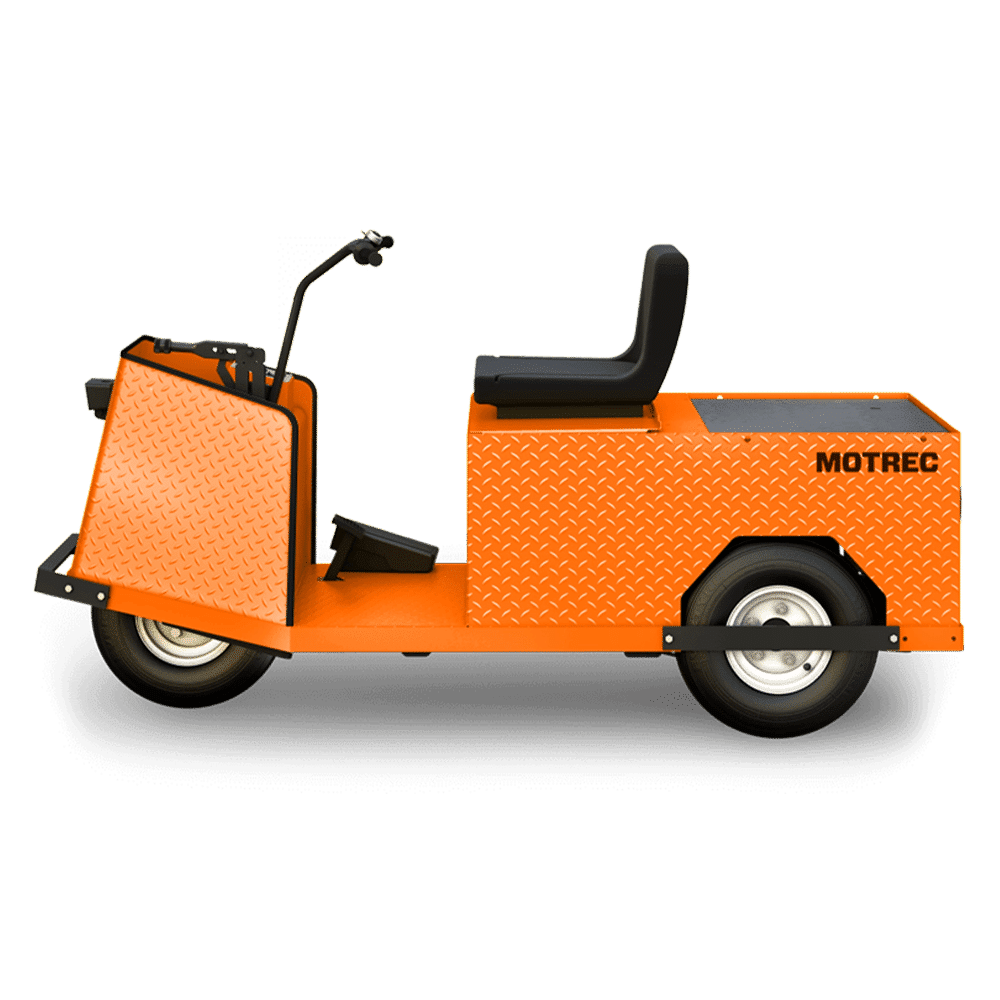

The MP-240 is an economic and cost-effective vehicle that can adapt to any industry. It’s narrow and maneuverable enough to fit through door openings, but tough enough to withstand years of abuse. It’ll move you and your stock three times faster than on foot, quickly boosting operational productivity. Features include under-seat battery compartment, low-step entry, and front and lateral protection bars. Optional lift-out battery box and fold-down back seat. A multi-purpose vehicle offering great value and day-to-day reliability.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
24V | 1 | 230 kg | 900 kg | 11 kmh | 1800 mm |
36V | 1 | 230 kg | 2700 kg | 14.5 kmh | 1800 mm |
24V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 900 kg |
Speed | 11 kmh |
Turning Radius | 1800 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 2700 kg |
Speed | 14.5 kmh |
Turning Radius | 1800 mm |
24V | 36V |
|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
5 HP brushless AC motor | 10 HP brushless AC motor | ||||
Drive Axel | |||||
Helical gear differential | Helical gear differential | ||||
Transmission | |||||
Direct drive | Direct drive | ||||
Controller | |||||
SEPEX Electronic speed controller | SEPEX Electronic speed controller | ||||
ENERGY | |
|---|---|
Voltage | |
24V | 36V |
Battery | |
Four 6V-225AH batteries | Six 6V-225AH batteries |
Charger | |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
CHASSIS | |
|---|---|
Body | |
14-G diamond-plate steel body, tubular frame, powder coating | 14-G diamond-plate steel body, tubular frame, powder coating |
Suspension | |
Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear | Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear |
Brakes | |
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
Wheels | |
4.8×8 LRC pneumatic tires | 4.8×8 LRC pneumatic tires |
Steering | |
Handlebar | Handlebar |
Seats | |
Bucket seat on slide adjusters | Bucket seat on slide adjusters |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
Dual LED headlights & tail/brake lights | Dual LED headlights & tail/brake lights | ||||
Indicators | |||||
Battery status indicator | Battery status indicator | ||||
Accessories | |||||
Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life | ||||
Safety | |||||
Reverse alarm, Deadman foot switch, Horn | Reverse alarm, Deadman foot switch, Horn | ||||
Specifications and standard equipment are subject to change without notice.
Motor | |
|---|---|
24V | 10 HP brushless AC motor |
24V | 10 HP brushless AC motor |
Drive Axle | |
|---|---|
24V | Helical gear differential |
36V | Helical gear differential |
Transmission | |
|---|---|
24V | Direct drive |
36V | Direct drive |
Controller | |
|---|---|
24V | SEPEX Electronic speed controller |
36V | SEPEX Electronic speed controller |
Voltage | |
|---|---|
24V | 24V |
24V | 36V |
Battery | |
|---|---|
24V | Four 6V-225AH batteries |
36V | Six 6V-225AH batteries |
Charger | |
|---|---|
24V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
36V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
Body | |
|---|---|
24V | 14-G diamond-plate steel body, tubular frame, powder coating |
36V | 14-G diamond-plate steel body, tubular frame, powder coating |
Suspension | |
|---|---|
24V | Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear |
24V | Dual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear |
Brakes | |
|---|---|
24V | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
36V | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
Wheels | |
|---|---|
24V | 4.8×8 LRC pneumatic tires |
36V | 4.8×8 LRC pneumatic tires |
Steering | |
|---|---|
24V | Handlebar |
36V | Handlebar |
Seats | |
|---|---|
24V | Bucket seat on slide adjusters |
36V | Bucket seat on slide adjusters |
Lights | |
|---|---|
24V | Dual LED headlights & tail/brake lights |
36V | Dual LED headlights & tail/brake lights |
Indicators | |
|---|---|
24V | Battery status indicator |
36V | Battery status indicator |
Accessories | |
|---|---|
24V | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life |
36V | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life |
Safety | |
|---|---|
24V | Reverse alarm, Deadman foot switch, Horn |
36V | Reverse alarm, Deadman foot switch, Horn |
Specifications and standard equipment are subject to change without notice.
