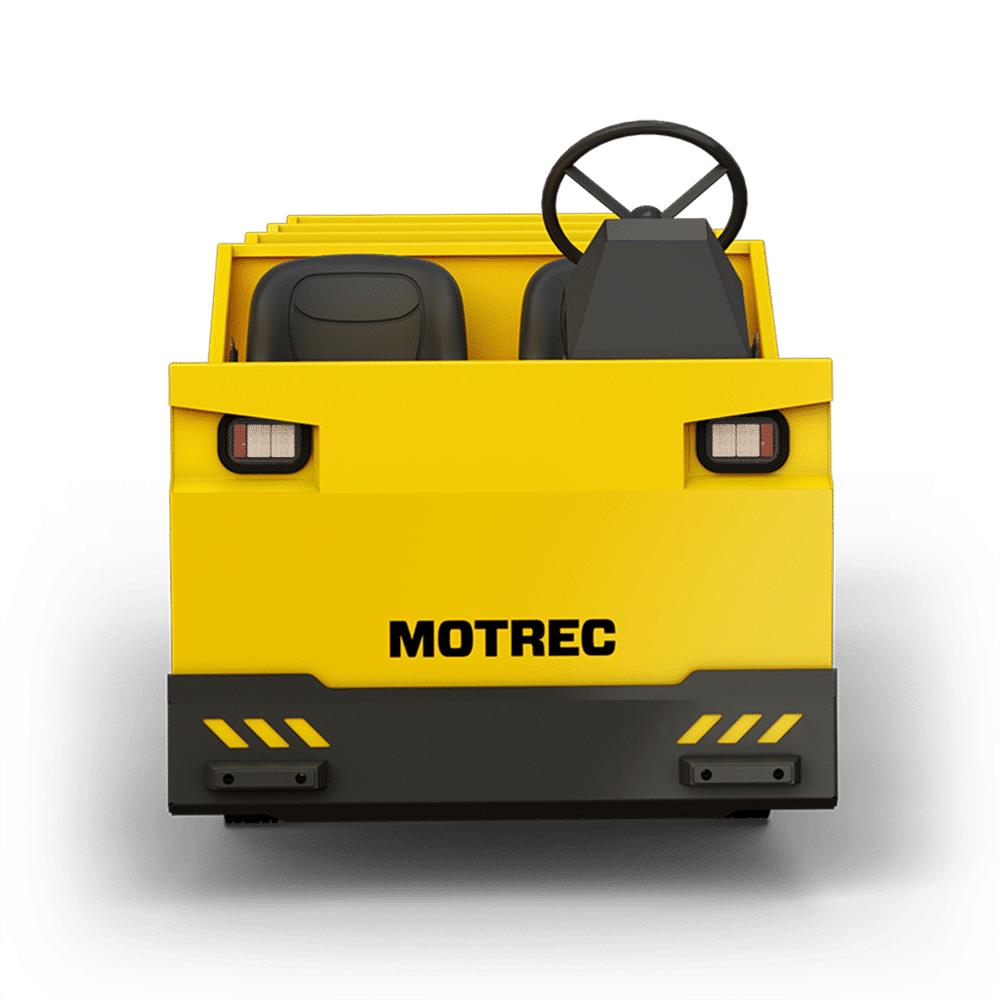

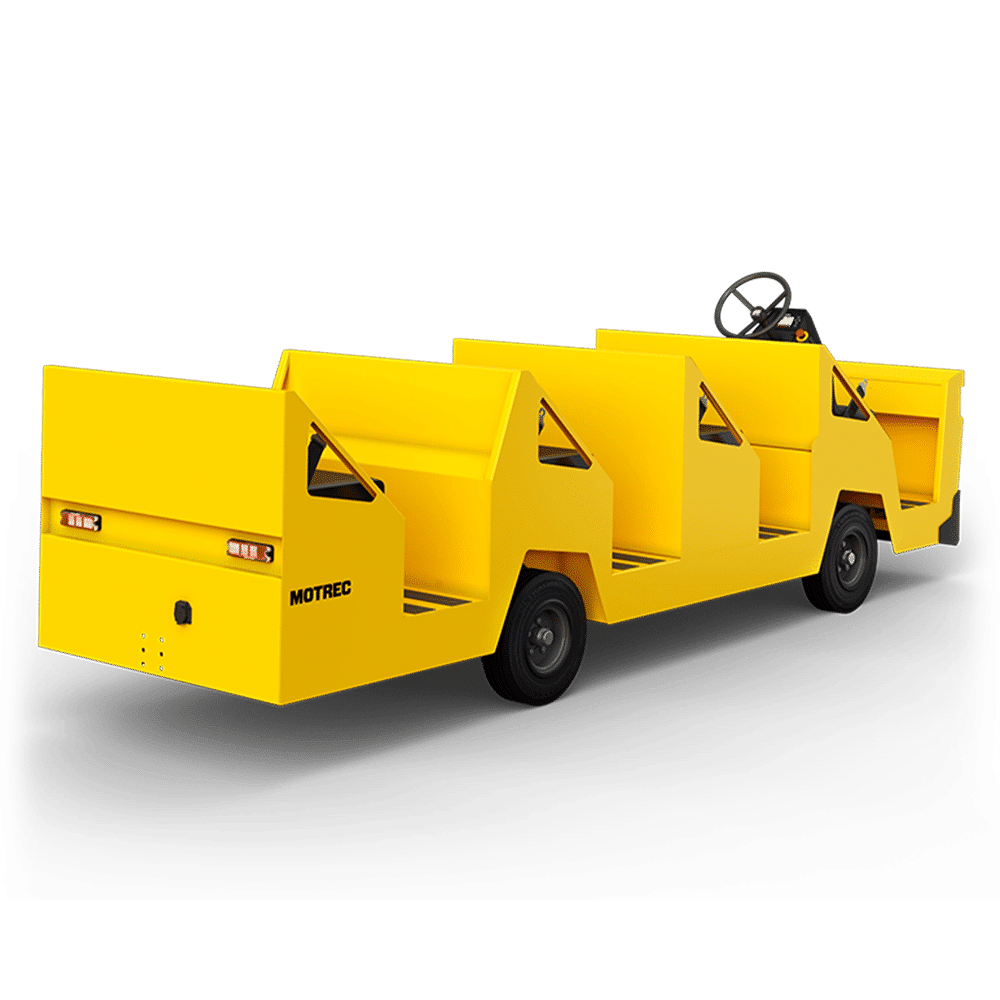

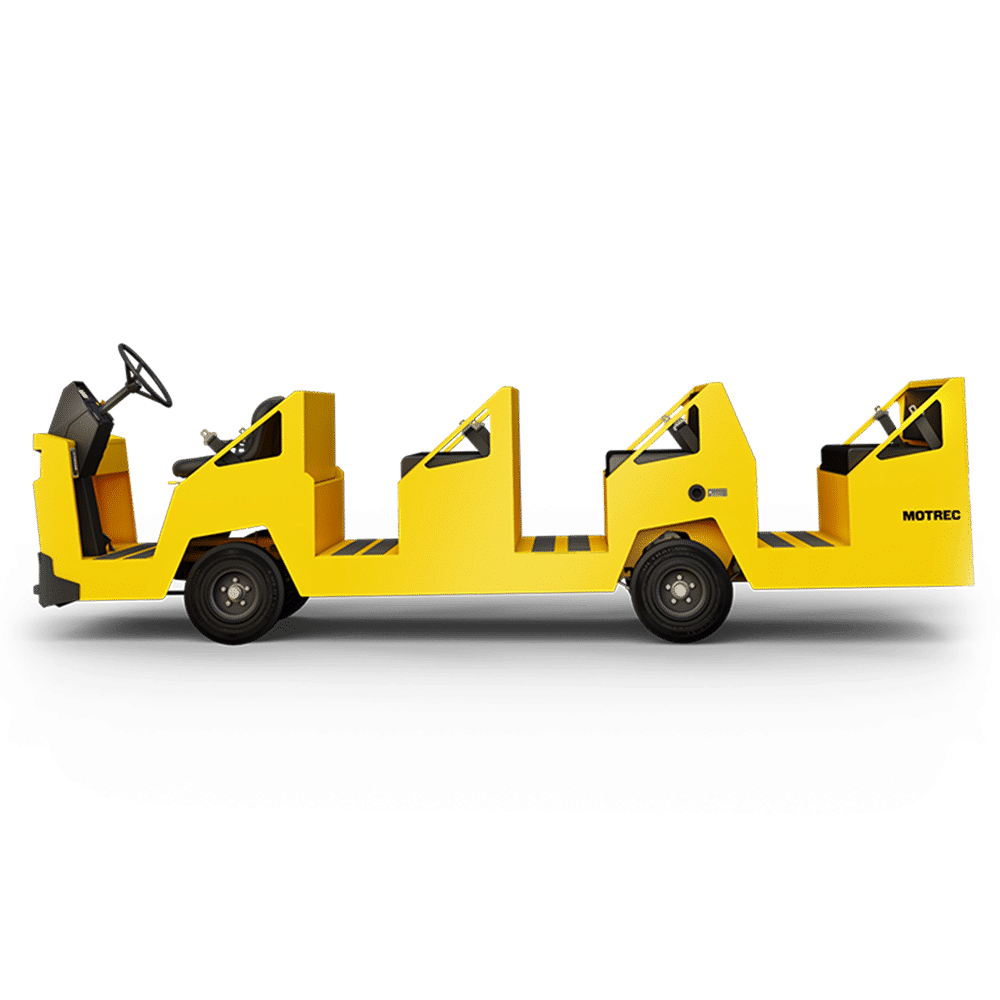

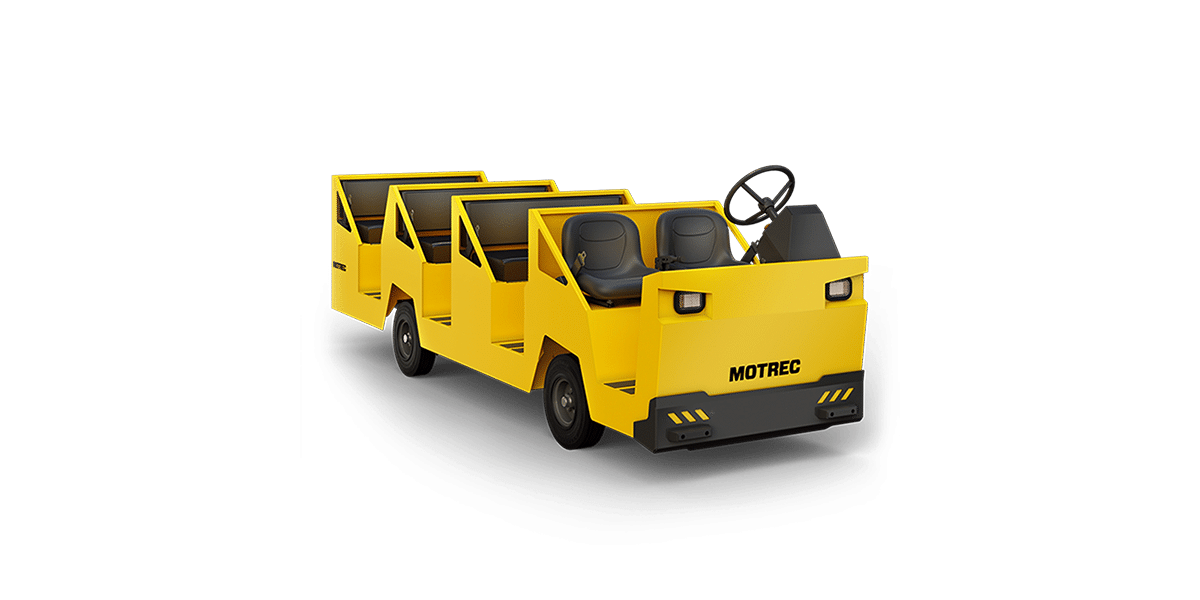

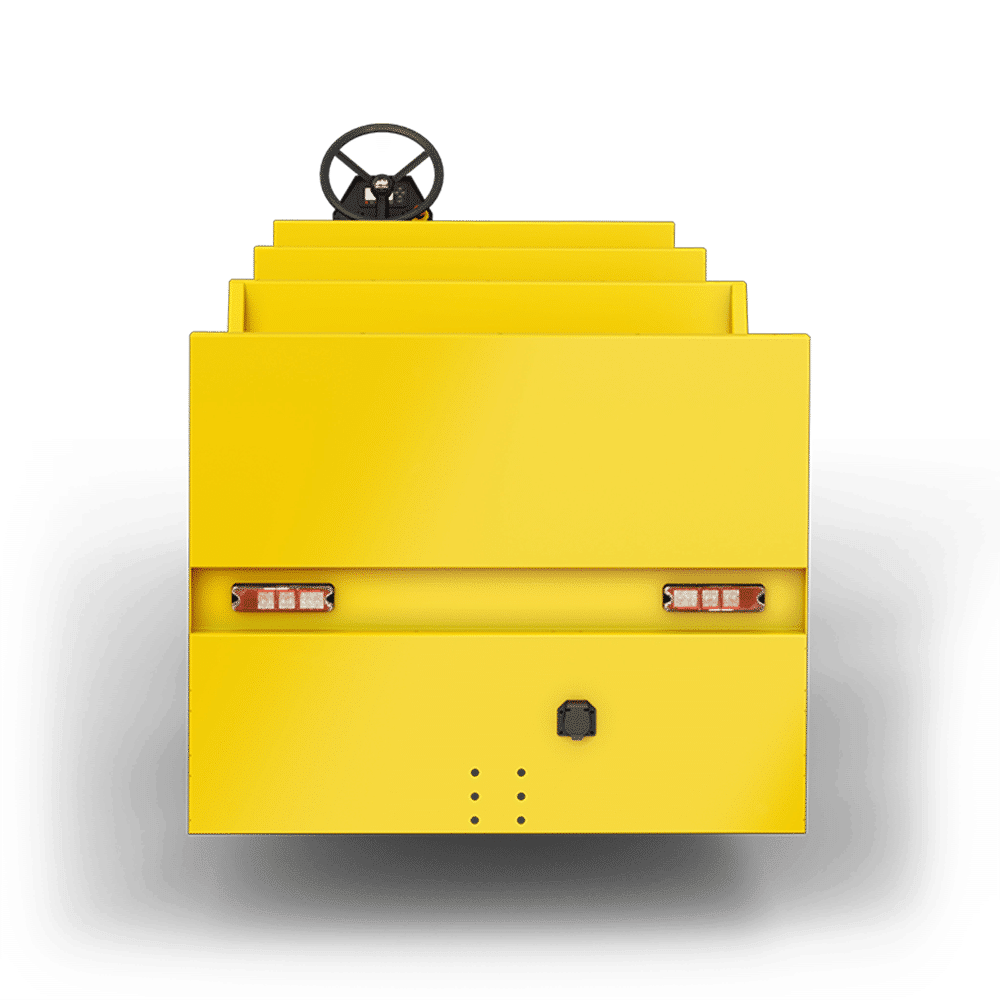

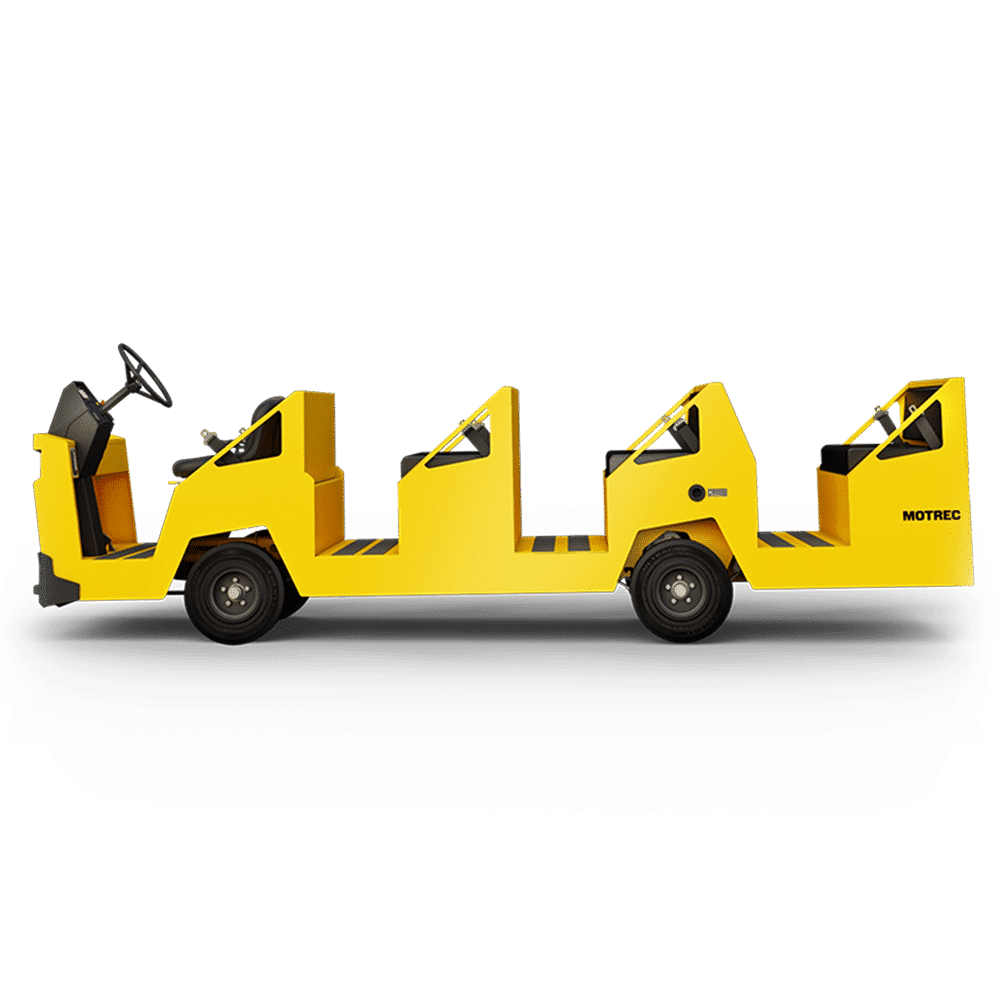

This fully customizable vehicle is designed for moving large groups quickly, safely, and comfortably. It can efficiently pull two-passenger cart trailers in all sorts of conditions and climb hills with ease. Its well-balanced design and short turning radius ensure superior maneuverability with responsive steering and braking. Its light-touch accelerator means a smoother ride, while it industrial batteries and cell equalization converter mean more trips per charge. Available in unlimited configurations, including forward-facing or back-to-back seating. Optional wheelchair ramp.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
6 Passengers 48V Lithium | 6 | 1360 kg | 2700 kg | 16 kmh | 3150 mm |
8 Passengers 48V Lithium | 8 | 1360 kg | 2700 kg | 16 kmh | 3150 mm |
11 Passengers 48V Lithium | 11 | 1360 kg | 2700 kg | 13 kmh | 3700 mm |
6 Passengers 48V Lithium | |
|---|---|
Passengers | 6 |
Load Capacity | 1360 kg |
Towing Capacity | 2700 kg |
Speed | 16 kmh |
Turning Radius | 3150 mm |
8 Passengers 48V Lithium | |
|---|---|
Passengers | 8 |
Load Capacity | 1360 kg |
Towing Capacity | 2700 kg |
Speed | 16 kmh |
Turning Radius | 3700 mm |
11 Passengers 48V Lithium | |
|---|---|
Passengers | 11 |
Load Capacity | 1360 kg |
Towing Capacity | 2700 kg |
Speed | 13 kmh |
Turning Radius | 3700 mm |
6 Passengers 48V Lithium | 8 Passengers 48V Lithium | 11 Passengers 48V Lithium |
|---|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
15 HP shunt motor | 15 HP shunt motor | 15 HP brushless AC motor | |||
Drive Axel | |||||
Differential with automotive ring gear | Differential with automotive ring gear | Differential with automotive ring gear | |||
Transmission | |||||
Goodyear Eagle Synchronous drive | Goodyear Eagle Synchronous drive | Goodyear Eagle Synchronous drive | |||
Controller | |||||
Electronic speed controller | Electronic speed controller | Electronic speed controller | |||
ENERGY | ||
|---|---|---|
Voltage | ||
48V | 48V | 48V |
Battery | ||
Eight 6V-220AH batteries | Eight 6V-220AH batteries | Eight 6V-220AH batteries |
Charger | ||
High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC |
CHASSIS | ||
|---|---|---|
Body | ||
14-G diamond-plate steel body, tubular frame | 14-G diamond-plate steel body, tubular frame | 14-G diamond-plate steel body, tubular frame |
Suspension | ||
Dual leaf springs on front and rear | Dual leaf springs on front and rear | Dual leaf springs on front and rear |
Brakes | ||
Rear hydraulic brakes, 11″, regenerative braking | Rear hydraulic brakes, 11″, regenerative braking | Rear hydraulic brakes, 11″, regenerative braking |
Wheels | ||
5.7×8 LRC pneumatic tires | 5.7×8 LRC pneumatic tires | 5.7×8 LRC pneumatic tires |
Steering | ||
Automotive steering wheel | Automotive steering wheel | Automotive steering wheel |
Seats | ||
Two bucket seats on slide adjusters | Two bucket seats on slide adjusters | Two bucket seats on slide adjusters |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
Dual LED headlights & tail/brake lights | Dual LED headlights & tail/brake lights | Dual LED headlights & tail/brake lights | |||
Indicators | |||||
Battery status indicator | Battery status indicator | Battery status indicator | |||
Accessories | |||||
Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells | Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells | Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells | |||
Safety | |||||
Deadman seat switch, reverse alarm, seat belts | Deadman seat switch, reverse alarm, seat belts | Deadman seat switch, reverse alarm, seat belts | |||
Specifications and standard equipment are subject to change without notice.
Motor | |
|---|---|
6 Passengers 48V Lithium | 15 HP shunt motor |
8 Passengers 48V Lithium | 15 HP shunt motor |
11 Passengers 48V Lithium | 15 HP brushless AC motor |
Drive Axle | |
|---|---|
6 Passengers 48V Lithium | Differential with automotive ring gear |
8 Passengers 48V Lithium | Differential with automotive ring gear |
11 Passengers 48V Lithium | Differential with automotive ring gear |
Transmission | |
|---|---|
6 Passengers 48V Lithium | Goodyear Eagle Synchronous drive |
8 Passengers 48V Lithium | Goodyear Eagle Synchronous drive |
11 Passengers 48V Lithium | Goodyear Eagle Synchronous drive |
Controller | |
|---|---|
6 Passengers 48V Lithium | Electronic speed controller |
8 Passengers 48V Lithium | Electronic speed controller |
11 Passengers 48V Lithium | Electronic speed controller |
Voltage | |
|---|---|
6 Passengers 48V Lithium | 48V |
8 Passengers 48V Lithium | 48V |
11 Passengers 48V Lithium | 48V |
Battery | |
|---|---|
6 Passengers 48V Lithium | Eight 6V-220AH batteries |
8 Passengers 48V Lithium | Eight 6V-220AH batteries |
11 Passengers 48V Lithium | Eight 6V-220AH batteries |
Charger | |
|---|---|
6 Passengers 48V Lithium | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC |
8 Passengers 48V Lithium | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC |
11 Passengers 48V Lithium | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC |
Body | |
|---|---|
6 Passengers 48V Lithium | 14-G diamond-plate steel body, tubular frame |
8 Passengers 48V Lithium | 14-G diamond-plate steel body, tubular frame |
11 Passengers 48V Lithium | 14-G diamond-plate steel body, tubular frame |
Suspension | |
|---|---|
6 Passengers 48V Lithium | Dual leaf springs on front and rear |
8 Passengers 48V Lithium | Dual leaf springs on front and rear |
11 Passengers 48V Lithium | Dual leaf springs on front and rear |
Brakes | |
|---|---|
6 Passengers 48V Lithium | Rear hydraulic brakes, 11″, regenerative braking |
8 Passengers 48V Lithium | Rear hydraulic brakes, 11″, regenerative braking |
11 Passengers 48V Lithium | Rear hydraulic brakes, 11″, regenerative braking |
Wheels | |
|---|---|
6 Passengers 48V Lithium | 5.7×8 LRC pneumatic tires |
8 Passengers 48V Lithium | 5.7×8 LRC pneumatic tires |
11 Passengers 48V Lithium | 5.7×8 LRC pneumatic tires |
Steering | |
|---|---|
6 Passengers 48V Lithium | Automotive steering wheel |
8 Passengers 48V Lithium | Automotive steering wheel |
11 Passengers 48V Lithium | Automotive steering wheel |
Seats | |
|---|---|
6 Passengers 48V Lithium | Two bucket seats on slide adjusters |
8 Passengers 48V Lithium | Two bucket seats on slide adjusters |
11 Passengers 48V Lithium | Two bucket seats on slide adjusters |
Lights | |
|---|---|
6 Passengers 48V Lithium | Dual LED headlights & tail/brake lights |
8 Passengers 48V Lithium | Dual LED headlights & tail/brake lights |
11 Passengers 48V Lithium | Dual LED headlights & tail/brake lights |
Indicators | |
|---|---|
6 Passengers 48V Lithium | Battery status indicator |
8 Passengers 48V Lithium | Battery status indicator |
11 Passengers 48V Lithium | Battery status indicator |
Accessories | |
|---|---|
6 Passengers 48V Lithium | Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells |
8 Passengers 48V Lithium | Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells |
11 Passengers 48V Lithium | Horn, Bolt-on Front Bumper, DC/DC converter to equalize battery cells |
Safety | |
|---|---|
6 Passengers 48V Lithium | Deadman seat switch, reverse alarm, seat belts |
8 Passengers 48V Lithium | Deadman seat switch, reverse alarm, seat belts |
11 Passengers 48V Lithium | Deadman seat switch, reverse alarm, seat belts |
Specifications and standard equipment are subject to change without notice.
