48V | |
|---|---|
Passengers | 2 |
Load Capacity | 1585 kg |
Towing Capacity | 2720 kg |
Speed | 16 kmh |
Turning Radius | 3300mm |
48V Lithium | |
|---|---|
Passengers | 2 |
Load Capacity | 1585 kg |
Towing Capacity | 2720 kg |
Speed | 16 kmh |
Turning Radius | 3300mm |

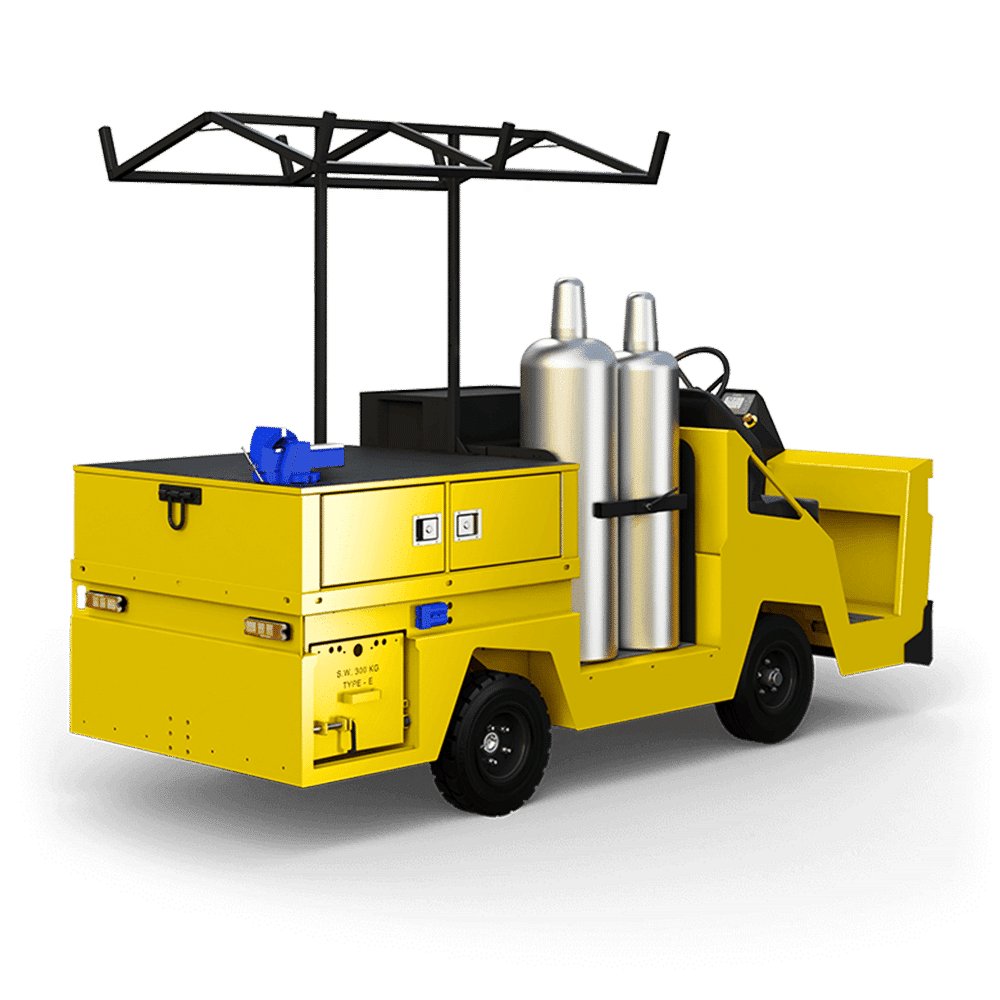

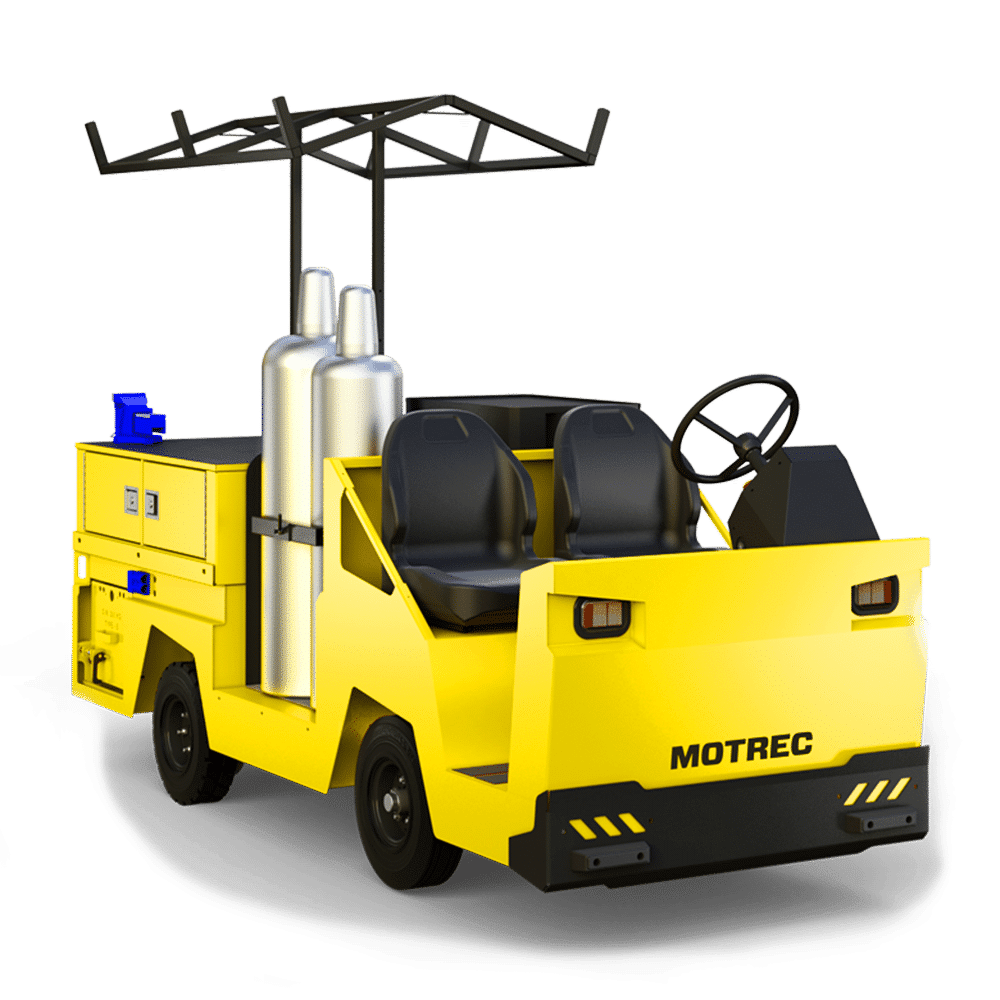

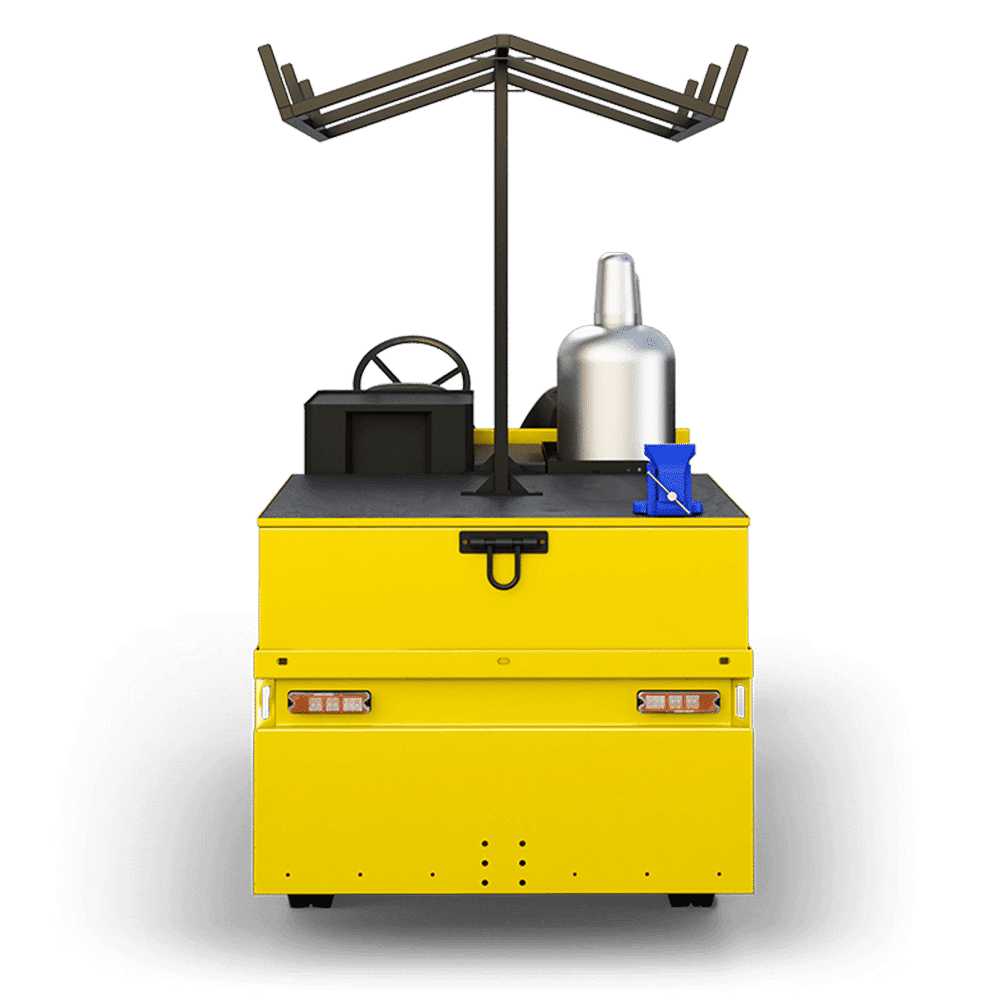

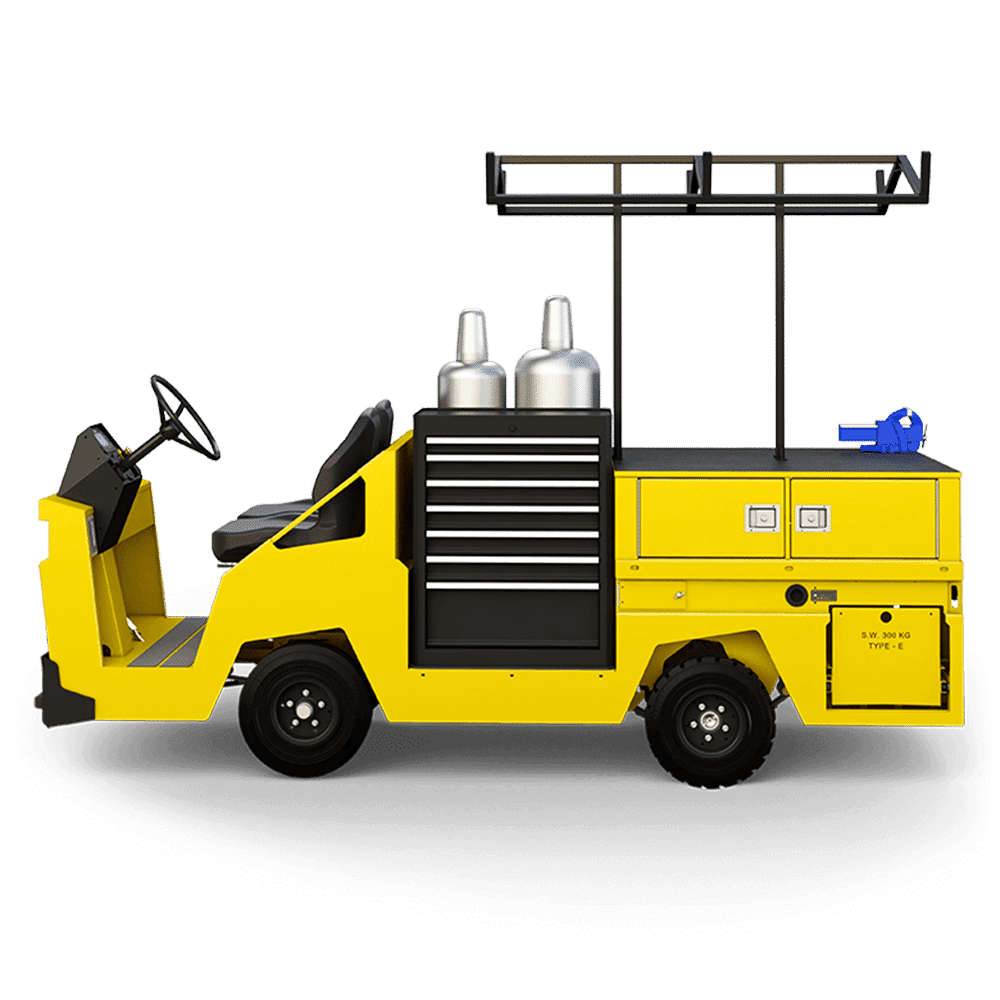

This dependable work truck adapts to a wide variety of jobs. Use it to access restricted spaces, or to quickly cover long distances much faster than on foot. The full-sized 7-drawer tool chest and large lockable compartments will hold all the parts and tools you need—and keep them safely where they belong. Standard features include a roll-out battery compartment, bolt-on front bumper, ladder/pipe rack and more. Several option packages available. Unlimited configurations.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
48V | 2 | 1585 kg | 2720 kg | 16 kmh | 3300mm |
48V Lithium | 2 | 1585 kg | 2720 kg | 16 kmh | 3300mm |
48V | |
|---|---|
Passengers | 2 |
Load Capacity | 1585 kg |
Towing Capacity | 2720 kg |
Speed | 16 kmh |
Turning Radius | 3300mm |
48V Lithium | |
|---|---|
Passengers | 2 |
Load Capacity | 1585 kg |
Towing Capacity | 2720 kg |
Speed | 16 kmh |
Turning Radius | 3300mm |
48V | 48V Lithium |
|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
15 HP brushless AC motor | 15 HP brushless AC motor | ||||
Drive Axel | |||||
Helical gear differential | Helical gear differential | ||||
Transmission | |||||
Direct drive | Direct drive | ||||
Controller | |||||
AC Electronic speed controller | AC Electronic speed controller | ||||
ENERGY | |
|---|---|
Voltage | |
48V | 48V |
Battery | |
Eight 6V-225AH batteries | Lithium 48V-120Ah 6.2Kwh, Lithium 48V-180Ah 9.3Kwh, Lithium 48V-360Ah 18.6kwh |
Charger | |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | 48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 3.6Kwh |
CHASSIS | |
|---|---|
Body | |
All-steel unibody construction. Powder coating | All-steel unibody construction. Powder coating |
Suspension | |
Dual leaf springs on front and rear | Dual leaf springs on front and rear |
Brakes | |
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking | Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
Wheels | |
5.7×8 LRD pneumatic tires | 5.7×8 LRD pneumatic tires |
Steering | |
Automotive steering wheel, tilted steering column | Automotive steering wheel, tilted steering column |
Seats | |
Two premium seats on slide adjusters | Two premium seats on slide adjusters |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
LED dual headlights & tail/brake lights, dual back-up lights | LED dual headlights & tail/brake lights, dual back-up lights | ||||
Indicators | |||||
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | ||||
Accessories | |||||
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | ||||
Safety | |||||
Deadman seat switch, reverse alarm, horn, automatic parking brake | Deadman seat switch, Reverse alarm, Horn, Automatic parking brake | ||||
Specifications and standard equipment are subject to change without notice.
Motor | |
|---|---|
48V | 15 HP brushless AC motor |
48V | 15 HP brushless AC motor |
Drive Axle | |
|---|---|
48V | Helical gear differential |
48V Lithium | Helical gear differential |
Transmission | |
|---|---|
48V | Direct drive |
48V Lithium | Direct drive |
Controller | |
|---|---|
48V | AC Electronic speed controller |
48V Lithium | AC Electronic speed controller |
Voltage | |
|---|---|
48V | 48V |
48V | 48V |
Battery | |
|---|---|
48V | Eight 6V-225AH batteries |
48V Lithium | Lithium 48V-120Ah 6.2Kwh, Lithium 48V-180Ah 9.3Kwh, Lithium 48V-360Ah 18.6kwh |
Charger | |
|---|---|
48V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
48V Lithium | 48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 3.6Kwh |
Body | |
|---|---|
48V | All-steel unibody construction. Powder coating |
48V Lithium | All-steel unibody construction. Powder coating |
Suspension | |
|---|---|
48V | Dual leaf springs on front and rear |
48V | Dual leaf springs on front and rear |
Brakes | |
|---|---|
48V | Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
48V Lithium | Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
Wheels | |
|---|---|
48V | 5.7×8 LRD pneumatic tires |
48V Lithium | 5.7×8 LRD pneumatic tires |
Steering | |
|---|---|
48V | Automotive steering wheel, tilted steering column |
48V Lithium | Automotive steering wheel, tilted steering column |
Seats | |
|---|---|
48V | Two premium seats on slide adjusters |
48V Lithium | Two premium seats on slide adjusters |
Lights | |
|---|---|
48V | LED dual headlights & tail/brake lights, dual back-up lights |
48V Lithium | LED dual headlights & tail/brake lights, dual back-up lights |
Indicators | |
|---|---|
48V | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability |
48V Lithium | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability |
Accessories | |
|---|---|
48V | Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
48V Lithium | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability |
Safety | |
|---|---|
48V | Deadman seat switch, reverse alarm, horn, automatic parking brake |
48V Lithium | Deadman seat switch, Reverse alarm, Horn, Automatic parking brake |
Specifications and standard equipment are subject to change without notice.
