48V | |
|---|---|
Passengers | 1 |
Load Capacity | 270 kg |
Towing Capacity | 0 kg |
Speed | 9.5 kmh |
Turning Radius | 3090 mm |

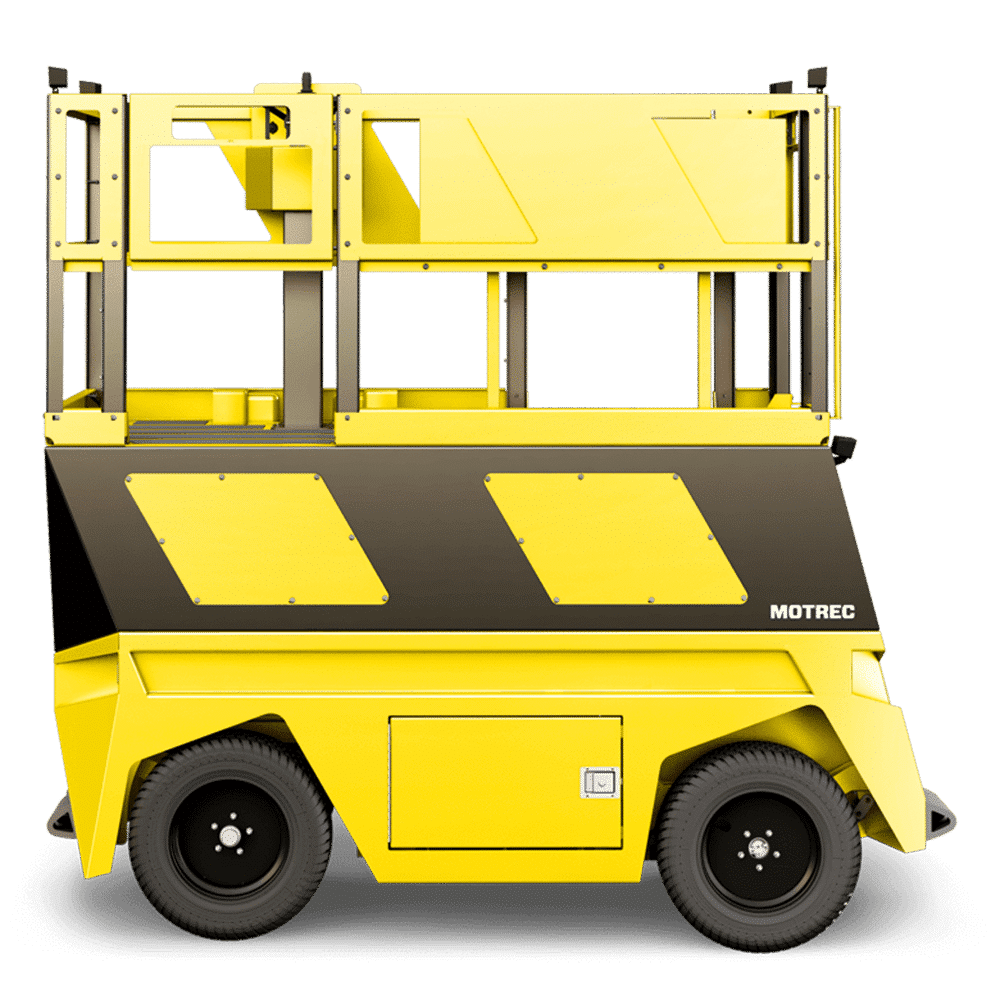

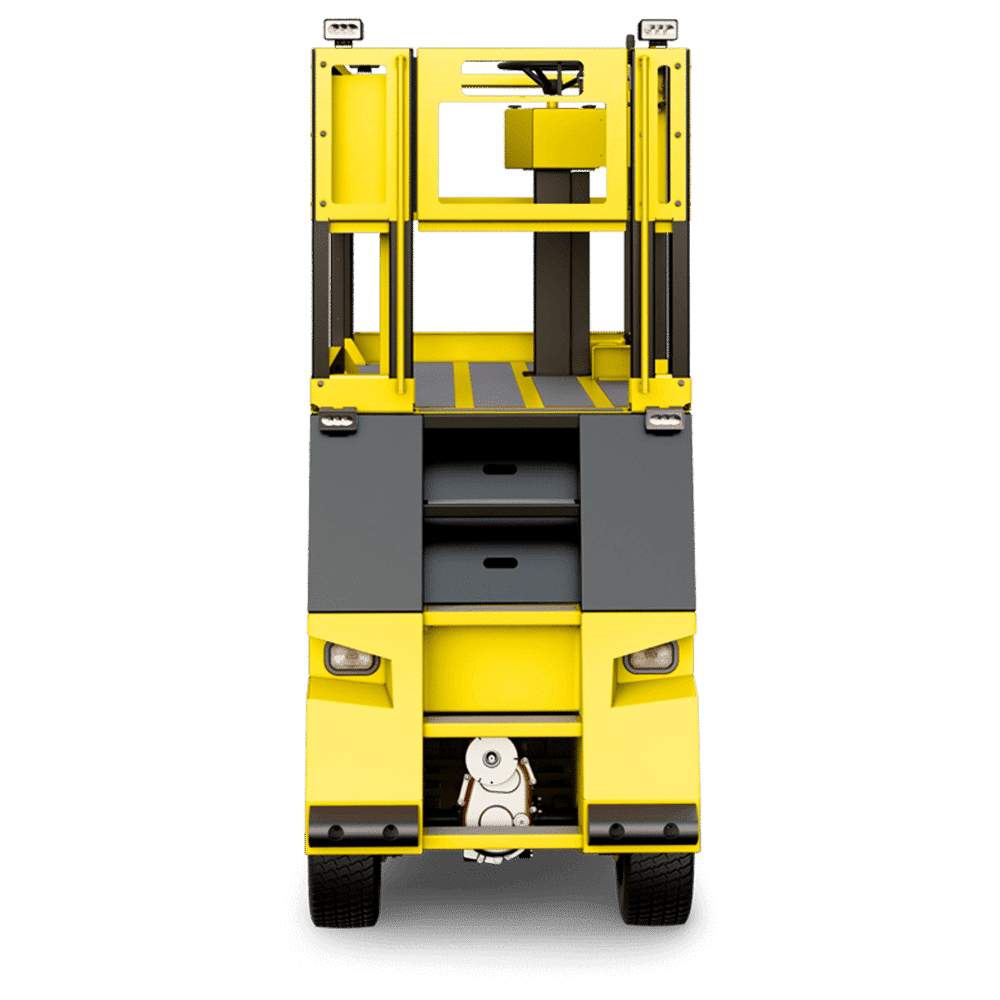

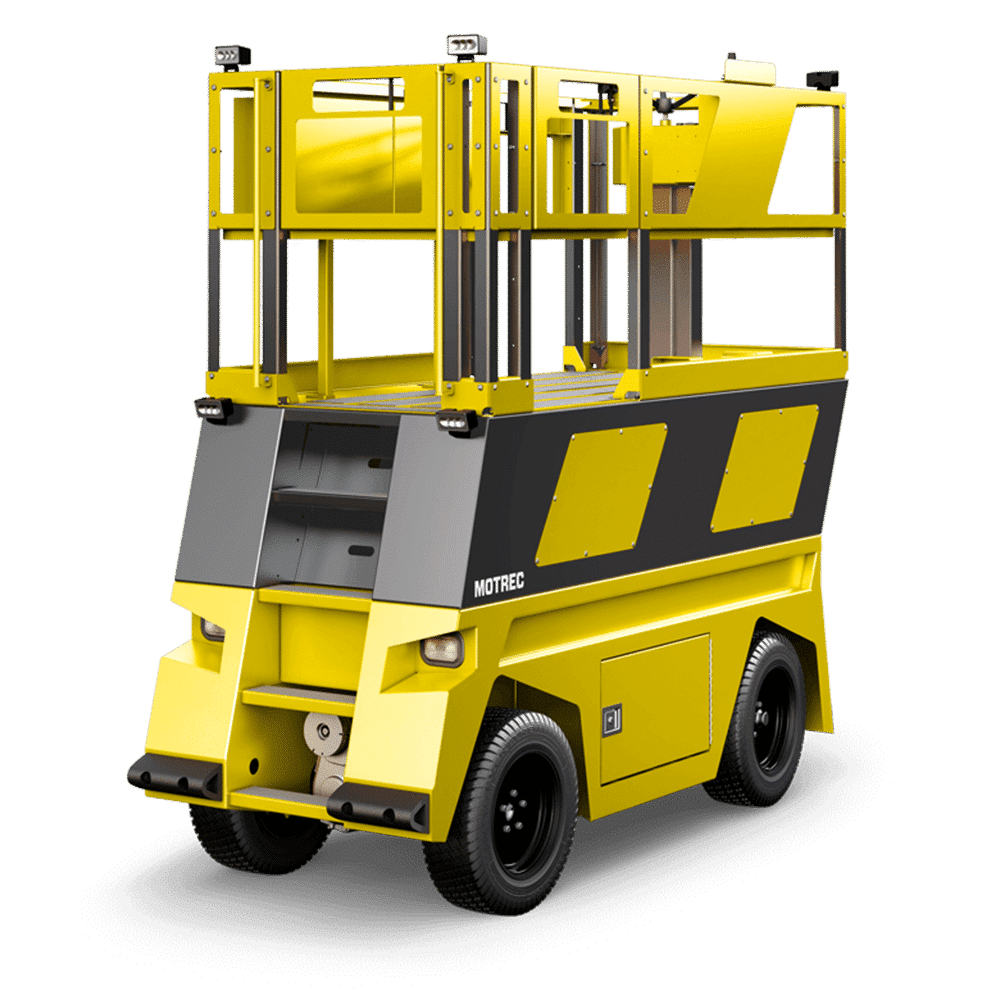

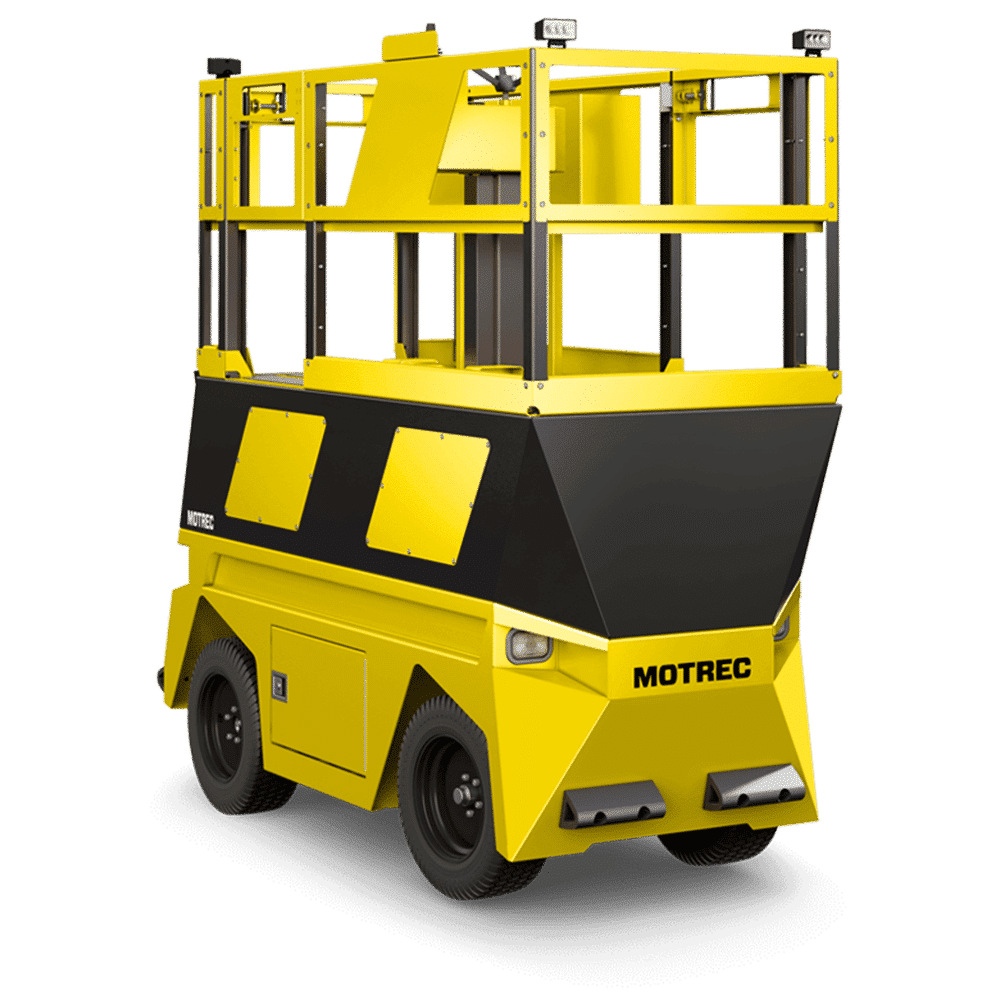

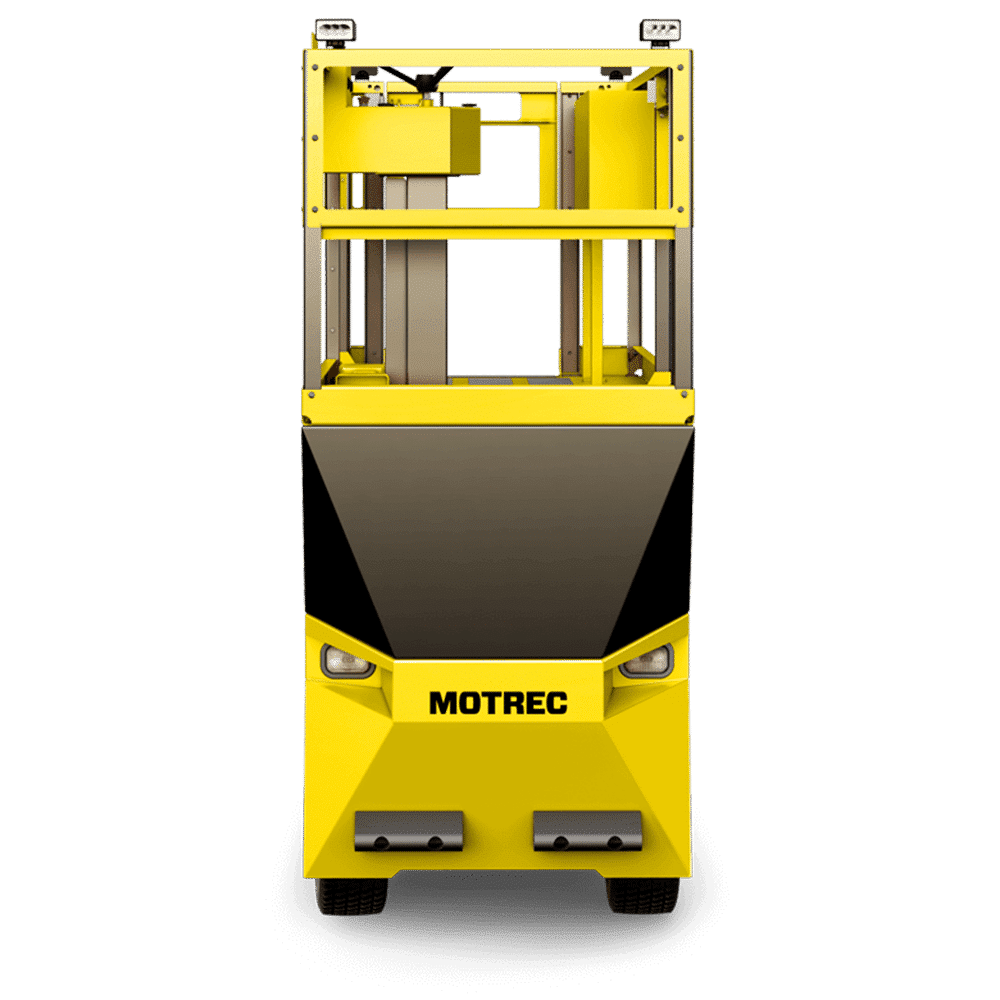

With its elevated platform and bi-directional driving, the MX-700 is the ideal vehicle for working at a height in narrow spaces. It’s also designed with operator safety and productivity in mind: Smooth and precise controls for easy handling, rugged all-steel body for heavy-duty use, low-maintenance design for long-lasting reliability – and best of all, state-of-the-art AC technology for quiet, emission-free operation. Like all Motrec vehicles, the MX-700 can be customized to your specific needs.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
48V | 1 | 270 kg | 0 kg | 9.5 kmh | 3090 mm |
48V | |
|---|---|
Passengers | 1 |
Load Capacity | 270 kg |
Towing Capacity | 0 kg |
Speed | 9.5 kmh |
Turning Radius | 3090 mm |
48V |
|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
15 HP brushless AC motor | |||||
Drive Axel | |||||
Helical gear differential | |||||
Transmission | |||||
Direct drive | |||||
Controller | |||||
Electronic AC speed controller | |||||
ENERGY |
|---|
Voltage
|
48V |
Battery
|
TPPL batteries, 186AH |
Charger
|
No charger included |
CHASSIS |
|---|
Body |
All-steel unibody construction. Powder Coating |
Suspension |
Dual leaf springs on rear |
Brakes
|
Rear wheel hydraulic drum brakes, regenerative braking |
Wheels
|
25″” pneumatic wheels |
Steering |
Automotive steering wheel, hydraulic power steering, drivable from both sides |
Seats |
– |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
LED dual headlights & tail/brake lights at both ends. Front & back work lights | |||||
Indicators | |||||
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. | |||||
Accessories | |||||
– | |||||
Safety | |||||
Front and rear rubber bumpers, reverse alarm, double deadman foot switch, horn, emergency stop button, doors with interlock switch | |||||
Specifications and standard equipment are subject to change without notice.
MOTOR | |
|---|---|
48V | 15 HP brushless AC motor |
Drive Axle | |
|---|---|
48V | Helical gear differential |
Transmission | |
|---|---|
48V | Direct drive |
Controller | |
|---|---|
48V | Electronic AC speed controller |
Voltage | |
|---|---|
48V | 48V |
Battery | |
|---|---|
48V | TPPL batteries, 186AH |
Charger | |
|---|---|
48V | No charger included |
Body | |
|---|---|
48V | All-steel unibody construction. Powder Coating |
Suspension | |
|---|---|
48V | Dual leaf springs on rear |
Brakes | |
|---|---|
48V | Rear wheel hydraulic drum brakes, regenerative braking |
Wheels | |
|---|---|
48V | 25″” pneumatic wheels |
Steering | |
|---|---|
48V | Automotive steering wheel, hydraulic power steering, drivable from both sides |
Seats | |
|---|---|
48V | – |
Lights | |
|---|---|
48V | LED dual headlights & tail/brake lights at both ends. Front & back work lights |
Indicators | |
|---|---|
48V | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
Accessories | |
|---|---|
48V | – |
Safety | |
|---|---|
48V | Front and rear rubber bumpers, reverse alarm, double deadman foot switch, horn, emergency stop button, doors with interlock switch |
Specifications and standard equipment are subject to change without notice.
