24V | |
|---|---|
Passengers | 1 |
Load Capacity | 135 kg |
Towing Capacity | 450 kg |
Speed | 10 kmh |
Turning Radius | 1000 mm |

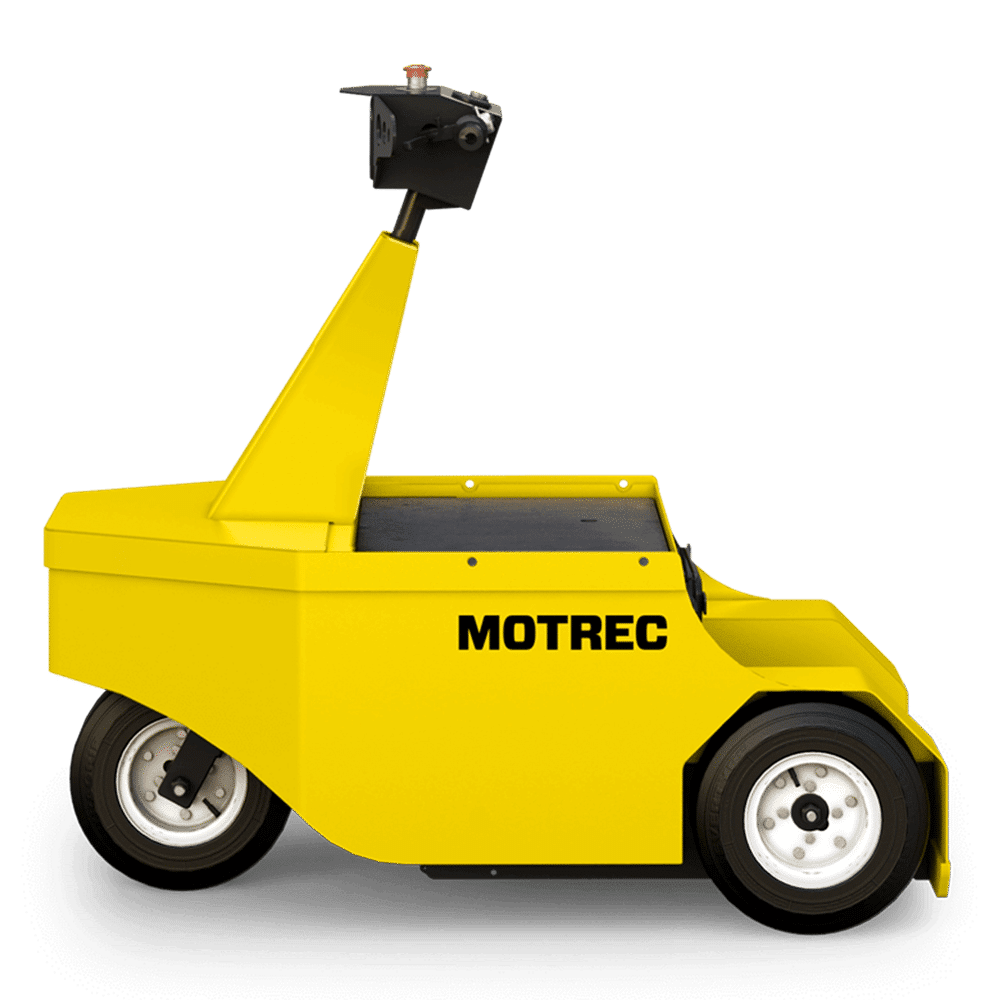

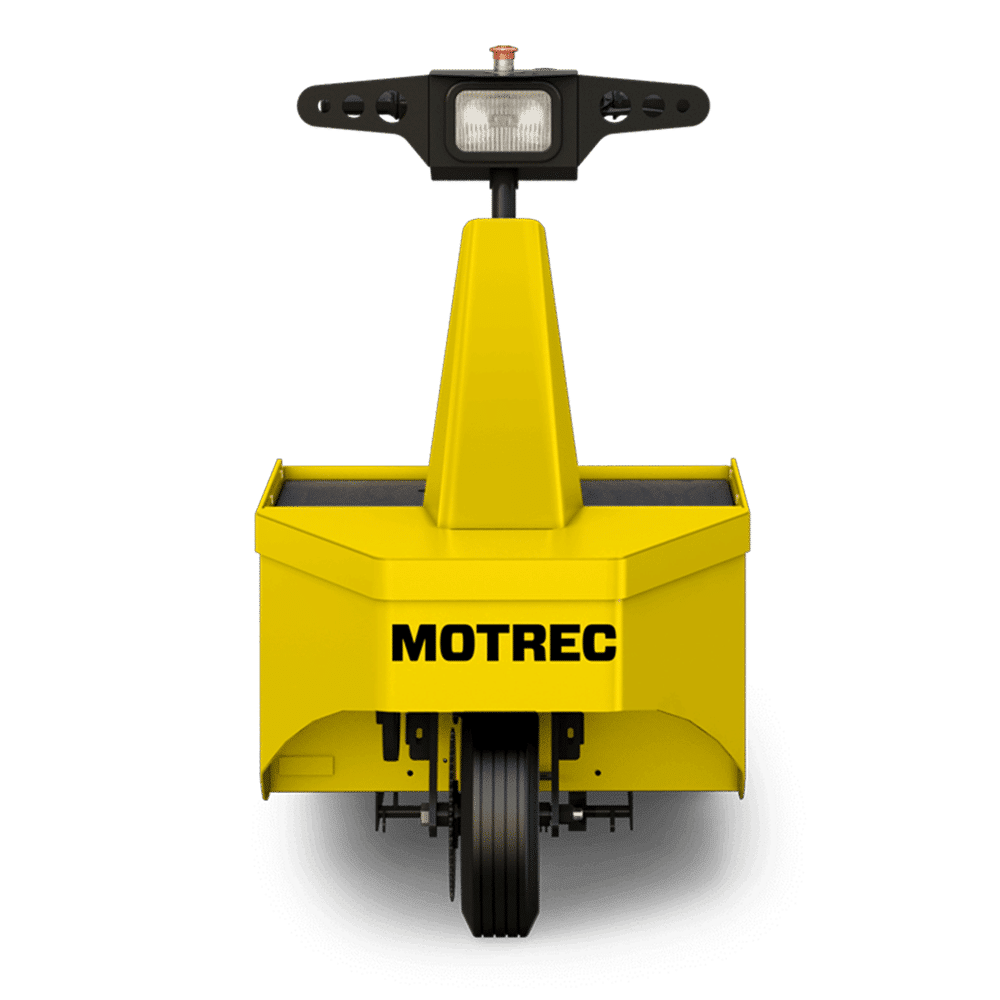

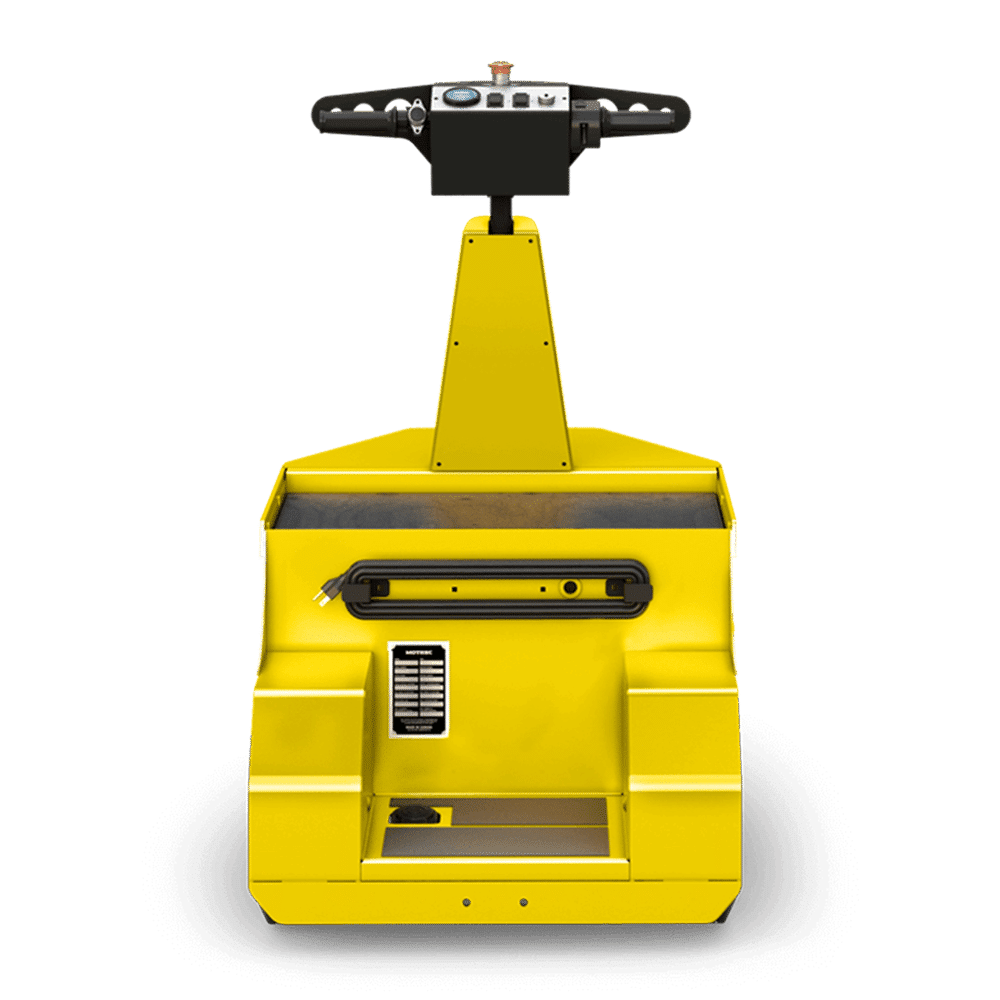

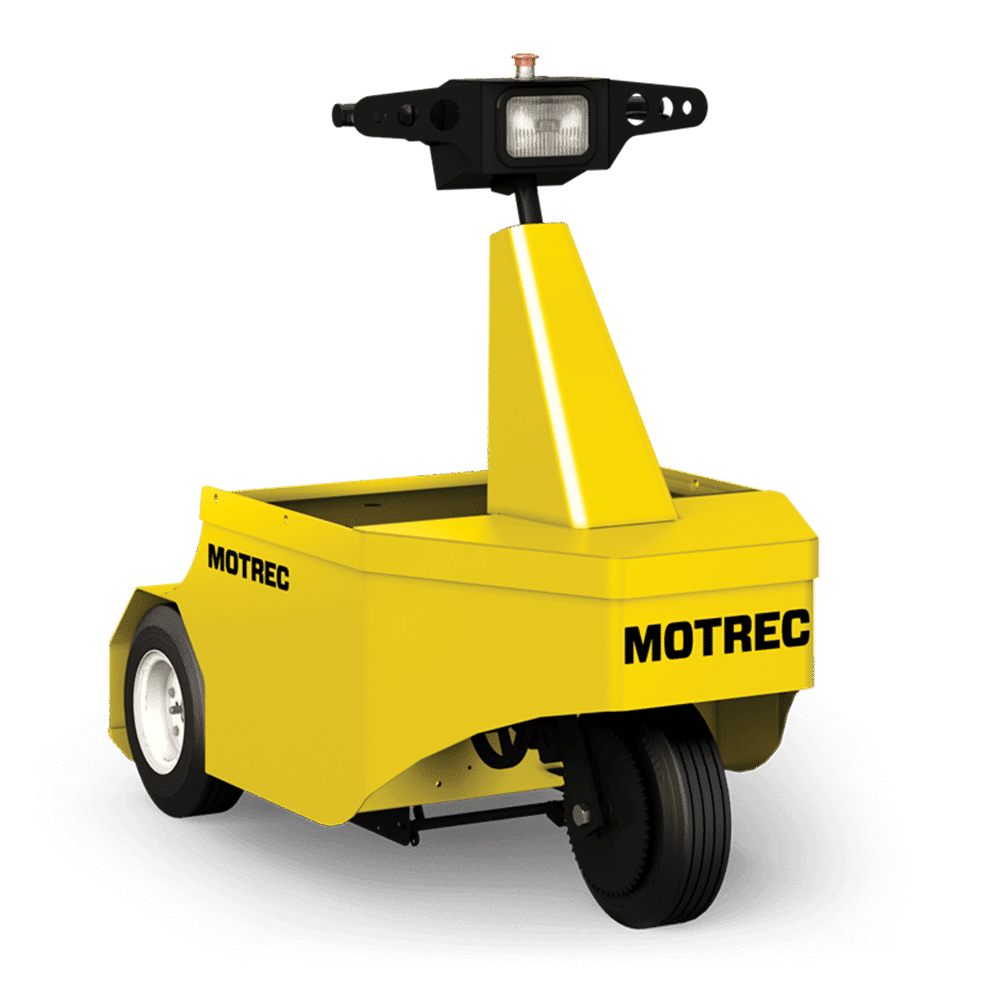

Narrow, quick and highly maneuverable, the stand-up MP-120 is a cost-efficient way to transport you and your stock just about anywhere—through door openings, around tight corners and down narrow aisles. Its 10 Kmh traveling speed allows you to get around two times faster than on foot. Its compact design boasts a durable steel construction and 360º visibility for greater safety. Ideal for tasks like maintenance, order picking, plant security, first aid and more.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
24V | 1 | 135 kg | 450 kg | 10 kmh | 1000 mm |
24V | |
|---|---|
Passengers | 1 |
Load Capacity | 135 kg |
Towing Capacity | 450 kg |
Speed | 10 kmh |
Turning Radius | 1000 mm |
24V |
|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
1 HP | |||||
Drive Axel | |||||
Front-wheel drive | |||||
Transmission | |||||
V-Belt drive, chain reduction | |||||
Controller | |||||
Electronic speed controller, twist grip throttle handle | |||||
ENERGY |
|---|
Voltage |
24V |
Battery |
Two 12V-105AH batteries |
Charger |
Portable High-Frequency Charger, improves battery performance, prevents current surge,50/60HZ, 110/220VAC |
CHASSIS |
|---|
Body |
– |
Suspension |
Rigid axles on front and rear |
Brakes |
Dual drum brakes on rear, brake pedal, regenerative braking |
Wheels |
4.1×6 LRB pneumatic tires |
Steering |
Handlebar |
Seats |
– |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
LED headlight | |||||
Indicators | |||||
Battery status indicator | |||||
Accessories | |||||
– | |||||
Safety | |||||
Reverse alarm, deadman foot switch, Horn | |||||
Specifications and standard equipment are subject to change without notice.
MOTOR | |
|---|---|
24V | 1 HP |
Drive Axle | |
|---|---|
24V | Front-wheel drive |
Transmission | |
|---|---|
24V | V-Belt drive, chain reduction |
Controller | |
|---|---|
24V | Electronic speed controller, twist grip throttle handle |
Voltage | |
|---|---|
24V | 24V |
Battery | |
|---|---|
24V | Two 12V-105AH batteries |
Charger | |
|---|---|
24V | Portable High-Frequency Charger, improves battery performance, prevents current surge,50/60HZ, 110/220VAC |
Body | |
|---|---|
24V | – |
Suspension | |
|---|---|
24V | Rigid axles on front and rear |
Brakes | |
|---|---|
24V | Dual drum brakes on rear, brake pedal, regenerative braking |
Wheels | |
|---|---|
24V | 4.1×6 LRB pneumatic tires |
Steering | |
|---|---|
24V | Handlebar |
Seats | |
|---|---|
24V | – |
Lights | |
|---|---|
24V | LED headlight |
Indicators | |
|---|---|
24V | Battery status indicator |
Accessories | |
|---|---|
24V | – |
Safety | |
|---|---|
24V | Reverse alarm, deadman foot switch, Horn |
Specifications and standard equipment are subject to change without notice.
