24V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 900 kg |
Speed | 11 kmh |
Turning Radius | 1900 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 2700 kg |
Speed | 13 kmh |
Turning Radius | 1900 mm |

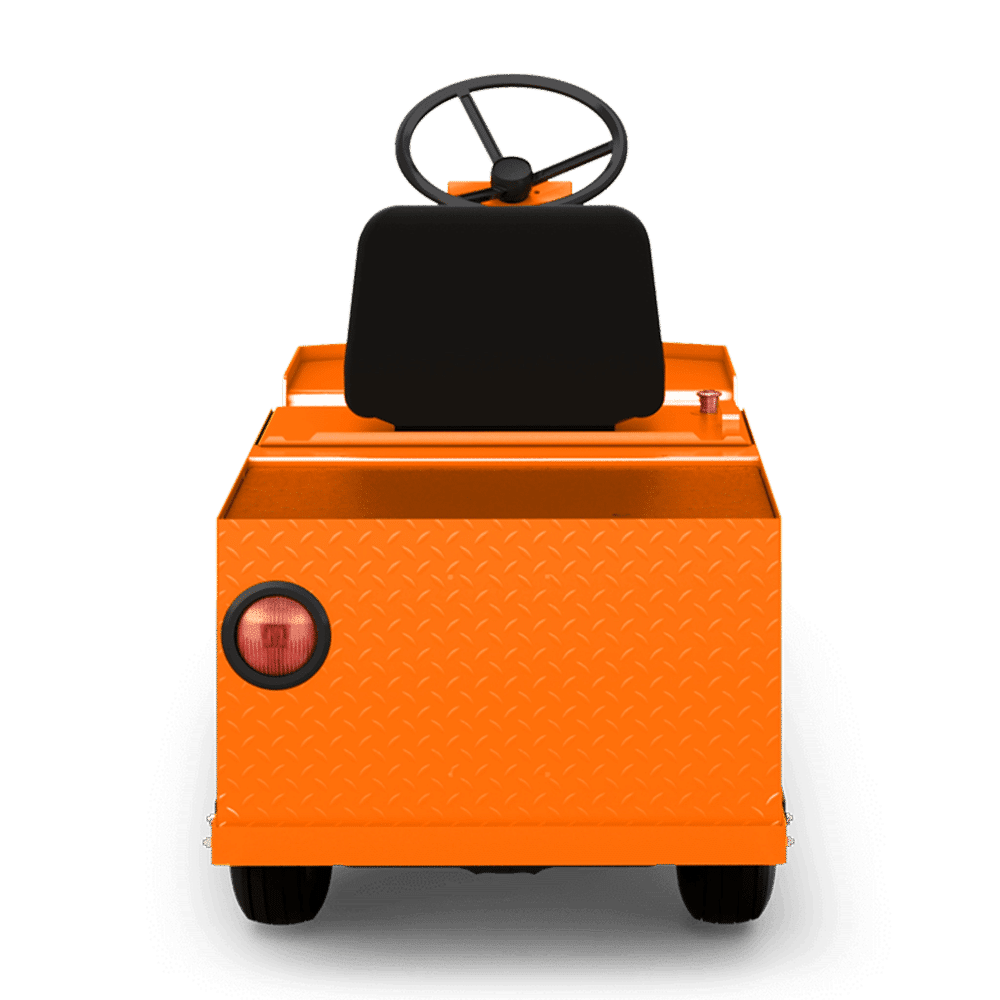

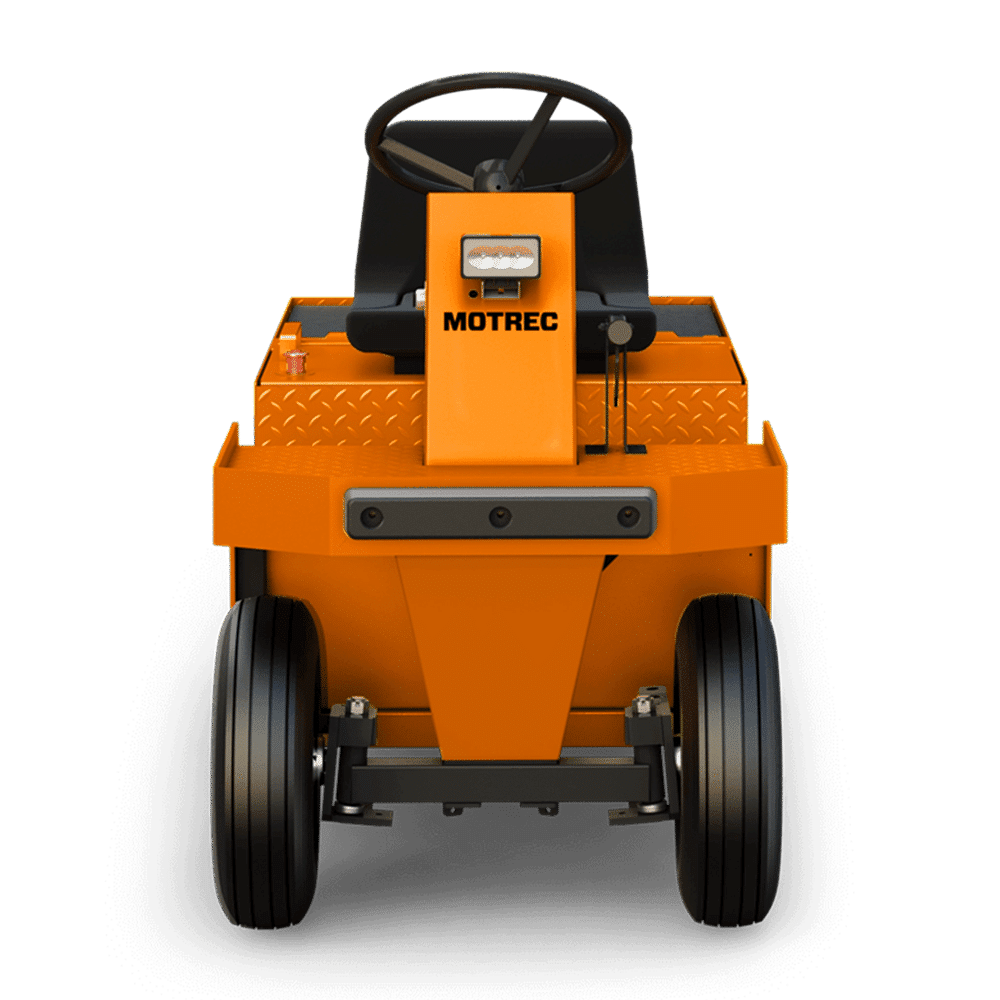

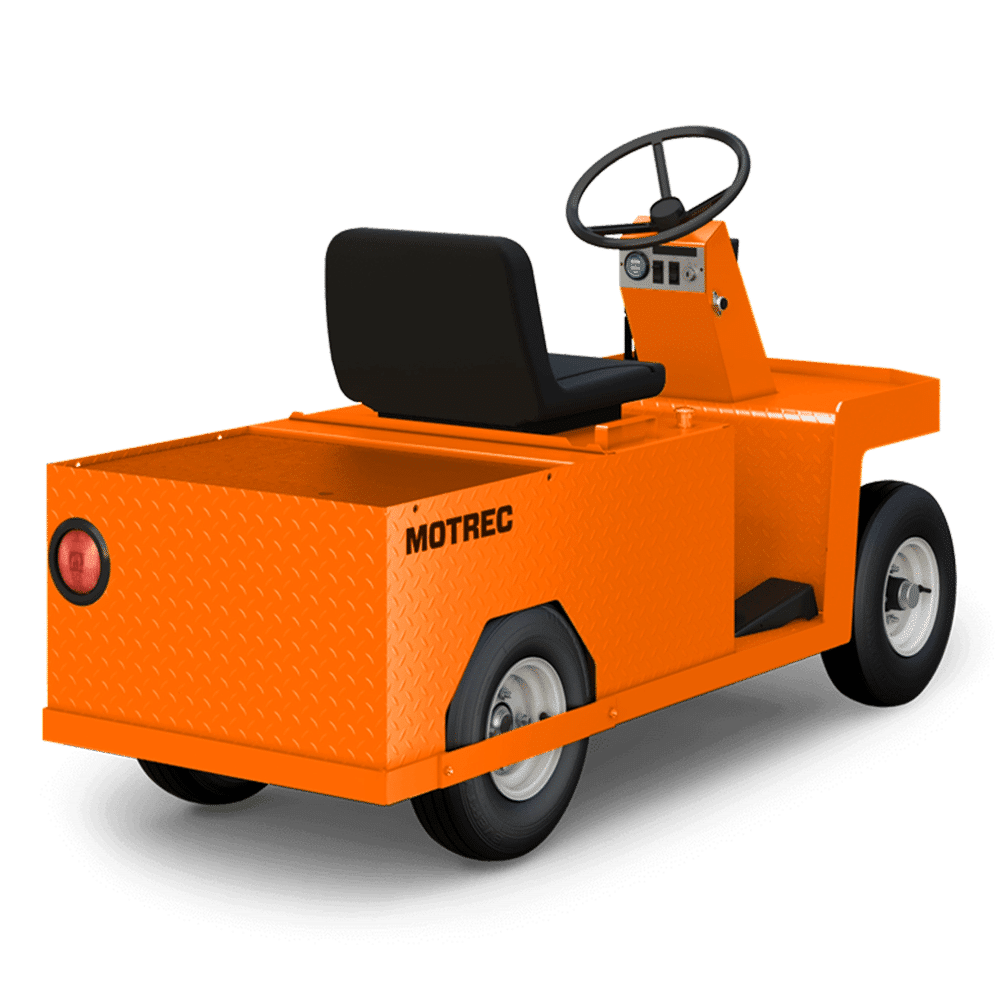

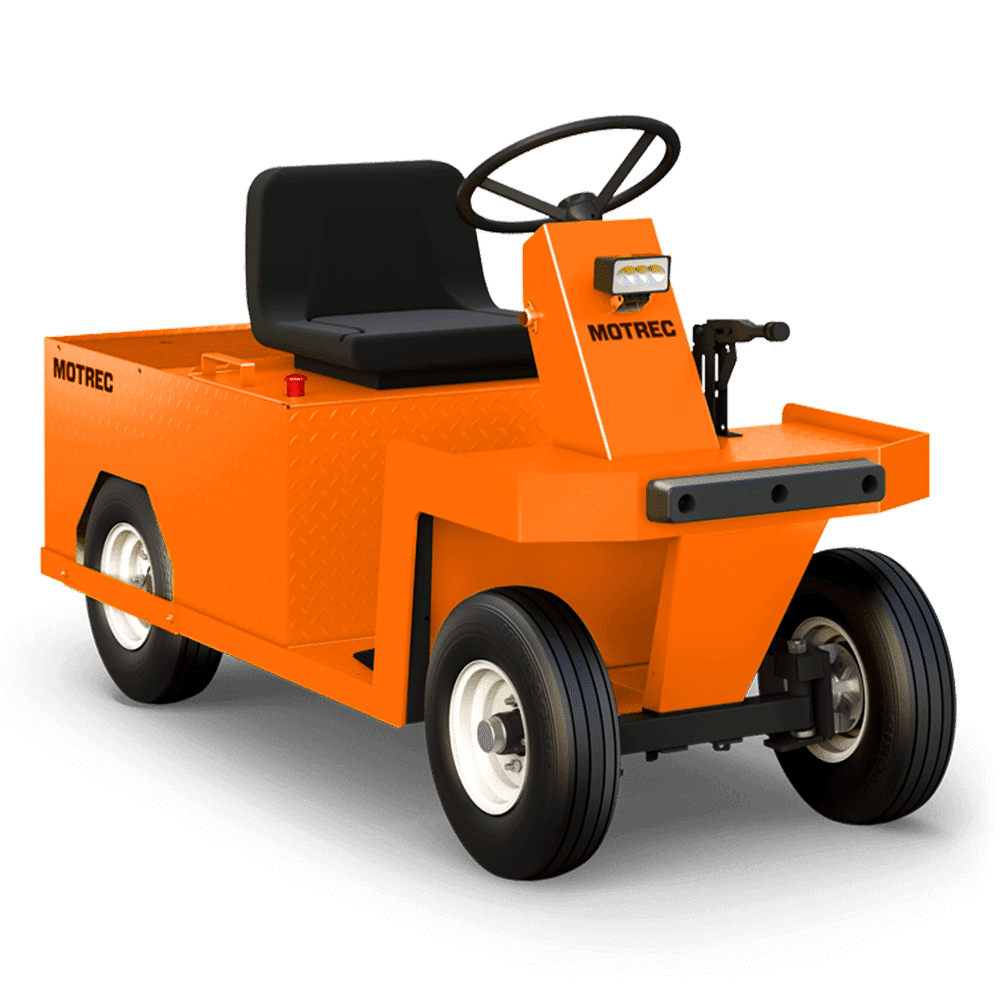

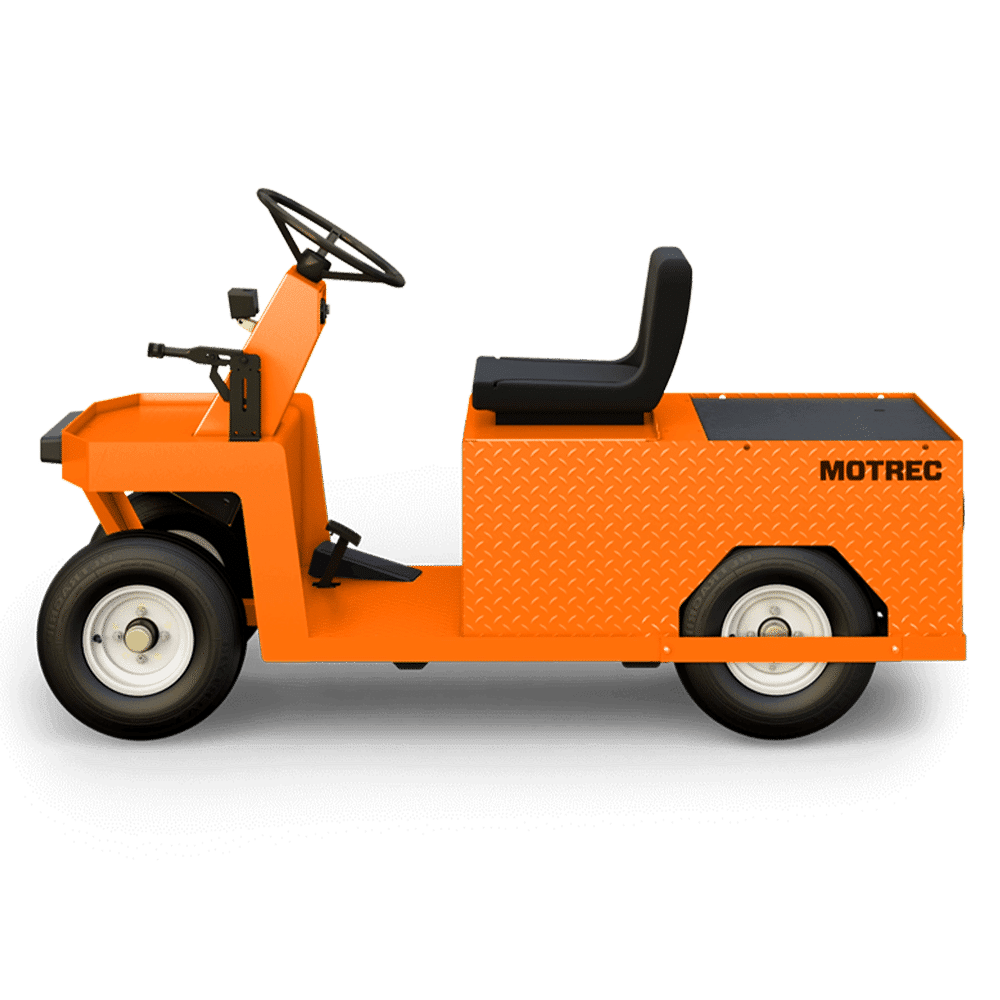

It’s no surprise the competition envies our original design. This agile and versatile personnel carrier has it all: A narrow deck, four wheels for greater stability on rough terrain, powerful motor, rugged automotive differential, and larger self-adjusting drum brakes, all-steel unibody construction, bolt-on front bumper and sidebar protection, easy-to-access under-seat battery compartment… The list keeps going. It can also pull up to 2,700 Kg.*, making it a great tow tractor.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
24V | 1 | 230 kg | 900 kg | 11 kmh | 1900 mm |
36V | 1 | 230 kg | 2700 kg | 13 kmh | 1900 mm |
24V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 900 kg |
Speed | 11 kmh |
Turning Radius | 1900 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 2700 kg |
Speed | 13 kmh |
Turning Radius | 1900 mm |
24V | 36V |
|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
6 HP brushless AC motor | 10 HP brushless AC motor | ||||
Drive Axel | |||||
Helical gear differential | Helical gear differential | ||||
Transmission | |||||
Direct drivev | Direct drive | ||||
Controller | |||||
SEPEX Electronic speed controller | SEPEX Electronic speed controller | ||||
ENERGY | |
|---|---|
Voltage
| |
24V | 36V |
Battery
| |
Four 6V-225AH batteries | Six 6V-225AH batteries |
Charger
| |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
CHASSIS | |
|---|---|
Body | |
14-G diamond-plate steel body, tubular frame | 14-G diamond-plate steel body, tubular frame |
Suspension | |
Dual coil springs and shock absorber on rear | Dual coil springs and shock absorber on rear |
Brakes
| |
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
Wheels
| |
4.8×8 LRC pneumatic tires | 4.8×8 LRC pneumatic tires |
Steering | |
Automotive steering wheel | Automotive steering wheel |
Seats | |
Bucket seat on slide adjusters | Bucket seat on slide adjusters |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
Dual LED headlights & tail/brake lights | Dual LED headlights & tail/brake lights | ||||
Indicators | |||||
Battery status indicator | Battery status indicator | ||||
Accessories | |||||
Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life. | ||||
Safety | |||||
Reverse alarm, deadman seat switch, horn | Reverse alarm, deadman seat switch, horn | ||||
Specifications and standard equipment are subject to change without notice.
Motor | |
|---|---|
24V | 10 HP brushless AC motor |
24V | 10 HP brushless AC motor |
Drive Axle | |
|---|---|
24V | Helical gear differential |
36V | Helical gear differential |
Transmission | |
|---|---|
24V | Direct drivev |
36V | Direct drive |
Controller | |
|---|---|
24V | SEPEX Electronic speed controller |
36V | SEPEX Electronic speed controller |
Voltage | |
|---|---|
24V | 24V |
24V | 36V |
Battery | |
|---|---|
24V | Four 6V-225AH batteries |
36V | Six 6V-225AH batteries |
Charger | |
|---|---|
24V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
36V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
Body | |
|---|---|
24V | 14-G diamond-plate steel body, tubular frame |
36V | 14-G diamond-plate steel body, tubular frame |
Suspension | |
|---|---|
24V | Dual coil springs and shock absorber on rear |
24V | Dual coil springs and shock absorber on rear |
Brakes | |
|---|---|
24V | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
36V | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
Wheels | |
|---|---|
24V | 4.8×8 LRC pneumatic tires |
36V | 4.8×8 LRC pneumatic tires |
Steering | |
|---|---|
24V | Automotive steering wheel |
36V | Automotive steering wheel |
Seats | |
|---|---|
24V | Bucket seat on slide adjusters |
36V | Bucket seat on slide adjusters |
Lights | |
|---|---|
24V | Dual LED headlights & tail/brake lights |
36V | Dual LED headlights & tail/brake lights |
Indicators | |
|---|---|
24V | Battery status indicator |
36V | Battery status indicator |
Accessories | |
|---|---|
24V | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life |
36V | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life. |
Safety | |
|---|---|
24V | Reverse alarm, deadman seat switch, horn |
36V | Reverse alarm, deadman seat switch, horn |
Specifications and standard equipment are subject to change without notice.
