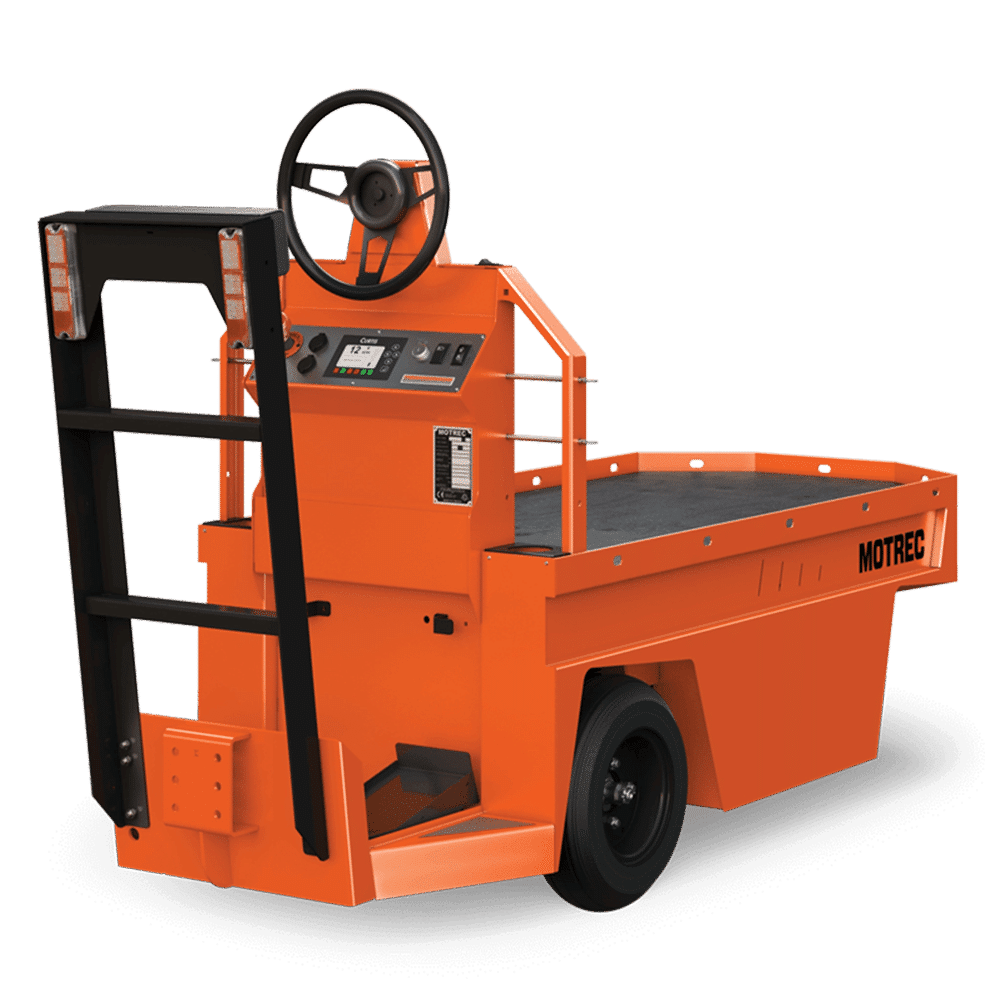

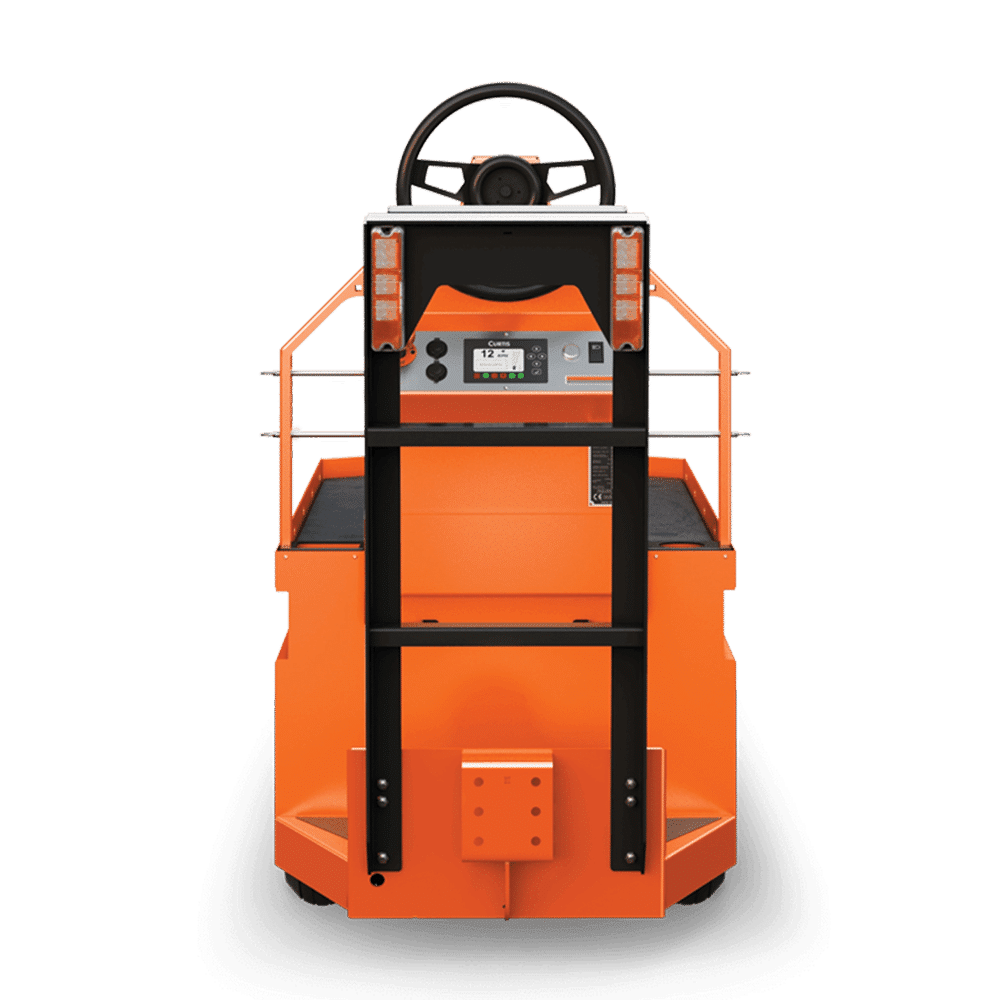

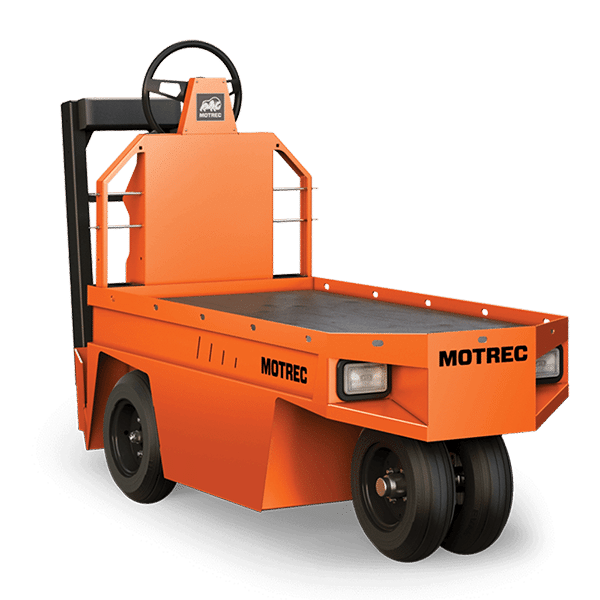

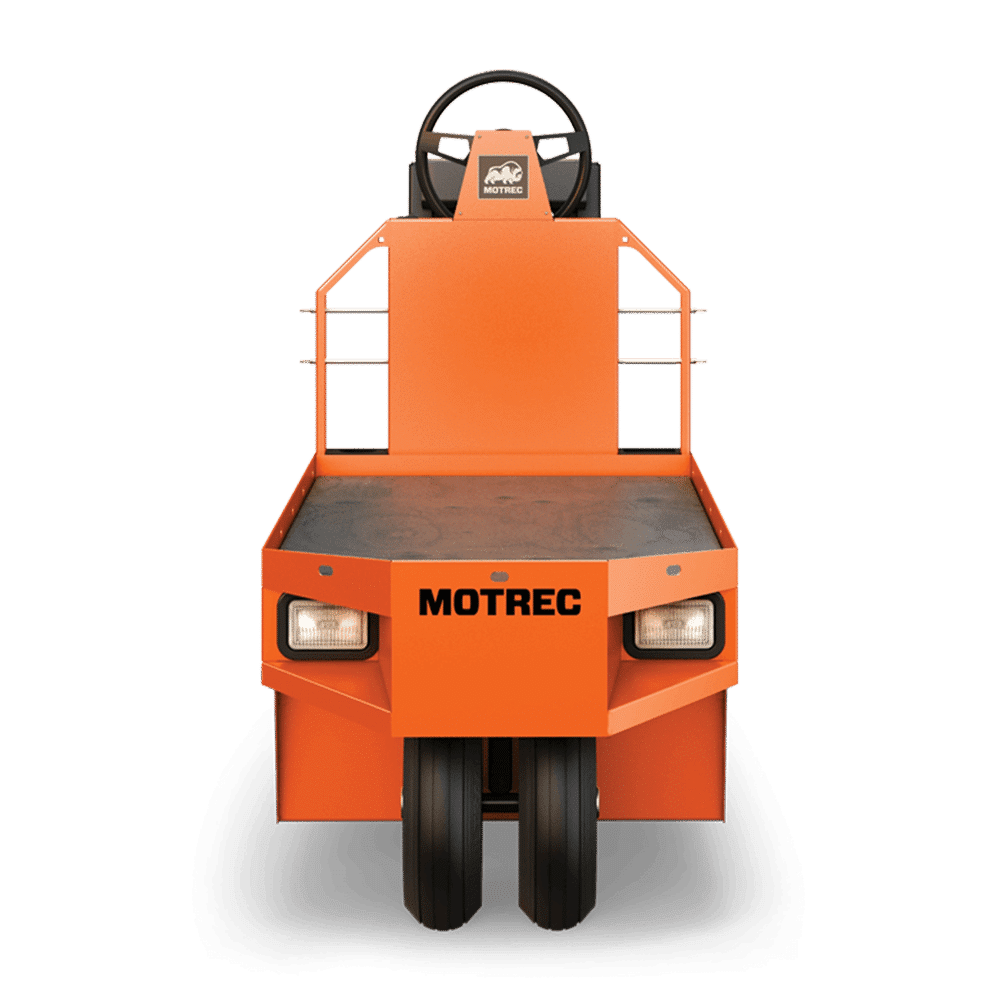

The industry’s most versatile stand-up stock chaser / order picker now offers even more. More capacity: up to 793 Kg. for towing and 2,721Kg. for loads. More standard features: leaf spring suspension, integrated 2-step ladder and loading anchors, USB charger, storage compartments, fully protected electrical components and more. More options: AC powertrain and robust front rubber bumper. Of course, the MS-260 still has a long list of standard driver-friendly features: 1,500 mm deck, dual front wheels, short turning radius, light-touch controls, padded backrest, ergonomic driving position, low-step entry…. And as always, it can be fully customized.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
36V | 1 | 680 kg | 2720 kg | 13 kmh | 1500 mm |
48V | 1 | 790 kg | 2720 kg | 13 kmh | 1500 mm |
48V Lithium | 1 | 790 kg | 2720 kg | 13 kmh | 1500 mm |
48V XL | 1 | 905 kg | 2720 kg | 13 kmh | 1612 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 680 kg |
Towing Capacity | 2720 kg |
Speed | 13 kmh |
Turning Radius | 1500 mm |
48V | |
|---|---|
Passengers | 1 |
Load Capacity | 790 kg |
Towing Capacity | 2720 kg |
Speed | 13 kmh |
Turning Radius | 1500 mm |
48V Lithium | |
|---|---|
Passengers | 1 |
Load Capacity | 790 kg |
Towing Capacity | 2720 kg |
Speed | 13 kmh |
Turning Radius | 1500 mm |
48V XL | |
|---|---|
Passengers | 1 |
Load Capacity | 905 kg |
Towing Capacity | 2720 kg |
Speed | 13 kmh |
Turning Radius | 1612 mm |
36V | 48V | 48V Lithium | 48V XL |
|---|---|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
10 HP shunt motor | 15 HP brushless AC motor | 15 HP brushless AC motor | 15 HP brushless AC motor | ||
Drive Axel | |||||
Helical gear differential | Helical gear differential | Helical gear differential | Helical gear differential | ||
Transmission | |||||
Direct drive | Direct drive | Direct drive | Direct drive | ||
Controller | |||||
SEPEX Electronic speed controller | Electronic speed controller | AC Electronic speed controller | |||
ENERGY | |||
|---|---|---|---|
Voltage | |||
36V | 48V | 48V | 48V |
Battery | |||
Six 6V-225AH batteries | Eight 6V-225AH batteries | Lithium 48V-180Ah 9.3Kwh, Lithium 48V-120Ah 6.2Kwh | Eight 6V-225AH batteries |
Charger | |||
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | 48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
CHASSIS | |||
|---|---|---|---|
Body | |||
All-steel unibody construction, powder coating | All-steel unibody construction, powder coating | 15 HP brushless AC motor | 15 HP brushless AC motor |
Suspension | |||
Leaf springs rear suspension system, dual front wheels to ensure the stability | Leaf springs rear suspension system, dual front wheels to ensure the stability | Rear leaf springs suspension | Rear leaf springs suspension, Dual front wheels to ensure the stability |
Brakes | |||
Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking |
Wheels | |||
Pneumatic LRC tires | Pneumatic LRC tires | Pneumatic LRC tires | Pneumatic LRC tires |
Steering | |||
Automotive steering wheel | Automotive steering wheel | Automotive steering wheel | Automotive steering wheel |
Seats | |||
Padded backrest | Padded backrest | Padded backrest | Padded backrest |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
LED dual headlights | LED dual headlights | LED dual headlights | LED dual headlights | ||
Indicators | |||||
Battery status indicator | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | ||
Accessories | |||||
USB charger, backlit and sealed buttons | USB charger, Converter for 12-volt accessories, Backlit and sealed buttons | USB charger, DC/DC converter, Backlit and sealed buttons | USB charger, Converter for 12-volt accessories, Backlit and sealed buttons | ||
Safety | |||||
Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch | Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch | Reverse alarm, Deadman foot switch, Horn, Emergency Stop Button, Jam-free pedal, Anti slip griptape, Charging interlock switch | Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch | ||
Specifications and standard equipment are subject to change without notice.
MOTOR | |
|---|---|
36V | 10 HP shunt motor |
48V | 15 HP brushless AC motor |
48V Lithium | 15 HP brushless AC motor |
48V XL | 15 HP brushless AC motor |
Drive Axle | |
|---|---|
36V | Helical gear differential |
48V | Helical gear differential |
48V Lithium | Helical gear differential |
48V XL | Helical gear differential |
Transmission | |
|---|---|
36V | Direct drive |
48V | Direct drive |
48V Lithium | Direct drive |
48V XL | Direct drive |
Controller | |
|---|---|
36V | SEPEX Electronic speed controller |
48V | Electronic speed controller |
48V Lithium | AC Electronic speed controller |
48V XL | SEPEX Electronic speed controller |
Voltage | |
|---|---|
36V | 36V |
48V | 48V |
48V Lithium | 48V |
48V XL | 48V |
Battery | |
|---|---|
36V | Six 6V-225AH batteries |
48V | Eight 6V-225AH batteries |
48V Lithium | Lithium 48V-180Ah 9.3Kwh, Lithium 48V-120Ah 6.2Kwh |
48V XL | Eight 6V-225AH batteries |
Charger | |
|---|---|
36V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
48V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
48V Lithium | 48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh |
48V XL | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
Body | |
|---|---|
36V | All-steel unibody construction, powder coating |
48V | All-steel unibody construction, powder coating |
48V Lithium | All-steel unibody construction, powder coating |
48V XL | All-steel unibody construction, powder coating |
Suspension | |
|---|---|
36V | Leaf springs rear suspension system, dual front wheels to ensure the stability |
48V | Leaf springs rear suspension system, dual front wheels to ensure the stability |
48V Lithium | Rear leaf springs suspension |
48V XL | Rear leaf springs suspension, Dual front wheels to ensure the stability |
Brakes | |
|---|---|
36V | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking |
48V | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking |
48V Lithium | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking |
48V XL | Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking |
Wheels | |
|---|---|
36V | Pneumatic LRC tires |
48V | Pneumatic LRC tires |
48V Lithium | Pneumatic LRC tires |
48V XL | Pneumatic LRC tires |
Steering | |
|---|---|
36V | Automotive steering wheel |
48V | Automotive steering wheel |
48V Lithium | Automotive steering wheel |
48V XL | Automotive steering wheel |
Seats | |
|---|---|
36V | Padded backrest |
48V | Padded backrest |
48V Lithium | Padded backrest |
48V XL | Padded backrest |
Lights | |
|---|---|
36V | LED dual headlights |
48V | LED dual headlights |
48V Lithium | LED dual headlights |
48V XL | LED dual headlights |
Indicators | |
|---|---|
36V | Battery status indicator |
48V | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability |
48V Lithium | Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability |
48V XL | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability |
Accessories | |
|---|---|
36V | USB charger, backlit and sealed buttons |
48V | USB charger, Converter for 12-volt accessories, Backlit and sealed buttons |
48V Lithium | USB charger, DC/DC converter, Backlit and sealed buttons |
48V XL | USB charger, Converter for 12-volt accessories, Backlit and sealed buttons |
Safety | |
|---|---|
36V | Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch |
36V | Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch |
48V Lithium | Reverse alarm, Deadman foot switch, Horn, Emergency Stop Button, Jam-free pedal, Anti slip griptape, Charging interlock switch |
48V XL | Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch |
Specifications and standard equipment are subject to change without notice.
