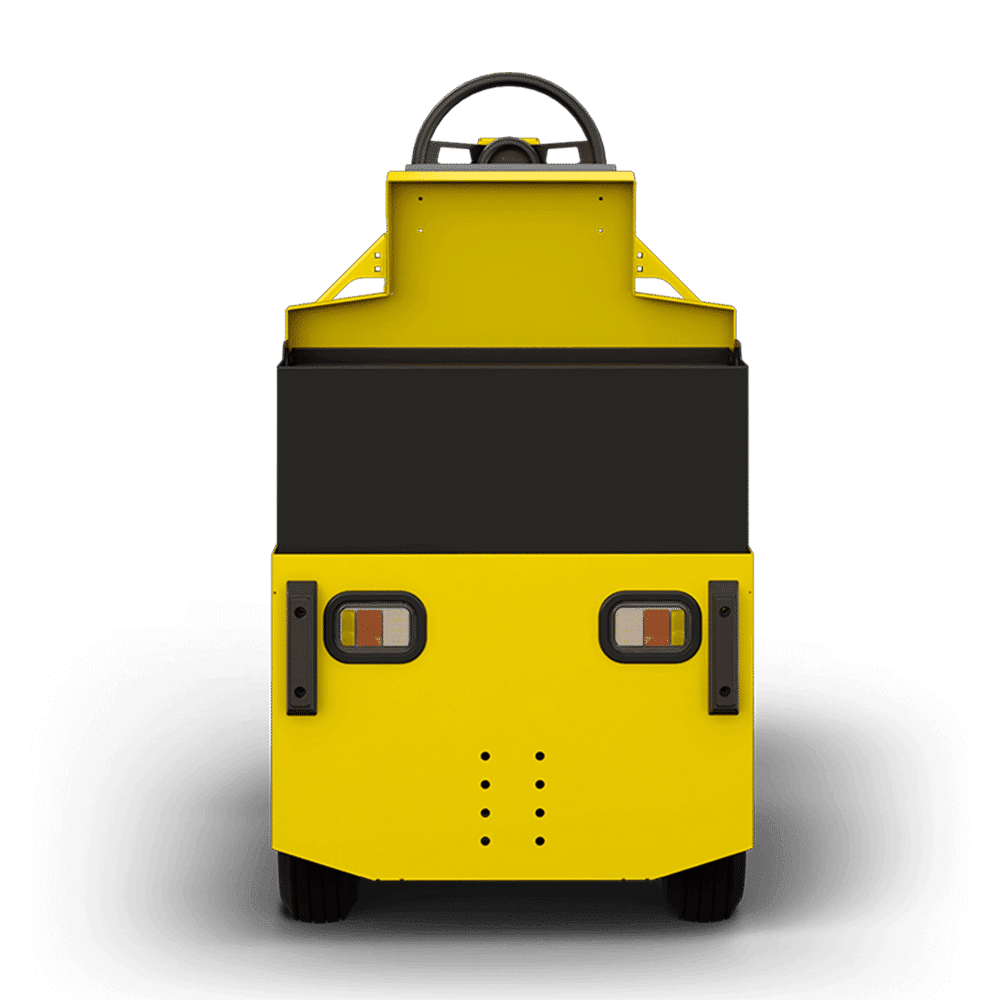

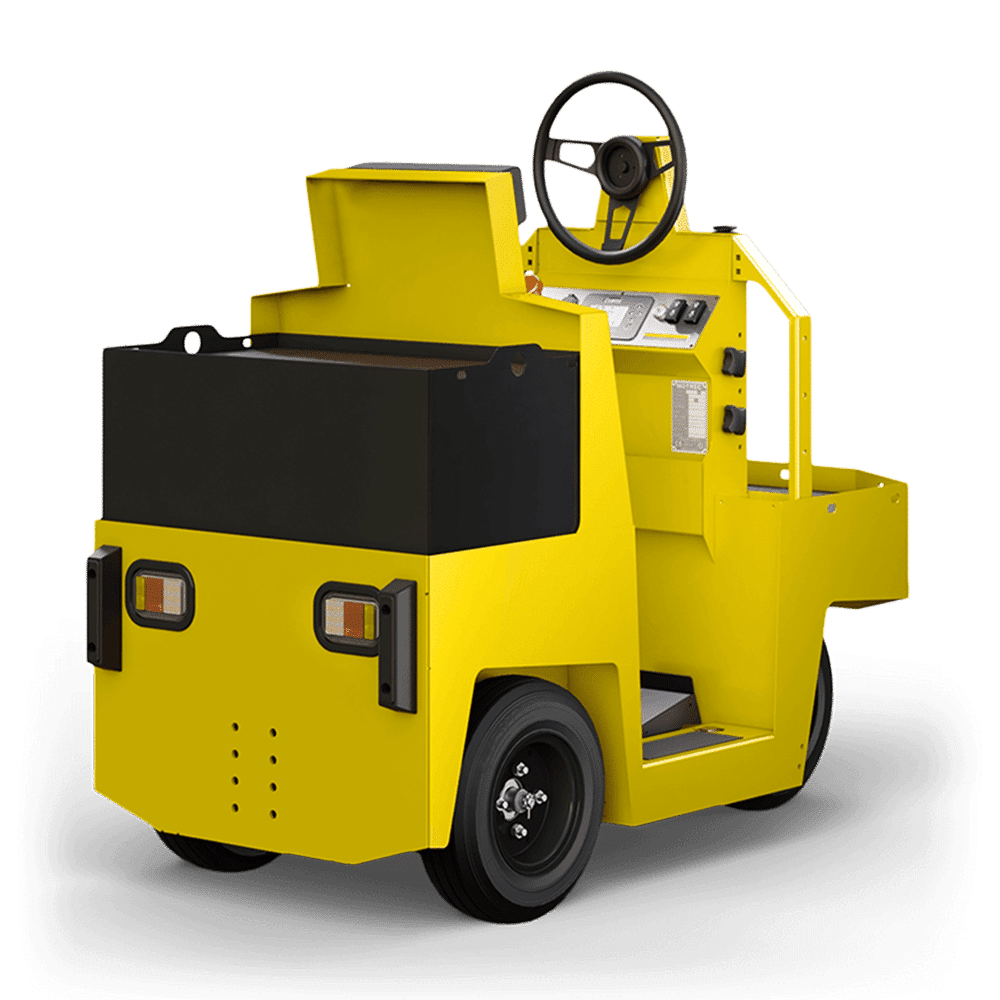

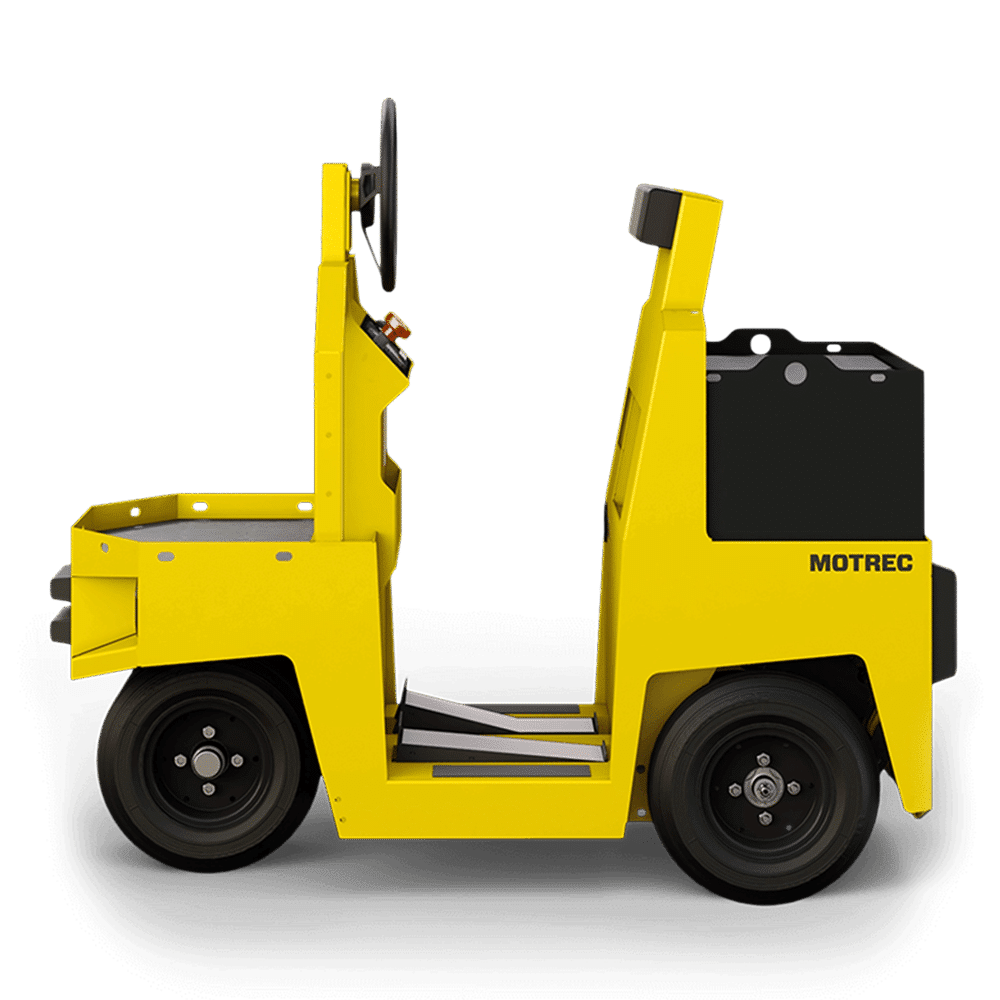

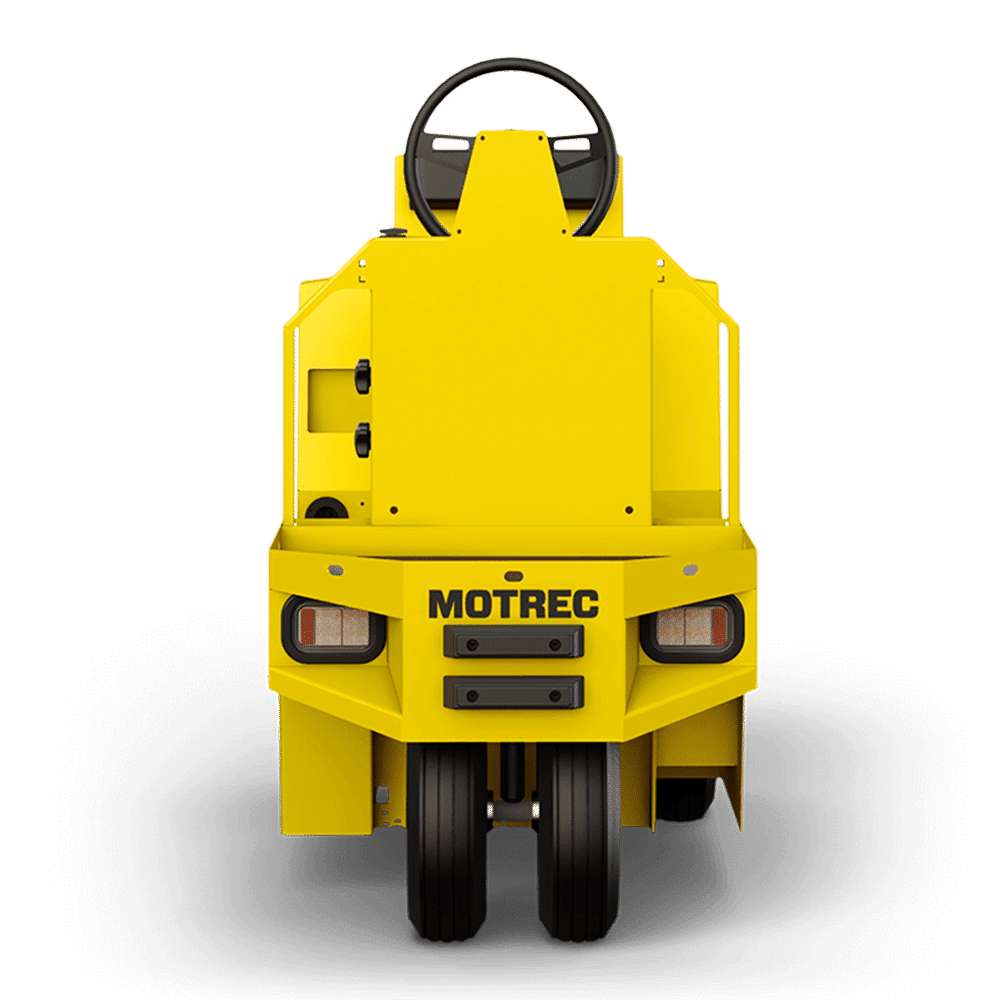

This agile 376cm wide stand-up tow tractor will safely take you and your heavy loads just about anywhere – even through narrow doorways and corridors. It’s ideal for industrial, commercial or institutional applications requiring maneuverability and up to 2,720Kg of stable towing power. It can even double as a stock chaser. Its maintenance-free AC motor will boost productivity with 50% longer runtime. Its automatic parking brake, upgraded suspension, 360° visibility, low step height and anti-fatigue mats will boost comfort and safety. All come standard.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
36V | 1 | 230 kg | 2,720 kg | 10 kmh | 1,372 mm |
48V | 1 | 230 kg | 2,720 kg | 10 kmh | 1,372 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 2,720 kg |
Speed | 10 kmh |
Turning Radius | 1,372 mm |
48V | |
|---|---|
Passengers | 1 |
Load Capacity | 230 kg |
Towing Capacity | 2,720 kg |
Speed | 10 kmh |
Turning Radius | 1,372 mm |
Passengers | |
|---|---|
Load Capacity | |
Towing Capacity | |
Speed | |
Turning Radius | |
36V | 48V | |
|---|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
10 HP brushless AC motor | 15 hp Brushless AC motor | ||||
Drive Axel | |||||
Helical gear differential | Helical gear differential | ||||
Transmission | |||||
Direct drive | Direct drive | ||||
Controller | |||||
Electronic AC speed controller | AC Electronic speed controller | ||||
ENERGY | ||
|---|---|---|
Voltage | ||
36V | 48V | |
Battery | ||
Six 6V-225AH batteries | 48V TPPL battery pack, 157AH | |
Charger | ||
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic | |
CHASSIS | ||
|---|---|---|
Body | ||
All-steel unibody construction | ||
Suspension | ||
Leaf springs rear suspension system, dual front wheels to ensure the stability | Rear leaf springs suspension, Dual front wheels to ensure the stability | |
Brakes | ||
Self-adjusting H.D. drum brake, Regenerative braking, electromagnetic parking brake | Self-adjusting H.D. drum brake, Regenerative braking, Electromagnetic parking brake | |
Wheels | ||
4.8×8 LRC pneumatic tyres | 4.8×8 LRC pneumatic tires | |
Steering | ||
Automotive steering wheel | Automotive steering wheel | |
Seats | ||
Padded backrest | Padded backrest | |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
Dual LED headlights & tail/brake lights | Dual LED headlights, Tail/brake lights | ||||
Indicators | |||||
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. | Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability | ||||
Accessories | |||||
36V accessories | 48V accessories | ||||
Safety | |||||
Reverse Alarm, Deadman Foot Switch, Emergency Stop Button, Horn, jam-free pedal, anti-fatigue mat, anti-slip griptape, charging interlock switch | Reverse alarm, Deadman foot switch, Emergency Stop Button, Horn, Jam-free pedal, Anti-fatigue mat, Anti slip griptape, Charging interlock switch | ||||
Specifications and standard equipment are subject to change without notice.
Motor | |
|---|---|
36V | 10 HP brushless AC motor |
48V | 15 hp Brushless AC motor |
Drive Axle | |
|---|---|
36V | Helical gear differential |
48V | Helical gear differential |
Transmission | |
|---|---|
36V | Direct drive |
48V | Direct drive |
Controller | |
|---|---|
36V | Electronic AC speed controller |
48V | AC Electronic speed controller |
Voltage | |
|---|---|
36V | 36V |
48V | 48V |
Battery | |
|---|---|
36V | Six 6V-225AH batteries |
48V | 48V TPPL battery pack, 157AH |
Charger | |
|---|---|
36V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
48V | High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic |
Body | |
|---|---|
36V | All-steel unibody construction |
48V | All-steel unibody construction |
Suspension | |
|---|---|
36V | Leaf springs rear suspension system, dual front wheels to ensure the stability |
48V | Rear leaf springs suspension, Dual front wheels to ensure the stability |
Brakes | |
|---|---|
36V | Self-adjusting H.D. drum brake, Regenerative braking, electromagnetic parking brake |
48V | Self-adjusting H.D. drum brake, Regenerative braking, Electromagnetic parking brake |
Wheels | |
|---|---|
36V | 4.8×8 LRC pneumatic tyres |
48V | 4.8×8 LRC pneumatic tires |
Steering | |
|---|---|
36V | Automotive steering wheel |
48V | Automotive steering wheel |
Seats | |
|---|---|
36V | Padded backrest |
48V | Padded backrest |
Lights | |
|---|---|
36V | Dual LED headlights & tail/brake lights |
48V | Dual LED headlights, Tail/brake lights |
Indicators | |
|---|---|
36V | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
48V | Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability |
Accessories | |
|---|---|
36V | 36V accessories |
48V | 48V accessories |
Safety | |
|---|---|
36V | Reverse Alarm, Deadman Foot Switch, Emergency Stop Button, Horn, jam-free pedal, anti-fatigue mat, anti-slip griptape, charging interlock switch |
48V | Reverse alarm, Deadman foot switch, Emergency Stop Button, Horn, Jam-free pedal, Anti-fatigue mat, Anti slip griptape, Charging interlock switch |
Specifications and standard equipment are subject to change without notice.
