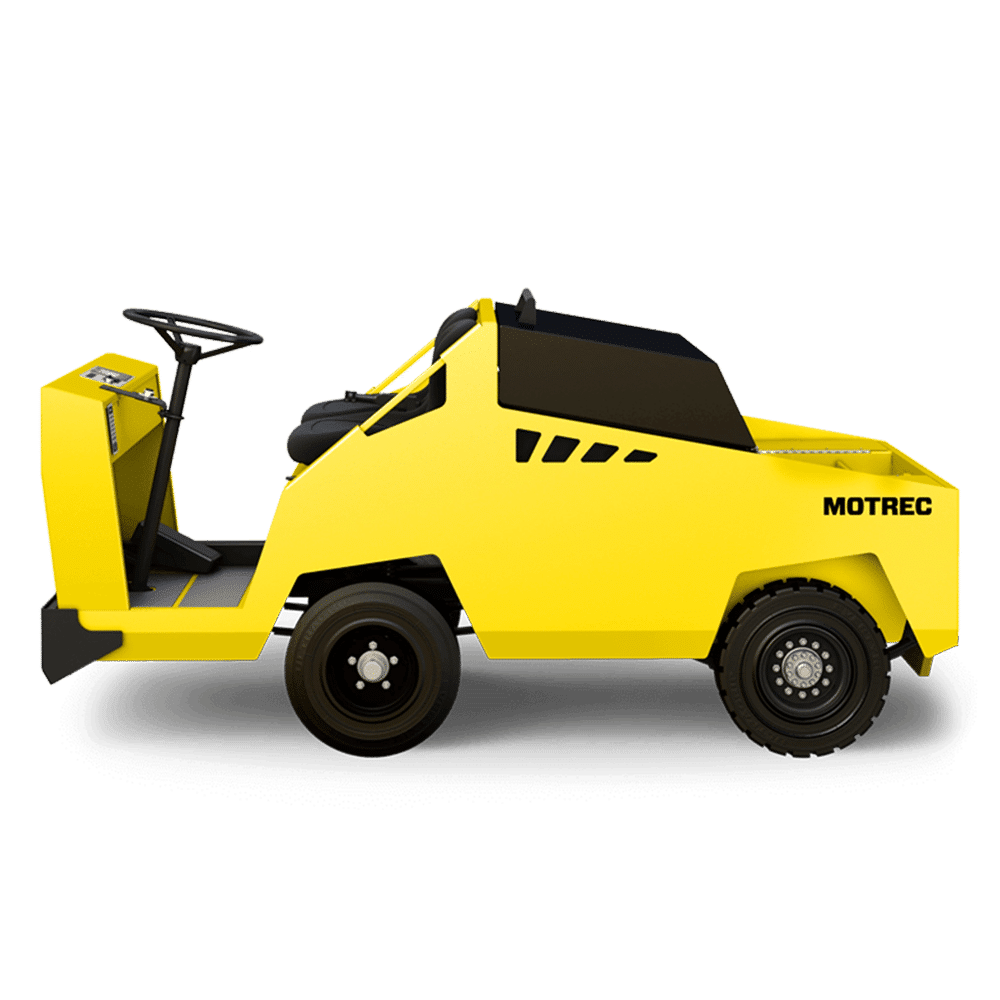

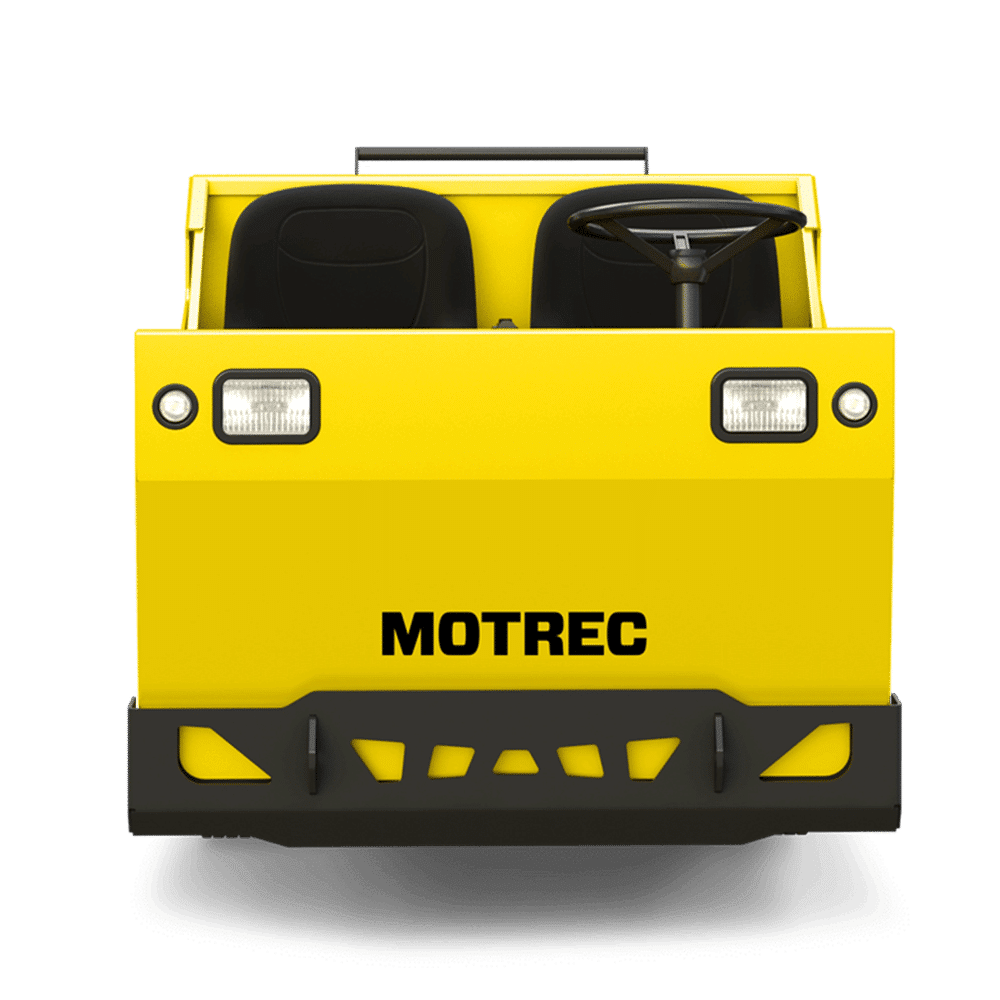

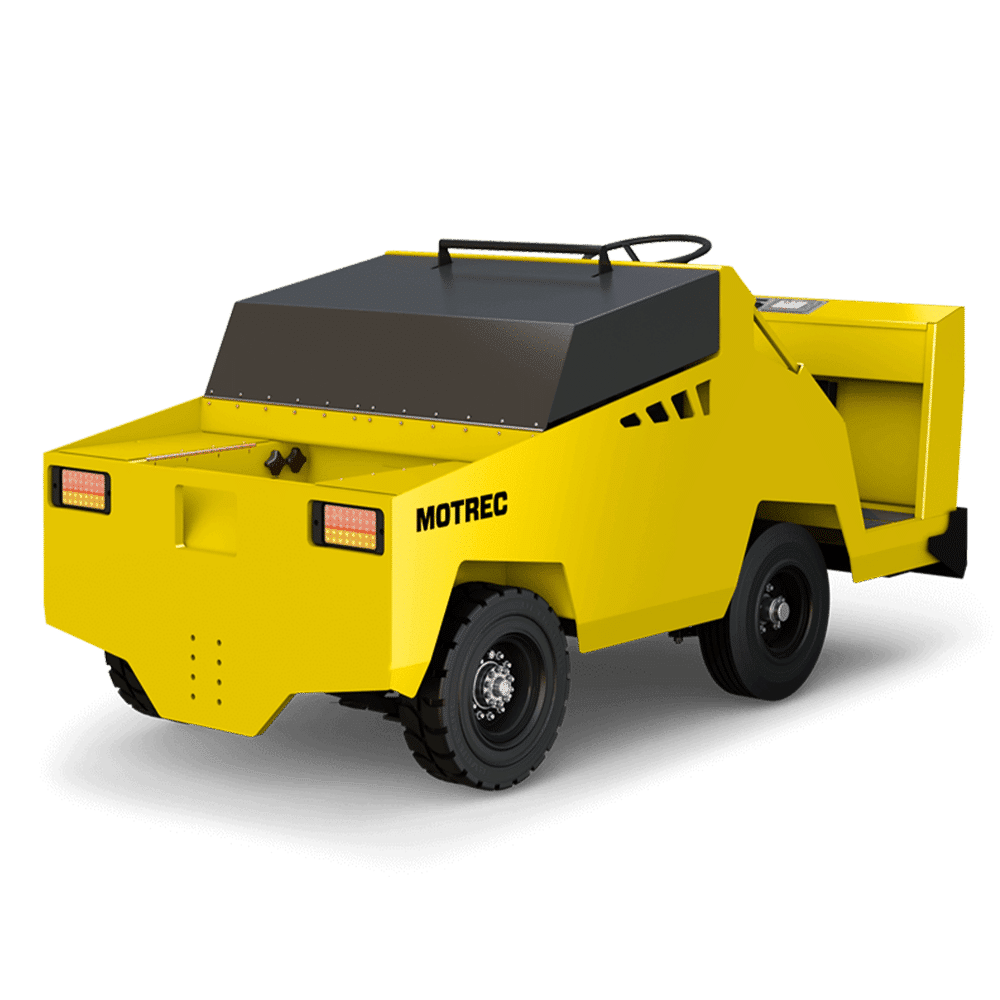

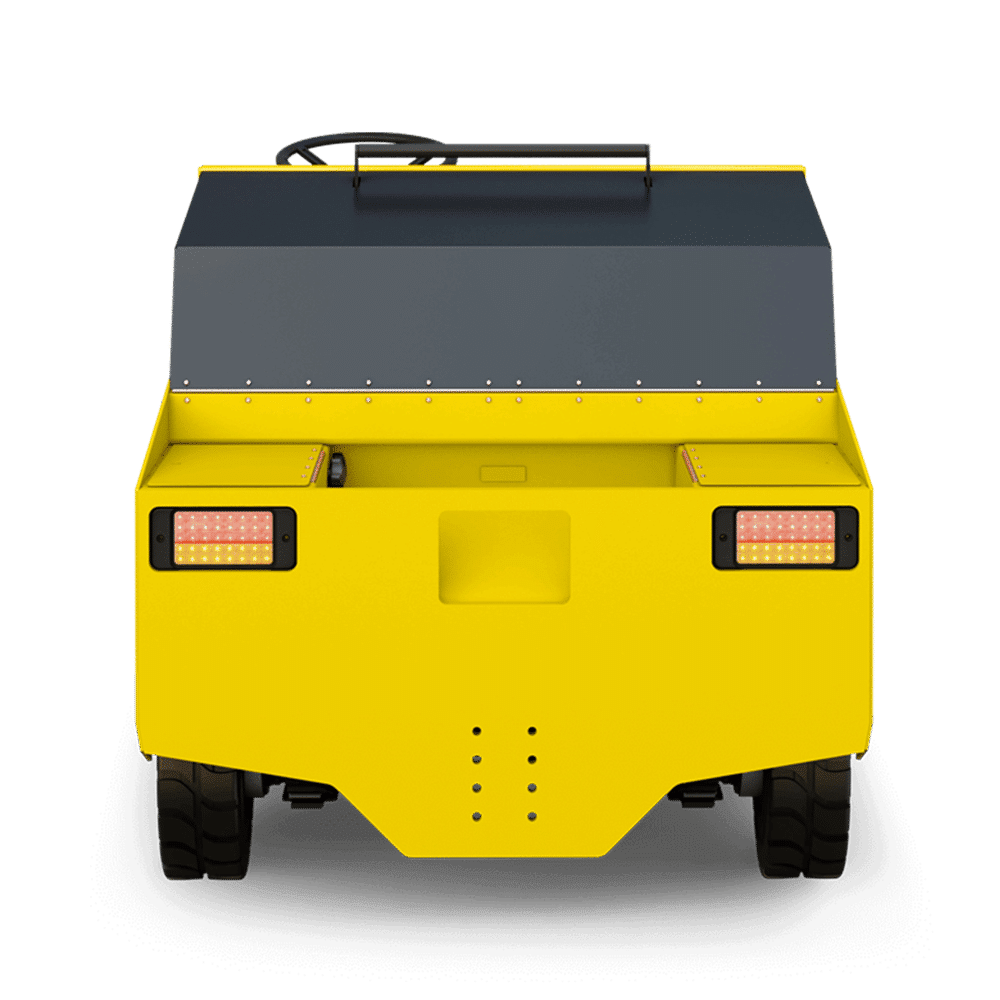

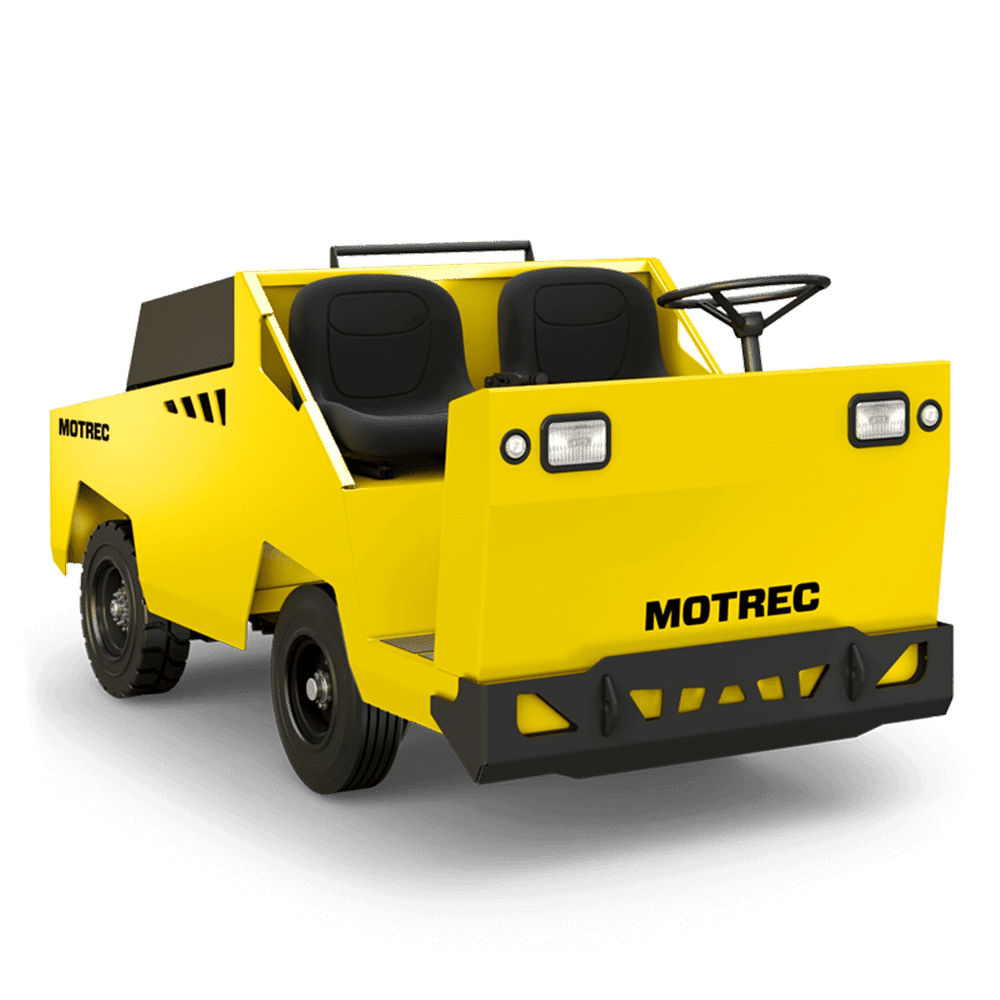

The MT-440 is the latest generation of heavy-duty tow tractors. Behind its stylish, compact design is a highly efficient AC direct-drive powertrain, plenty of power to haul 13,600 Kg.* loads over long distances, and an oversized industrial battery to lengthen running time. Features like tight turning radius, rear battery positioning and shock-dampening suspension deliver exceptional maneuverability, stability and comfort. This highly robust, low-maintenance two-seater is built to last—from bolt-on bumper to bumper. EE rating available.
48V | 48V Narrow | |||||
|---|---|---|---|---|---|---|
Power Train | ||||||
|---|---|---|---|---|---|---|
Motor | 15 HP Fan cooled AC motor | 15 HP Fan cooled AC motor | ||||
Drive Axel | Helical gear differential | Helical gear differential | ||||
Transmission | Direct drive with ground-tooth gears | Direct drive with ground-tooth gears | ||||
Controller | Electronic AC speed controller | Electronic AC speed controller | ||||
Energy | ||||||
|---|---|---|---|---|---|---|
Voltage | 48V | 48V | ||||
Battery | Battery to be specified | Battery to be specified | ||||
Charger | Charger to be specified | Charger to be specified | ||||
Chassis | ||||||
|---|---|---|---|---|---|---|
Body | – | All-steel unibody construction | ||||
Suspension | Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension | Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension | ||||
Brakes | Four-wheel hydraulic brakes, regenerative braking | Four-wheel hydraulic brakes, regenerative braking | ||||
Wheels | 500×8 solid softy rubber wheels on split rims | 500×8 solid softy rubber wheels on split rims | ||||
Steering | Automotive steering wheel | Automotive steering wheel | ||||
Seats | Two bucket seats on slide adjusters | Bucket seat on slide adjusters | ||||
Equipment | ||||||
|---|---|---|---|---|---|---|
Lights | Dual LED headlights & tail/brake lights | Dual LED headlights & tail/brake lights | ||||
Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. “ | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | ||||
Accessories | 48V/12V converter for 12-volt accessories | 48V/12V converter for 12-volt accessories | ||||
Safety | Reverse alarm, deadman seat switch, horn | Reverse alarm, deadman seat switch, horn | ||||
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | 15 HP Fan cooled AC motor | |
Drive Axel | Helical gear differential | |
Transmission | Direct drive with ground-tooth gears | |
Controller | Electronic AC speed controller | |
Energy | ||
|---|---|---|
Voltage | 48V | |
Battery | Battery to be specified | |
Charger | Charger to be specified | |
Chassis | ||
|---|---|---|
Body | – | |
Suspension | Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension | |
Brakes | Four-wheel hydraulic brakes, regenerative braking | |
Wheels | 500×8 solid softy rubber wheels on split rims | |
Steering | Automotive steering wheel | |
Seats | Two bucket seats on slide adjusters | |
Equipment | ||
|---|---|---|
Lights | Dual LED headlights & tail/brake lights | |
Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. “ | |
Accessories | 48V/12V converter for 12-volt accessories | |
Safety | Reverse alarm, deadman seat switch, horn | |
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | 15 HP Fan cooled AC motor | |
Drive Axel | Helical gear differential | |
Transmission | Direct drive with ground-tooth gears | |
Controller | Electronic AC speed controller | |
Energy | ||
|---|---|---|
Voltage | 48V | |
Battery | Battery to be specified | |
Charger | Charger to be specified | |
Chassis | ||
|---|---|---|
Body | All-steel unibody construction | |
Suspension | Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension | |
Brakes | Four-wheel hydraulic brakes, regenerative braking | |
Wheels | 500×8 solid softy rubber wheels on split rims | |
Steering | Automotive steering wheel | |
Seats | Bucket seat on slide adjusters | |
Equipment | ||
|---|---|---|
Lights | Dual LED headlights & tail/brake lights | |
Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | |
Accessories | 48V/12V converter for 12-volt accessories | |
Safety | Reverse alarm, deadman seat switch, horn | |
Specifications and standard equipment are subject to change without notice.
