80V | |
|---|---|
Passengers | 2 |
Load Capacity | 680 kg |
Towing Capacity | 22680 kg |
Speed | 24 kmh |
Turning Radius | 3050 mm |

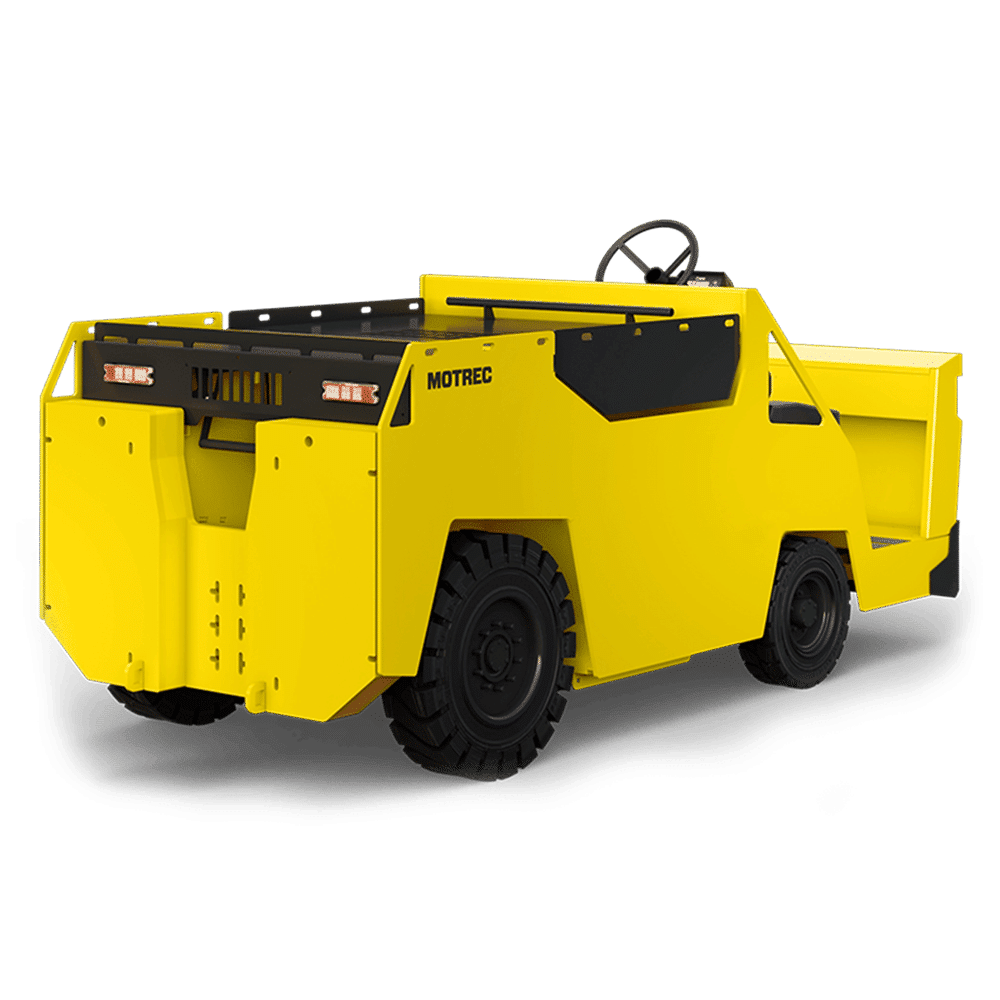

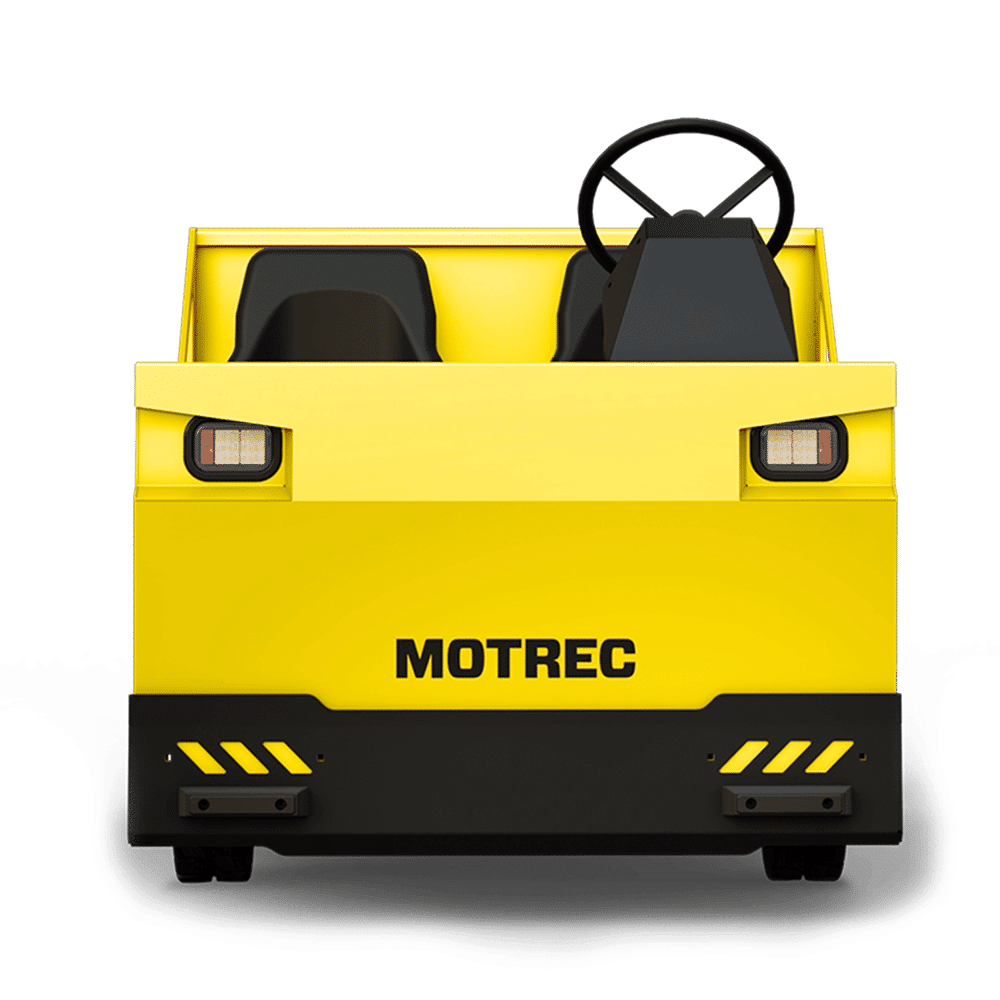

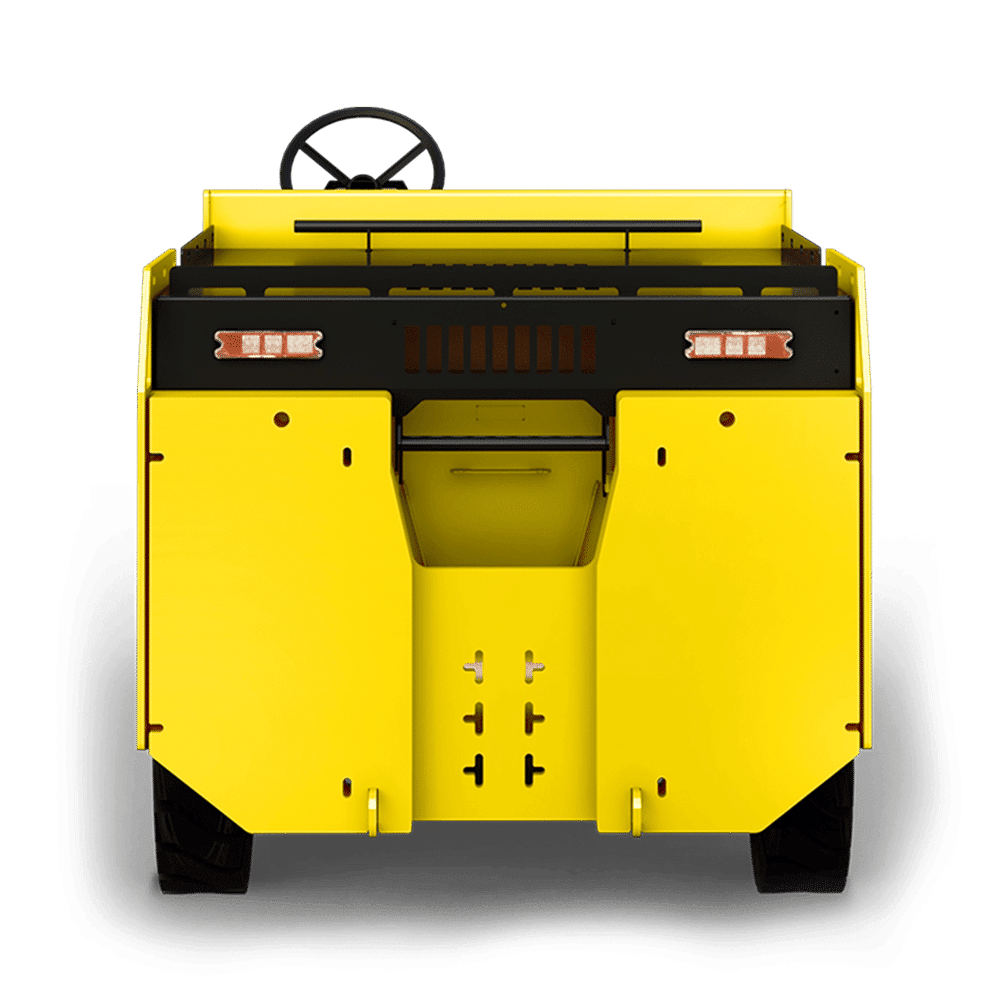

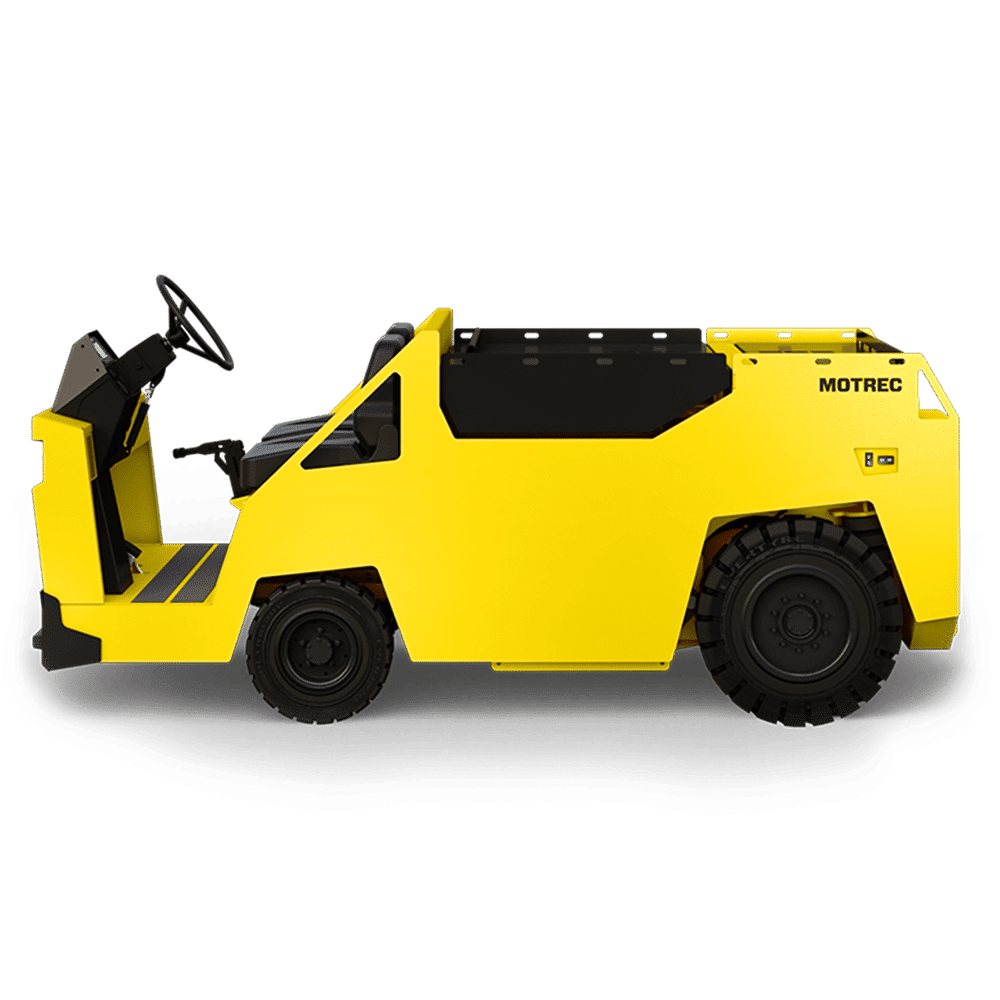

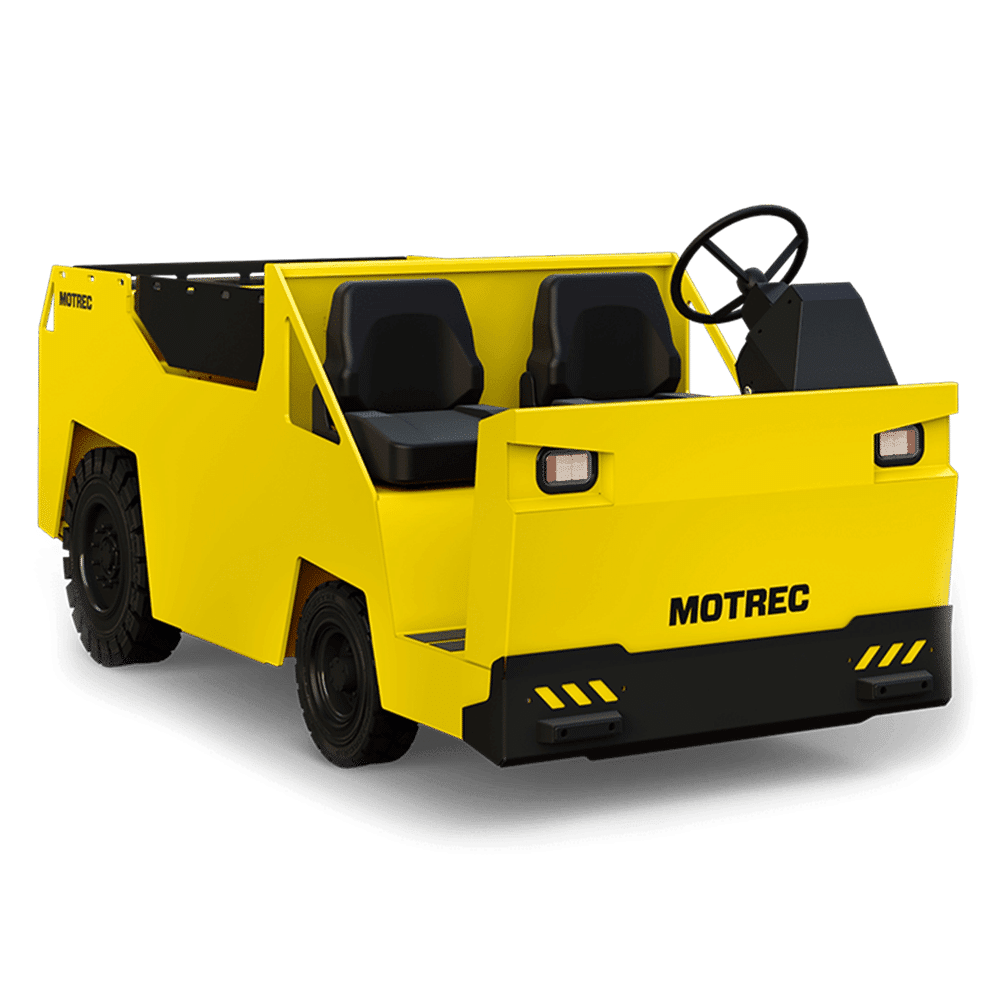

The MT-800 is a compact two-seater that’s engineered to deliver massive towing power in cramped industrial settings. Its 40 hp AC direct-drive motor easily hauls long, heavy loads up to 22,680 Kg. Its dual planetary wheel drive with enclosed wet disks reduces maintenance. Its electric regenerative brakes lengthen running time. And its thick, one-piece welded steel plate chassis – reinforced at all high-stress areas – makes this rugged workhorse virtually indestructible.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
80V | 2 | 680 kg | 22680 kg | 24 kmh | 3050 mm |
80V | |
|---|---|
Passengers | 2 |
Load Capacity | 680 kg |
Towing Capacity | 22680 kg |
Speed | 24 kmh |
Turning Radius | 3050 mm |
80V |
|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
40 HP AC motor | |||||
Drive Axel | |||||
Dual planetary wheel drives | |||||
Transmission | |||||
Integrated motor/axle, direct drive | |||||
Controller | |||||
Electronic speed controller, Inching controls on rear | |||||
ENERGY |
|---|
Voltage |
80V |
Battery |
Battery to be specified |
Charger |
Charger to be specified |
CHASSIS |
|---|
Body |
All-steel unibody construction |
Suspension |
Front leaf spring suspension with dual shock absorbers, rear rubber spring suspension |
Brakes |
Electric regenerative braking, hydraulic brakes with front dry discs and rear wet discs, hand lever parking brake |
Wheels |
Solid softy wheels, front 600×9, rear 700×12 |
Steering |
Power steering with hydrostatic orbitrol and hydraulic cylinder |
Seats |
Two suspension seats on slide adjusters |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
LED dual headlights & tail/brake lights, turn signals | |||||
Indicators | |||||
Digital display, battery status, hour meter, Fault diagnostic | |||||
Accessories | |||||
80V/12V converter for 12-volt accessories, horn | |||||
Safety | |||||
Deadman seat switch, reverse alarm | |||||
Specifications and standard equipment are subject to change without notice.
MOTOR | |
|---|---|
80V | 40 HP AC motor |
Drive Axle | |
|---|---|
80V | Dual planetary wheel drives |
Transmission | |
|---|---|
80V | Integrated motor/axle, direct drive |
Controller | |
|---|---|
80V | Electronic speed controller, Inching controls on rear |
Voltage | |
|---|---|
80V | 80V |
Battery | |
|---|---|
80V | Battery to be specified |
Charger | |
|---|---|
80V | Charger to be specified |
Body | |
|---|---|
80V | All-steel unibody construction |
Suspension | |
|---|---|
80V | Front leaf spring suspension with dual shock absorbers, rear rubber spring suspension |
Brakes | |
|---|---|
80V | Electric regenerative braking, hydraulic brakes with front dry discs and rear wet discs, hand lever parking brake |
Wheels | |
|---|---|
80V | Solid softy wheels, front 600×9, rear 700×12 |
Steering | |
|---|---|
80V | Power steering with hydrostatic orbitrol and hydraulic cylinder |
Seats | |
|---|---|
80V | Two suspension seats on slide adjusters |
Lights | |
|---|---|
80V | LED dual headlights & tail/brake lights, turn signals |
Indicators | |
|---|---|
80V | Digital display, battery status, hour meter, Fault diagnostic |
Accessories | |
|---|---|
80V | 80V/12V converter for 12-volt accessories, horn |
Safety | |
|---|---|
80V | Deadman seat switch, reverse alarm |
Specifications and standard equipment are subject to change without notice.
